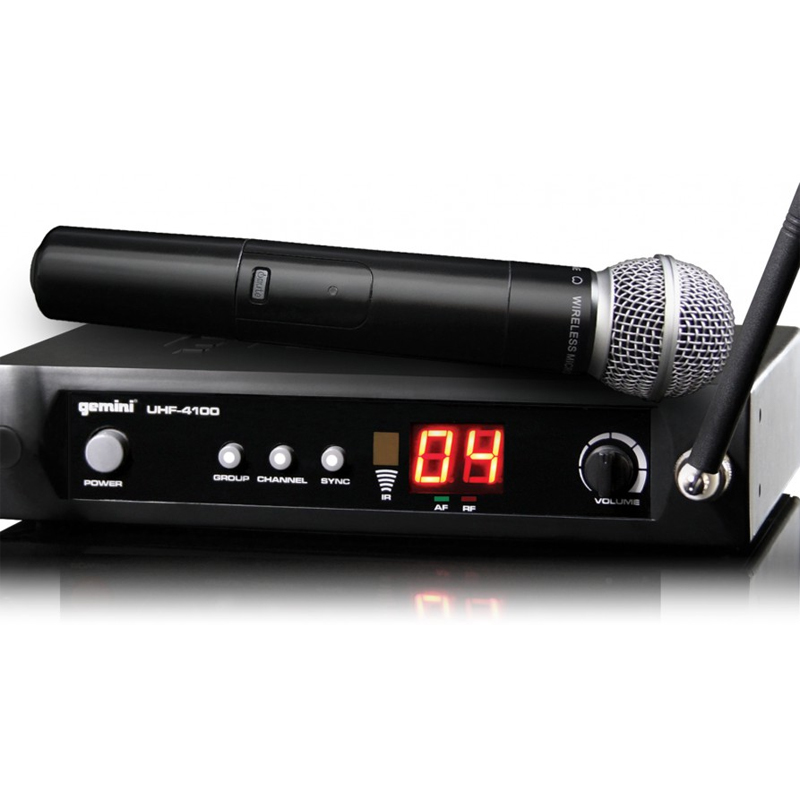

Gemini  UHF-4100M

100-channel UHF Wireless System with Receiver and Transmitter Handheld Microphone

Item #35749

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:



SPECIFICATIONS



FEATURES


General Features:

  • Single UHF receiver with 250' range
  • US: 100 operating frequencies between 682MHz and 698MHz
  • Allows up to 8 mics to be used simultaneously without interference
  • Switchable automatic/manual frequency selection
  • Phase Locked Loop (PLL) circuitry for increased reception
  • RF and AF LED indicators for monitoring incoming signal strength
  • Auto mute with built-in noise reduction
  • Front panel output level control
  • Balanced XLR and unbalanced 1/4" outputs
  • Microphone On/Off switch
  • Unidirectional, handheld dynamic microphone transmitter

Receiver Specifications:

  • Frequency range: USA: 682-698MHz
  • Europe: 854-865Mhz
  • Receiving system: PLL synthesized
  • Frequency Stability: +/- 0.005%
  • Frequency Response: 50Hz-15kHz +/- 3dB
  • Signal-to-Noise Ration: 90dB
  • Modulation Mode:FM
  • IF Frequency:80.5 MHz
  • T.H.D.:1%(@ 1kHz)
  • Sensitivity:10dBuV (FM: 40kHz, S/N>85dB)
  • Power Supply:12V DC
  • Audio Output:Balanced XLR
  • Unbalanced 1/4″
  • Dimensions 210 x 138 x 45 mm

Transmitter Specifications:

  • RF Power Output:<10dBm
  • Oscillation Mode: PLL Synthesized
  • Spurious Emission: > 50dB below carrier freq.
  • Frequency Stability: 30.005% with quartz control
  • Max Modulation: +/-60kHz
  • Current Consumption: 100mA
  • Battery Type: Two (2) AA Alkaline
  • Battery Life: 8 hours
  • Microphone Element: Unidirectional Dynamic Mic
  • Polar Pattern: Cardioid
  • Dimensions: 250 × 38mm



  • UPC: 747705207135
  • Weight: 0
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
