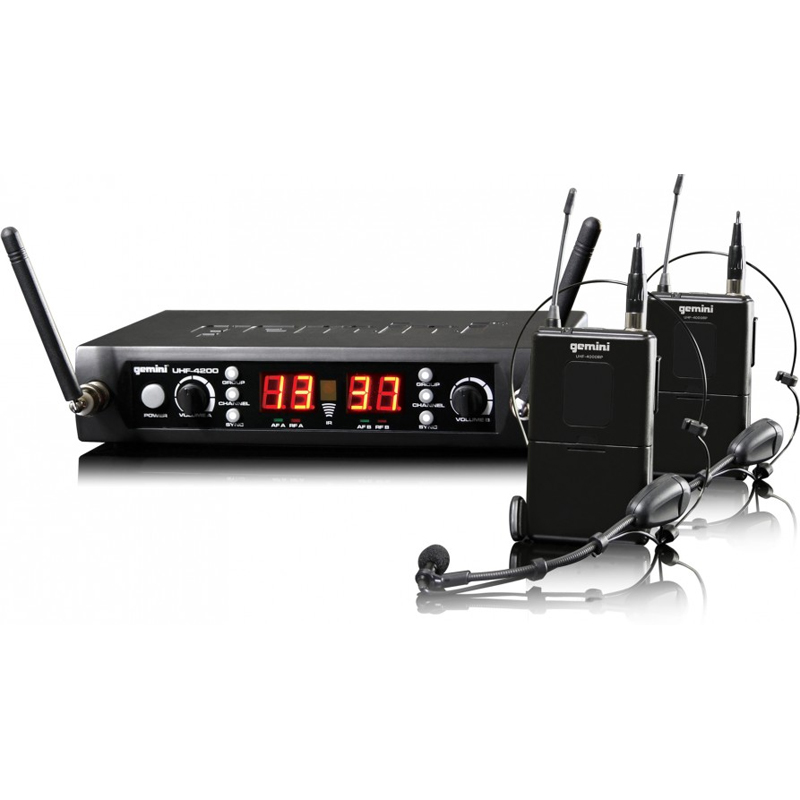

Gemini UHF-4200HL Item# 35753
Dual 100 Channel UHF Wireless System with 2 Headsets with Lavalier Microphones
Gemini :: UHF-4200HL :: $199.95
MSRP: $319.95
You Save: $120.00 (37%)
Our Price: $199.95
 Protect Your Investment (- hide options)

CPS Extended Service Plan (more info)




Condition: Brand New Avg Rating: Not Rated Yet
Free Shipping On This Item
magnifying glass

Please roll over the image to see detail.
Hint: click on the image to see larger image.

Features

General Features:

  • Dual UHF receivers with 250' range
  • US: 100 operating frequencies between 682MHz and 698MHz
  • Allows up to 8 mics to be used simultaneously without interference
  • Switchable automatic/manual frequency selection
  • Phase Locked Loop (PLL) circuitry for increased reception
  • RF and AF LED indicators for monitoring incoming signal strength
  • Auto mute with built-in noise reduction
  • Front panel output level control
  • Balance XLR and unbalanced 1/4" outputs
  • Microphone On/Off switch
  • Convertible, comfortable headset/lavalier mics with sensitivity and pop control
  • Discreet, lightweight belt pack transmitters

Receiver Specifications:

  • Frequency range: USA: 682-698MHz
  • Europe:854-865Mhz
  • Receiving system:PLL synthesized
  • Frequency Stability:+/- 0.005%
  • Frequency Response: 50Hz-15kHz +/- 3dB
  • Signal-to-Noise Ration: 90dB
  • Modulation Mode: FM
  • IF Frequency: 80.5 MHz
  • T.H.D.: 1% (@ 1kHz)
  • Sensitivity: 10dBuV (FM: 40kHz, S/N>85dB)
  • Power Supply: 12V DC
  • Audio Output: Balanced XLR
  • Unbalanced 1/4″
  • Dimensions 210 x 138 x 45 mm

Transmitter Specifications:

  • RF Power Output: <10dBm
  • Oscillation Mode: PLL Synthesized
  • Spurious Emission: > 50dB below carrier freq.
  • Frequency Stability: 30.005% with quartz control
  • Max Modulation: +/-60kHz
  • Current Consumption: 100mA
  • Battery Type: Two (2) AA Alkaline
  • Battery Life: 8 hours
  • Microphone Element: Condenser Mic
  • Polar Pattern: Cardioid
  • Dimensions: 63 x 20 x 110mm
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
