Gemini :: UHF-5200HL :: $249.95

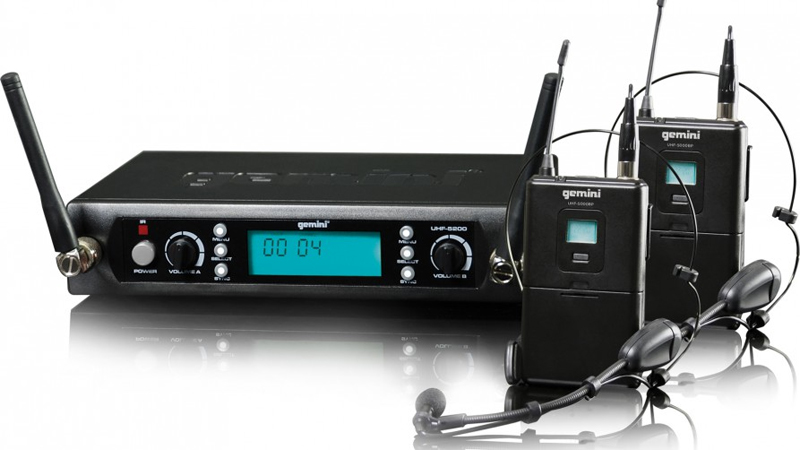

Gemini UHF-5200HL

Item# 35760

Dual 1156 Channel UHF Wireless System with Headset/Lavalier Microphones and Receiver & Belt Pack Transmitter

Sorry, this product is no longer available.

General Features:

  • Dual UHF receiver with 250' range
  • US: 1156 operating frequencies between 668MHz and 698MHz
  • Allows up to 20 mics to be used simultaneously without interference
  • Switchable automatic/manual frequency selection
  • Phase Locked Loop (PLL) circuitry for increased reception
  • RF and AF LED indicators for monitoring incoming signal strength
  • Auto mute with built-in noise reduction
  • Front panel output level control
  • Balance XLR and unbalanced 1/4" outputs
  • Microphone On/Off switch
  • Convertible, comfortable headset/lavalier mic with sensitivity and pop control
  • Discreet, lightweight belt pack transmitter

Receiver Specifications:

  • RF Power Output: <10dBm
  • Oscillation Mode: PLL Synthesized
  • Spurious Emission: > 50dB below carrier freq.
  • Frequency Stability: 30.005% with quartz control
  • Max Modulation: +/-70kHz
  • Current Consumption: 120mA
  • Battery Type:Two (2) AA Alkaline
  • Battery Life:6 hours
  • Microphone Element: Condenser Mic
  • Polar Pattern: Cardioid
  • Dimensions: 63 x 20 x 110mm


  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
