Massive Audio DBX4 - $299.99
 Item# 39032 / Condition:  Brand New

Massive Audio DBX4

Digital Quad Powered 2000 Watts Power, 4 Channel, 1.9" x 5.9" x 9.4", Full Range Digital, D-Bit Series Class AB Car Amplifier Review this product

FREE Shipping in US 48!

Regular Price:$545.95
Savings Of:$344.96
Add Extended Warranty
  • Authorized Dealer
  • comments
  • email
  • Facebook
  • Twitter
  • Print

The DBX4 is currently the most powerful CEA Certified full range digital four channel amplifier on the market. It is remarkably compact for a 2000W amplifier with dimensions that make installation in any location possible. Its digital design allows for high efficiency via its low power consumption while providing clear signal with low distortion.

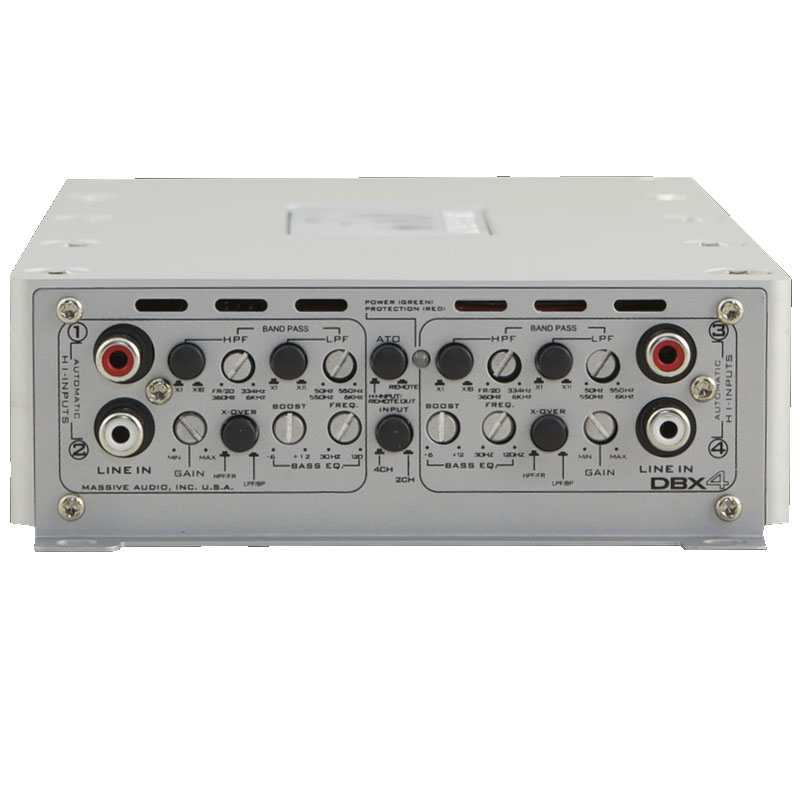

To truly appreciate this amplifier all one has to do is examine its many high tech features. The Low Pass crossover is adjustable from 50Hz – 6 KHz with the use of the X11 switch. The High Pass crossover is adjustable from 20Hz - 45 KHz or 360Hz - 6 KHz. This permits HP/LP/Band pass configurations that allow the use of raw drives without passive power robbing crossovers. The DBX4 has a single band parametric equalizer (-6Db~+ 12Db @ 30Hz – 120Hz). Built in OEM integration, via the supplied RCA “bullet” adaptors, allow the installer to wire directly into the RCA inputs which in turn activates the ‘Auto Turn-On’ feature.

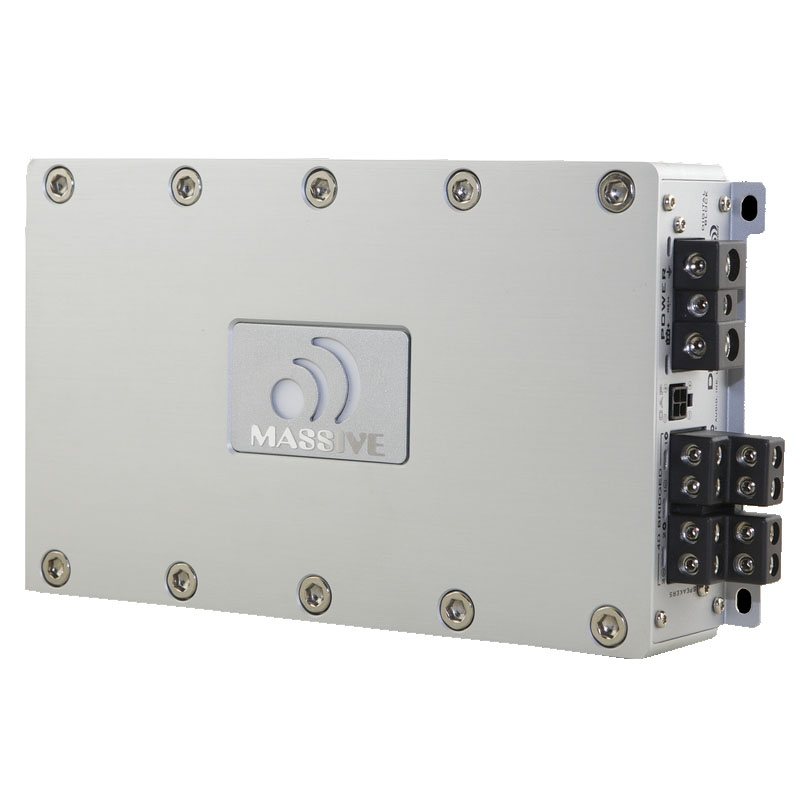

Look close and you’ll see a “docking port” on the end cap. This allows the optional DBX4 Farad Rail Capacitor to connect directly to the power supply for improved dynamics and power balance. Massive Audio has raised the bar once again with the Digital Quad Powered DBX4!

Power Output:

  • RMS Power Rating: 4 ohms: 250 watts x 4 chan.
  • Max power output: 1000 watts x 2 chan.


General Features:

  • D Bit Series 4-Channel Class AB Car Amplifier
  • X11-X18 switch for HPF/LPF/Bandpass crossover selections
  • Full range digital circuitry for extreme heat protection
  • Frequency Response: 20-45,000 Hz
  • Variable Bass Boost (6 to +12 dB bass boost at 30-120 Hz)
  • Dedicated docking port allows for use with optional Railcap X 4 farad capacitor
  • Optional capacitor wires directly into the MOSFET power supply for improved voltage control
  • 1/0 gauge power and ground wiring is required for installation
  • Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier
  • Dimensions: 5.9"W x 9.4"L x 1.9"H
  • UPC: 623169630750
  • Weight: 7
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
