Soundstream :: HARMONY :: $259.99

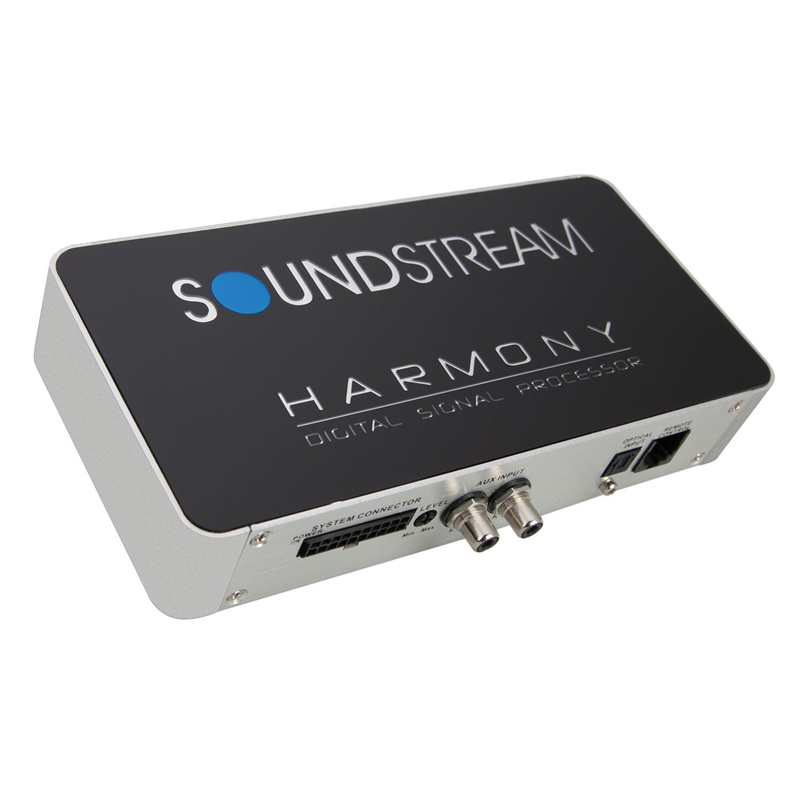

Soundstream HARMONY

Item# 40034

31-Band DSP w/ 8-ch Output, X-over, & Time Alignment

Sorry, this product is no longer available.

Digital signal processors have become popular amongst sound quality enthusiasts recently. Although they generate near audiophile grade sound, they tend to be difficult to program, and down right confusing. To remedy this conundrum, Soundstream introduces Harmony, a user friendly DIY DSP that offers the features and performance you need.


General Features:

  • Core 32 Bit / 192kHz Digital Signal Processor Powred by Cirrus Logic
  • Dedicated 8-channel DMA Engine Streams Data Without DSP Intervention
  • Integrated 105dB Dynamic Range, -98dB THD+N Analog-to-Digital Converter
  • Integrated 108dB Dynamic Range, -98dB THD+N Digital-to-Analog Converter

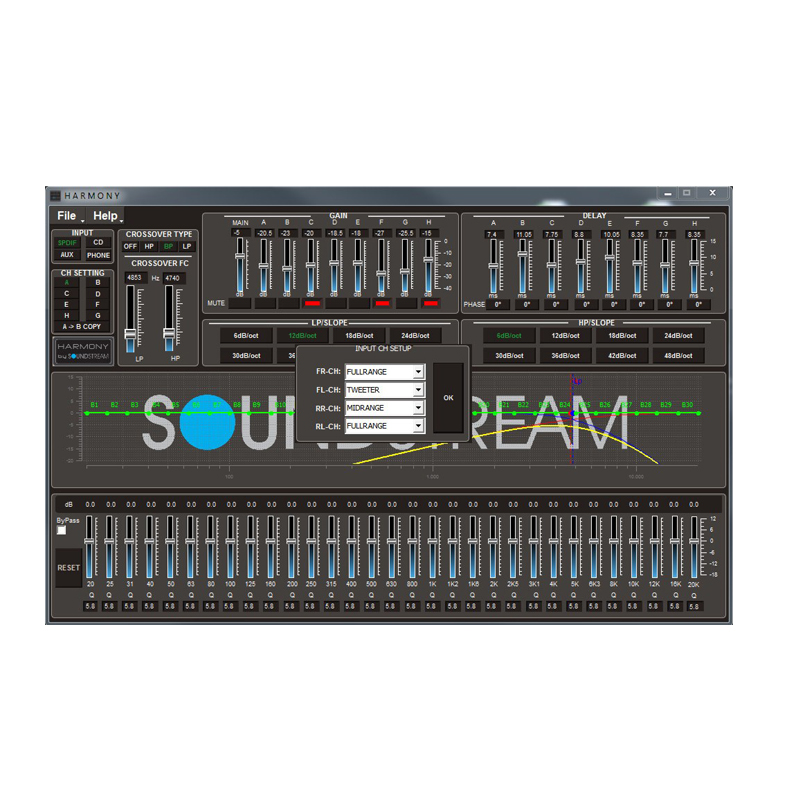

  • Custom User Friendly DSP ComposerTM Graphic User Interface w/ Response Display

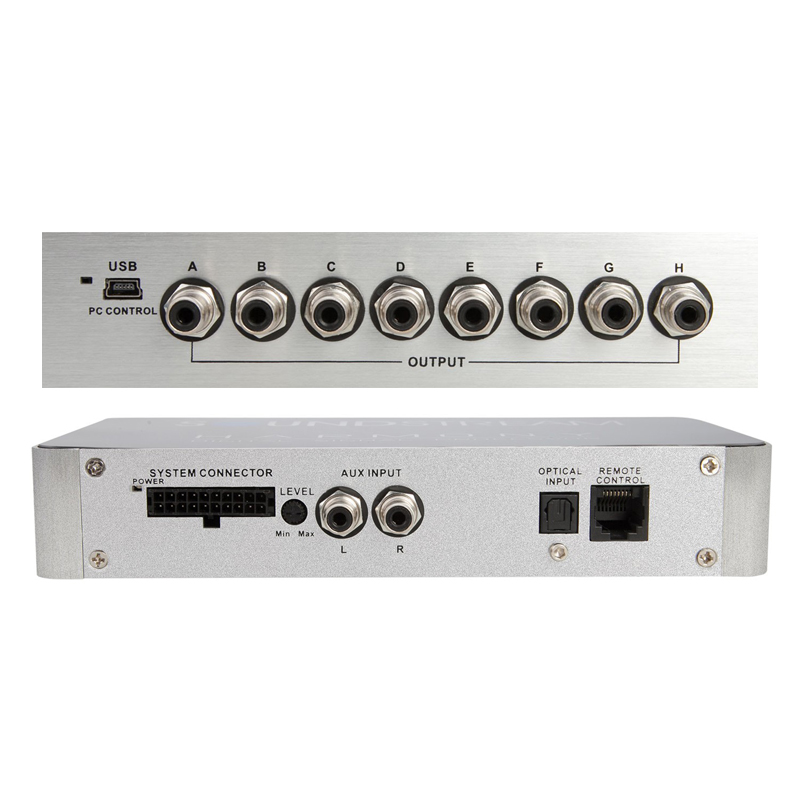

  • 30V MAX 4-channel High Level / Speaker Level Input
  • 8V MAX AUX RCA Input Voltage
  • 192khz S/PDIF Optical Input
  • Optional High Level Input from Hands-Free Bluetooth Module
  • 8 Channel Low-Level RCA Output
  • Optional Independent Input or Channel Mixing/Summing
  • Up to +12dB / -18dB Master Input Level
  • Up to -40dB Independent Channel Level Cut
  • Up to 16ms Independent Channel Delay, 0.05ms Incriments
  • Independent Channel 00/1800 Phase Control
  • Independent Channel High Pass, Low Pass or Bandpass Crossover
  • Selectable Independent Channel 6dB-48dB/Octave Crossover Slope
  • Variable Frequency Crossover Setting, 20Hz-20kHz
  • 1/3 Octave/31-Band Graphic Equalizer for Each Channel
  • +12dB Boost / -18dB Cut for Each Band
  • Variable Independent Band Q Adjustment, 0.5-9
  • Dash Mount Remote Control Included for Input, Mode, & Volume
  • Please Note: Software can be downloaded from Soundtream's Website
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
