- Diameter : 10 Inch
- Maximum Power : 1100 Watts
- Sensitivity : 85 dB
- Impedance : 4 Ohm
- Peak Power Handling : 1100 Watts
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 0.75 Cubic ft.
- Suggested Ported Box Volume : 1.25 Cubic ft.
- Mounting Depth : 5.43 Inches
- RMS Power Handling : 400 Watts
What's Inside?

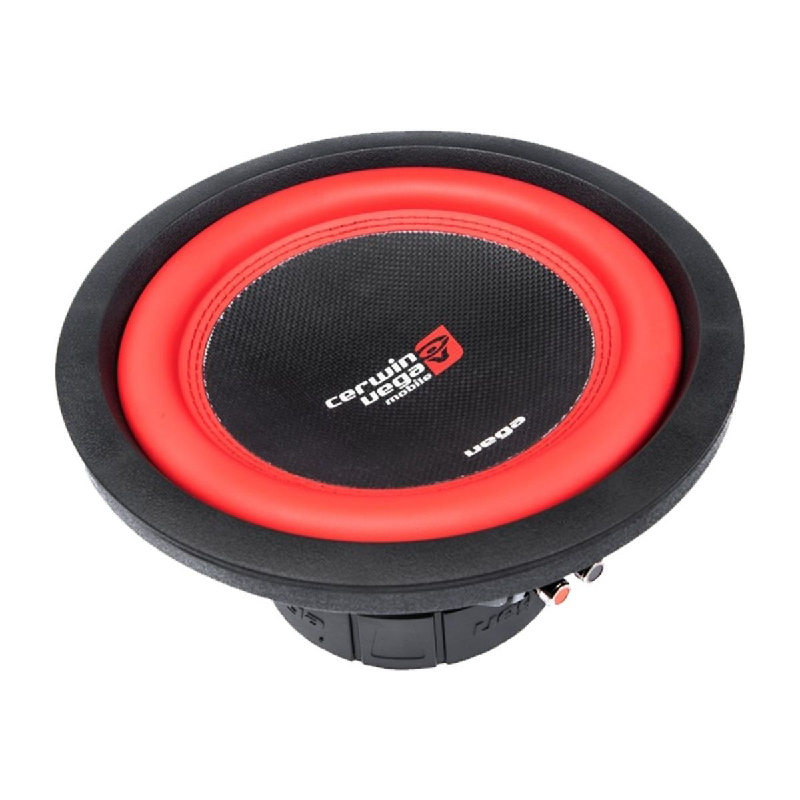

- 1 10" Vega Series Car Subwoofer
Features:
- Proprietary Stamped Cast Vega Basket Design
- Double Stitched Vega Red Santoprene Surround
- Optimized High Power Single-Stacked Motor Structure
- Parabolic One-Piece Stamped Carbon Fiber Poly Cone
- High Power Integrated Impedance Selector
- Vega Concealed Mounting Gasket

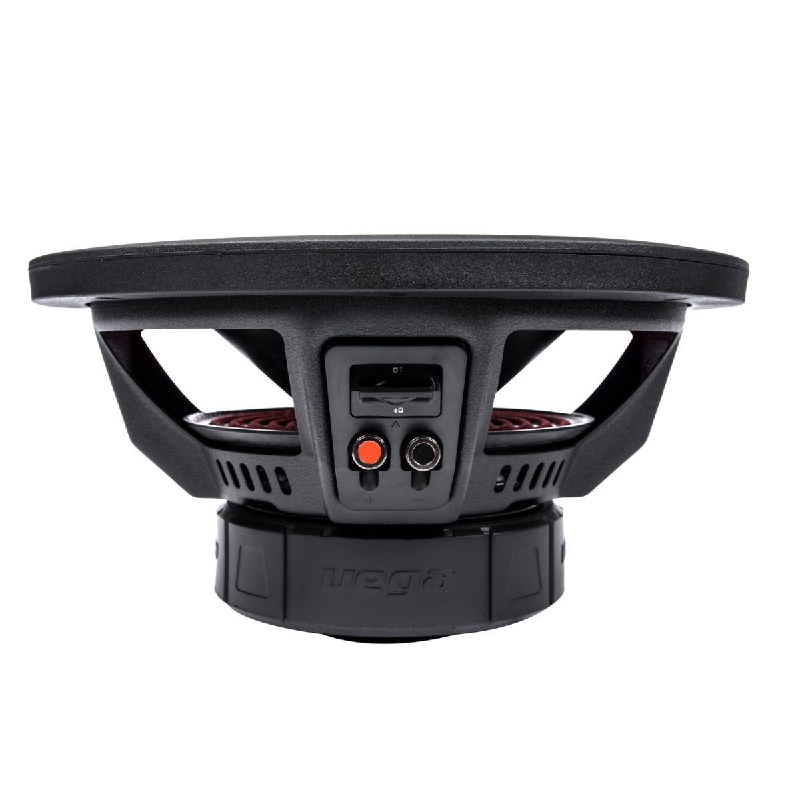

- Proprietary Horizontal Mounted Terminal With Integrated Impedance Selector
Specifications:
- 10” Dual 4-ohm High-Performance Subwoofer
- Power Handling: 400W RMS / 1100W MAX
- Xmax - Inch(mm): 17
- Fs-Free Air Resonance (Hz): 34.5
- Vas (Liter): 28
- Qts: 0.602
- Qes: 0.66
- Qms: 6.1
- Re (Ω)[series]: 4.0/4.0
- Sd (cm²): 0.033
- Cms (mm/N): 0.37
- Mms (g): 118
- BL (T*M): 15.3
- SPL (db): 85.5
- Pwr (W) NOM/MAX: 400/1100
- Mounting Depth: 5.43” (138mm) in. (mm)
- Total Diameter: 10.7” (272mm) in. (mm)
- Mounting Diameter (inch/mm): 8.82” (224mm) in. (mm)
- Screw Hole Diameter: 0.7” (18mm) in. (mm)
- Displacement (ft3/L): 0.06ft3 (1.67L) cu.ft / liters
- UPC: 847169019579
- Weight: 10
