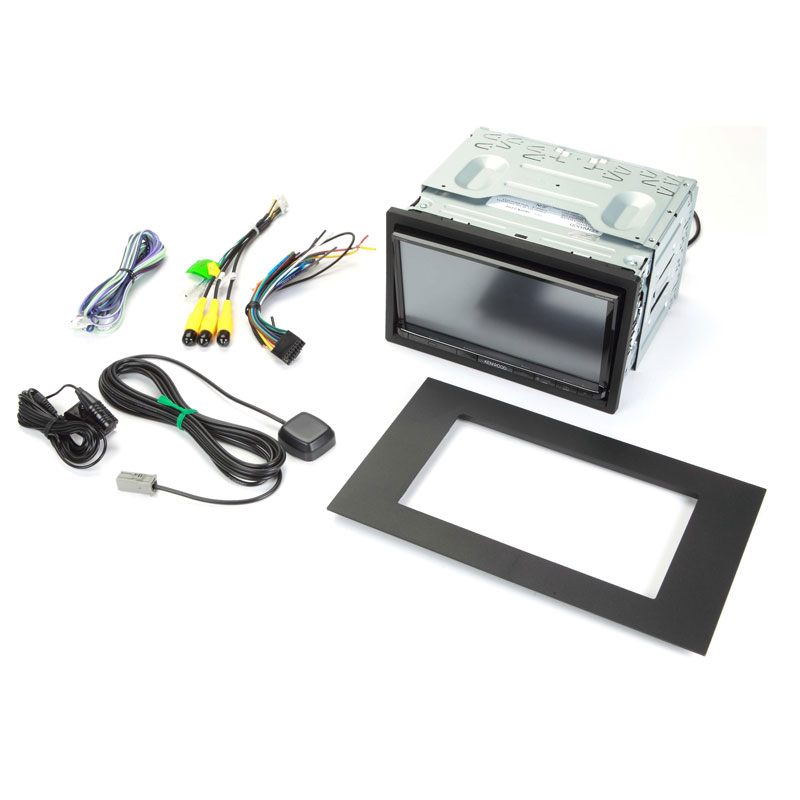

What's Included:
- 6 Flat-head ISO-mount screws
- Self-adhesive base
- Trim ring
- 6 Pan-head ISO-mount screws
- Camera/Video-out harness
- Warranty card
- Wiring harness
- "Caution for Smartphone Users" note
- Refurbished navigation receiver w/ 6.95" monitor (10A fuse)
- Sleeve (attached)
- Reverse/Brake harness
- GPS antenna (attached 11.5' cable terminated by a proprietary connector)
- Microphone w/ integrated bracket (attached 10' cable terminated by a 3.5mm connector)
- 2 Radio removal tools
- Quick Start Guide
Product Highlights:
- compatible with iDatalink Maestro to retain factory settings for Ford, GM, Chrysler, and VW
- Pandora and iHeartRadio app control via Kenwood KCPA-IP102 cable, Apple dock connector cable, or KCA-IP103 cable (limited control available via Bluetooth connection)
- lane assistance and junction view
- 13-band graphic EQ
- works with SiriusXM SXV300 tuner—supports new Tune Mix, Traffic & Weather Now, and Sports Flash features
- Pandora and iHeartRadio app control via Bluetooth connection
- inputs: HDMI input, two rear USB inputs, SD card slot, two rear A/V inputs, two camera inputs (front, rear)
- maps of the United States, Canada, and Puerto Rico, plus 6 million points of interest
- built-in HD Radio tuner
- DVD/CD player with 6.95" touchscreen and AM/FM tuner
- Kenwood KCA-IP202 cable required for full access to audio/video content from older Apple devices
- plays CDs, DVDs, USB memory devices, and SD cards (see Details for full capabilities)
- compatible with most factory steering wheel audio controls (adapter required)
- built-in amplifier (22 watts RMS/50 peak x 4 channels)
- built-in iPod,iPhone, and iPad control (see Details for model compatibility)
- microSD card input for map updates
- Kenwood Music Control app control via USB connection
- Kenwood KCA-MH100 cable or KCA-HD100 cable required for viewing video content from compatible Android devices
- fits double-DIN (4" tall) dash openings
- built-in Bluetooth with aptX for hands-free calling and audio streaming
- plays lossless FLAC audio files (up to 48kHz/16-bit) from your flash drive or SD card
- variable illumination color for keys
- Kenwood KCA-HD100 cable and Apple Lightning Digital AV Adapter required for viewing video content from Lightning devices
- Siri Eyes Free control with iPhone 4s and newer
- built-in Android control
- compatible with Miracast wireless mirroring technology for select Android and Windows devices (optional Wi-Fi dongle required)
- built-in Garmin navigation system
- optional traffic reports available through INRIX smartphone app — 2-year subscription included with purchase (smartphone required)
- text-to-speech voice prompts announce actual road names at turns
- Drive EQ+ boosts low end and other frequencies to overcome road noise
- high- and low-pass filters
- digital time alignment, space enhancer, sound realizer, sound elevation, bass boost, and loudness
- dual-zone A/V output
- supports rear-view camera adjustable parking lines (optional camera required)
- outputs: rear A/V output; 6-channel preamp outputs (5-volt front, rear, subwoofer)
- Maximum Power : 50 Watts
- CD Text : Yes
- RMS Power Output : 22 Watts
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 5 volts
- Display Size : 7 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- HD Radio : Yes
- Rear USB Input : 2
- Preamp Outputs : 6
- Rear View Camera Input : Yes
Specifications |
AUX Input |
Mini (rear) |
iPhone |
6S+/6S/6+/6/5S/5C/4S/4/3GS/3G/ |
Video Screen |
Yes |
Seek/Scan |
Seek |
Siri Control |
Yes |
Android Auto |
No |
Nano |
7/6/5/4/3/2 |
Steering Wheel Control Compatible |
Adapter required |
CEA-2006 Compliant |
No |
HD Radio |
Built-in |
CarPlay |
No |
Switchable Rear Preamp Outputs |
No |
European Tuning |
No |
Memory Card Slot |
USB, microSD/SDHC |
FM Sensitivity |
7.2 dBf |
Bluetooth Compatible |
Built-in |
Preamp Outputs |
6-channel |
Preamp Voltage |
5 volts |
Touch |
6/5/4/3/2/1 |
Satellite Radio Ready |
SiriusXM 3.0 |
Key Button Color |
Variable |
Audio/video Input |
HDMI (rear), Mini (rear) |
USB Input |
Rear (2) |
Android Control |
Yes |
Navigation |
Yes |
Full size |
Classic |
RMS Power Output |
22 watts |
Peak Output |
50 watts |
RMS Power Bandwidth |
20-20kHz |
Sub Preamp Outputs |
Yes |
EQ Bands |
13 |
Wireless Remote |
Optional |
Radio Data System |
Yes |
- UPC: 019048212115
- Weight: 7
