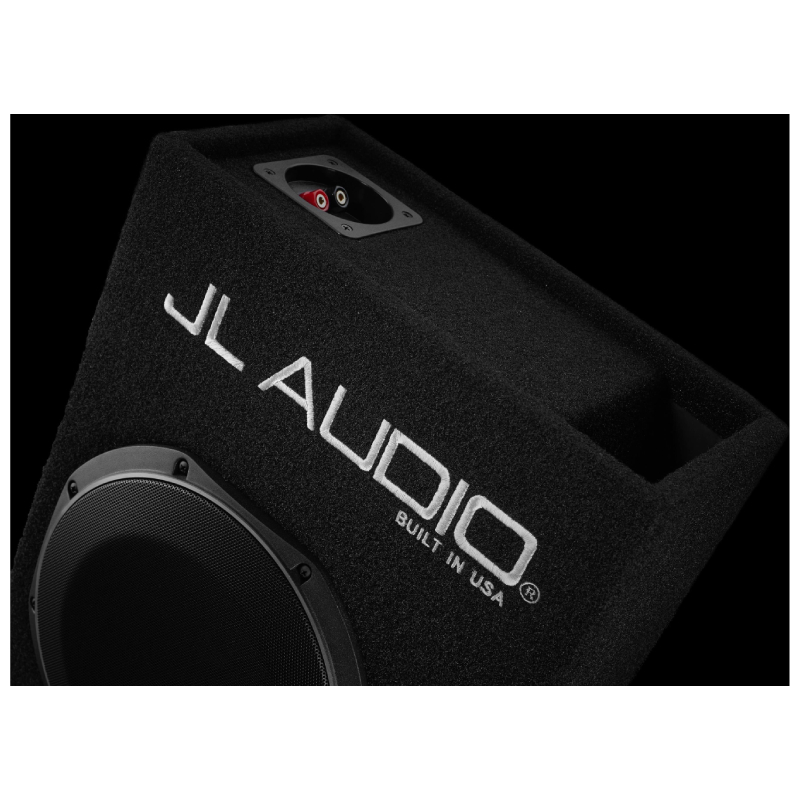

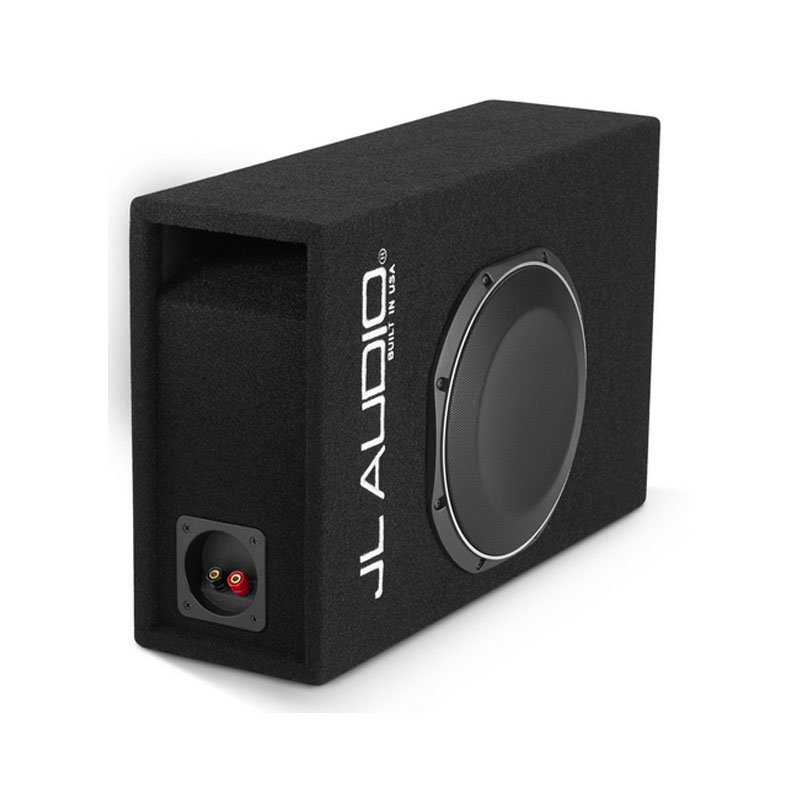

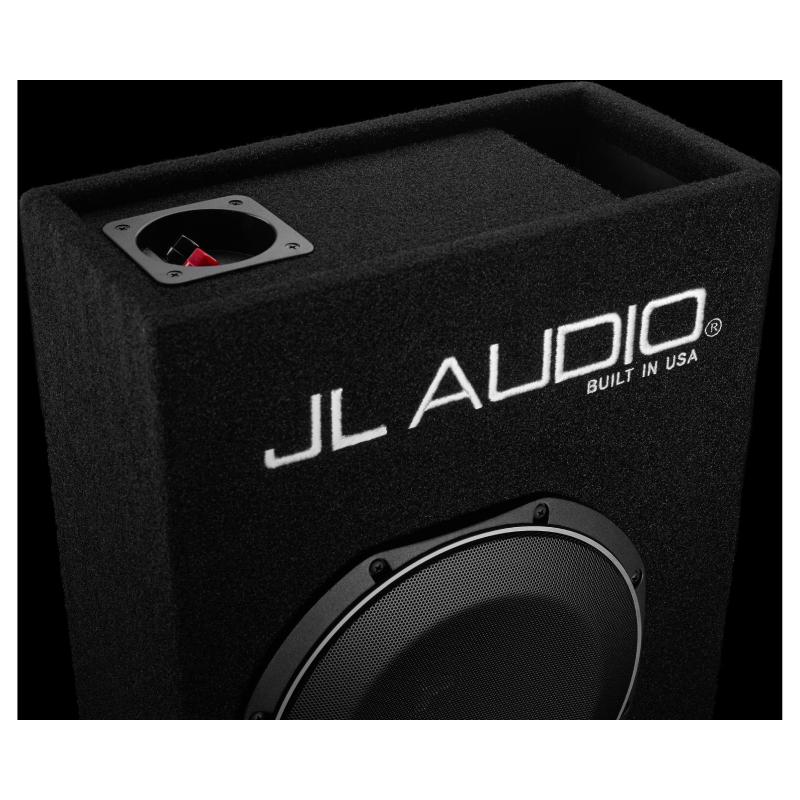

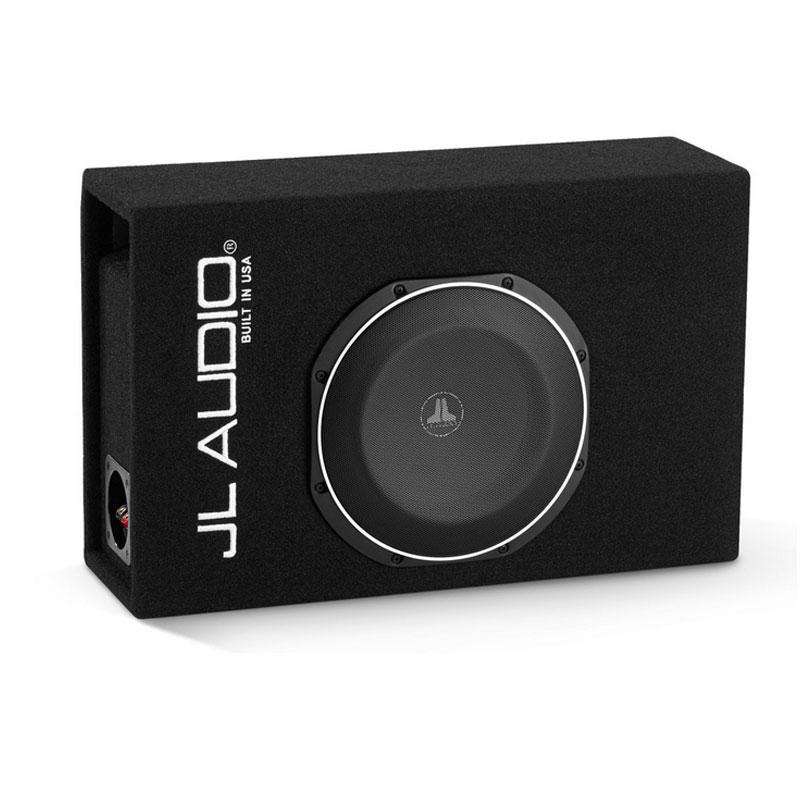

Enclosed Subwoofer System with Single 10TW1-2 Subwoofer Driver, Black Carpet (300 W, 2 Ω) - Ported Enclosure This incredible MicroSub™ subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems.
The key to its performance lies in the precise tuning of its 10TW1 subwoofer driver into an efficient slot-ported design. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver. Construction: CNC-Cut High-Grade MDF Recommended amplifier power: 75 - 300W Nominal Impedance: 2 Ω
- Preloaded with single 10TW1-2 Subwoofer
- RMS Power Rating:
- RMS: 300 watts
- General Specifications:
- Injection molded, mica-filled polypropylene cone
- Rubber surround
- No pole vent: permits mounting close to rear wall of enclosure
- DMA-optimized motor design
- Patented "concentric tube" architecture
- Patented "floating cone attach method" technology
- Cast alloy frame with flat edges for tight driver grouping
- Construction: CNC-Cut High-Grade MDF
- One-Way Linear Excursion (Xmax): 0.40 in / 10.0 mm
- Sensitivity: 82.2 dB 1 watt / 1 meter
- Enclosure Dimensions: 6.375" D x 20.875" W x 13.250" H
- Recommended power range: 75 - 300 watts RMS
- Nominal Impedance: 2 Ω
- Extensive interior bracing
- Steel mesh grille included
- Black, high-grade automotive carpet with silver embroidery
- Flared port entry and exit for enhanced sound quality
- Five-way binding post terminals for easy installation
- Long linear excursion capability (0.40 in / 10 mm, one-way)
- Efficient slot-ported design and precise tuning of its 10TW1 subwoofer
- Matching JL Audio Amplifier:
- JL Audio JX250/1
- JL Audio XD300/1v2 - ? Preferred Match
- Product Highlights:
- ported enclosure with one 10" TW1-2 subwoofer
- 5/8" medium density fiberboard construction covered with black carpet
- steel-mesh grille
- 2-ohm total impedance
- power handling: 75-300 watts RMS
- frequency response: 28-250 Hz
- sensitivity: 83 dB
- 20-7/8"W x 13-1/4"H x 6-3/8"D
- Subwoofers are usually sold as a single unit unless otherwise noted.
- UPC: 699440933230
- Weight: 26
- Sku: 93323
