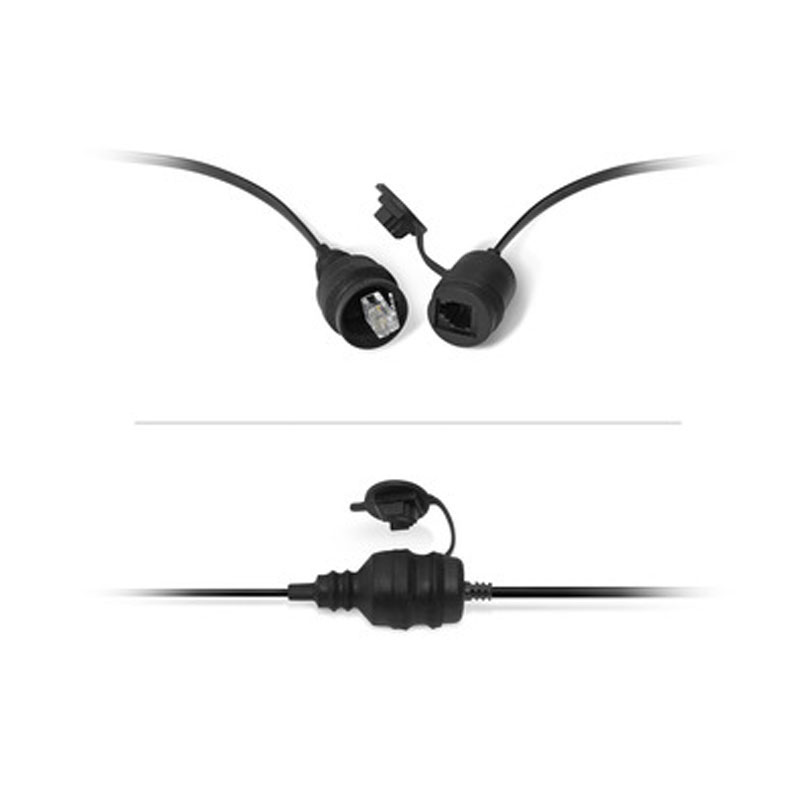

Water-Resistant Remote Level Control for HX and MHX Monoblock Amplifiers or any JL Audio Monoblock with a “Remote Bass Control” port. The M-RBC-1 controls the Bass Level and features a water resistant connection cover designed for use with the following JL Audio amplifiers: HX-Series: HX300/1 (in Low Pass Mode) MHX-Series: MHX300/1 (in Low Pass Mode)
The M-RBC-1 controls the Bass Level of the following JL Audio amplifiers: JX-Series: JX250/1, JX500/1, JX500/1D, JX1000/1D (RBC-1 also available) When the M-RBC-1 is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
The M-RBC-1 remotely controls the Bass EQ boost feature of the following JL Audio amplifiers:
Slash v3 Series: 600/1v3, 1200/1v3
Slash v2 Series: 250/1v2, 500/1v2, 1000/1v2, 450/4v2
Original Slash Series: 500/1, 1000/1, 450/4, 500/5
G-Series: All Models
A-Series: All Models
e-Series: All Models (including marine versions)
M-Series: M1400, M1700, M2150, M2250, M4300, M4500, M6450, M6600
When the M-RBC-1 is connected to the above amplifiers, the on-board "Boost" control of the amplifier is defeated and the RBC-1 becomes the active controller.
The M-RBC-1 rotary control is IPX6 water-resistant (splash-proof, not submersible) and includes a black ABS knob, mounting hardware and one 16.4 ft (5 m) cable.
A satin-finish aluminum knob can be purchased separately.
- Water Resistant Remote Bass Control
- IPX6 Rated (splash-proof, not submersible)
- Intended to be Flush Mounted
- Requires access to rear of desired panel location
- Requires a 3/8" hole to be drilled
- Low-profile design for custom-look installations
- Includes 18 ft. control cable
- Black ABS Knob
- Black plastic replacement knob available, sold separately: JL Audio Black Knob
- Satin-Finish Aluminum replacement knob available, sold separately: JL Audio Aluminum Knob
- Mounting hardware included
- remote bass control for JL Audio HX- and MHX-Series amplifiers
- controls amplifier output level
- 18' remote cable and mounting hardware included
- 13/16"W x 13/16"H x 1-5/8"D
- UPC: 699440984041
- Weight: 0.8
- Sku: 98404
- Authorized Internet Dealer
*Warranty: 2 Years Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
