JBL :: GX-A602 :: $89.85


Item# 46063

Powerful and Compact 280-Watt Full Range Car Amplifier

Sorry, this product is no longer available.

Highly Recommended Alternatives

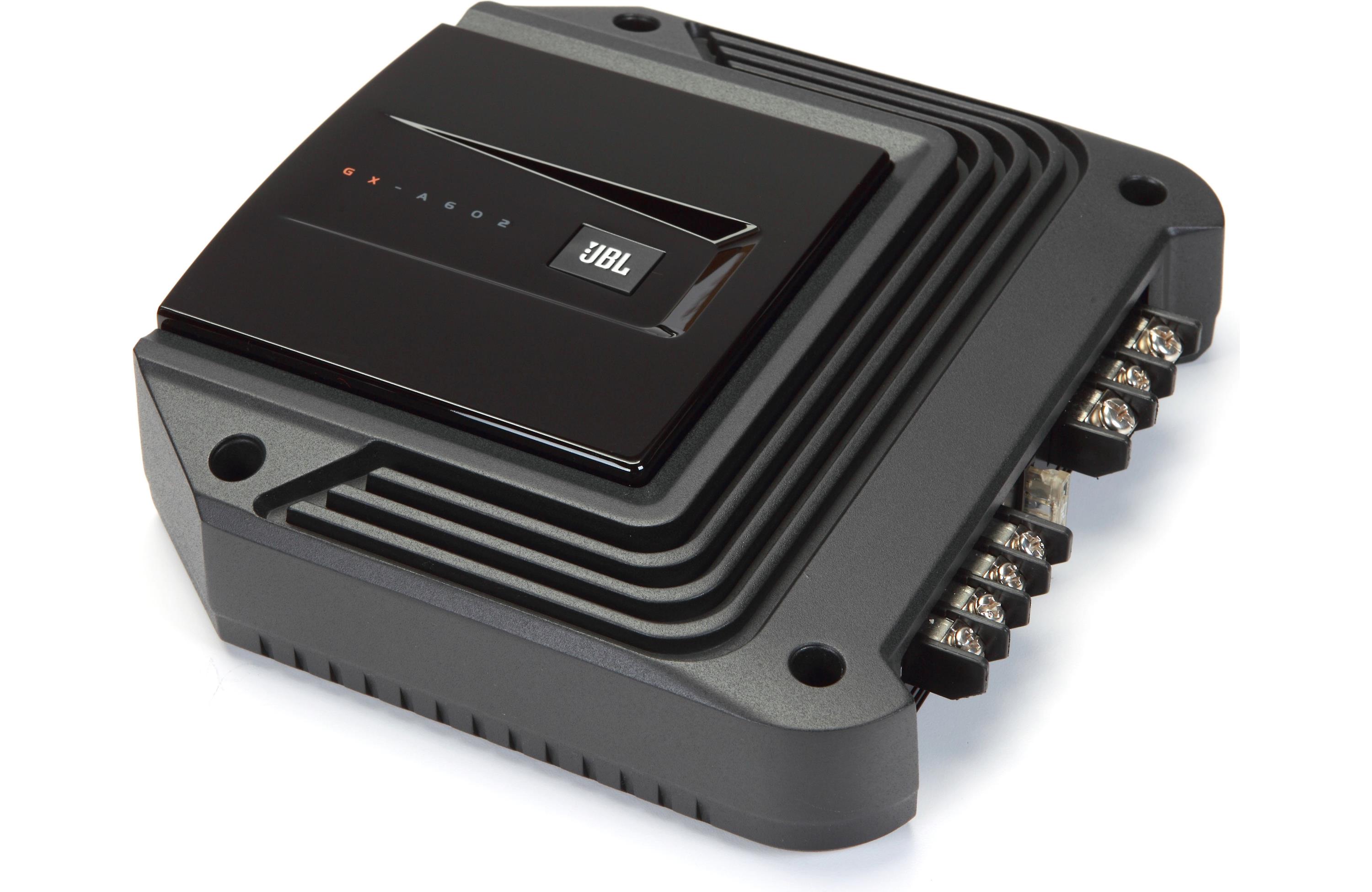

The GX-A602 brings studio-quality audio to your car. With total peak power of 280 watts packaged inside a tiny footprint of just 2-1/16" (52mm) high, 8-1/8" (206mm) wide and 7 13/16" (198mm) deep, the GX-A602 is compact but mighty. Supports 2-channel full range, high pass operation or bridged mono for a subwoofer. Features include a cast-aluminum heat sink, built-in electronic crossover networks and a switchable bass boost.



• GX Series 2-Channel Car Amplifier

• 4 ohms: 60 watts x 2 chan

• 2 ohms: 85 watts x 2 chan

• Max power output: 280 watts

• 2 or Mono channel operation

• 8 gauge power and ground wiring is required for installation

Product Highlights:

  • 2-channel car amplifier
  • 60 watts RMS x 2 at 4 ohms (85 watts RMS x 2 at 2 ohms)
  • 170 watts RMS x 1 at 4 ohms in bridged mode (4-ohm stable in bridged mode)
  • selectable high- or low-pass filter (80 Hz, 12 dB per octave)
  • switchable bass boost (0, 12 dB at 45 Hz)

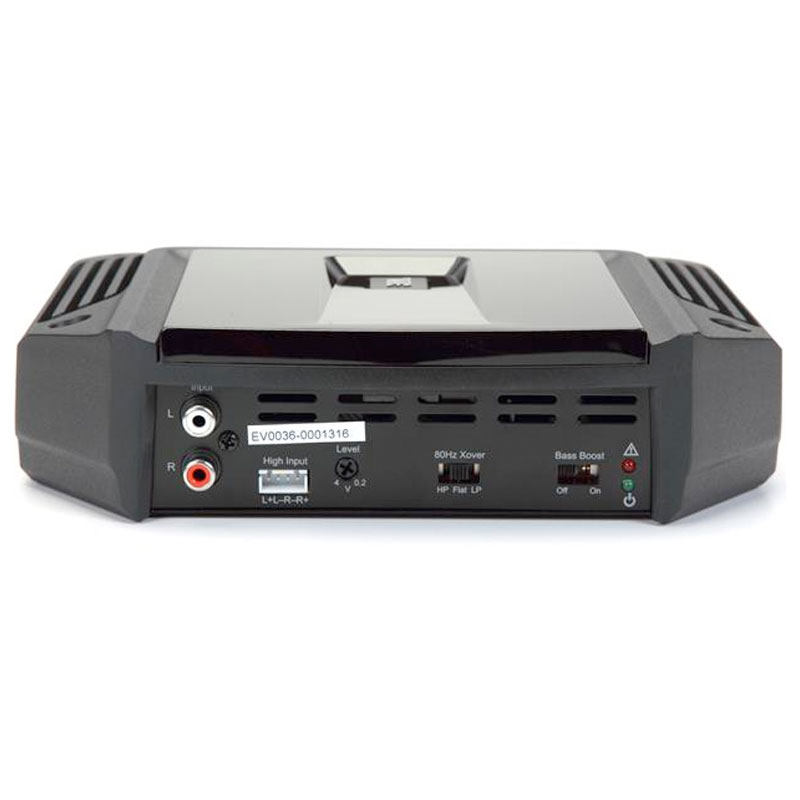

  • preamp and speaker-level inputs
  • fuse rating: 25A x 1
  • 10-gauge power and ground leads recommended — wiring and hardware not included with amplifier
  • 7-13/16"W x 2-1/16"H x 8-1/8"D

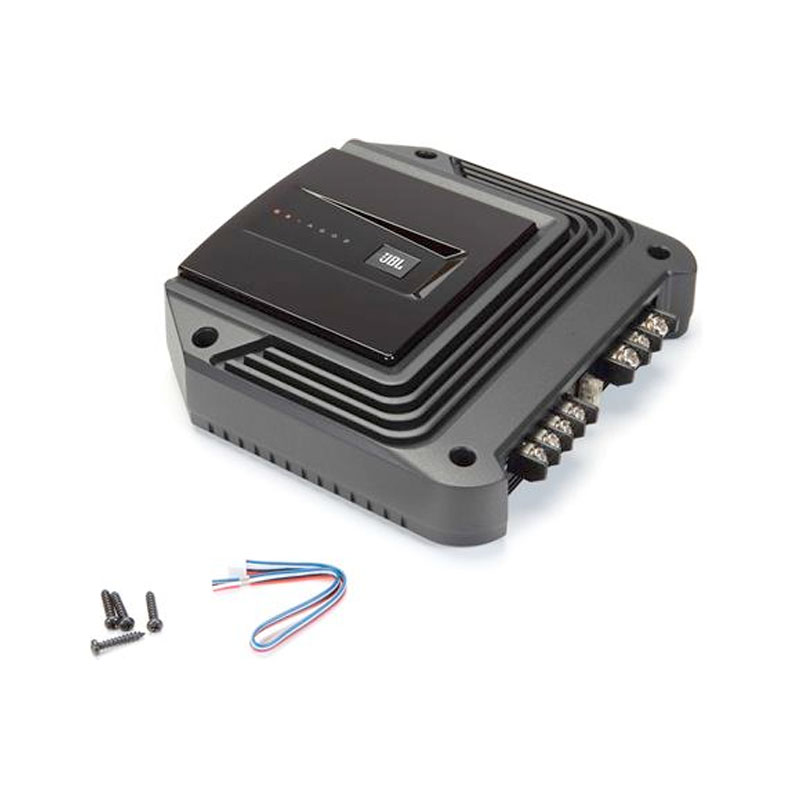

  • 2-Channel amplifier with one 25A ATO fuse installed
  • 8.25" Speaker-level input harness
  • 4 Self-tapping screws (Length=3/4")
  • Owner's Manual
  • UPC: 050036319522
  • Weight: 5
