Infinity :: REF-3022cfx :: $93.55

Infinity REF-3022cfx

Item# 46110

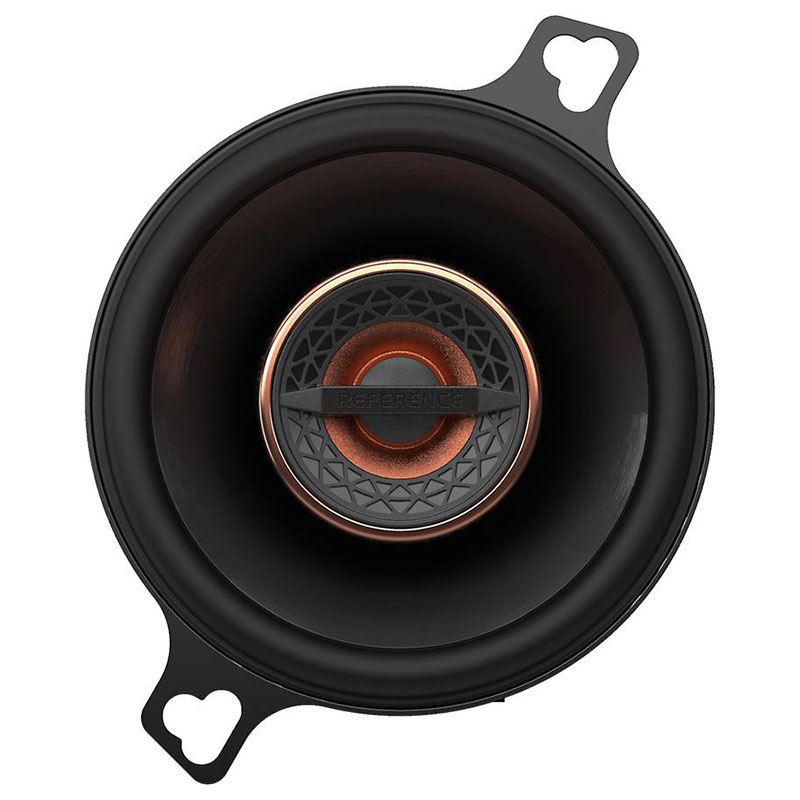

3-1/2” Two-way car audio speaker. The Newly designed Reference speakers are engineered to produce Infinity’s unique sound in a wider range of vehicles.

Sorry, this product is no longer available.

Highly Recommended Alternatives


Related Video:


What's Included:

  • Two 270 microfarad capacitors
  • Instruction manual
  • Two 2-way speakers
  • Template on box
  • 2 Adhesive backed foam gasket strips

Product Highlights:

  • Plus One+ polypropylene woofer cone with hi-roll rubber surround
  • sensitivity: 91 dB
  • compatible with virtually all factory or aftermarket car stereos
  • handles up to 25 watts RMS (75 watts peak power)
  • frequency response: 85-21,000 Hz
  • 3-1/2" 2-way speakers (pair)
  • 1/2" balanced textile dome tweeter
  • True Four Ohm Impedance technology: speaker's 3-ohm impedance combines with speaker wire impedance for a 4-ohm load
  • top-mount depth: 1-7/16"

Infinity's recognizable sound is brilliantly delivered by the new Reference Speakers. Plus One+ Woofer cones and edge-driven textile tweeters are more than capable of delivering an exhilarating sound. Designed to fit nearly all vehicles, the Reference Speakers are excellent for various vehicle installations. These are an excellent upgrade from existing factory speakers. The frequency response is rated at 85-21,000 Hz while the sensitivty is rated at 91 dB. Also, the Plus One+ woofer cones are polypropylene cone with hi-roll rubber surround. The tweeters are 1/2" balanced textile dome tweeters. With the newly designed woofer basket, sizes are available in a range of standard sizes—3", 4", 5-1/4", 6-1/2", 6" x 8" and 4" x 6" coaxial, 6" x 9" 3-way, and 5-1/4", 6-1/2", and 6" x 9" component.


Woofer Composition Polypropylene
Peak Power Handling (Watts) 75
Tweeter Composition Textile
Frequency Response 85 - 21k Hz
Design 2-way
Cutout Diameter or Length (inches) 3
Bottom-mount Depth (Inches) N/A
Tweeter Design 1/2" Balanced Dome
RMS Power Range (Watts) ---
Woofer Surround Rubber
Sensitivity 91 dB at 2.83 volts
Impedance (Ohms) 3
Top-mount Depth (Inches) 1 7/16
  • Car speakers are usually sold as a pair unless otherwise noted.
  • UPC: 050667370954
  • Weight: 1.55
*Warranty: 1 Year warranty.
1 Year warranty from implies that repairs must be returned to, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
