JL Audio SB-B-X5E70/10W3v3 - $584.99
 Item# 46739 / Condition:  Brand New

JL Audio SB-B-X5E70/10W3v3 (94517)

10" Subwoofer Stealthbox® for 2007-2013 BMW X5 150-500W RMS Review this product

FREE Shipping in US 48!

Regular Price:$749.99
Savings Of:$265.00
Availability :  SPECIAL ORDER ITEM
Add Extended Warranty
  • Authorized Dealer
  • comments
  • email
  • Facebook
  • Twitter
  • Print

What other people bought after viewing this product.

What's Included:

  • Owner's Manual
  • One JL Audio 10W3v3-2 Subwoofer

Product Highlights:

  • For 2007-2013 BMW X5
  • Up-firing design
  • Enclosure Features:
  • Sealed enclosure
  • Wired to a 2 ohm load
  • One JL Audio 10W3v3-2 Subwoofer
  • Vented reinforcement collar improves rigidity and stability of the cone, spider, and voice coil
  • Binding post terminals for secure and sturdy connection and installation
  • Will not fit X5's with 3-row seating option
  • Floating Cone Attach Method allow the cone and surround to be aligned independently
  • 2 Year Manufacturer's Warranty
  • RMS: 500 watts
  • Spider and lead wire assembly
  • Power Handling:
  • Mineral-filled polypropylene cone woofer
  • Recommended power range: 150 - 500 watts RMS
  • Nitrile-butadiene rubber surround
  • DMA-optimized, long linear excursion capability to virtually eliminate distortion and increase sound output
  • Elevated frame cooling enhances power and sound quality
  • Xmax: 14.0 mm
  • Sensitivity: 85.37 dB
  • Matching Amplifier: JL Audio XD300/1v2
  • Authorized Internet Dealer
  • Steel mesh grille included

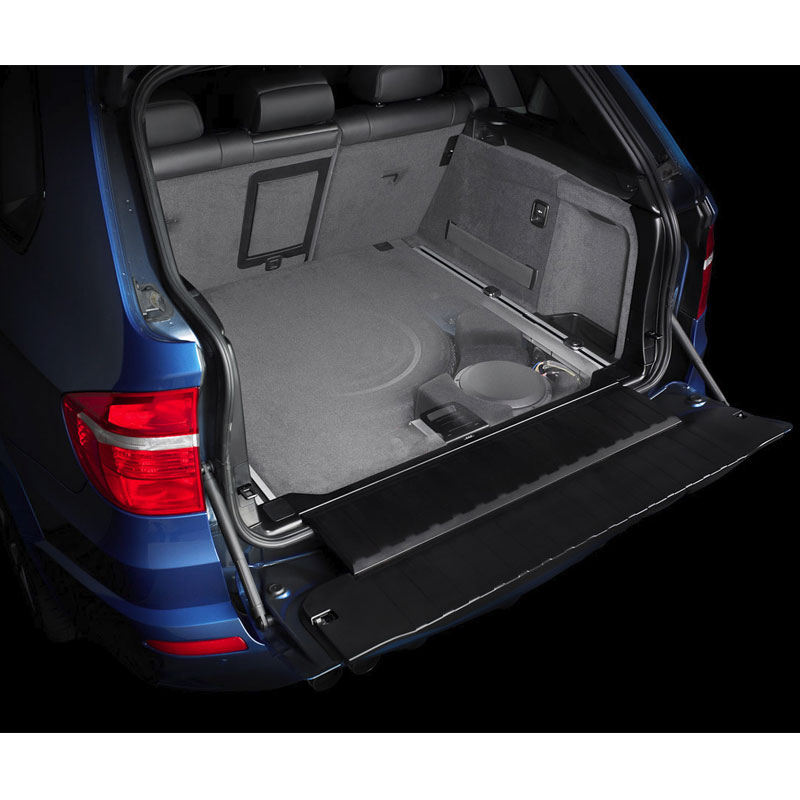

  • Stealthbox® Installs beneath the cargo area floor in the passenger-side rear corner of the spare tire well

The X5 artfully blends the dynamic attributes of a great road car with the utility and versatility of an SUV. What it doesn’t have is a real subwoofer system. The small woofers under the front seats can only do so much.

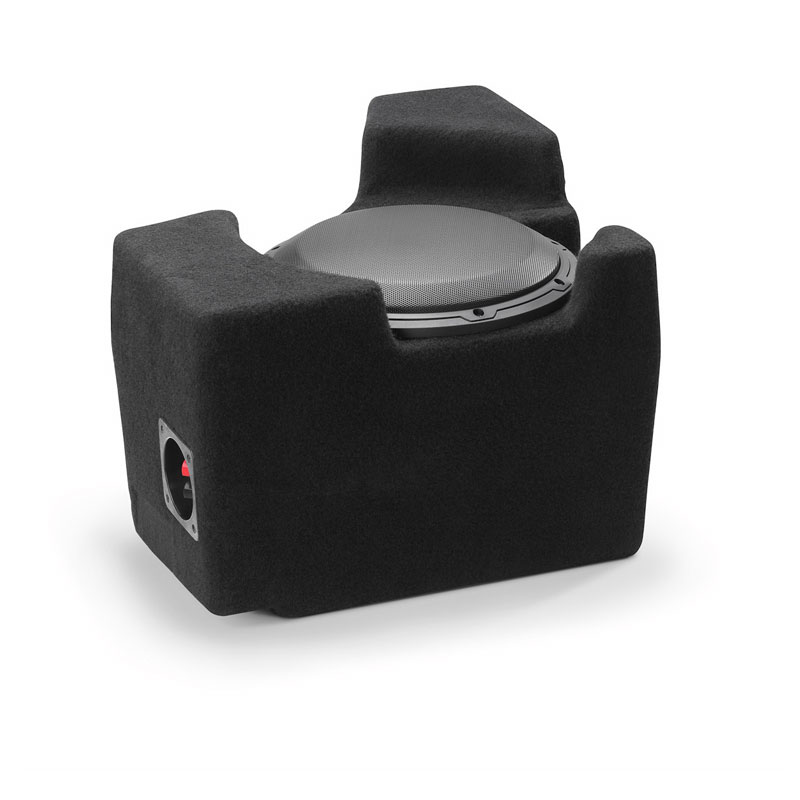

Our Stealthbox® design team has come up with the perfect subwoofer solution for the X5. It installs under the cargo floor and wraps around the spare tire, taking up no cargo space and remaining completely invisible. Inside the Stealthbox®, a 10-inch JL Audio subwoofer driver pounds out controlled and powerful sub-bass that will completely transform your listening experience.

The Hard Data: Contains one 10W3v3-2 subwoofer in a sealed enclosure. 500 watt power handling. Wired for 2 ohm mono. Black steel mesh woofer grille is included. Installs beneath the cargo area floor in the passenger-side rear corner of the spare tire well without impeding access to the spare tire. Installation requires removal of under-floor tool stowage compartment and necessitates relocation of the included tools. Will not fit X5’s with 3-row seating option.


  • Enclosure Specifications
  • Compatible Vehicle Make and Model BMW X5
  • Number of Subs/Speakers 1
  • Box Style/Shape Vehicle Specific
  • Number of Terminals 1
  • Terminal Type Binding posts
  • Box Exterior Color Black
  • Box Finish Carpet
  • Final Wired Impedance 2 ohms
  • Type of Enclosure Loaded
  • Box Type Sealed
  • Subwoofer Design Round / Circle
  • Voice Coil(s) Single
  • Impedance (Per Voice Coil) 2 ohms
  • Total RMS Power Handling 500 watts
  • Woofer Surround Nitrile Butadiene Rubber (NBR)
  • Woofer Composition Mineral-Filled Polypropylene
  • Sensitivity 85.37 dB
  • Frequency Response 25 - 250 Hz
  • Xmax (millimeters) 14 mm
  • Subwoofer Size 10"
  • UPC: 699440945172
  • Weight: 45
  • Sku: 94517
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
