Rockford Fosgate PMX-8DH - $299.99
 Item# 48376 / Condition:  Brand New

Rockford Fosgate PMX-8DH

PMX-8DH
Punch Marine/Motorsport Series Full Function Wired 5" TFT Display Head Review this product
$299.99

FREE Shipping in US 48!

MSRP:$428.99
Regular Price:$408.99
Savings Of:$129.00
Add Extended Warranty
  • Authorized Dealer
  • comments
  • email
  • Facebook
  • Twitter
  • Print

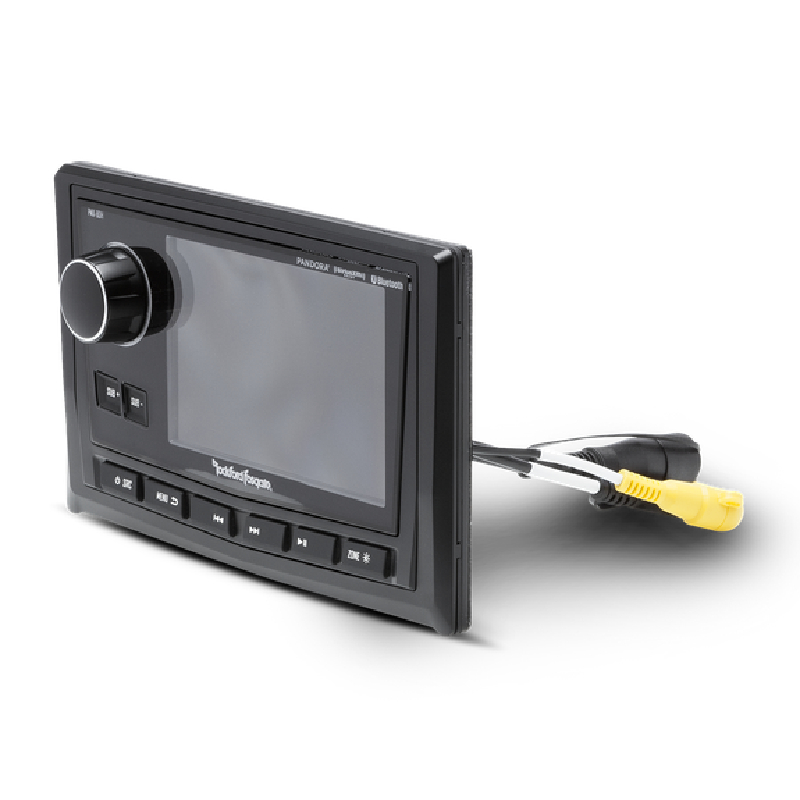

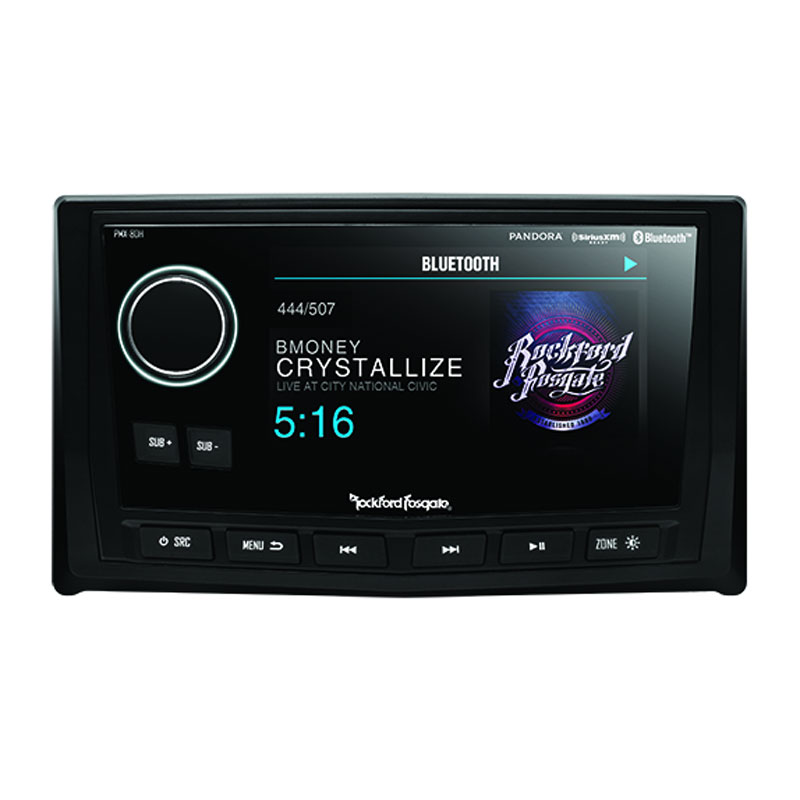

Designed for use with the PMX-8BB, the PMX-8DH full function wired display head is the ultimate controller for your digital media system. The unit features a ultra bright 5" TFT display designed and chosen for its viewing ability even in full sunlight. The screen is optically wet bonded to the bezel to prevent any dust or moisture penetration ensuring it stays clean and clear.

Access to the Custom GUI interface is provided through the water resistant rotary encoder knob and white LED back-lit buttons allow you to easily adjust the illumination levels of the panel and provide instant sub level control at your fingertips. The display head also features a composite video input for video or camera systems and easy interconnection to the hide away unit with a multi-pin DIN connector.

The panel is IPX6 rated for water spray intrusion and features a conformal coated PCB circuit board protecting the vital electronics. We further validate the unit with 500 hours of testing under both the ASTM B117 and D4329 testing standards to make sure it will hold up under years of daily use exposed to the elements.

  • Display Size: 5 Inch
  • Color: Black

The PMX-8DH, used with the PMX-8BB hide away media receiver is a wired display head controller giving you access to all the receivers capabilities. It features a 5" ultra bright color TFT display for optimum viewing even in full sun that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination. Additionally it features front panel illumination and sub controls, composite video input as well as a conformal coated PCB for elemental protection.

  • 5" Full color Thin Film Transistor display
  • Wet Bonding: An epoxy layer is placed between the display and cover glass bonding the two together eliminating the air gap. Improved visual clarity, reduced ambient light reflection and eliminates dus
  • Water resistant rotary encoder volume control
  • White LED button illumination
  • Front Panel Sub Control
  • Direct composite video input connection
  • Epoxy coated circuit board for water resistance

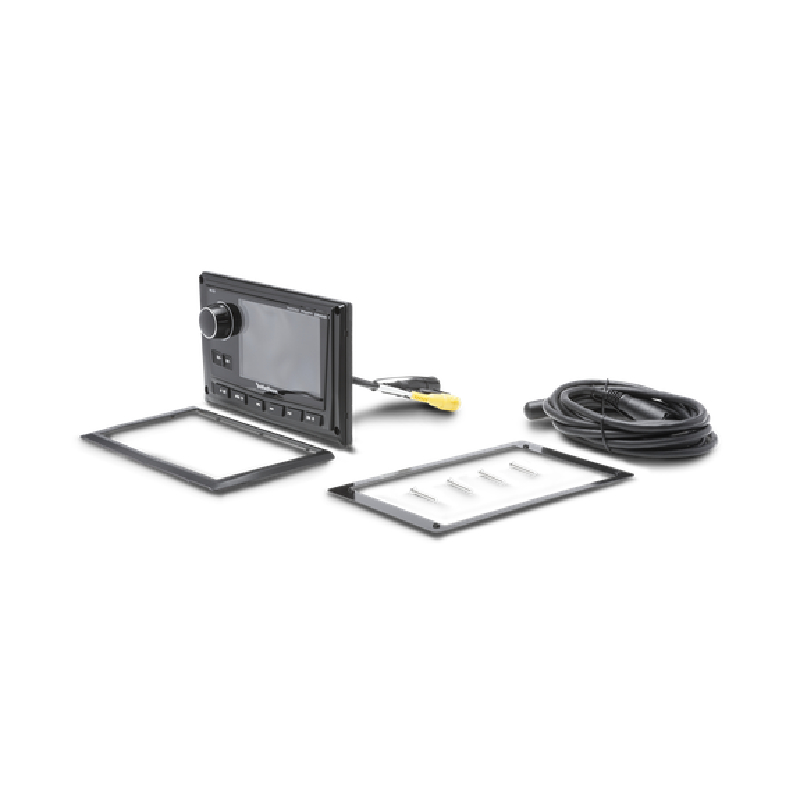

  • Two-piece mounting system to secure panel to mounting surface
  • IPX6 Water Intrusion Rating: Water projected in powerful jets from any direction shall have no harmful effects
  • American Society for Testing and Materials (ASTM): B117 Salt Fog Test Standard, D4329 UV Exposure of Plastics Test Standard
  • UPC: 780687344696
  • Weight: 3
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
