Hifonics :: TPS-A600.5 :: $199.99

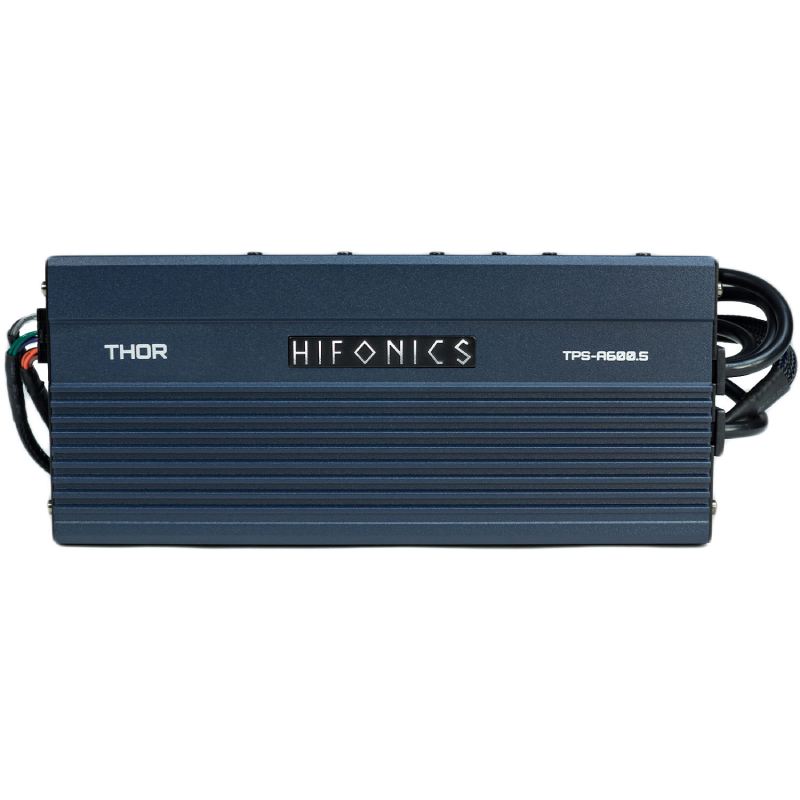

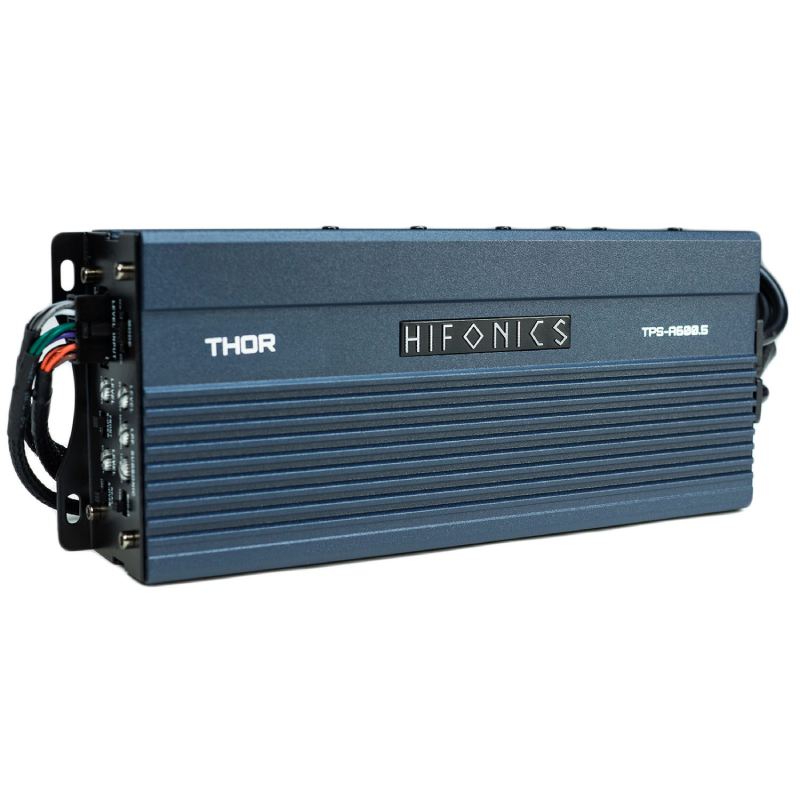

Hifonics TPS-A600.5

Item# 48790

THOR compact 5 Channel, 600 Watts Powersport Digital Amplifier

Sorry, this product is no longer available.

  • CLASS
    Full Range Class D
  • VARIABLE VOLTAGE
    0.2V~9V
  • SIGNAL TO NOISE RATIO
    >90dB
  • FREQUENCY RESPONSE
    20Hz-20kHz
  • CROSSOVER TYPE
    N/A
  • CROSSOVER FREQUENCY RANGE
    CH1 & CH2
    Switched HP/ Full
  • CROSSOVER FREQUENCY RANGE
    CH3 & CH4
    Switched HP/ Full
  • CROSSOVER FREQUENCY RANGE
    CH5
    LPF 50Hz-150Hz
  • BASS BOOST
    0-12dB@45Hz
  • SUBSONIC FILTER
    60Hz
  • POWER @ 2-OHMS
    4 x 80W + 1 x 200W
  • POWER @ 4-OHMS
    4 x 40W + 1 x 100W
  • TOTAL CHANNELS
    5
  • AUDIO INPUTS
    RCA
  • POWER TERMINAL 12V/GND
    Molex 10 ga
  • SPEAKER TERMINAL WIRE GAUGE
    Molex Plug Connector
  • FUSING
    1 x 40 Amps
  • CERTIFICATIONS
    Marine & Powersports
  • DIMENSIONS
    3.70 X 8.46 X 1.77 in
    9.4 X 21.5 X 4.5 cm
  • WEIGHT
    3.35 lbs (1.52 kg)

Features & Benefits



  • MARINE GRADE PROTECTION: YES
    Amplifiers are ABYC & ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.
  • PRE-AMP CIRCUITRY: Low Noise Pre-Amplifier Stage
    Special preamplifier reduces incoming noise from source units dramatically improving sound quality
  • INPUTS: 2 Pair, RCA (Front/Rear) 1 Pair, RCA (Subwoofer) Nickel-Plated
    High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
  • OPERATION MODE: Four channel and with dedicated subwoofer channel
    Unique design allows this amplifier to power full range speakers with a dedicated channel for a subwoofer.
  • CROSSOVER / SIGNAL SHAPING: Switched FULL / LPF / HPF
    Complete control of amplifier signal, essential when using two or more amplifiers
  • CLASS / TOPOLOGY: Full Range Class D
    Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
  • OUTPUT DEVICES TECHNOLOGY: PWM MOSFET Power Supply
    Stable power through the PC board with minimal heat generation
  • HEAT SINK: Aluminum
    Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration
  • POWER SUPPLY: Simpatico Coil Design
    The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
  • BASS REMOTE INLUDED: YES
    Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.

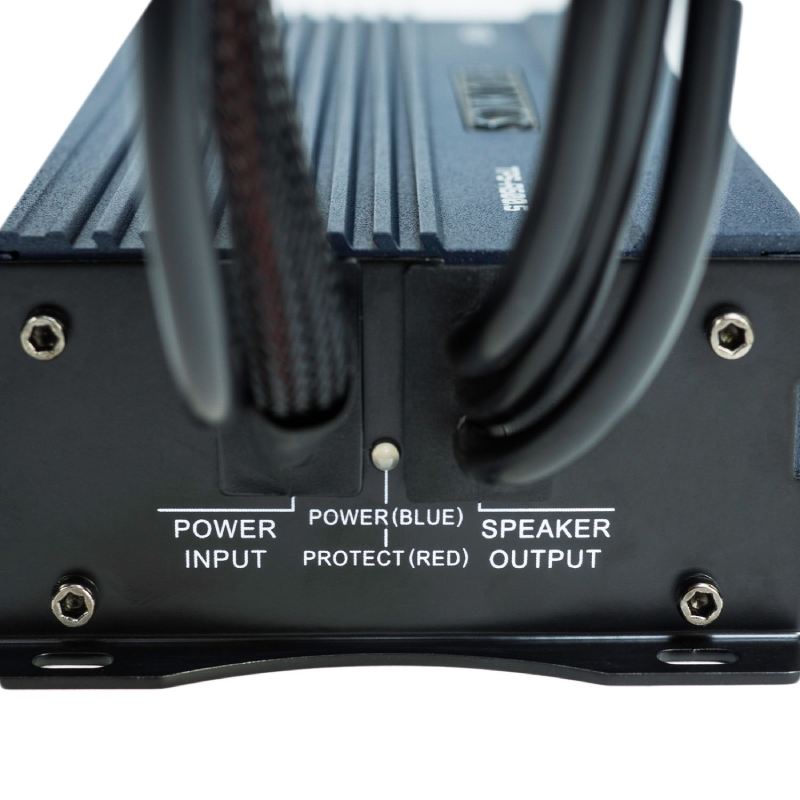

  • OUTPUT CONNECTIONS: Quick Dissconect Wires, RCA Connections
    Quickly remove amplifer when you are putting machine up for the winter of as a security precaution
  • CONNECTIONS TYPE: Gold-plated connections
    Gold-plated power, ground, speaker and RCA corrosion resistant connections
  • DIAGNOSTICS: Three-stage protection circuits
    Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
  • MARINIZED / WATERPROOF: YES
    Water resistant for durability in any environment
  • UPC: 806576227403
  • Weight: 3.35
  • Authorized Internet Dealer
*Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 30 days from the original date of purchase with proper return authorization. After the 30 day time period, products must be returned to their original manufacturer for the remainder of the manufacturer's warranty period.
