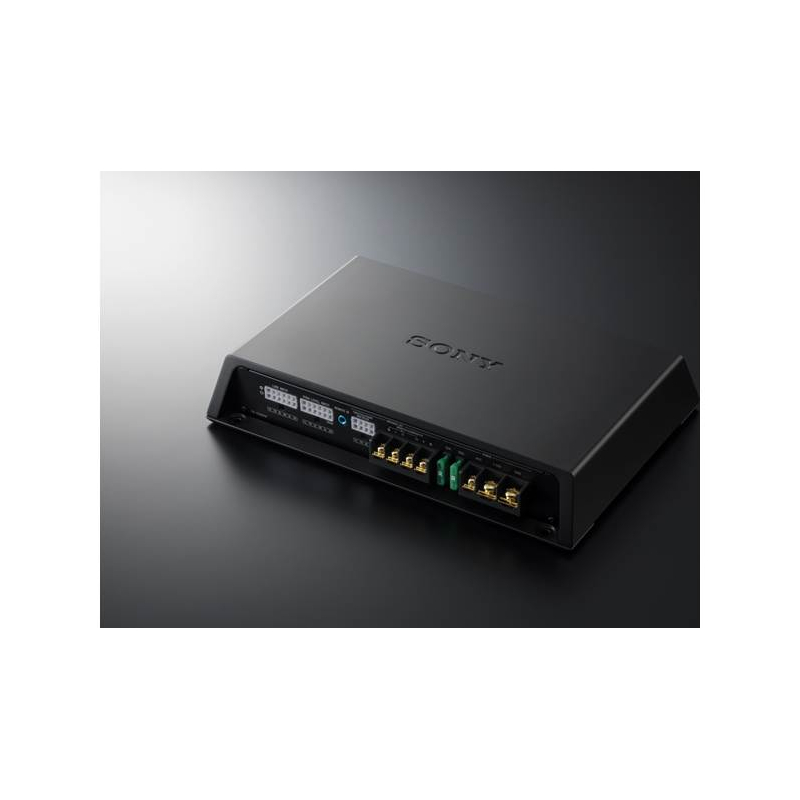

Sony XM-GS6DSP 1500 Watts Max Power Class-D Amplifier with DSP
Onlinecarstereo is an authorized retailer of Sony products. We source our inventory straight from accredited regional distributor so you know you are getting authentic Sony merchandise with all the necessary warranties. We at Onlinecarstereo always strive to provide 100% total customer satisfaction and after-market service.
What's Inside?

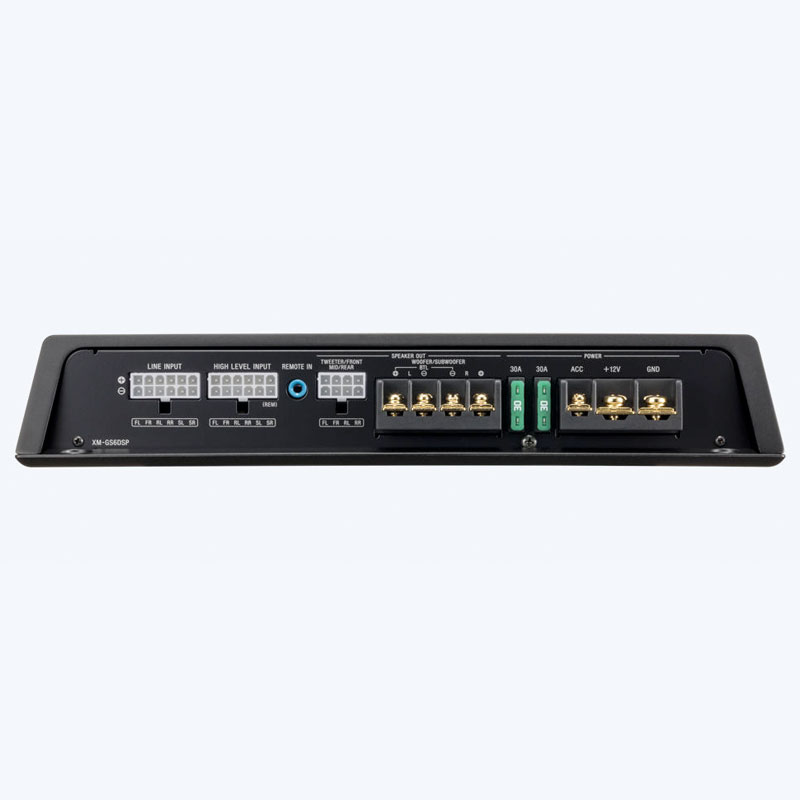

- • 6-Channel amplifier with two 30A ATO fuses installed
- • 8" Line input harness
- • 7" High level input harness
- • 5" Tweeter/Front/Mid/Rear output harness
- • Terminal cap
- • Self-tapping screws (length 3/4")
- • Operating Instructions
- • Warranty (US + Canada)
Supercharging your car audio, behind the scenes

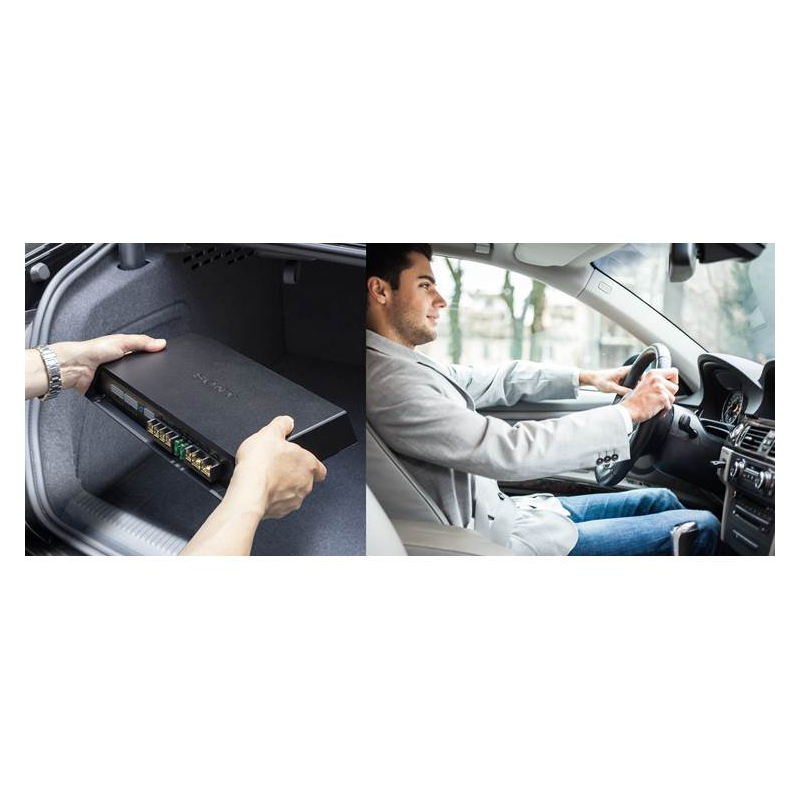

This powerful class-D amplifier boosts the sound of your factory-fitted car stereo, without changing the look of your dashboard. Transform in-car sound with up to 780W RMS (1500W max) of total power. Control speaker setup, time alignment and sound settings. Personalise from your smartphone using Sony I Music Centre.
Time Alignment optimises sound for every seat
Wherever you sit in your car, you’ll be closer to some speakers than others, which affects how the music sounds. Time Alignment re-calibrates the signal so you’re always in the correct sound field for a more natural listening experience.
Customisation at your fingertips

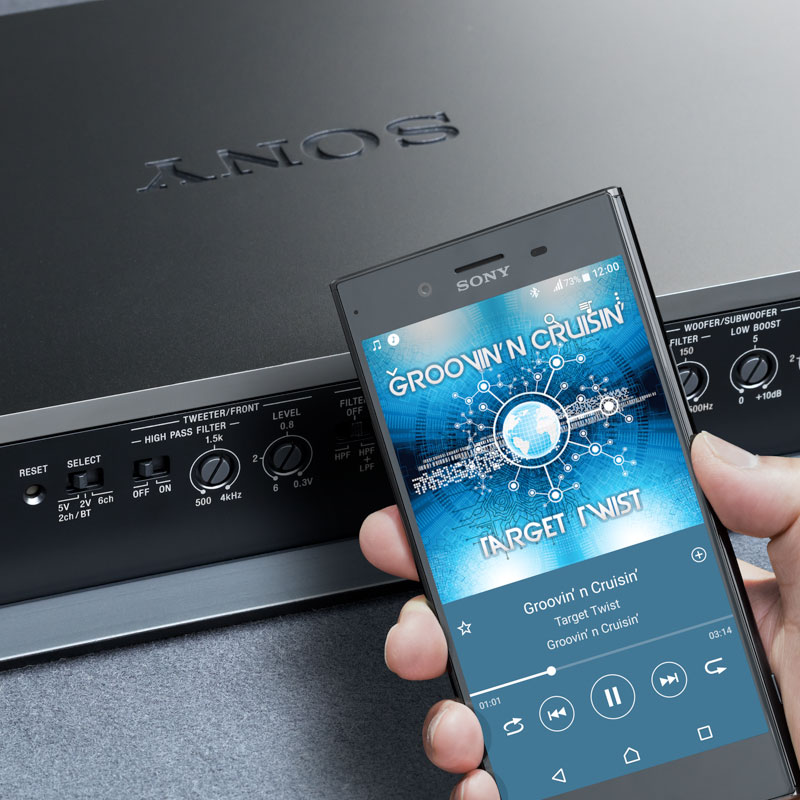

Pair your smartphone with the XM-GS6DSP and take charge of the sound. Adjust equaliser and speaker settings, volume levels and fader controls from the comfort of your seat with a simple touch of your smartphone screen.
Power meets precision
With 6 channels of class-D amplification, the XM-GS6DSP drives a variety of speaker configurations. Fill your car with 45Wx4 (4Ω) of clean and dynamic sound plus 600W (2Ω bridged) of subwoofer power. All from a compact amp, with minimal interference for audio that’s crystal clear, even at its loudest.
- Maximum Power : 780 Watts
- Low Frequency Response : 500-4000 Hz
- High Frequency Response : 500-4000 Hz
- Number of Channels : 6
- Frequency Response : 20-20000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 45x4 Watts
- Channel Separation : Yes
- Amplifier Class : D
- Fuse Rating : 60 A
Features:
- Versatile Amplification: This 6-channel amplifier with digital signal processor and Bluetooth connectivity offers up to 780W RMS power output, delivering powerful and dynamic sound performance for your car audio system.
- Advanced DSP Features: With a built-in DSP featuring 4.1-channel time alignment, users can optimize audio settings and customize sound staging for a tailored listening experience, enhancing the clarity and balance of the audio output.
- Bluetooth Streaming Convenience: Stream music directly to the amplifier via Bluetooth wireless connection using the Sony Music Center app, enabling seamless integration with your compatible device for convenient audio playback and control.
- Customizable Audio Settings: Personalize audio settings with your smartphone using the Sony Music Center app, allowing users to adjust parameters such as the 10-band EQ, time alignment, speaker level, and fade to achieve the desired sound profile.
- Flexible Configuration Options: With multiple power output configurations, including 175W × 2 @ 2 ohms (SUB), 600 W × 1 @ 2 ohms (SUBWOOFER bridged), and 45 W × 4 @ 4 ohms (FRONT/REAR), this amplifier offers versatility and compatibility with various speaker setups, catering to different audio preferences and system configurations.
Specifications:
- RMS Power Output (Watts x Channels): 45 x 4 /350 x 1
- Peak Power Output (Watts x Channels): 100 x 4
- Power at 2 Ohms (Watts x Channels): 175 x 2
- Bridged Power (Watts x Channels): 600 x 1
- Minimum Impedance Bridged: 2
- Minimum Impedance Unbridged: 4
- Minimum Impedance: 4
- Best Frequency Response: 20-20k Hz
- THD at Rated RMS Power: 1%
- Signal to Noise Ratio: 83 dB
- Input Voltage: 14.4v
- 6-Channel Amplifier with Digital Signal Processor and Bluetooth
- Up to 780W RMS
- DSP with 4.1-channel time alignment
- Stream music directly to the amplifier with BLUETOOTH® wireless connection and the app Sony I Music Center
- Personalize audio settings with your smartphone using Sony I Music Center
- 175W × 2 @ 2 ohms (SUB) at 1 kHz, 600 W × 1 @ 2 ohms (SUBWOOFER bridged) at 1 kHz
- 45 W × 4 @ 4 ohms (FRONT/REAR), 90 W × 2 @ 4 ohms (SUBWOOFER)
- 350 W @ 4 ohms bridged (SUBWOOFER) at 1 kHz

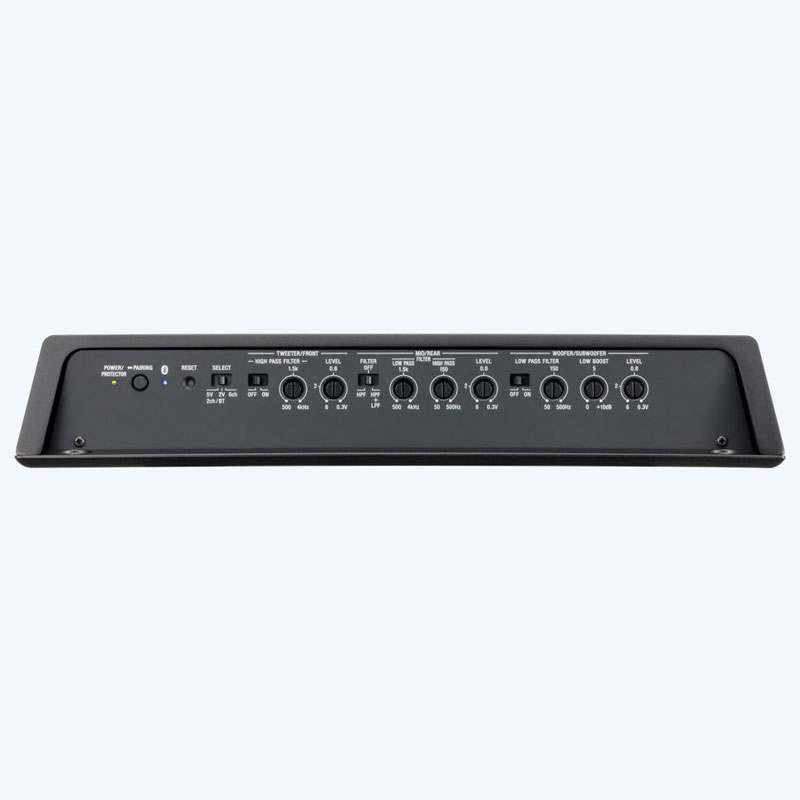

- tweeter/front: variable high-pass filter (500-4000 Hz)
- mid/rear: variable low-pass filter (50-500 Hz), bandpass adds variable low-pass filter (500-4000 Hz)
- woofer/subwoofer: variable low-pass filter (50-500 Hz), variable bass boost (0-10 dB)
- digital signal processing control via Sony Music Center app on your Bluetooth device
- controls include 10-band EQ, time alignment, speaker level, fade
- Bluetooth streaming from your compatible device
- UPC: 027242905733
- Weight: 9
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
