CX Amplifiers
CX-Series Amplifiers are the perfect combination of big power, bigger flexibility and true reliability!
Control It
A variable 12dB crossover, KickEQ™ 6dB variable bass boost and a 24dB subsonic filter on mono amps gives you the control you want - to craft the sound you love.
One Ohm Stable
Mono KICKER CX Amplifiers are now stable down to one Ohm, giving you the freedom to put even more subs in your system!
Remote Ready
Your mono CX-Series Amplifier is compatible with the CXARC remote control. Use it to customize your bass on the fly with just a turn of a knob!
Towers of Power

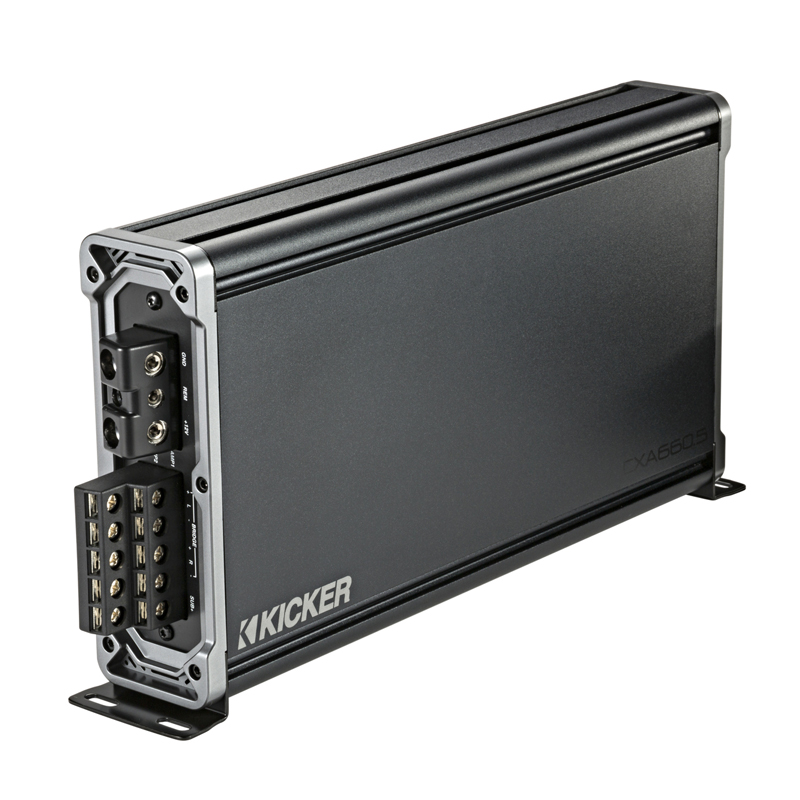

CX-Series amps include vertical and horizontal mounting hardware, so you can show off your install style!
Incredible Sound Everywhere
KICKER’s CX-Series amplifier technology provides clean, powerful music in nearly any vehicle on the road today, without changing your radio or adding a line-out converter. These powerful amps work with as little as nine volts of power from your battery, and as much as 40 volts (400 watts) of speaker-level input signal. With KICKER’s FIT+™ (Fail-safe Integration Technology-PLUS), you get outstanding noise rejection - even with premium factory audio systems.
- Low Frequency Response : 10 Hz
- High Frequency Response : 20000 Hz
- Number of Channels : 5
- Frequency Response : 10-20000 Hz
- Built In Crossovers : Yes
- Channel Separation : Yes
- Amplifier Class : D
Five Channels of Fun

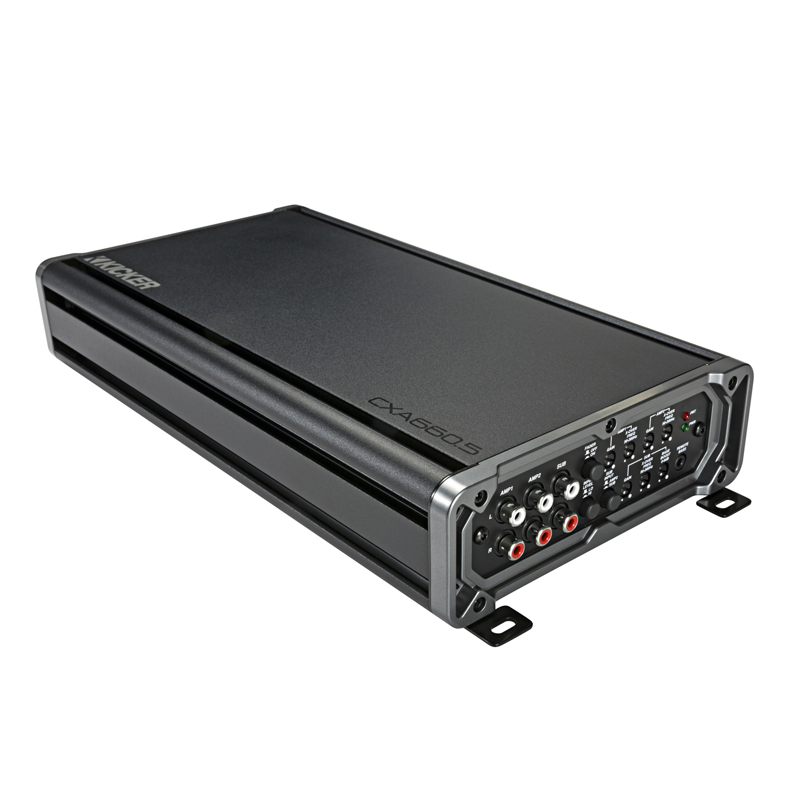

The CXA660.5 Amplifier is built to be the complete package in one cool-looking amp.
This CX amplifier uses powerful Class A/B technology to power four mid/high-range channels and an ultra-efficient Class D power plant for the bass channel. The amp also comes equipped with FIT+™ (Fail-safe Integration Technology-PLUS), giving you superior clarity and dependability.
KickEQ™ variable bass boost gives you as much as a 6dB of extra bump with a simple turn of the knob. A powerful 12dB crossover and 24dB subsonic filter is also included, letting you quickly tune your entire system to taste.
This CX amplifier delivers as much as 90 watts into four full-range channels or 180 watts into two-bridged channels, plus as much as 300 watts into one bass channel. See below for more details.
- Class A/B full-range channels
- Class D bass channel included for one amp to run an entire system
- Three-second turn-on/off delay to eliminate unwanted interference
- Variable 12dB crossovers provides control to dial in perfect sound
- KickEQ™ 6dB variable bass boost for those additional low frequencies
- 24dB subsonic filter for protection from potentially damaging frequencies
- FIT+™ (Fail-safe Integration Technology-PLUS) means it works with nearly every radio
- Accepts up to 40-volt input signal
- Small footprint for easier installation
- Vertical mounting hardware included for another unique look
| Specifications |
| MODEL |
CXA660.5 |
| Power (watts/ch) 4 Ohm Stereo |
65x4 |
| Power (watts/ch) 2 Ohm Stereo |
90x4 |
| Power (watts/ch) 4 Ohm Mono |
180x2 |
| Power (watts/ch) 4 Ohm Mono Sub Ch |
150x1 |
| Power (watts/ch) 2 Ohm Mono Sub Ch |
300x1 |
| CXRC Remote Bass Capable (sold sep.) |
yes |
| Dimensions (in, cm): (all models 2-3/8, 5.9H x 6-3/4, 17W x ...L) |
14-1/8, 35.7 |
| Frequency Response (Hz): |
10Hz-20kHz |
| Frequency Response (Hz – Sub Ch.): |
25Hz-200Hz |
| Input Sensitivity: |
250mV-10V (Low Level) | 1V-40V (High Level) |
| Signal-to-Noise Ratio: |
95dB |
| Active Crossover: |
Amp 1-2: High Pass 10-200Hz @ 12dB/Octave
Sub Channel: Low Pass 50-200Hz @ 12dB/Octave |
| Subsonic Filter |
25Hz @24dB/Octave |
| KickEQ™ Boost |
Variable 0-6dB @40Hz |
What's Included?
- 46CXA6605 5-Channel Amplifier
- Owner's Manual
- UPC: 713034088554
- Weight: 10
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
