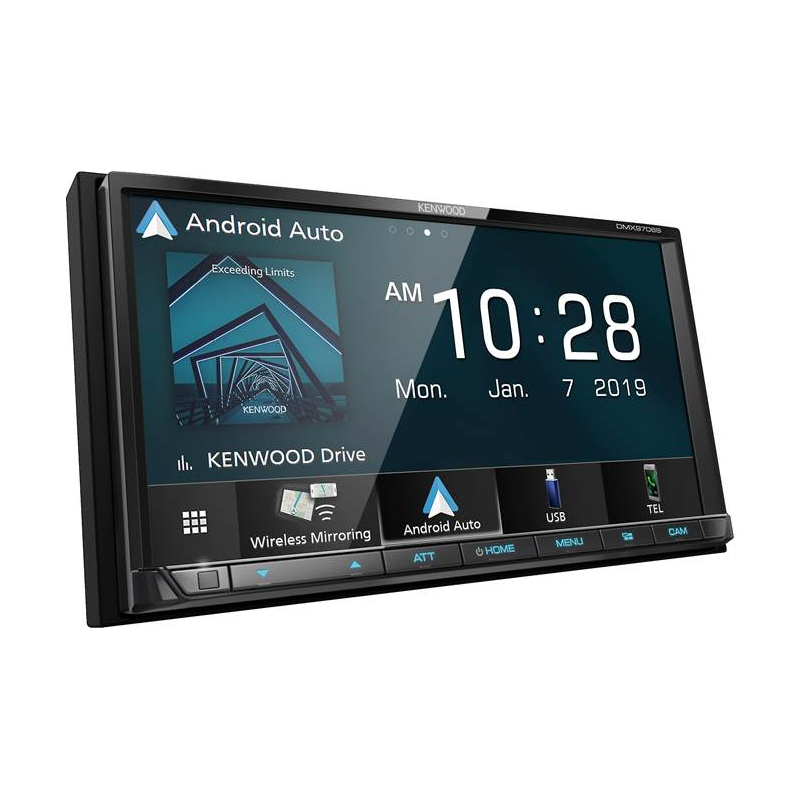

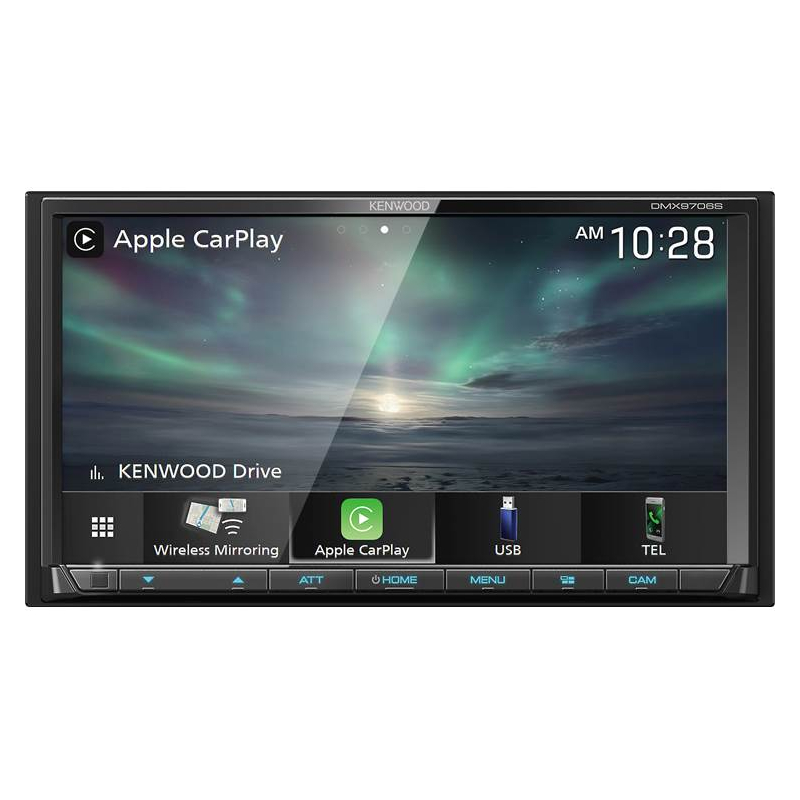

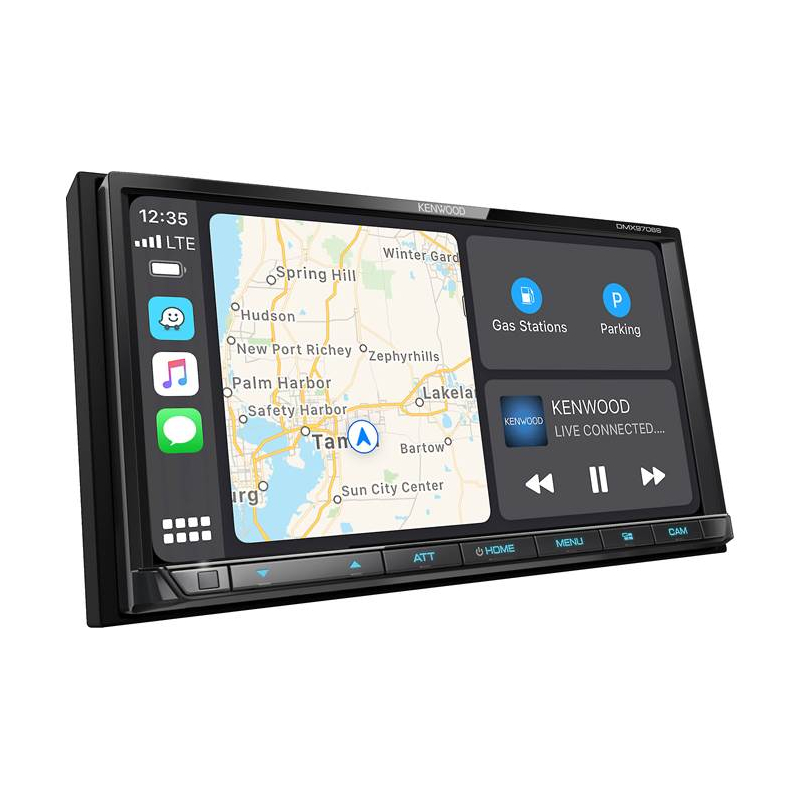

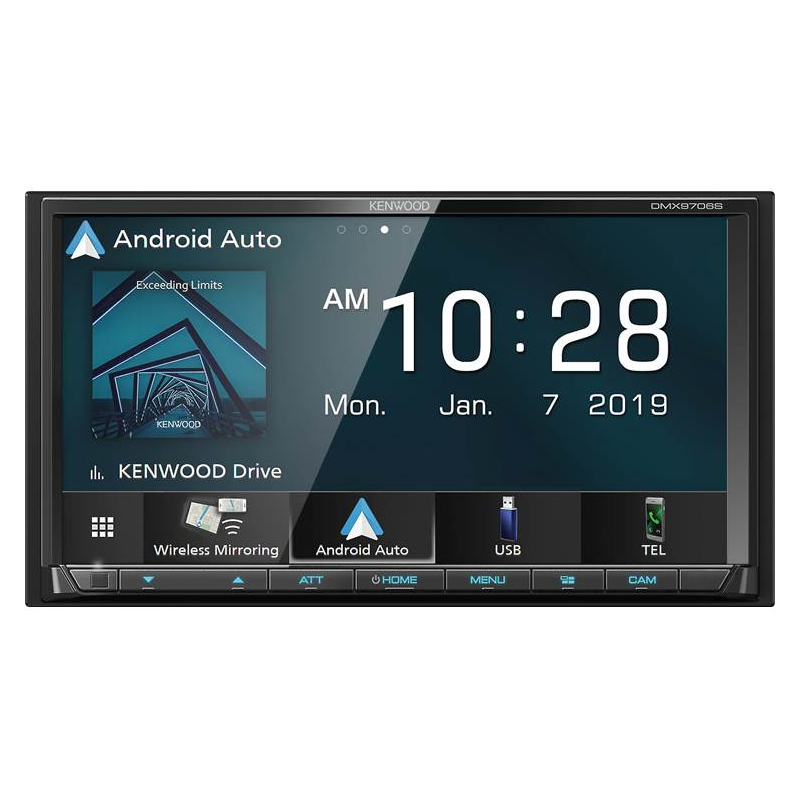

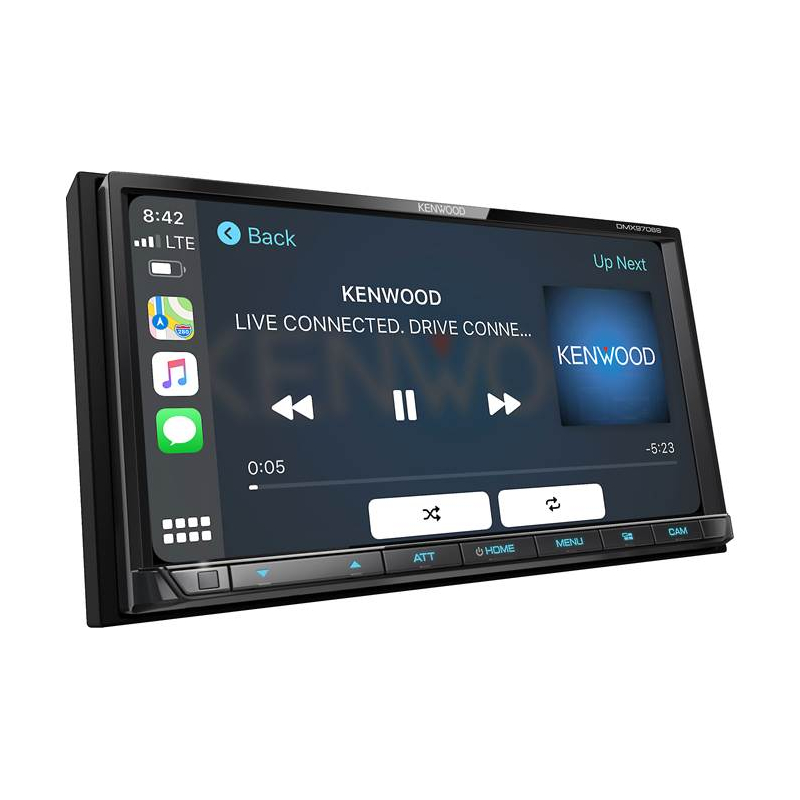

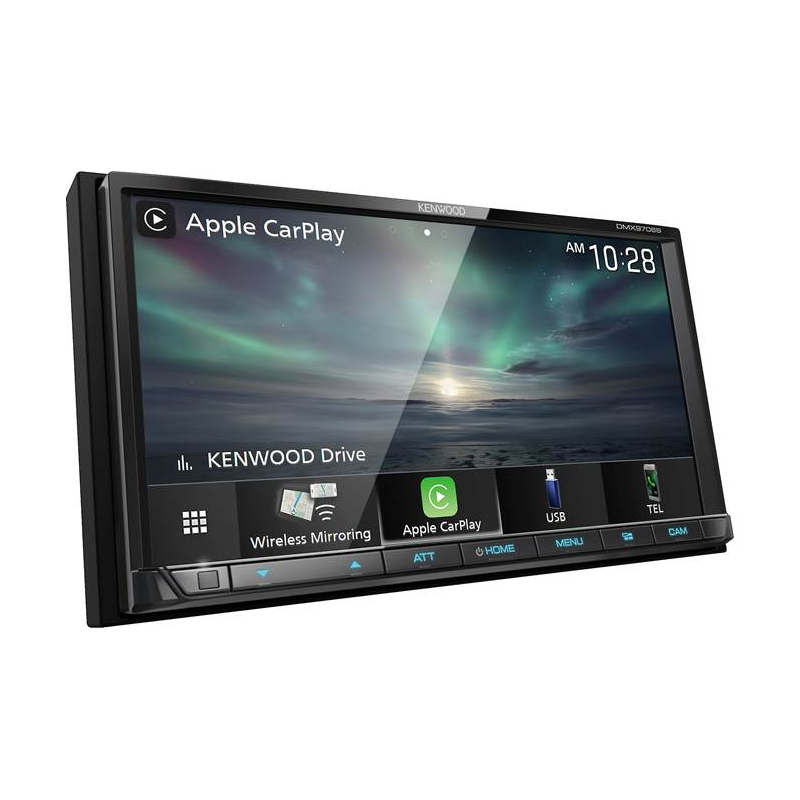

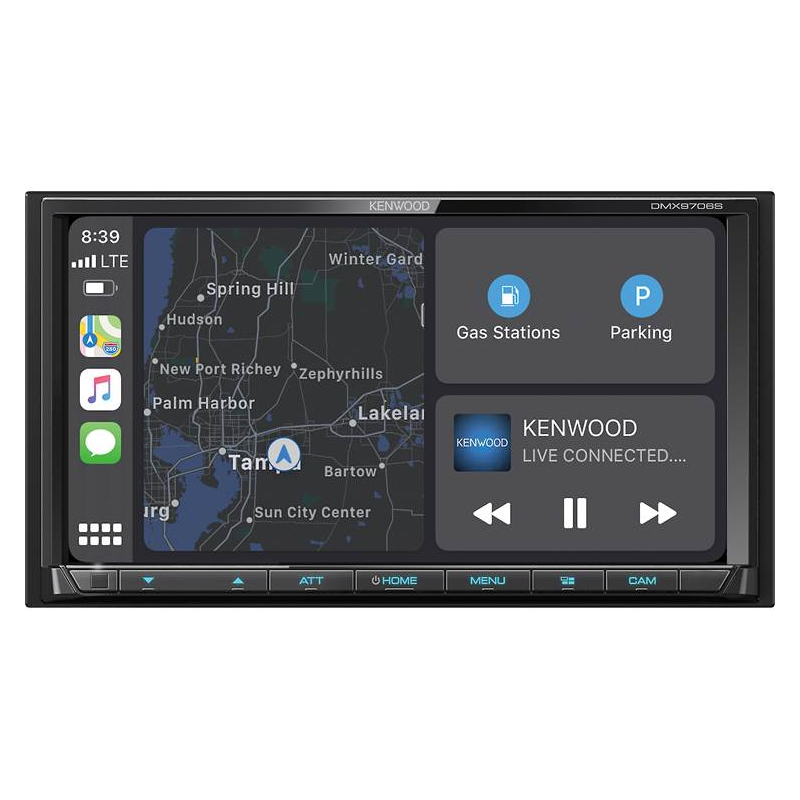

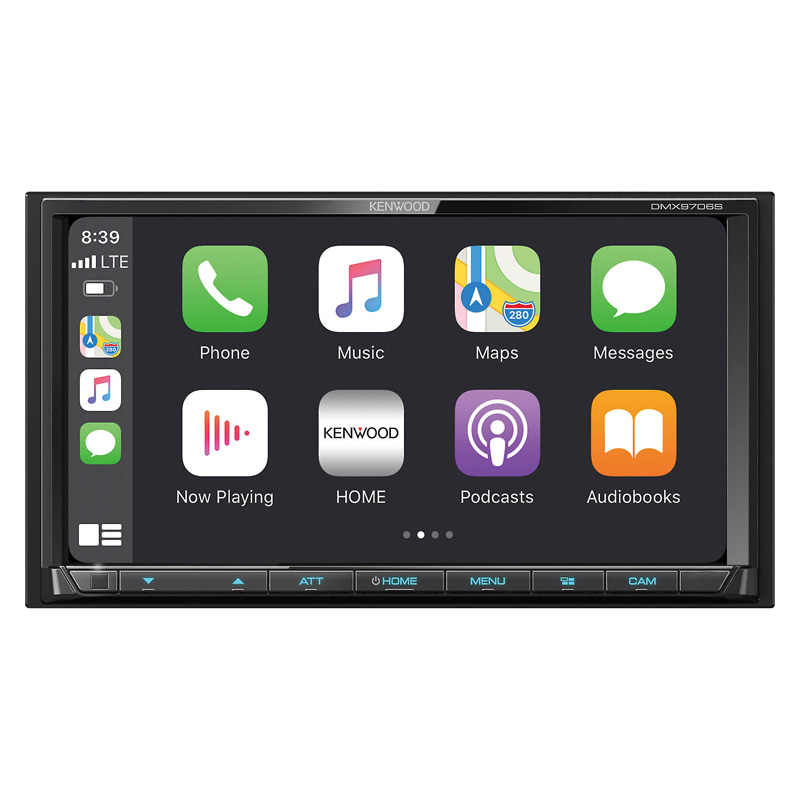

Kenwood Digital Multimedia Receiver
We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

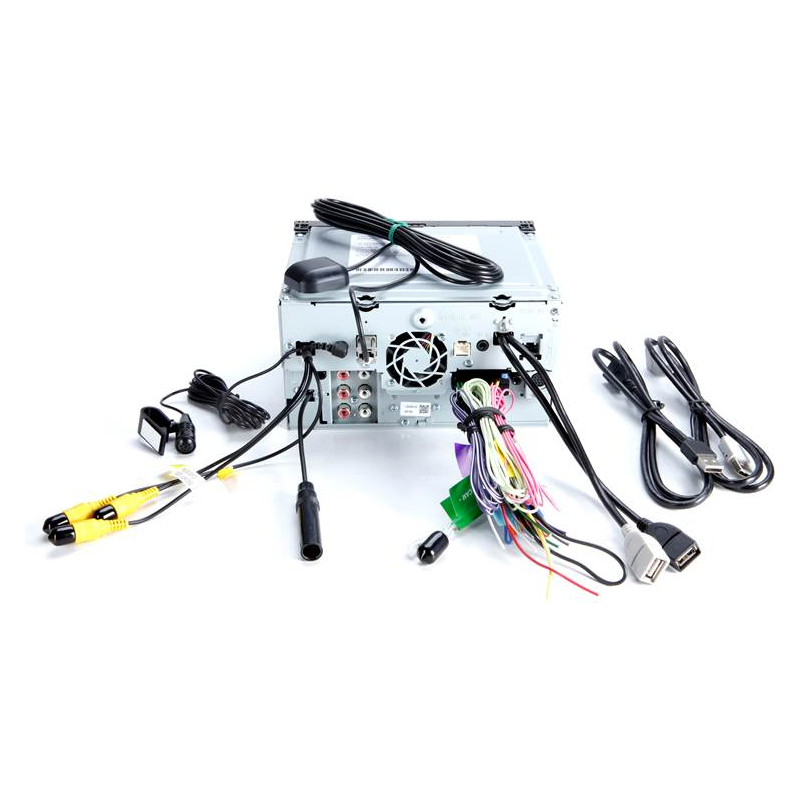

What's Inside?

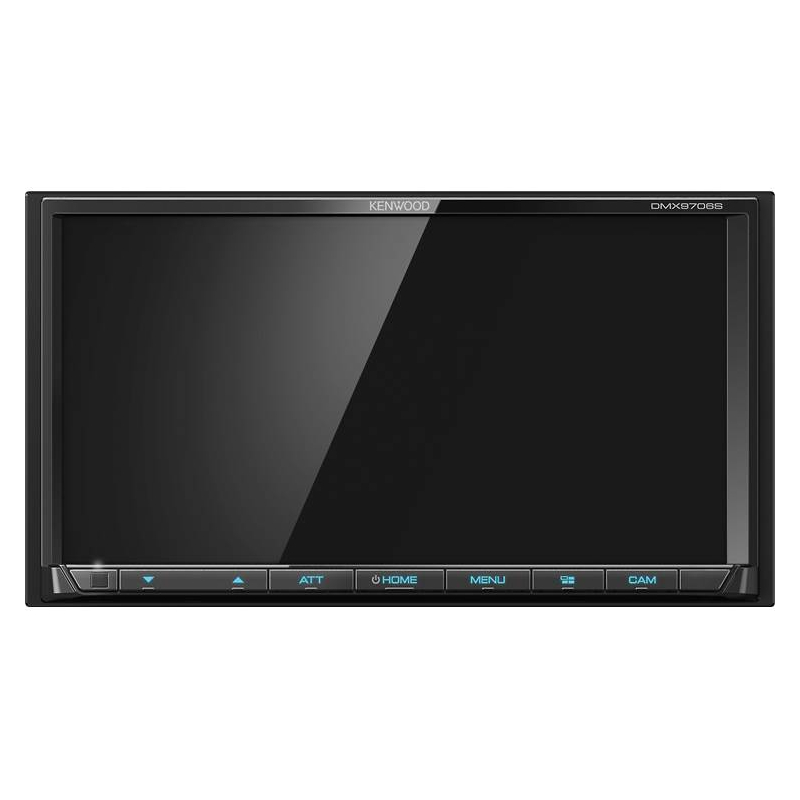

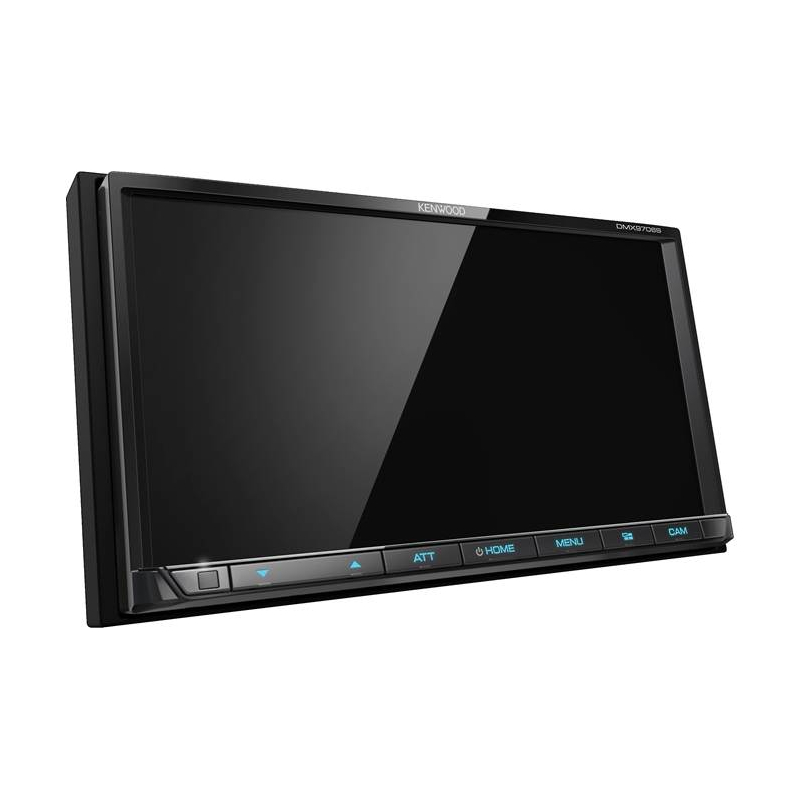

- • Digital media receiver w/ fixed 6.95" touchscreen monitor (15A fuse)
- • Sleeve (attached)
- • Trim ring
- • Wiring harness
- • 39" USB extension cables
- • GPS antenna (attached 11.5' cable terminated by a proprietary connector)
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- • Self-adhesive pad
- • (2) Radio removal tools
- • (6) Pan-head ISO-mount screws
- • (6) Flat-head ISO-mount screws
- • Owner's Manual
Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calls and streaming music, as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Safe Driving
Keeping you safe on the road ahead is our top priority.
- CD-R/CD-RW Compatible : Yes
- CD Text : Yes
- Satellite Radio Ready : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 4 volts
- Display Size : 6.95 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Rear USB Input : 2
- Audio/Video Outputs : 1
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Monitor Section:
- Picture Size: 6.95"
- WxH: 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16 inch
- Display system: TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels: 1,152,000 800H x 480V x RGB
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
USB I/F Section
- USB Standard: USB2.0 High Speed
- File System: FAT 16/32, exFAT, NTFS
- Maximum Power Supply Current: DC5V=1.5A
- D/A Converter: 24/32Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
- Frequency response:
- 192k Sampling: 20 - 88,000 Hz
- 96k Sampling: 20 - 44,000 Hz
- 48k Sampling: 20 - 22,000 Hz
- 44.1k Sampling: 20 - 20,000 Hz
- Total harmonic distortion 1kHz: 0.0001%
- Signal to Noise ratio: 98.5dB
- Dynamic range: 89dB
Wireless Mirroring:
- Mode: Sink
- Copyright protection: HDCP2.2
- Touch Control: UIBC
Wi-Fi
- IEEE Standard: 802.11 a/b/g/n/ac
- Frequency Range Dual: Band ( 2.4GHz / 5GHz )
- Channels:
- Auto(1-11ch)
- Auto(149,153,157,161ch)
- Transfer rates (MAX): 11a: 54 Mbps / 11b: 11 Mbps11g: 54 Mbps / 11n: 300 Mbps / 11ac: 867 Mbps
- Output Power 2.4GHz/SISO: 11b:14dBm±2dB / 11g:13dBm±2dB / 11n(20MHz):12dBm±2dB
- Output Power 5GHz/SISO: 11a:9dBm±2dB / 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB / 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
- Output Power 5GHz/MIMO: 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB / 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB
Bluetooth Section:
- Technology: Bluetooth Ver5.0
- Frequency: 2.402 – 2.480 GHz
- RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
- Profile:
- HFP (V1.7) (Hands Free Profile)
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (V1.6) (Audio/Video Remote Control Profile)
- PBAP (Phonebook Access Profile)
DSP Section:
- Graphics equalizer:
- BAND: 13Band
- frequency (Hz)(BAND1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
- Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
- 2Way X'Over:
- HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
- SLOPE: -6/-12/-18/-24[dB/Oct.]
- LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
- SLOPE: -6/-12/-18/-24[dB/Oct.]
- Position:
- Front/Rear/Subwoofer Delay: 0 - 20.01ft (0.03or0.04ft Step)
- Gain: -8 to 0dB
- Subwoofer Level: -50 to +10dB
FM:
- Frequency Range (Frequency step): 87.9MHz - 107.9MHz (200kHz)
- Usable sensitivity: 9.3dBf
- S/N30dB: 0.8μV/75Ω
- Quieting sensitivity: 10.2dBf
- DIN S/N 46dB: 1.13μV / 75Ohms
- Frequency response (±3.0dB): 30Hz - 15kHz
- S/N (dB): 65dB (MONO)
- Selectivity Over: 80dB (±400kHz)
- Stereo separation: 45dB (1kHz)
AM:
- Frequency Range (Frequency step): 530kHz - 1700kHz(10kHz)
- Usable sensitivity: 28dBμ
Video
- Color system of external video input:NTSC/PAL
- External video input level (Mini jacks): 1 Vp-p / 75 Ohms
- External audio max input level (Mini jacks): 2 V / 25 kOhms
- Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
- Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
- Audio Output level (Mini jacks): 0.9 V / 10 kOhms
Audio
- Maximum Power Output (Front&Rear): 50Wx4
- Typical Power Output (Front&Rear): Full Bandwidth Power (at less than 1%THD) 22Wx4
- Output frequency band: 20 - 88,000Hz
- Preout level (V): 4V / 10kOhms
- Preout impedance (ohms): =< 300 Ohms
- Speaker Impedance (ohms):4-8 Ohms
General
- Operating voltage: 12V DC Car Battery
- Maximum Current consumption: 15A
- Installation Dimensions WxHxD: 178mm x 100mm x 155mm | 7-3/16 x 4-7/16 x 6-2/16 inch
- (with Sleeve): 182mm x 112mm x 153mm | 7-3/16 x 4-7/16 x 6 inch
- Operational temperature range: -10°C to +60°C
- Weight: 1.7 kg 3.8 lb
- UPC: 019048226631
- Weight: 8
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
