Audison AP4 - PRIMA Series 4" 120W Peak Power Handling, 4-Ohms, Midrange Speakers
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 4" Midbass Driver
- • Pair of 165mm speaker protective grilles
- • Cables
- • Owner's Manual
Ensure More Balance in Mid-High Frequency Ranges

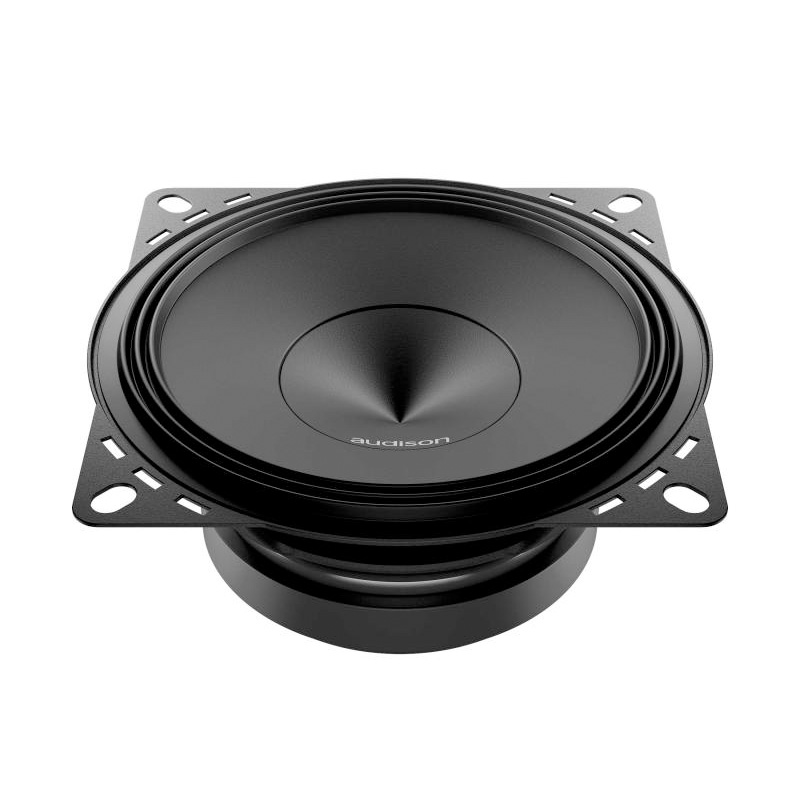

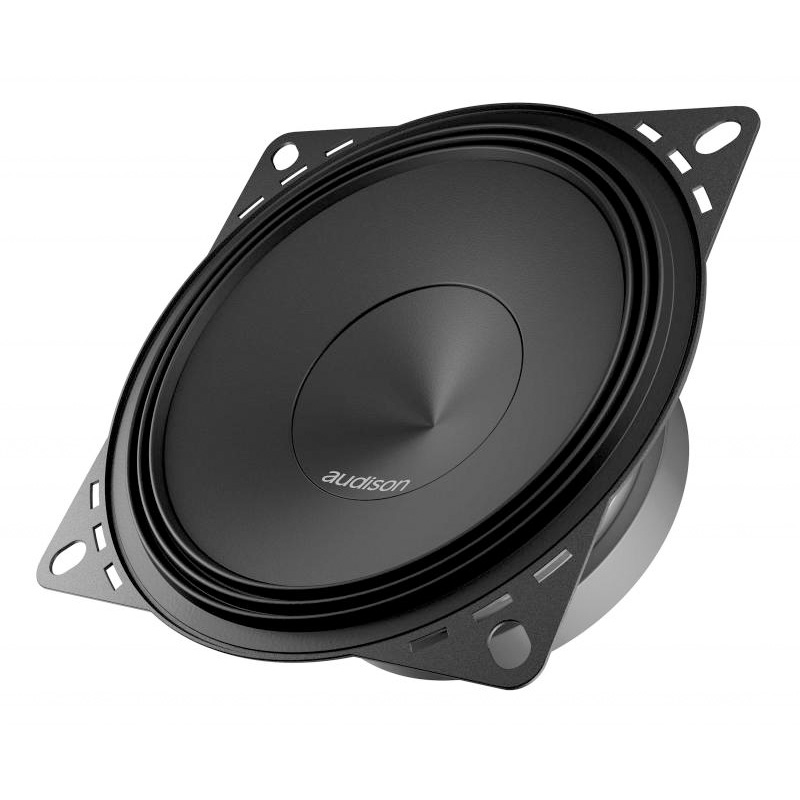

The Audison AP4 midbass driver is a powerful and versatile audio component designed to deliver exceptional low to midrange frequencies with precision and impact. Its advanced construction and high-quality materials provide an immersive audio experience in car audio systems or other applications.
Delivering Tight and Punchy Performance
The AP4 midbass driver features a cone made of a proprietary material engineered for optimal rigidity and damping. This allows it to accurately reproduce bass and midrange frequencies, delivering tight and punchy performance. The driver's motor assembly is designed for efficient power handling, ensuring high output levels and minimal distortion.
Maintains Optimal Operating Temperatures
Equipped with advanced cooling technology, the AP4 driver maintains optimal operating temperatures even during intense use, ensuring long-term reliability. Its robust construction and durable components make it suitable for demanding installations.
Offers Exceptional Performance
The midbass driver's compact size and flexible mounting options make integrating into various speaker setups easy. Whether used as part of a component system or standalone, the Audison AP4 midbass driver offers exceptional performance, precise bass reproduction, and durability for audio enthusiasts seeking powerful and accurate sound.

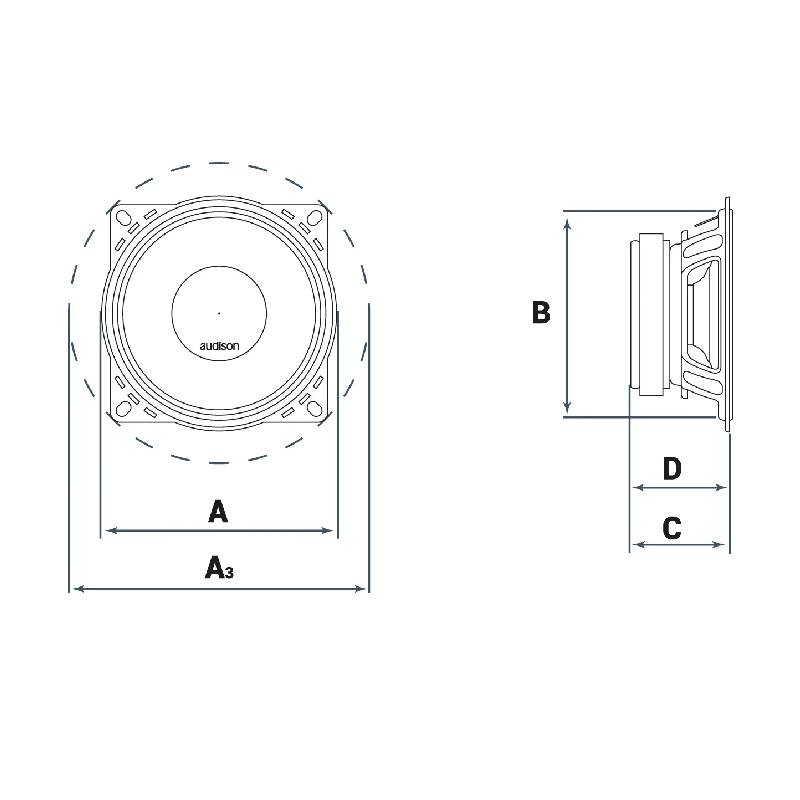

DIMENSIONS
Physical Specifications
- • Dimension A: 103 mm
- • Dimension B: 93 mm
- • Dimension C: 43 mm
- • Dimension D: 41 mm
- Diameter : 4 Inch
- Maximum Power : 120 Watts
- Sensitivity : 91 dB
- Impedance : 4 Ohm
- Frequency Response : 80-7500 Hz
- Peak Power Handling : 120 Watts
- RMS Power Handling : 40 Watts
Product Highlights:
- Very extended frequency response, in both high and low frequencies, combined with high efficiency.
- No passive crossover required to maximize efficiency: the cone is optimised with the Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.

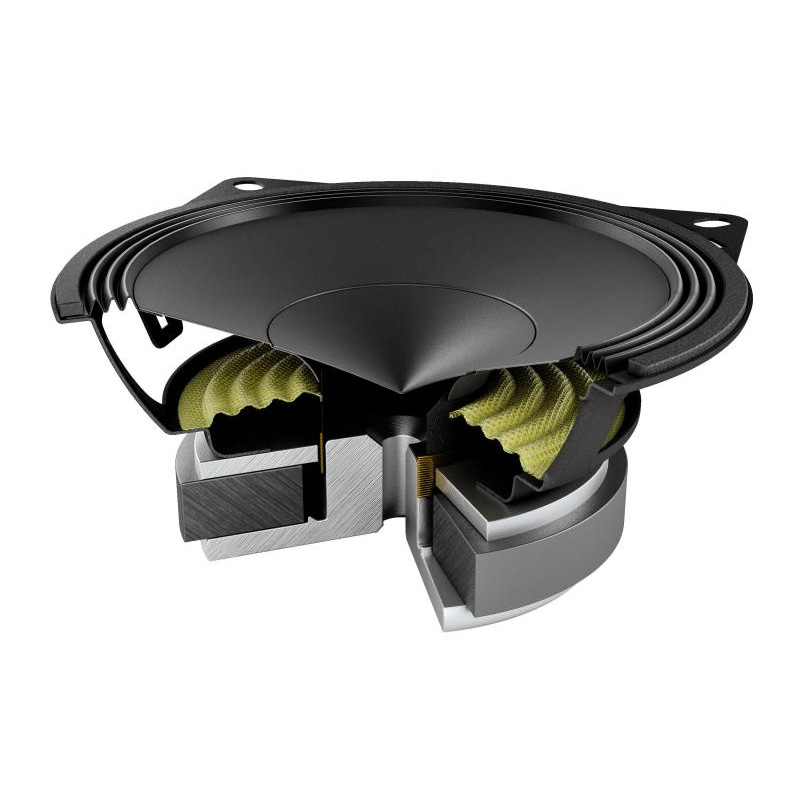

- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel R&D Scan Vibrometer.
- Reduced mounting depth, providing ease of installation in OEM placements.
- TPU (Thermoplastic Polyurethane) surround, featuring the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
- 25 mm pure copper voice coil; ensuring precise balance in the mid-high frequency range.
- Compact basket, protected by abrasion-resistant and scratch-proof coating.
- Developed with the KLIPPEL suite.
Specifications:
- Comp: Midbass
- Size:
- Power Handling:
- 40 W Continuous Power
- 120 W Peak Power
- Impedance: 4 ohms
- Frequency Response: 80 ÷ 7.5k Hz
- Sensitivity: 91 dB/Spl
- Magnet: High density flux ferrite
- Dome: Water-repellent pressed paper
- UPC: 8018823111645
- Weight: 3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
**Speakers purchased and installed by an authorized Audison dealer will have a three (3) year limited warranty from the original date of purchase.
