Kenwood :: DPX502BT :: $128.99

Kenwood DPX502BT

Item# 18734

Double-Din CD Receiver with USB Interface & Bluetooth

Sorry, this product is no longer available.

Kenwood Banner

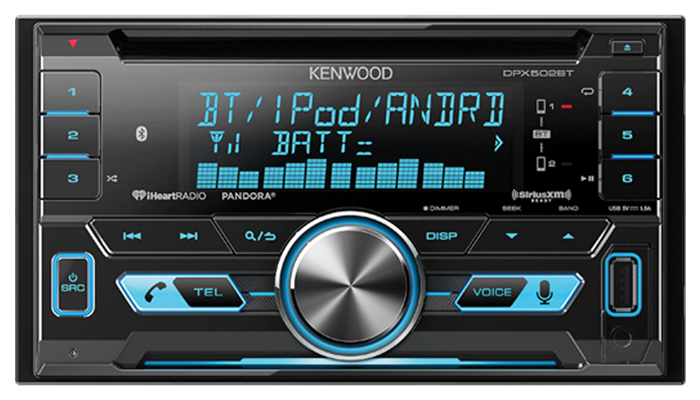

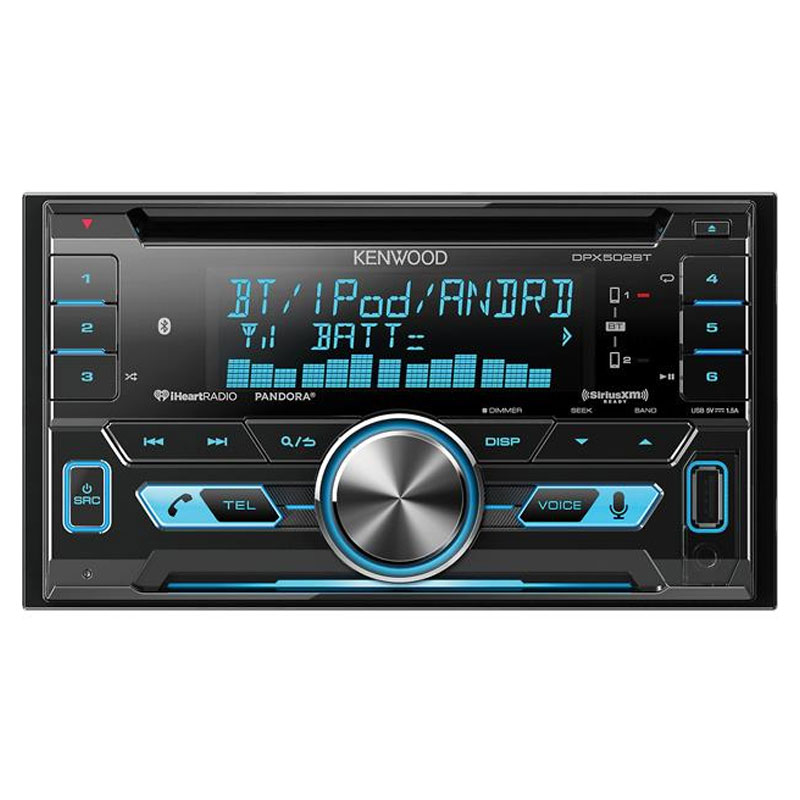

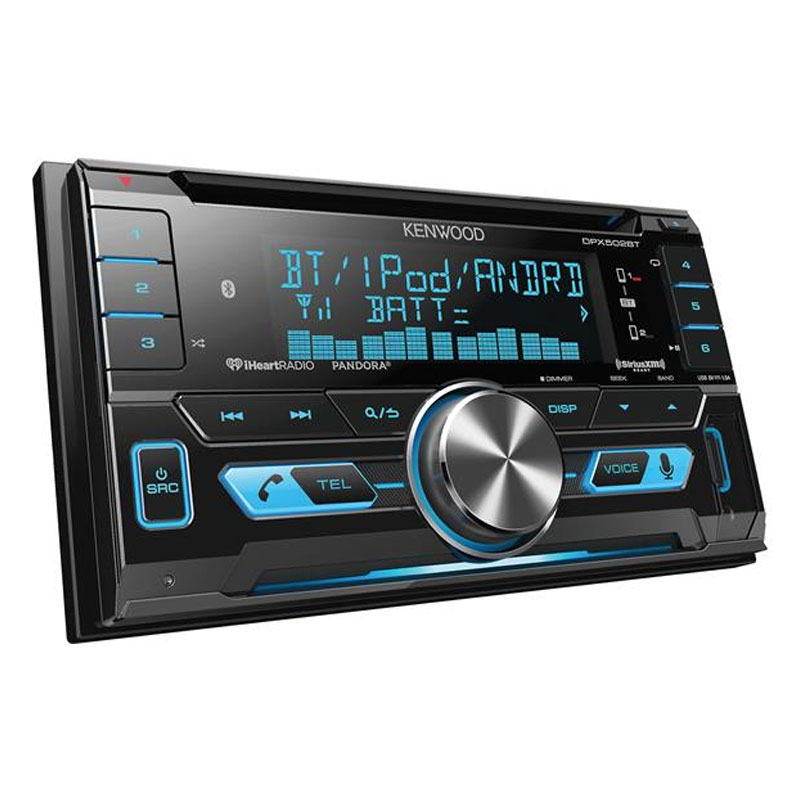

Kenwood DPX502BT CD Receiver

2-DIN Media Receiver with Bluetooth / Dual Phone Connection / Android Music Playback / Android Rapid Charge / Siri Eyes Free / FLAC Supported / Wireless Music Browsing / 13 Band EQ / Drive EQ / SiriusXM / Pandora / iHeartRadio / Front USB Port / Spanish Menu


Dual Phone Connection

up to 5 Bluetooth devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.

Dual Phone

Clear Display

Bright variable color LED's can be adjusted to match any color dash lighting.

Clear Display

Wireless Music Browsing

Search and select songs from your music collection through a Bluetooth® connection.

Wireless Music Browsing

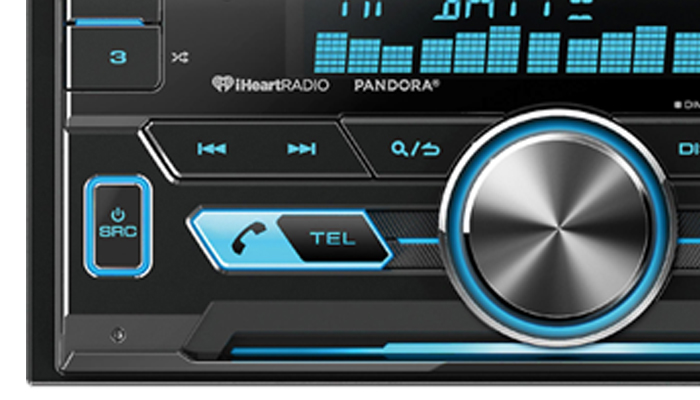

Easy Operation

A large volume knob and buttons are intuitively placed, reducing distraction and promoting safety.

Easy Operation

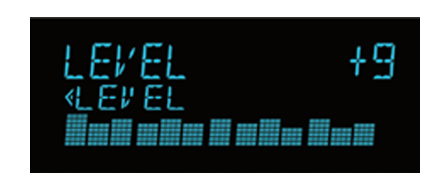

13 Band EQ

Road noise is the enemy of all audio systems found in vehicles. The inherent frequencies of road noise masks a wide range of the audio signal found in music, and this is the reason KENWOOD engineers developed Drive EQ. Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

13 Band EQ

FLAC Support

Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.

FLAC Support

The Perfect Entertainment Package

Compatible with various internet radio apps such as PANDORA, iHeartRadio and AUPEO. You can also enjoy built-in HD Radio or optional Sirius XM broadcasts.

Entertainment Package

Kenwood's DPX502BT CD receiver offers multiple ways to play your favorite songs, as well as a host of sound-tweaking options. You can pair up two phones via its built-in Bluetooth for wireless convenience, or plug in your smartphone directly for charging and control over your music. This unit allows you to pair your phone with the Kenwood for hands-free calling.

General Features:

  • CD receiver with AM/FM tuner
  • built-in MOSFET amplifier (22 watts RMS/50 peak x 4 channels)
  • plays CDs, CD-Rs and CD-RWs, including discs loaded with MP3, WMA, and AAC files
  • 13-digit variable-color display

Smartphone Features:

  • built-in Bluetooth for hands-free calling and audio streaming with dual phone connection
  • supports Android music playback using the Kenwood Music Play app
  • Pandora and iHeartRadio control with iPhone and Android
  • built-in iPhone and Android control using USB port

Audio Features:

  • 13-band parametric equalizer with 8 preset EQ curves
  • subwoofer level controls
  • high and low-pass filter controls
  • bass boost and loudness controls


  • compatible with SiriusXM satellite radio tuner (not included)
  • Music Drive lets you select audio from multiple flash drives or memory cards in a connected USB hub or memory card reader
  • inputs: front panel auxiliary and USB inputs
  • outputs: 6-channel preamp outputs (2.5-volt front, rear, subwoofer)

What's Included?

  • Trim ring (attached)
  • CR2025 3V lithium-battery (installed in remote)
  • CD receiver (10A fuse)
  • 2 Removal tools
  • Instruction Manual (En/Fr/Sp)
  • Sleeve (installed)
  • Wiring harness
  • Wireless remote control (RC-406)
  • Microphone with integrated bracket (attached 10' cable terminated by a right-angle male 3.5mm connector)
  • UPC: 019048214508
  • Weight: 4.5
*Warranty: 1 Year warranty.
1 Year warranty from implies that repairs must be returned to, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.

Do you own this product?  Write a review

   Jason McGraw From Walsenburg, CO.
Very happy with product. Installed in a 2000 F-350. Repaced Pioneer deck. Sound quality is way better. Had to make minor modifications to dash but well worth it. Have it hooked up to four infinity 6x8's and one 10 in. sub. This product rocks!

   andrew white From olalla, wa
Bought for a ford ranger. Install was very easy and it sounds great. Is easy to use also. Have it hooked to four Clarion 6X8s, no need to amp loud enough.
