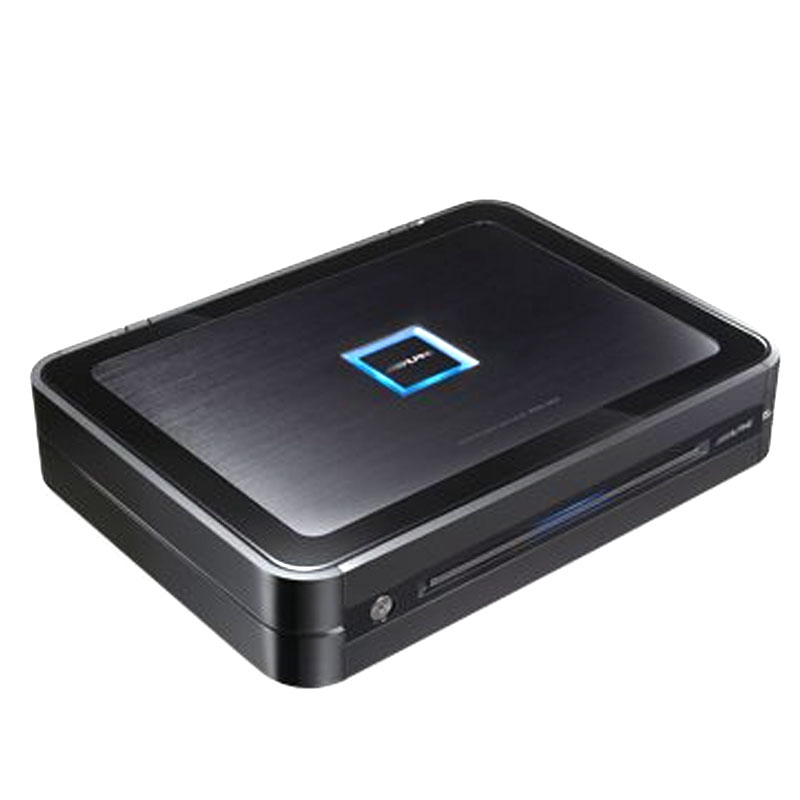

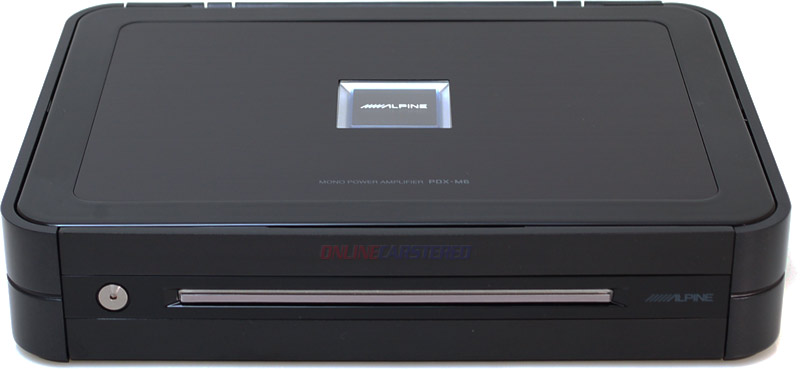

For incredible power from a 2" tall frame, Alpine packs Class-D amplifier technology into their PDX amplifiers. These small but powerful amps run so cool that they can be stacked into a single unit together, their heatsinks pair together to cool the entire stack. Each amp provides a footprint of 8" by 10", so they will fit in hatchbacks, trunks, truck cabs, and any limited space vehicles."
The new Alpine PDX Series amplifiers are completely re-engineered for performance, sound quality, and reliability. The PDX series are for the true car audio enthusiast, all from a compact size. Consider the bar raised.
Onlinecarstereo has been a long time authorized retailer of Alpine products. We strive for excellent customer satisfaction and on-time delivery of your orders. As we are an authorized retailer, you are guaranteed you are receiving authentic Alpine products.
Low Frequency response : 50-400 Hz
Number of Channels : 1
Frequency Response : 5-400 Hz
Built In Crossovers : Yes
RMS Power Output : 600x1 Watts
Channel Separation : Yes
Amplifier Class : D
Fuse Rating : 20x4 A
CEA-2006 Power Ratings
CEA-2006 Power Rating: (4/2 I? @14.4V ?% THD+N), S/N: 95dBA, ref:1W into 4 I?) 600W x 1
RMS Power Ratings
Per channel into 4 Ohms: (@ 14.4V ?%THD+N) 600W x 1
Per channel into 2 Ohms: (@ 14.4V ?%THD+N) 600W x 1

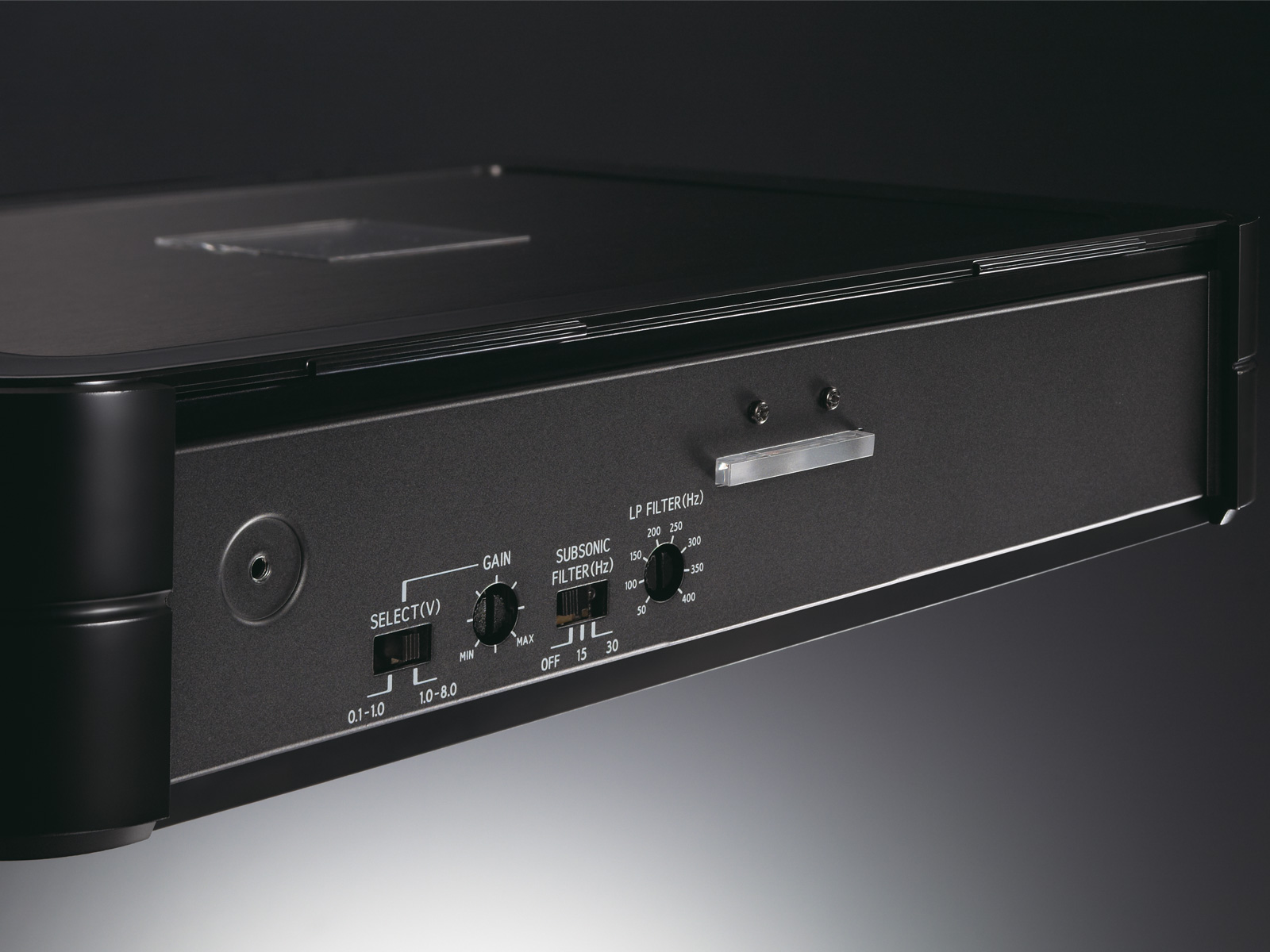

Input Sensitivity (RCA Input): Select Vol, 0.1V to 1.0V or 1.0V to 8.0V (For Rated Power)
Cable size: 4 AWG (BATT and GND), 12 AWG (Remote), Up to 8 AWG (Speaker)
Frequency Response (+0, -3dB: 1W into 4 Ohms) for CH-1/2/3/4: 5 Hz - 400 kHz / 0dB ~ -3dB (Reference: 1 W into 4 ohms)
Frequency Response (+0, -3dB: 1W into 4 Ohms) for Subwoofer: 4 or 2 I?
Frequency Response (+0, -1dB: 1W into 4 Ohms) for CH-1/2/3/4: CEA 2006 S/N Ratio (IHF A Weighted, Reference: 1W into 4I?) 95dBA

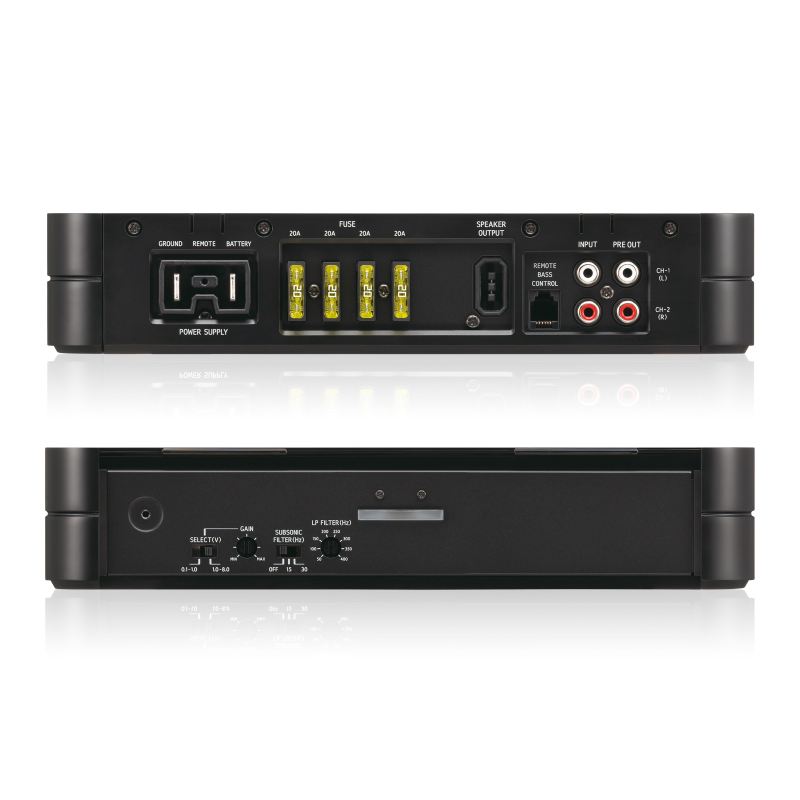

Connectors: Quick Disonnect Terminals (Power Terminal and Speaker Terminals)
Terminal Layout: One-Sided
Mounting Design: Easy Stacking and Clean-look installation
Amplifier Type: Class-D (Digital)
Channel Design: 1 Channel (Mono)
Power Supply: Resonant Mode Power Supply
Power Supply Design: DC-DC PWM Power Supply
Board Circuitry: STAR Circuit
Current Protection: Auto Over-Current Protection

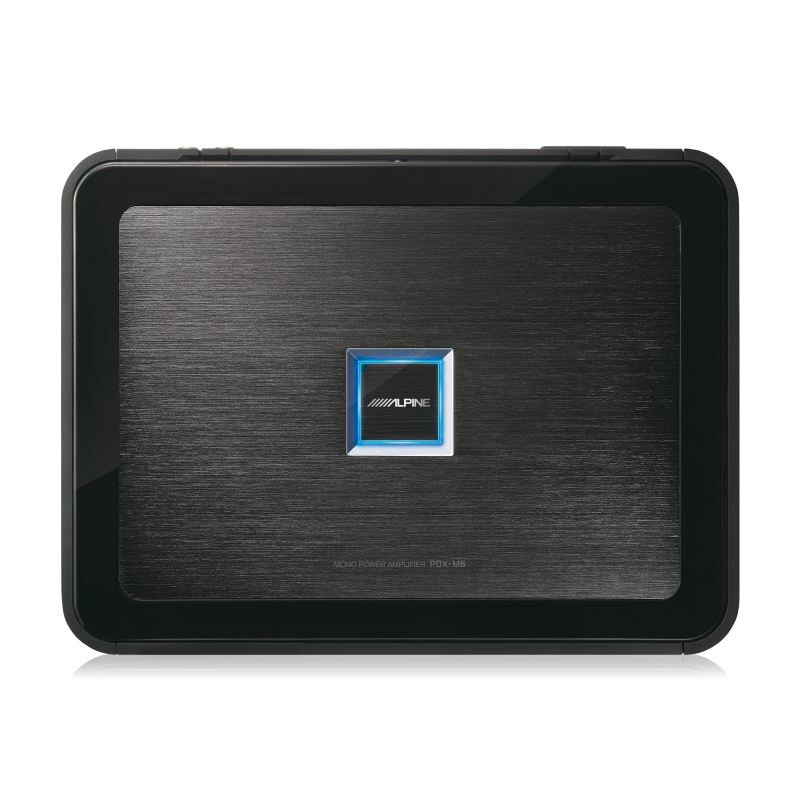

Power Indicator: Top Mounted Blue LED Power/Status Indicator
RCA Output: Non-Fading Pre-Amp Output
Crossover: Adjustable Low-Pass
Pre-Amp Stage: Discrete
Final Outputs: MOSFET
Board Design: 6-Layer Glass Epoxy PC Board
Gain Control: Adjustable
Bass Control: Remote Bass Control (Sold Separately)
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
You can't go wrong with an Alpine purchase. Alpine is designed for Audiophiles and this amplifier isn't lacking in any sense of that word. I've used this amplifier for about two years and it keeps amazing me. It delivers clean efficient power and draws enough energy to split your wig. My Alpine M6 is pushing the Alpine SWR-1223D and it matches it perfect. Only advice I would give is Dynamat your vehicle.
Good power for a small design. Love how small it is and a lot easier to fit into custom designs. Easy to adjust and love the de-pluggable connectors. Good valve for the money
This amp set up in my truck is hands down better then any other I have had.
I loved this product while it lasted. First, Online Car Stereo sold me this product without the power connector so I had to spend another $80 justbto use the amp and now after double checking everything, it now doesn't work. I've owned it for about a year and it no longer works. I believe they sold it to me as new but it was actually refurbished. Would not recommend buying from these guys. They are sketch....
