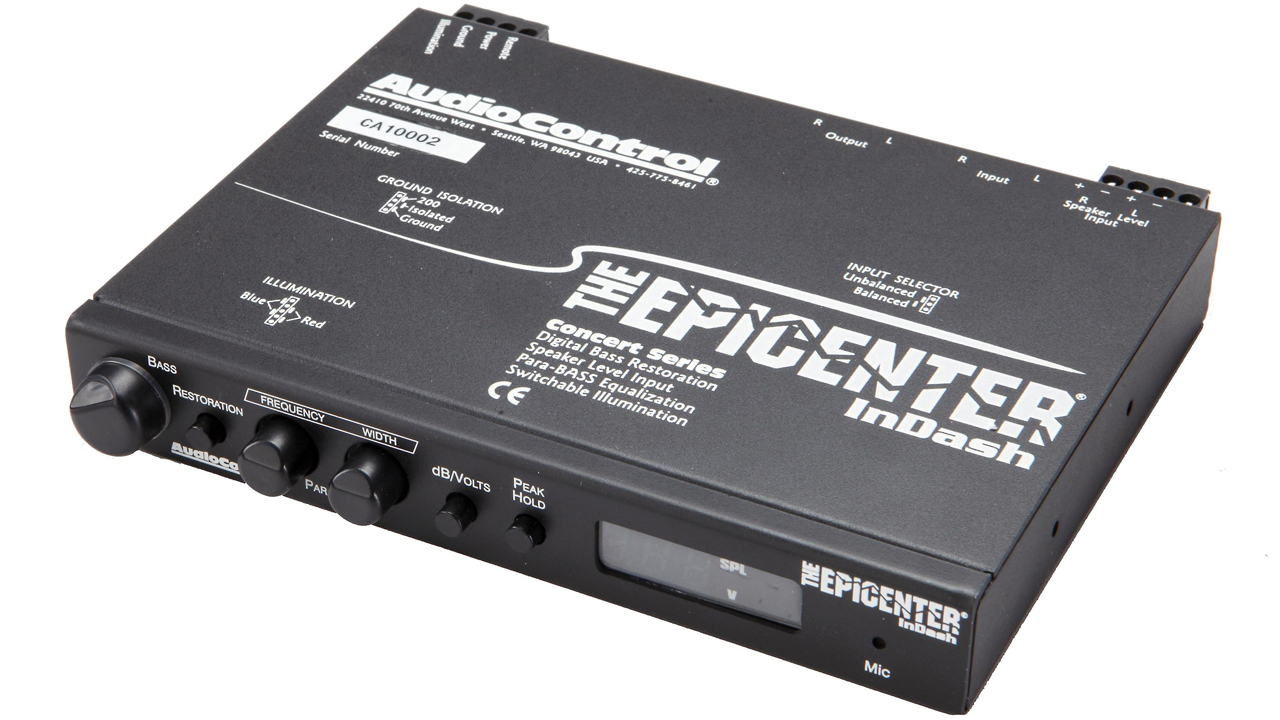

This EPICENTER is the InDash version of The Epicenter Bass Restoration Processor. The EPICENTER InDASH features a Built-in 160 dB capable microphone & Hi-SPL display. The Processor also includes Selectable display switching monitors vehicle electrical system. The Processor has ParaBASS controls for tuning the bass restoration effect. Line level and active speaker level inputs accommodates OEM integration which makes installation a breeze. In addition, Balanced differential inputs are built into the processor. Switchable illumination make the EPICENTER InDASH completely customizable. The processor fits 1⁄2 DIN chassis and also includes mounting brackets There is 1 Preamp Input Channel built into the processor. It has a Maximum Input Level of 15 Vrms. There is also 1 Speaker Level input built in. The InDash has an Input Impedance of 10k Ohms. The EPICENTER InDASH has a 1 Speaker Level Input. The EPICENTER InDASH has 1 Preamp Output Channel. It has a Maximum Output Level of 13.5 Vrms. Also, the Output Impedance is 160 Ohms. The Total Harmonic Distortion is 0.003%. The Frequency Response registers 10 Hz - 100 kHz. It has a Signal to Noise ratio of 110dB. Also standard is a 60dB Balanced Input Noise Rejection. It has a Current Draw of 285mA. The recommended Fuse Rating is 1A.
| Specifications | |
|---|---|
| Output Impedance: | 160Ohm |
| Microphone SPL range: | 70 dB-SPL to 160 dB-SPL |
| Preamp Outputs: | 1 (2 channels) |
| Preamp Inputs: | 1 (2 channels) |
| Speaker Level Inputs: | 1 (2 channels) |
| Frequency Response: | 10Hz-100kHz |
| Maximum Input Level: | 15Vrms |
| Recommended | Fuse Rating: 1A |
| Current Draw: | 285mA |
| Input Impedance: | 10k Ohm |
| Maximum Output Level: | 13.5Vrms |
| Total Harmonic Distortion: | 0.003% |
| Signal to Noise: | 110dB |
| Balanced Input Noise Rejection: | 60dB |
| Power Supply: | High Headroom PWM Switching |
| Dimensions: | 6.75W x 5D x 1H |
| Weight: | 2lbs (0.9kg) |
