What's Included:
- Line In & Line Out
- Gold-Plated RCA Connectors & Screw Terminals
- Owner's Manual

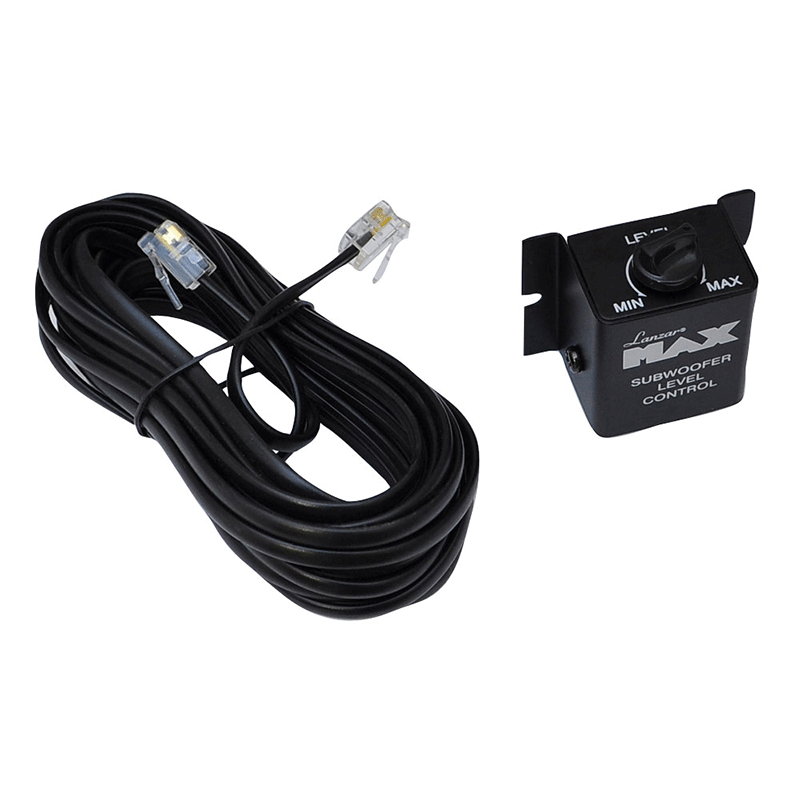

- Remote Subwoofer Level Control
- Thermal, Over load & Speaker Short Protection
- Power & Protection LED Indicators
- Product Information Inside Box
- Thermal, Over load & Speaker Short Protection
- High Technology SMD Circuit
- Power & Protection LED Indicators
- Double Side Epoxy PCB Circuit Board
- Soft Turn-on/Turn-Off
Product Highlights:
- S/N Ratio (4 Ohm): 80dB
- Dimensions: 8.11'' (W) x 2.12'' (H) x 6.23'' (L)
- Input Sensitivity: 200mV-6V
- Variable Subsonic: 15Hz-45Hz
- 1800 Watts Peak Power @ 1 Ohm
- Variable LPF: 20Hz-350Hz
- 1 Ohm Stable
- 700 Watts Peak Power @ 4 Ohm
- 1200 Watts Peak Power @ 2 Ohm
- THD 4 Ohm Power 0.5%
- Frequency Response: 10Hz-350Hz
- Phase Shift Control: 0-180°
- Bass Boost Variable: 0-18dB (45Hz FIX)
- Fuse Rating: 30Ax2
- Sold as : Unit
- Maximum Power : 700-1800 Watts
- Number of Channels : 1
- Frequency Response : 15-45000 Hz
- Built In Crossovers : Yes
- Amplifier Class : D
- Fuse Rating : 2 x 30 A

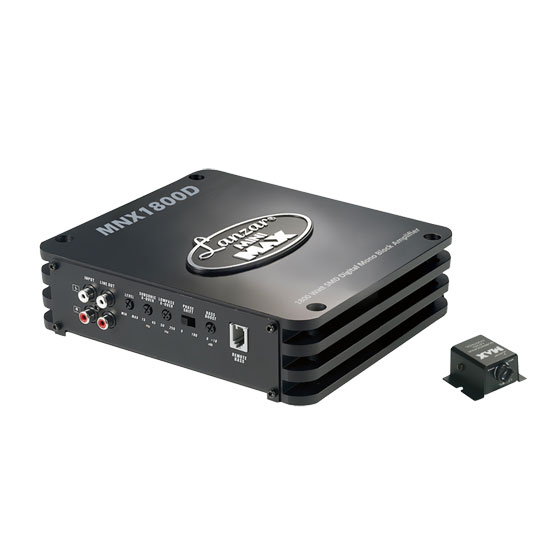

The MNX1800D is a single-channel monoblock amplifier powered digitally for maximum efficiency. This amplifier can push up to 1800 watts at 1 ohm. It's equipped with variable low pass and subsonic filters so you can get the most out of your vehicle's speakers without blowing them out. The included wired remote allows you to adjust the bass boost level from the comfort of your vehicle. Gold-plated RCA connectors and screw down terminals ensure an extremely high-quality connection between your amp and other components. This amplifier is equipped with power and protection LED indicators, so you'll always know its working properly. Soft turn-on/off prevents damage to your speakers while powering the unit on and off. And thermal, overload and speaker short protection keep your equipment safe and secure.
Specifications |
Level Control |
Remote Subwoofer Level Control |
@ 4 Ohm |
700 Watts Peak Power |
@ 2 Ohm |
1200 Watts Peak Power |
Variable Subsonic: |
15Hz-45Hz |
RCA Connectors |
Gold-Plated and Screw Terminals |
Circuit Board |
Double Side Epoxy PCB Circuit Board |
LED Indicators |
Power & Protection LED Indicators |
Phase Shift Control: |
0-180° |
Variable LPF: |
20Hz-350Hz |
1 Ohm |
Stable |
Circuit |
High Technology SMD Circuit |
Dimensions: |
8.11'' (W) x 2.12'' (H) x 6.23'' (L) |
LED Indicators |
Power & Protection LED Indicators |
@ 1 Ohm |
1800 Watts Peak Power |
Input Sensitivity: |
200mV-6V |
Protection |
Thermal, Over load & Speaker Short Protection |
THD 4 Ohm Power |
0.5% |
S/N Ratio (4 Ohm): |
80dB |
Frequency Response: |
10Hz-350Hz |
Bass Boost Variable: |
0-18dB (45Hz FIX) |
Fuse Rating: |
30Ax2 |
Sold as : |
Unit |
- UPC: 068889014501
- Weight: 5.9
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
