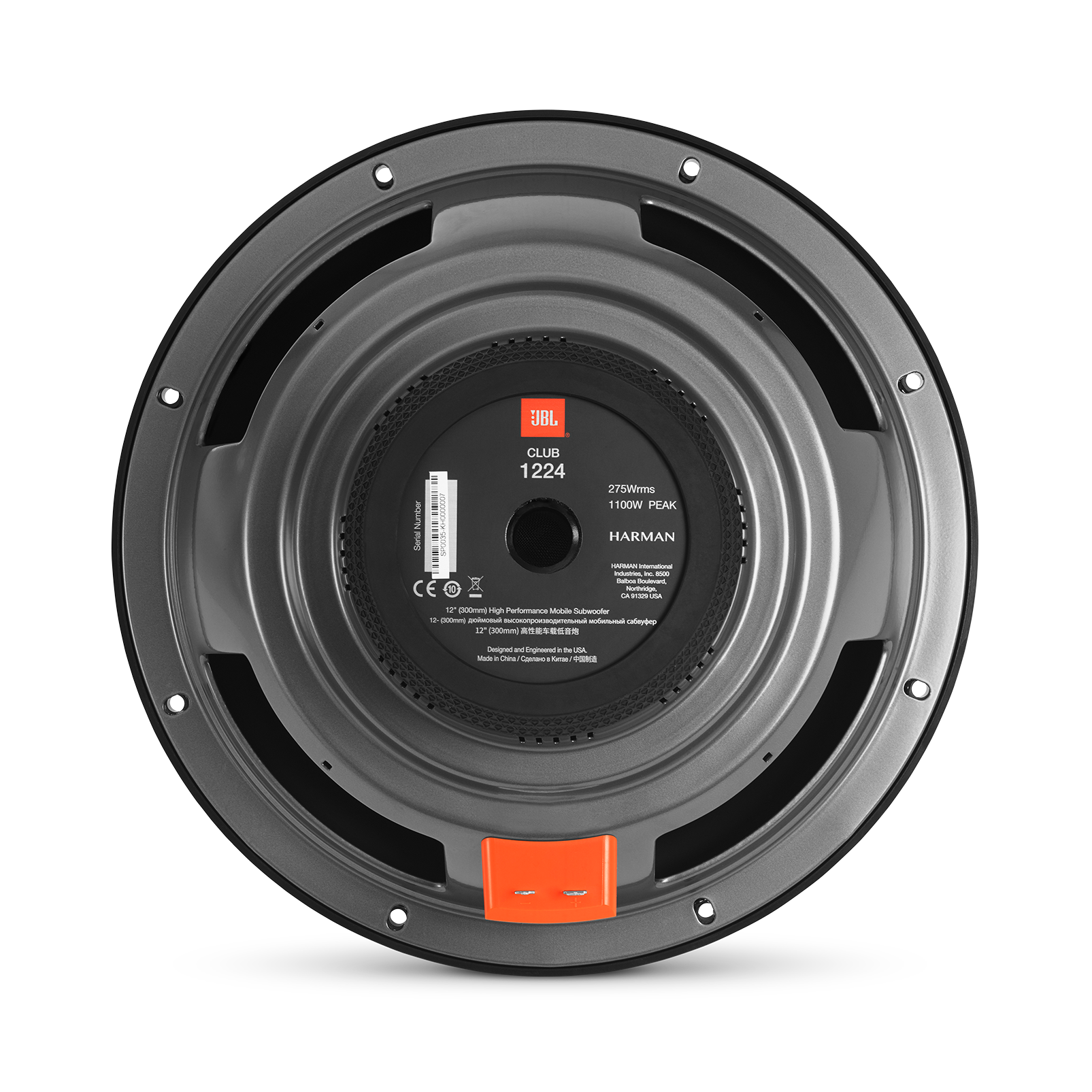

JBL Club 1224 AM Club Series 12" 275W RMS (1100W Peak Power Handling) 2 or 4 Ohms Switch Selectable Single Voice Coil Car Subwoofer
We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" Subwoofer (with impedance switch)
- • Owner's manual
Top-of-the-line Car Subwoofer
The Kicker 46L7T82 is a top-of-the-line car subwoofer that delivers exceptional performance and bass output. With its advanced features and engineering, it is a popular choice among car audio enthusiasts who seek powerful and accurate bass reproduction.
High-roll surround
The 46L7T82 features an 8-inch square subwoofer with a dual 2-ohm voice coil configuration. The square cone design allows for increased cone area and enhanced sound dispersion, resulting in deeper and more impactful bass. The subwoofer is built with a robust injection-molded SoloKon cone and a Santoprene surround, ensuring durability and minimizing distortion.
Proprietary cone design
With a power handling capacity of up to 350 watts RMS, this subwoofer can handle high power levels, allowing for intense and dynamic bass performance. Its frequency response range of 30 Hz to 100 Hz ensures accurate reproduction of low-frequency sounds.
Long excursion design
The 46L7T82 also features a unique UniPlate backplate and pole piece construction, which enhances thermal management and improves overall performance. This design helps to dissipate heat, reducing the risk of overheating during extended play.
The Kicker 46L7T82 is a high-quality subwoofer that delivers powerful and precise bass performance. Its square cone design, high power handling, and durable construction make it an excellent choice for those seeking an immersive bass experience in their car audio system.
Learn how to wire subwoofers
- Diameter : 12 Inch
- Sensitivity : 93 dB
- Impedance : 2/4 Ohm
- Frequency Response : 25-175 Hz
- Peak Power Handling : 1100 Watts
- Top Mount Depth : 6-9/16 Inches
- Shallow Mount : No
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 0.75 Cubic ft.
- Suggested Ported Box Volume : 2.5 Cubic ft.
- RMS Power Handling : 275 Watts
- Free Air : Yes
Features:
- Powerful Bass Performance: The Club Series subwoofers are designed to deliver signature JBL bass performance, enhancing your car audio experience with deep and powerful bass.
- Configuration Flexibility: Designed to suit a range of applications, these subwoofers offer flexibility in configuration, allowing them to be installed in sealed or vented enclosures according to your preference.
- Selectable Smart Impedance (SSI™): Exclusive impedance switch enables you to select the optimum impedance—2 or 4 ohms—for your system, ensuring compatibility and maximizing performance.
- Customizable Sound: With the ability to adjust impedance and enclosure type, you can customize the sound of your car audio system to suit your preferences and requirements.
- JBL Quality: Built with JBL's renowned craftsmanship and quality standards, the Club Series subwoofers offer reliability and durability for long-term performance.
Specifications:
- Description: 12" (300mm) car audio subwoofer
- Woofer: 12" (300mm)
- Power Handling: 275W RMS, 1100W peak
- Sensitivity (@ 2.83V): 93dB
- Frequency Response: 25Hz – 175Hz
- Impedance: 2 or 4 ohms, switch-selectable
- Cutout Diameter: 11-1/4" (285mm)
- Mounting Depth: 6-1/2" (165mm)
- UPC: 050036345309
- Weight: 12
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
