AudioControl :: SA-3052A :: $1,599.99

AudioControl SA-3052A

Item# 52576

Car Audio Realtime Analyzer

Sorry, this product is no longer available.

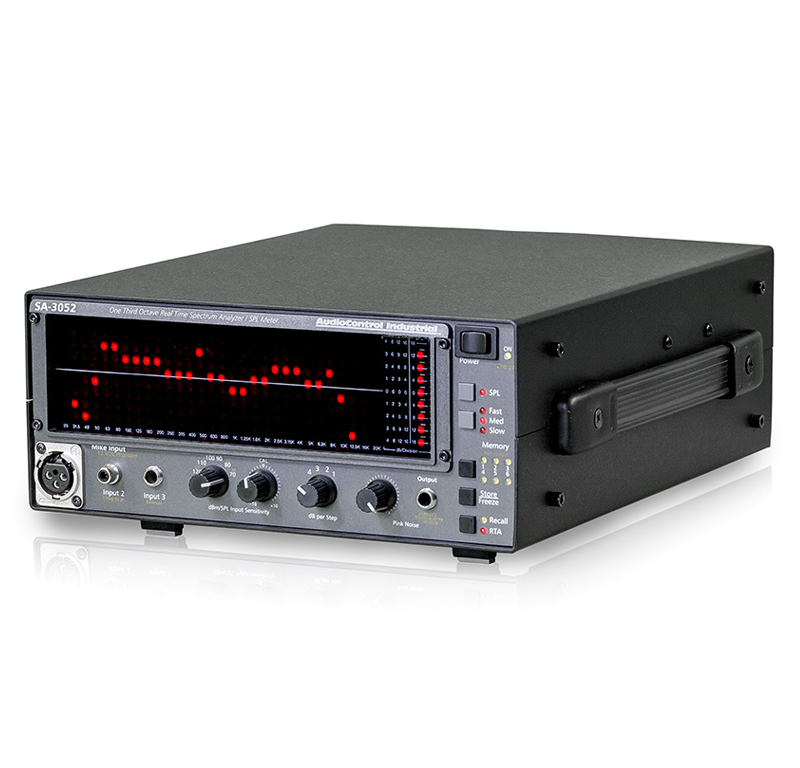

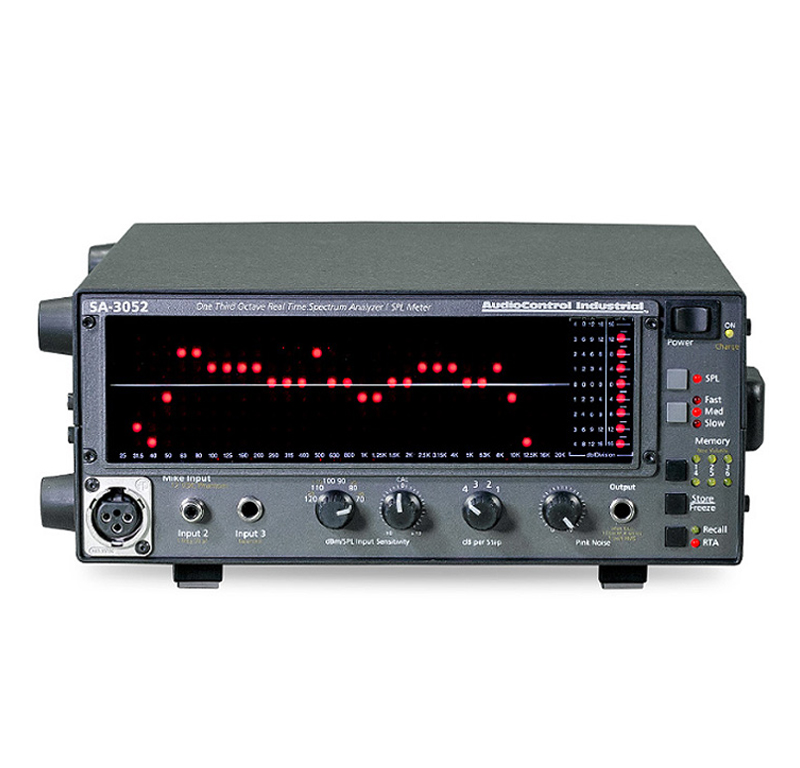

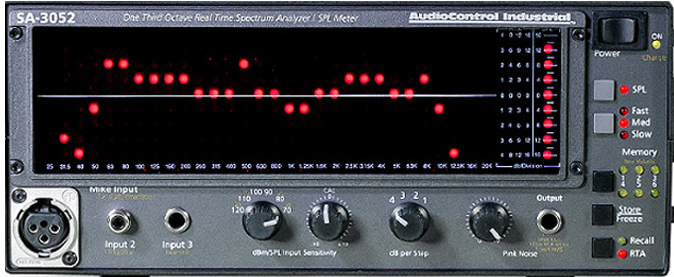

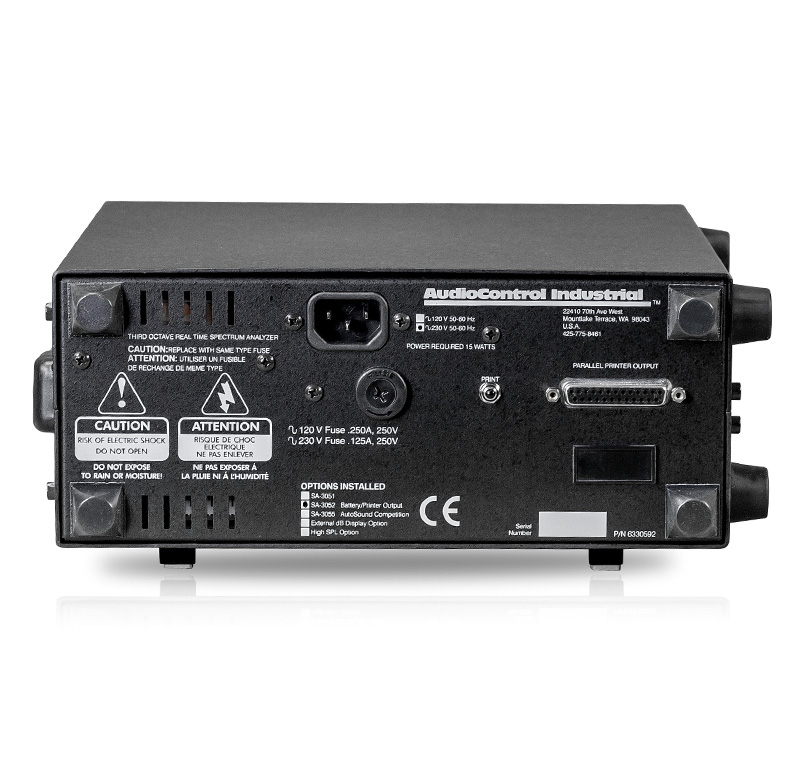

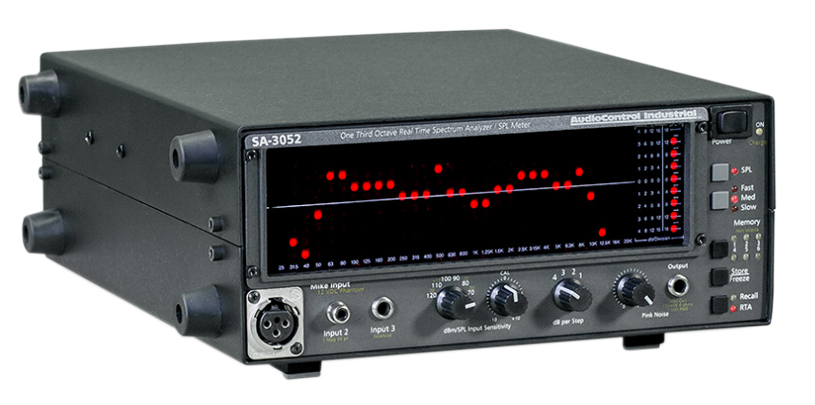

AudioControl SA-3052A Car Audio Realtime Analyzer

Built-In IASCA, USACi and SPL Countdown Scoring / 136dB Standard Microphone / Internal Battery Pack with Intelligent Charger / Never Lose Memory or Programming / Thirty Bands + Broadband SPL / Digital Pink Noise Generator / Digital SPL Display

Professional installers need the finest diagnostic equipment available. They need the equipment to make sure your car’s audio system is in perfect harmony with your car’s acoustical environment and your personal preferences. The AudioControl SA-3052A is the tool for this job. It allows your installer to get the very best out of your equipment.

Since 1977, AudioControl has been making audio test equipment and products to make systems sound better. No other company makes both. Their decades of knowledge and search for excellence shows in the products they sell and in the SA-3052A measurement instrument to insure that they are tuned to perfection.




  • Balanced Bridging (¼” TRS)
  • Input Impedance: 10kΩ
  • Signal Level: -56 to +36 dBu
  • Instrumentation (RCA)
  • Input Impedance: 1MΩ
  • Signal Level: -56 to +36 dBu
  • Microphone (XLR)
  • Input Impedance: 5kΩ
  • Phantom Power: 12V simplex


  • Pink Noise Generator (¼” TS)
  • Maximum Output: 1V into 600Ω (unbalanced); 150mW into 4Ω


  • Filter Characteristic: Fourth-order bandpass. Meets or exceeds ANSI S1.11-1986 Class II, Type E specifications
  • Frequency Range: 30 1/3 octave bands from 25 to 20 kHz on ISO preferred 1/3 octave center frequencies
  • Center Frequency Accuracy: 2% of design center


  • Power Consumption: 15W

Weights & Dimensions:

  • Dimensions: 10″W x 12.75”D x 4.1″H
  • Weight: 11.5lbs (5.2kg)


  • UPC: 851523007249
  • Weight: 12
*Warranty: 1 Year warranty.
1 Year warranty from implies that repairs must be returned to, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
