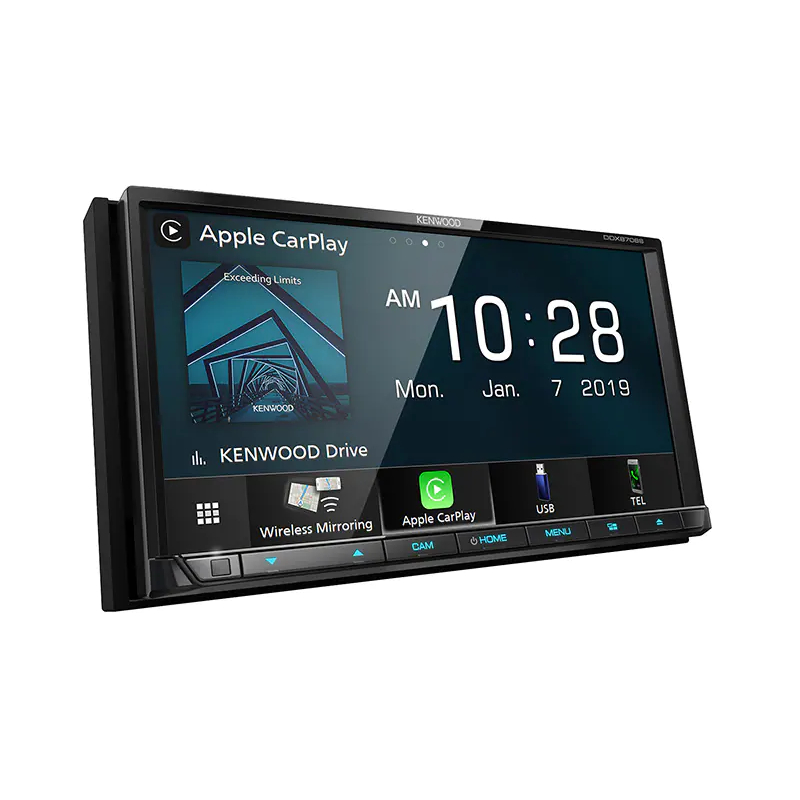

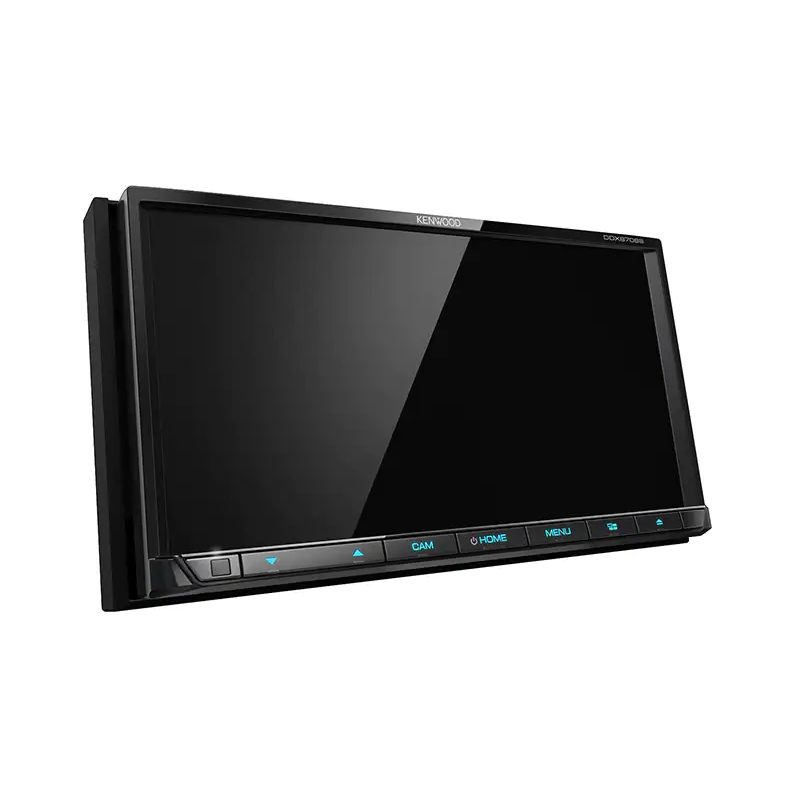

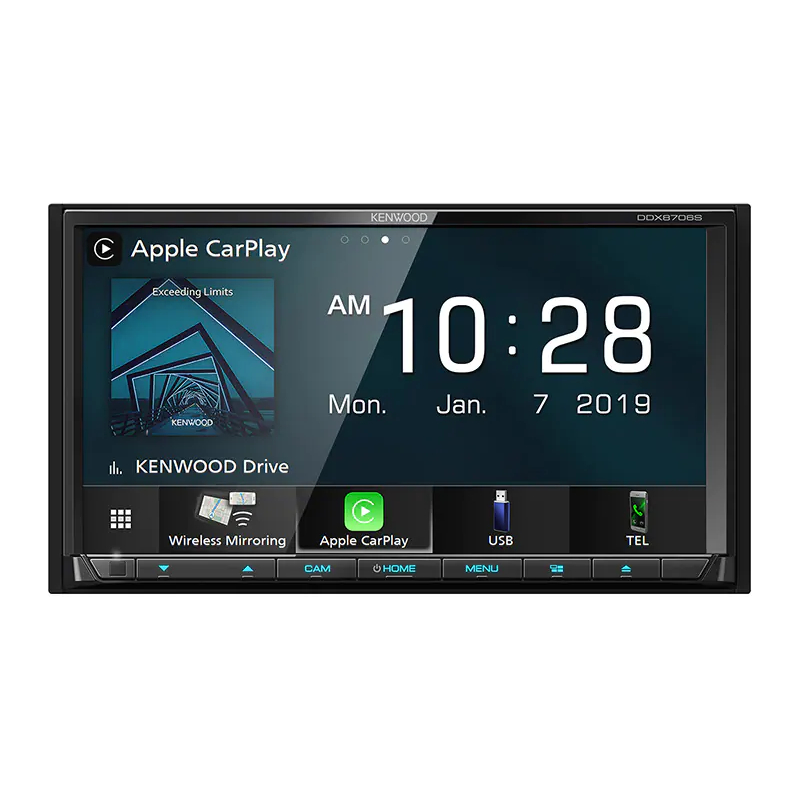

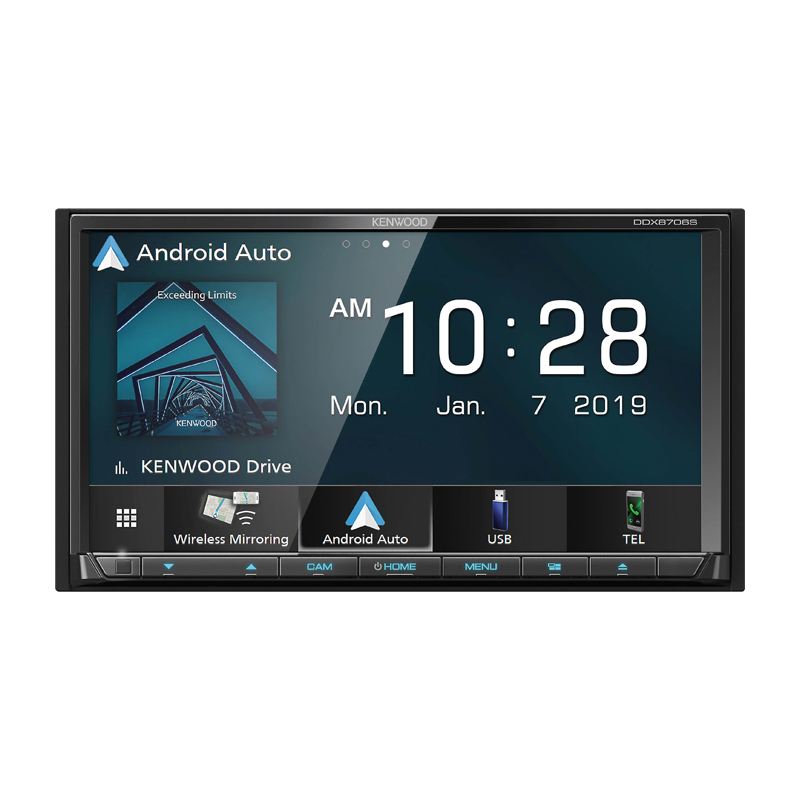

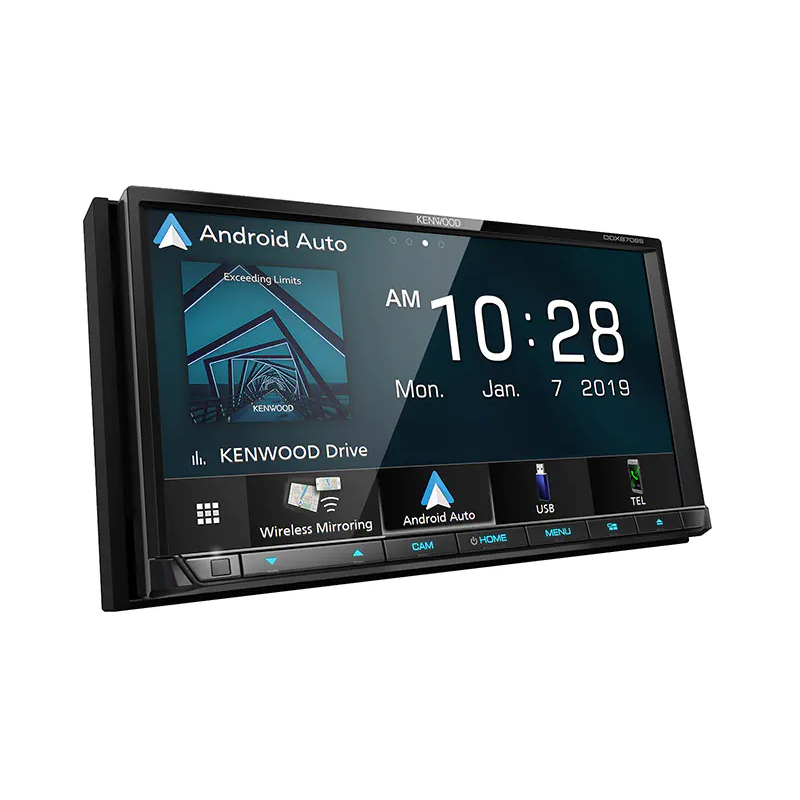

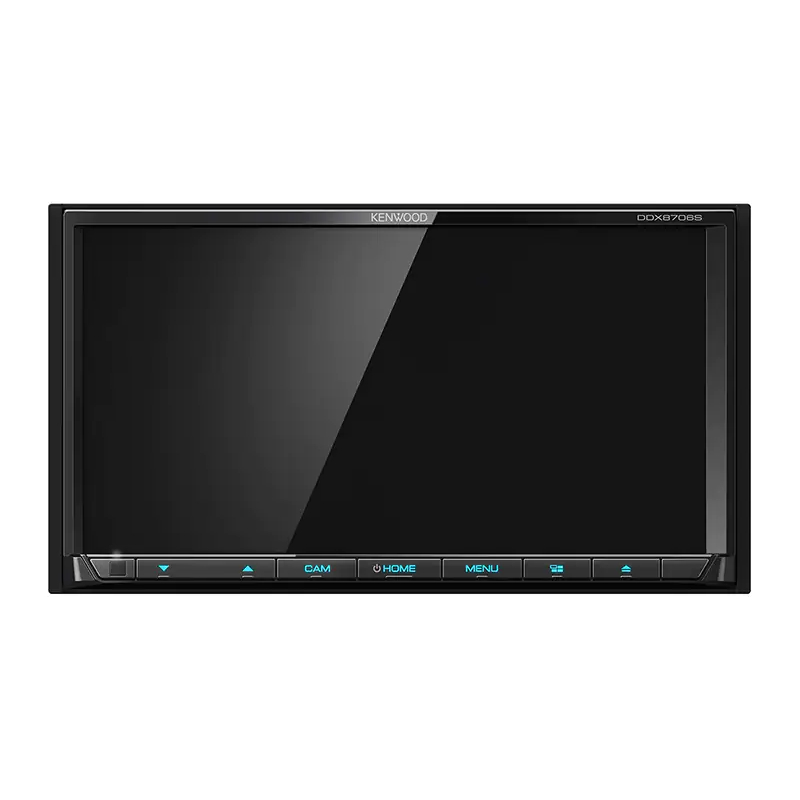

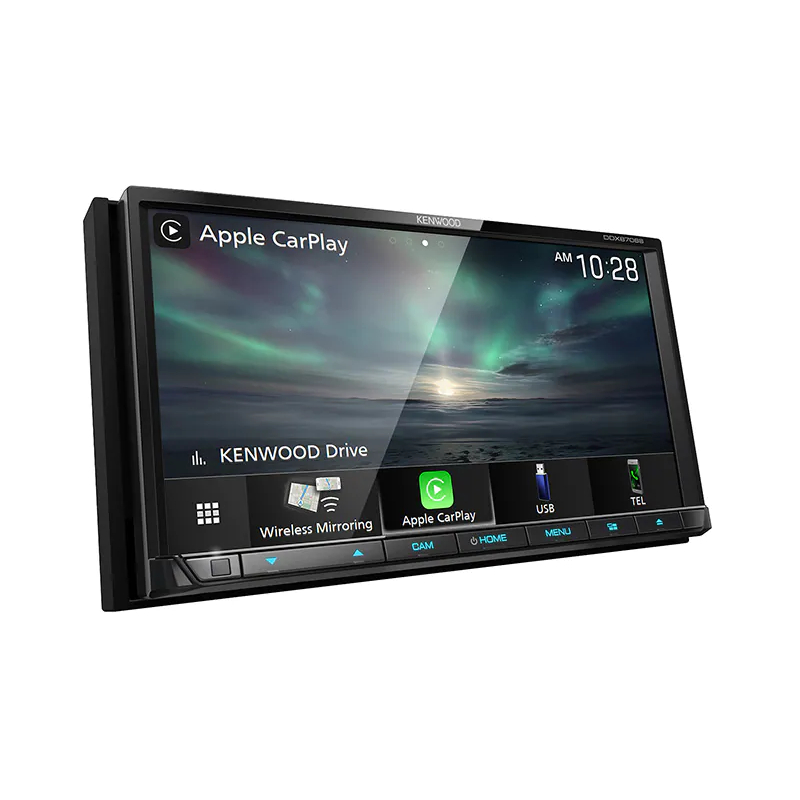

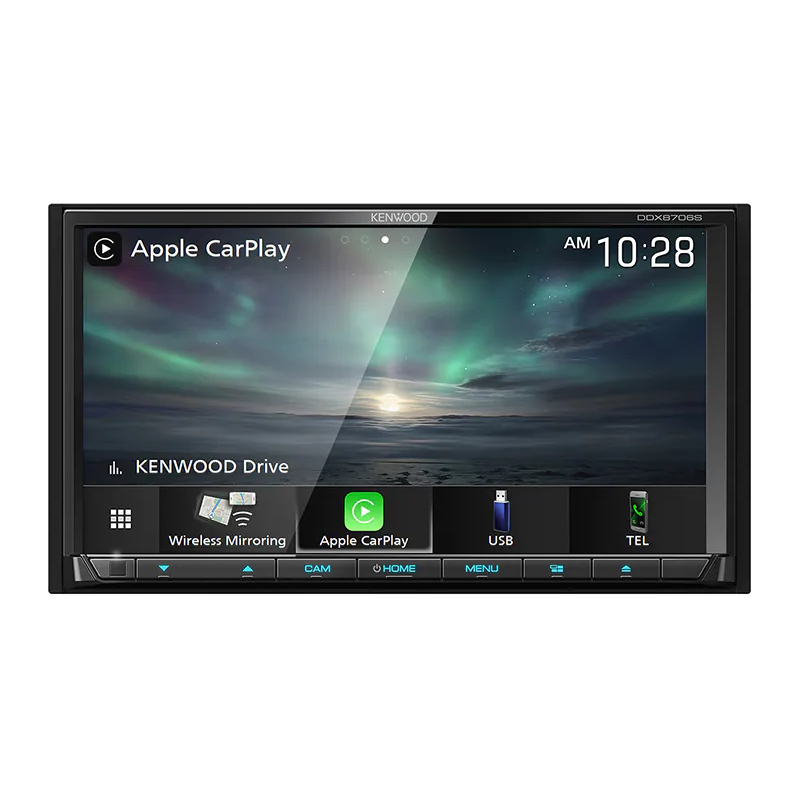

Kenwood  DDX8706S

• CD-R/CD-RW Compatible : Yes
• CD Text : Yes
• Built-in EQ : Yes
• DIN : 2
• Preamp Voltage : 4 volts
• Display Size : 6.95 Inch
• Audio/Video Inputs : 1
• Bluetooth : Yes
• MP3 Playback : Yes
• WMA Playback : Yes
• Rear USB Input : 2
• Audio/Video Outputs : 1
• Rear View Camera Input : Yes
• Apple CarPlay : Yes
• Android Auto : Yes

Monitor Section

• Picture Size: 6.95"
• WxH: 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16 inch
• Display system: TN LCD panel
• Drive system: TFT active matrix system
• Number of pixels: 1,152,000 800H x 480V x RGB
• Effective pixels: 99.99%
• Pixel arrangement: RGB striped arrangement
• Back lighting: LED

DVD Section

• D/A Converter: 24 / 32Bit
• Audio Decoder: Linear PCM | Dolby Audio
• Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
• Wow & Flutter: Below Measurable Limit
• Frequency response:
  • 96k Sampling: 20 - 44,000 Hz
  • 48k Sampling: 20 - 22,000 Hz
  • 44.1k Sampling: 20 - 20,000 Hz
• Total harmonic distortion 1kHz: 0.010%
• Signal to Noise ratio: 90.5dB (DVD-Video 96k)
• Dynamic range: 89dB (DVD-Video 96k)
• DISC Format: DVD-Video / VIDEO-CD / CD-DA
• Quantifying bit number: 16 / 20 / 24bit

USB I/F Section

• USB Standard: USB2.0 High Speed
• File System: FAT 16/32, exFAT, NTFS
• Maximum Power Supply Current: DC5V=1.5A
• D/A Converter: 24/32Bit
• Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
• Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV

Wireless Mirroring

• Mode: Sink
• Copyright protection: HDCP2.2
• Touch Control: UIBC

Wi-Fi

• IEEE Standard: 802.11 a/b/g/n/ac
• Frequency Range Dual: Band ( 2.4GHz / 5GHz )
• Channels: Auto(1-11ch) | Auto(149,153,157,161ch)
• Transfer rates (MAX): 11a: 54 Mbps / 11b: 11 Mbps / 11g: 54 Mbps / 11n: 300 Mbps / 11ac: 867 Mbps
• Output Power 2.4GHz/SISO: 11b:14dBm±2dB / 11g:13dBm±2dB / 11n(20MHz):12dBm±2dB
• Output Power 5GHz/SISO: 11a:9dBm±2dB / 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB / 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
• Output Power 5GHz/MIMO: 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB / 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB

Bluetooth Section

• Technology: Bluetooth Ver5.0
• Frequency: 2.402 – 2.480 GHz
• RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
• Maximum Communication range: Line of sight approx.10m(32.8ft)
• Audio Codec: SBC / AAC
• Multi Profile Support: Multi Profile
• Profile: HFP (V1.7) (Hands Free Profile) SPP (Serial Port Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (V1.6) (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile)

DSP Section

• Graphics equalizer:
  • BAND: 13Band
  • frequency (Hz)(BAND1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
  • Gain: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
• 2Way X'Over:
  • HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
  • SLOPE: -6/-12/-18/-24[dB/Oct.]
  • LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
  • SLOPE: -6/-12/-18/-24[dB/Oct.]
• Position:
  • Front/Rear/Subwoofer Delay: 0 - 20.01ft (0.03or0.04ft Step)
  • Gain: -8 to 0dB
  • Subwoofer Level: -50 to +10dB

Digital FM

• Frequency Range (Frequency step): 87.9MHz - 107.9MHz (200kHz)
• Frequency Response (±3.0 dB): 20Hz - 20kHz
• S/N: 80dB (STEREO)

Digital AM

• Frequency Response (±3.0 dB): 40Hz - 15kHz
• S/N: 80dB (STEREO)

FM

• Frequency Range (Frequency step): 87.9MHz - 107.9MHz(200kHz)
• Usable sensitivity: 9.3dBf
• S/N30dB: 0.8μV/75Ω
• Quieting sensitivity: 10.2dBf
• DIN S/N 46dB: 1.13μV / 75Ohms
• Frequency response(±3.0dB): 30Hz - 15kHz
• S/N (dB): 65dB (MONO)
• Selectivity: Over 80dB (±400kHz)
• Stereo separation: 45dB (1kHz)

AM

• Frequency Range (Frequency step): 530kHz - 1700kHz (10kHz)
• Usable sensitivity: 28dBμ

Video

• Color system of external video input: NTSC/PAL
• External video input level (Mini jacks): 1 Vp-p / 75 Ohms
• External audio max input level (Mini jacks): 2 V / 25 kOhms
• Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
• Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
• Audio Output level (Mini jacks): 0.9 V / 10 kOhms

Audio

• Maximum Power Output (Front&Rear): 50Wx4
• Typical Power Output (Front&Rear): Full Bandwidth Power (at less than 1%THD) 22Wx4
• Output frequency band: 20 - 88,000Hz
• Preout level (V): 4V / 10kOhms
• Preout impedance (ohms): =< 300 Ohms
• Speaker Impedance (ohms):4-8 Ohms

General

• Operating voltage: 12V DC Car Battery
• Maximum Current consumption: 15A
• Installation Dimensions WxHxD: 178mm x 100mm x 155mm | 7-3/16 x 4-7/16 x 6-2/16 inch
• (with Sleeve): 182mm x 112mm x 153mm | 7-3/16 x 4-7/16 x 6 inch
• Operational temperature range: -10°C to +60°C
• Weight: 2.4 kg 5.3 lb

• UPC: 019048226617
