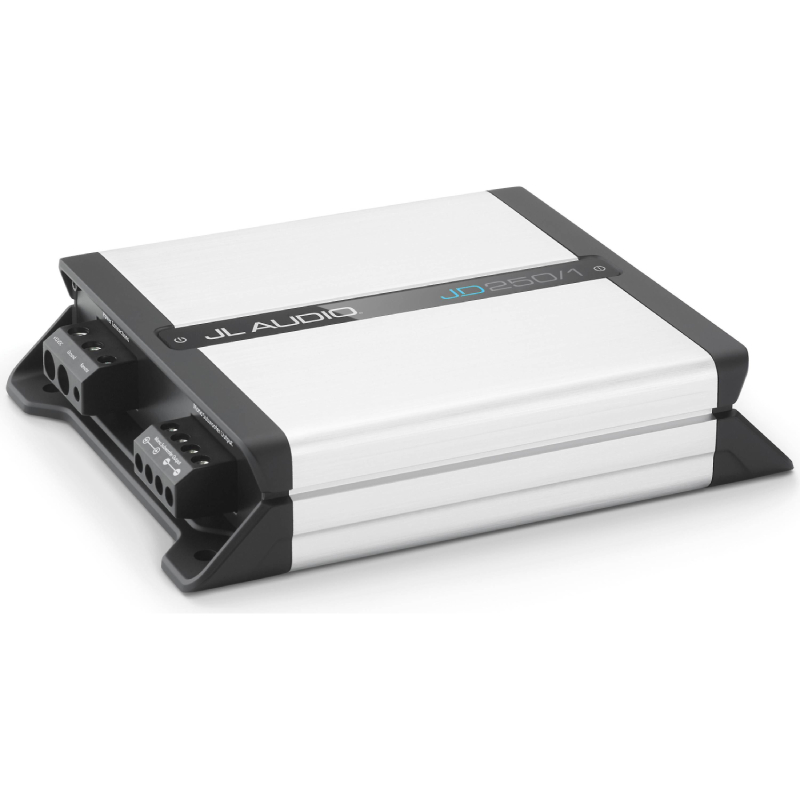

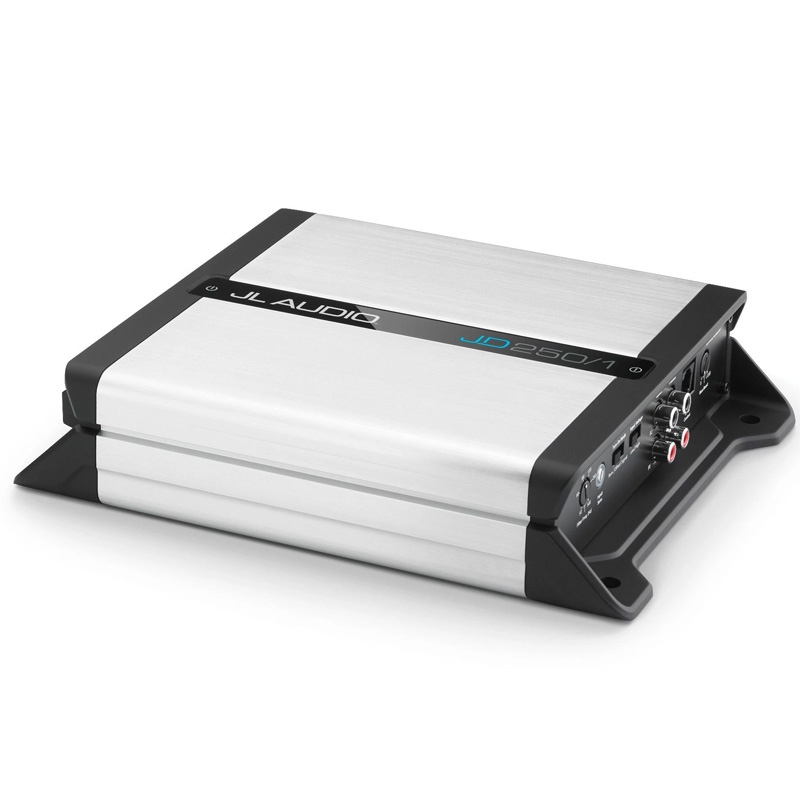

JD Series 250W x 1 RMS @2 Ohms, 250W Max Power Class D Monoblock Subwoofer Amplifier
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
• Monoblock Subwoofer Amplifier
• 2.5mm Hex Key
• 3mm Hex Key
• Owner's Manual
JL Audio's JD Series Amplifier
The youngest brother in JD Series amplifiers, the JL Audio JD250/1 can still maximize your subwoofer's potential thanks to its Class-D amp design technology. This mono subwoofer amplifier is equipped with JL Audio's own patented technologies and has a compact chassis, so not only do you get a high-quality bass output from it, but you won't also have a hard time installing it in your vehicle.
NexD Switching Technology
The amplifier is equipped with the famous NexD Switching technology, which uses a self-oscillating modulator to help remove the noise that comes from fluctuations in power supply voltage. JL Audio’s JD250/1 is also loaded with differential-balanced inputs, which also cancels out the noise that comes from the usual car audio system wiring setup.
The JL Audio JD250/1 can deliver a power output of 150 Watts at 4 ohms and 250 Watts at 2 ohms. With a frequency response of 7 up to 500 Hz, you get not only a loud bass output but also a deep and extensive low-frequency performance with minimal distortion.

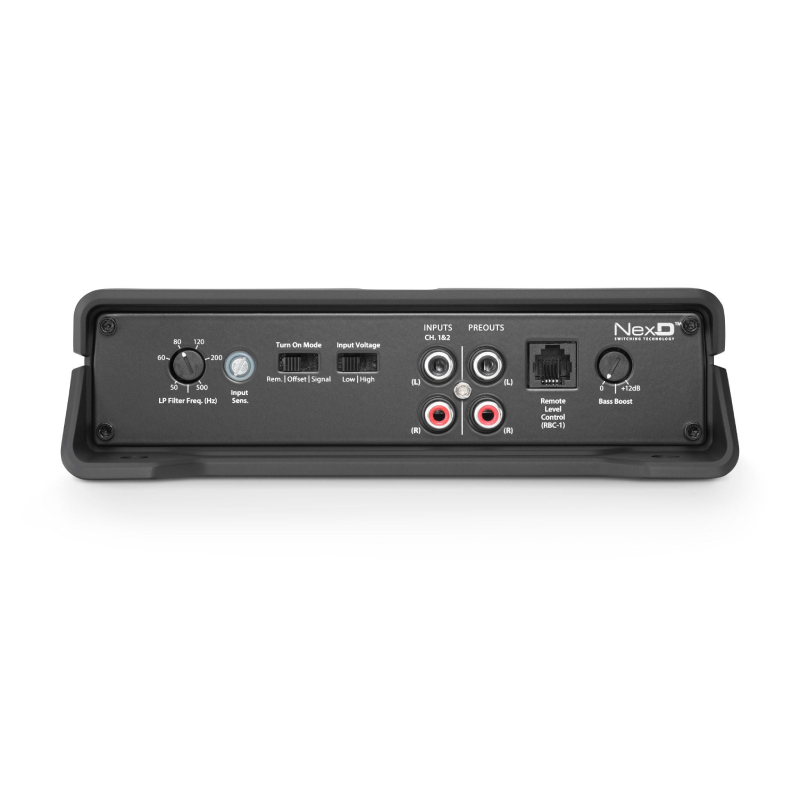

Variable Low-Pass Filter
This mono amplifier also has a variable low-pass filter that can be set from 50 up to 500 Hz and a bass boost control of up to 12 dB at 45 Hz. With JL Audio JD250/1’s features, you can get the more defined bass quality that you deserve.
Maximum Power : 250 Watts
Low Frequency Response : 50-500 Hz
Number of Channels : 1
Frequency Response : 7-500 Hz
Built In Crossovers : Yes
RMS Power Output : 250x1 Watts
Amplifier Class : D
Fuse Rating : 30 A
XP750-SE OFFER : Yes
Designed to produce a healthy 250 watts into 2 ohms (14.4V, 1% THD), the JD250/1 amplifier is a great solution for powering subwoofers in a cost-conscious system.
Our proprietary NexD™ switching technology delivers large amounts of real-world power output with excellent efficiency and ultra-low distortion.
Rated Continuous (RMS) Power @ 14.4 V
@ 4 Ω: 150 W RMS x 1
@ 3 Ω: 200 W RMS x 1
@ 2 Ω: 250 W RMS x 1
@ 1.5 Ω: N/A
Rated Continuous (RMS) Power @ 12.5 V
@ 4 ohms: 115 W RMS x 1
@ 3 ohms: 150 W RMS x 1
@ 2 ohms: 200 W RMS x 1
@ 1.5 ohms: N/A
Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power>80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W>60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 ohms: >1000 / 50 Hz
Damping Factor @ 2 ohms: >500 / 50 Hz
THD+N @ Rated Power: <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)

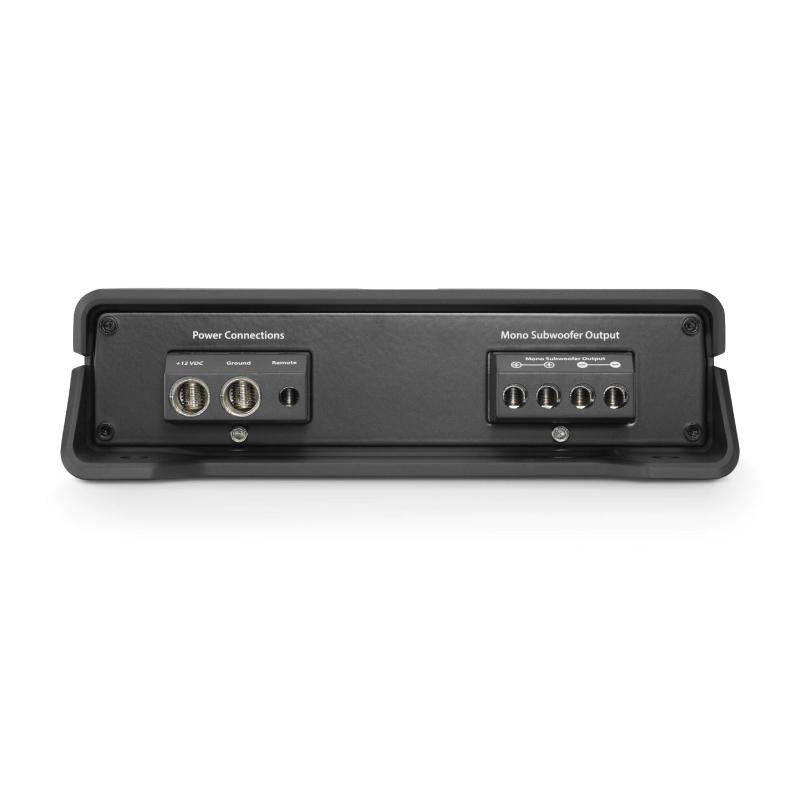

Min.Copper Power / Ground Wire Gauge: 8 AWG wire
Fuse Rating: 30 A (AFS, AGU or MaxiFuse™)
Filter Mode(s): Low-Pass only
Filter Slope(s): 12 dB/octave
Filter Frequency Range: 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometer: No
Filter Defeat Function: No
Infrasonic Filter: No
Bass Boost EQ: Yes
Output Polarity Switch: No
Remote Subwoofer Level Control: Optional (RBC-1)
Remote Bass EQ Boost Control: No
Pass-Through Preamp Output: Buffered
Height (H): 2.10 in / 53 mm
Width (W): 9.50 in / 242 mm
Depth (D): 7.50 in / 190 mm
Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
