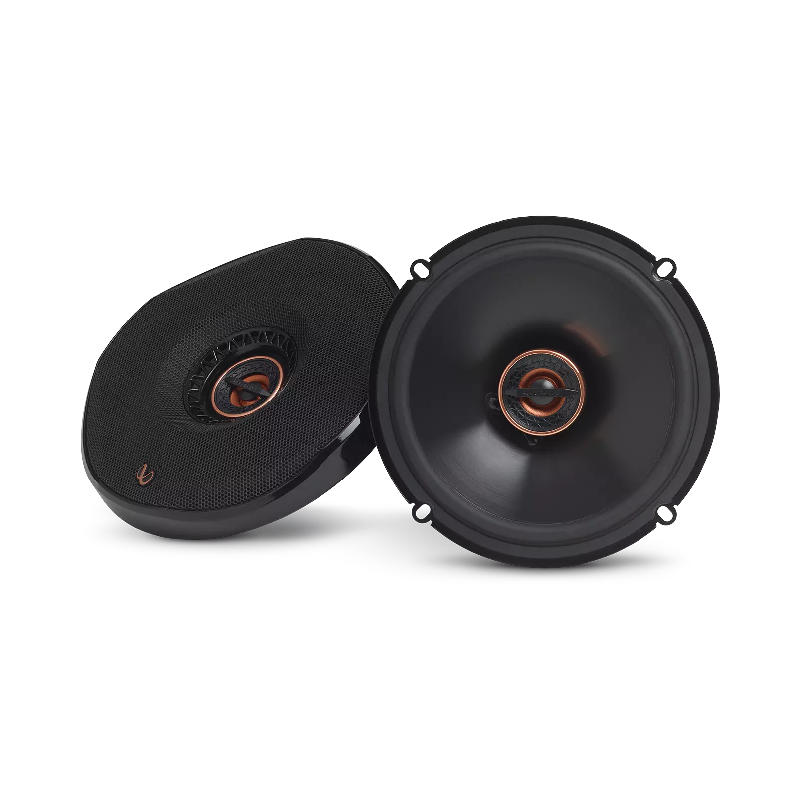

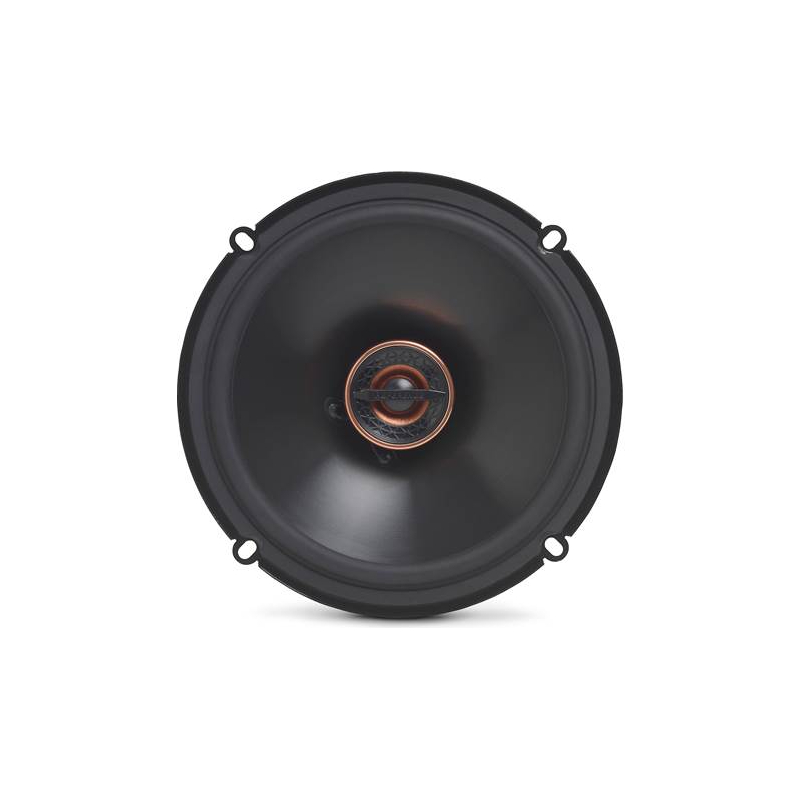

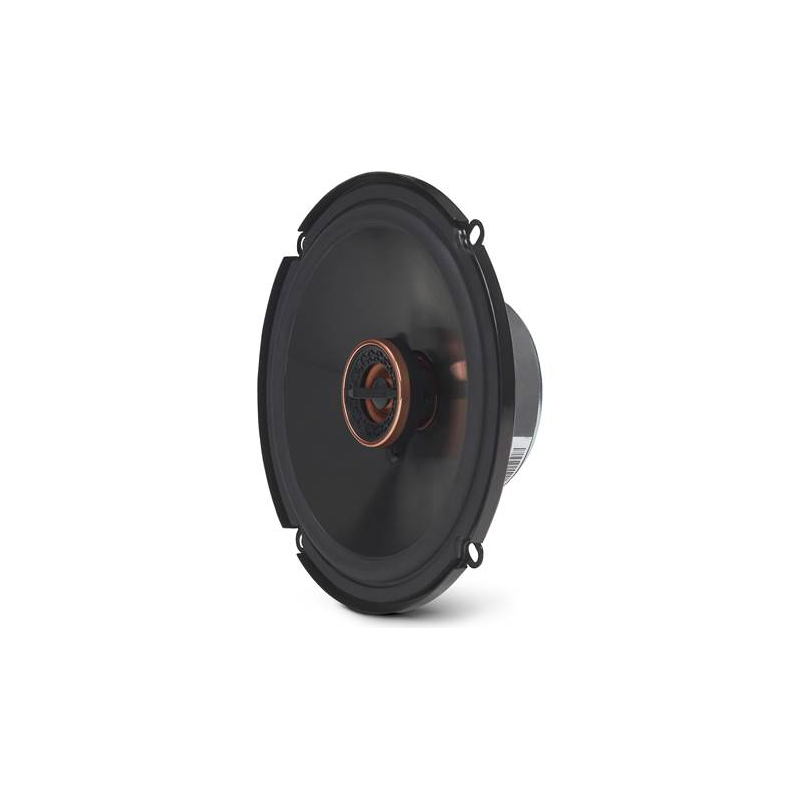

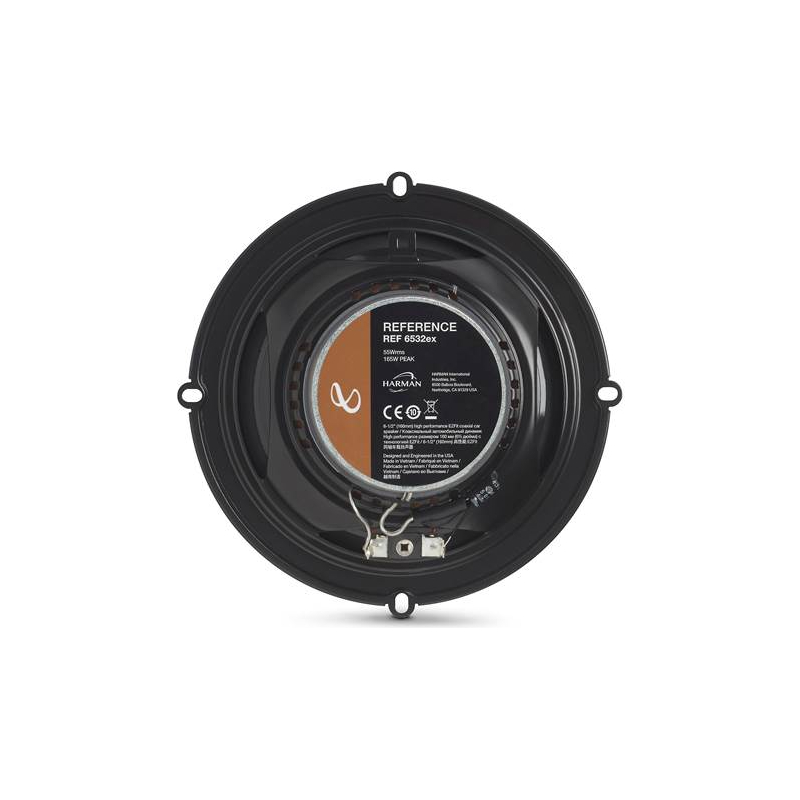

Infinity Reference REF-6532EXAM Series 6.5" 55W RMS (165W Peak Power Handling) 2-Way Coaxial Car Speaker
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

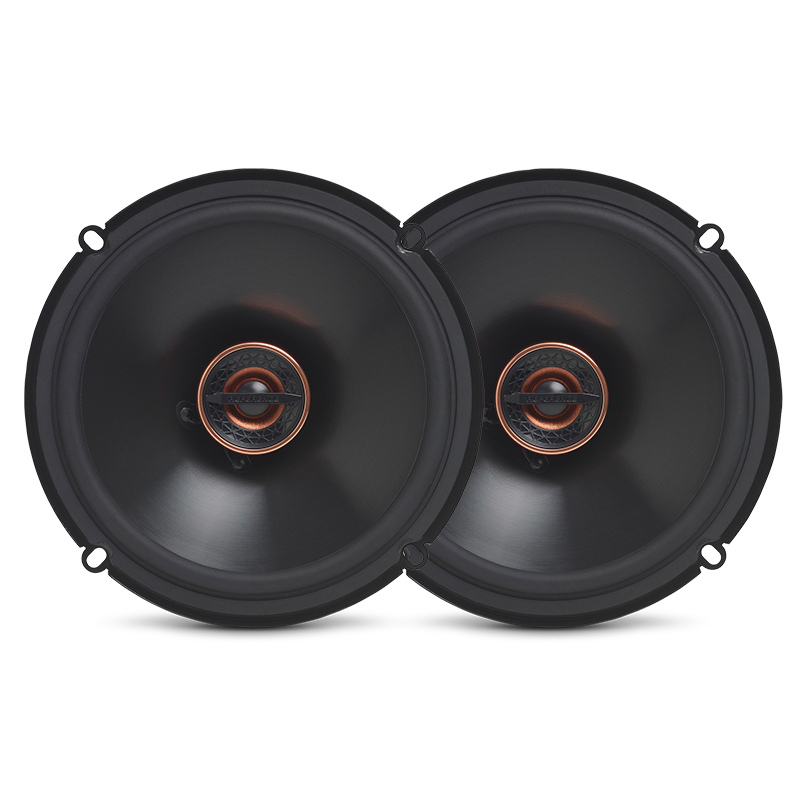

- •(2) 2-way speakers

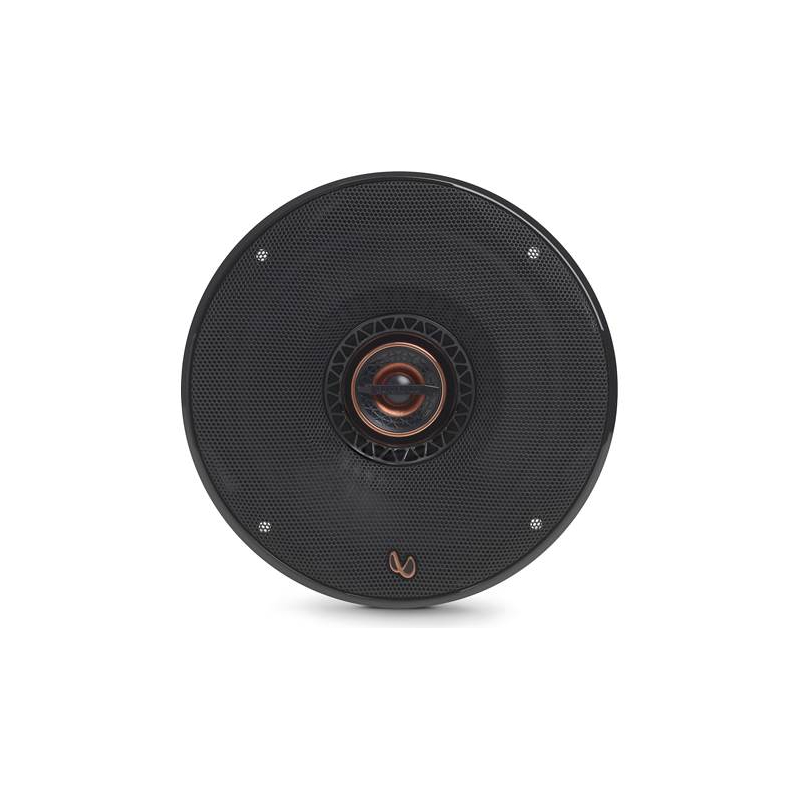

- •(2) Grilles
- •(2) Grille frames
- •(2) Plastic mounting rings
- •(8) 1" Screws
- •(8) 1/2" Screws
- •(8) Speed clips
- •(2) Adhesive backed foam gaskets
- •Template on box
- • Owner's Manual
Edge-driven, textile tweeters
The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
Adjustable tweeter output level
The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
Plus One™ woofer cone architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
Optimized Frame Size
Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.
Competitive pricing
Reference speakers provide step-up Infinity sound at mainstream prices.
- Diameter : 6.5 Inch
- Sensitivity : 93 dB
- Impedance : 3 Ohm
- Frequency Response : 57-21000 Hz
- Peak Power Handling : 165 Watts
- Design : 2 Way

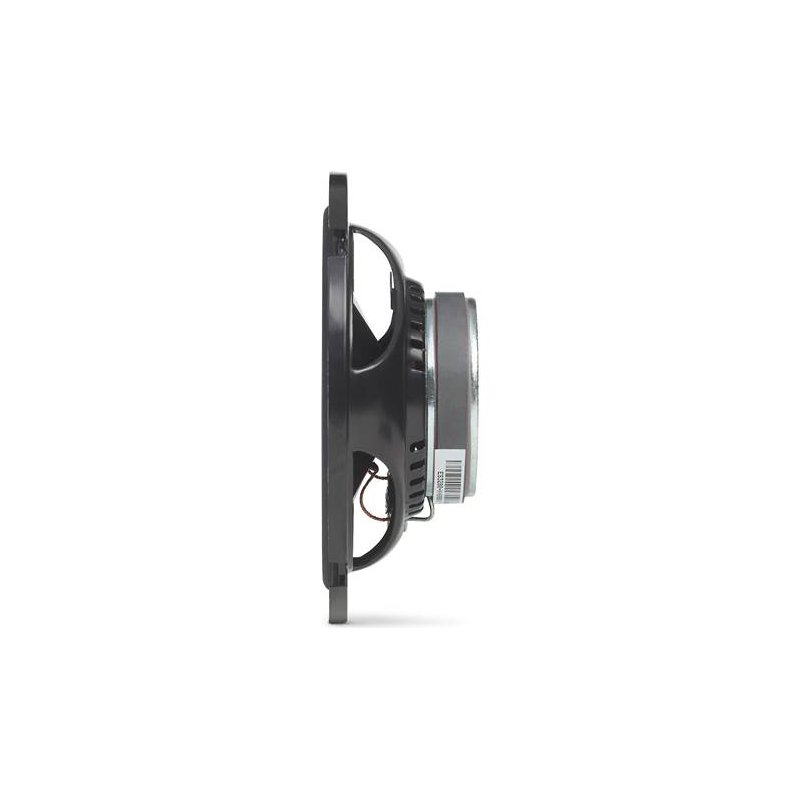

- Top Mount Depth : 1-13/16 Inches
- RMS Power Handling : 55 Watts
Features:
- Plus One+ Woofer Cones: Each speaker uses a cone larger than other speakers of the same size. This is accomplished by using a unique basket design and hi-roll surround. The Plus One+ design offers greater bass output and an increase in efficiency.

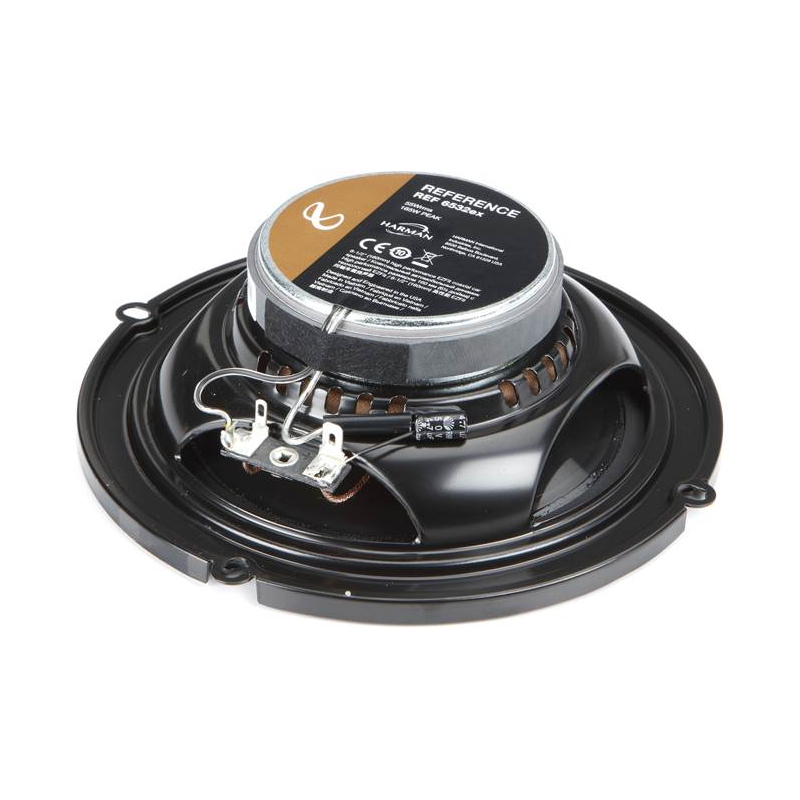

- High-Output Design: The 3Ω voice coil design compensates for the high in-line resistance of small gauge factory wiring, extracting more power from factory (or aftermarket) receivers.

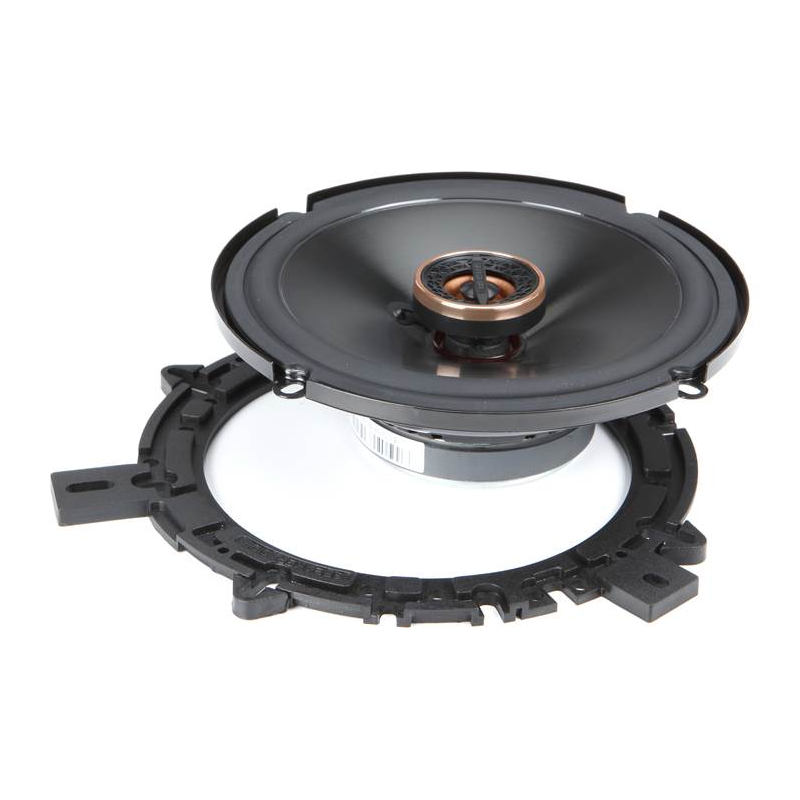

- Mounting: Without an adapter, the 6532ex speakers fit standard 6-3/4" applications. Given their required cutout, they will also fit 6-1/2" applications without an adapter, but new screw holes must be drilled. Using the included adapter brackets they can be mounted in a variety of 6-1/2" and 6-3/4" applications, without any modification.
Specifications:
- Speaker Size: 6 1/2
- Design: 2-way
- Tweeter Design: Dome
- Impedance (Ohms): 3
- Tweeter Composition: Textile
- Woofer Composition: Polypropylene
- Woofer Surround: Rubber
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Sensitivity (1W at 1 meter): N/A
- Sensitivity at 2.83 volts: 93
- Frequency Response: 57 - 21k Hz
- Minimum RMS Wattage: ---
- Maximum RMS Wattage: 55
- Peak Power Handling (Watts): 165
- Top-mount Depth (Inches): 1 13/16
- Bottom-mount Depth (Inches): N/A
- Cutout Diameter or Length (inches): 4 7/8
- Mounting Height (Inches): 0.313
- UPC: 050667373467
- Weight: 7
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
