Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

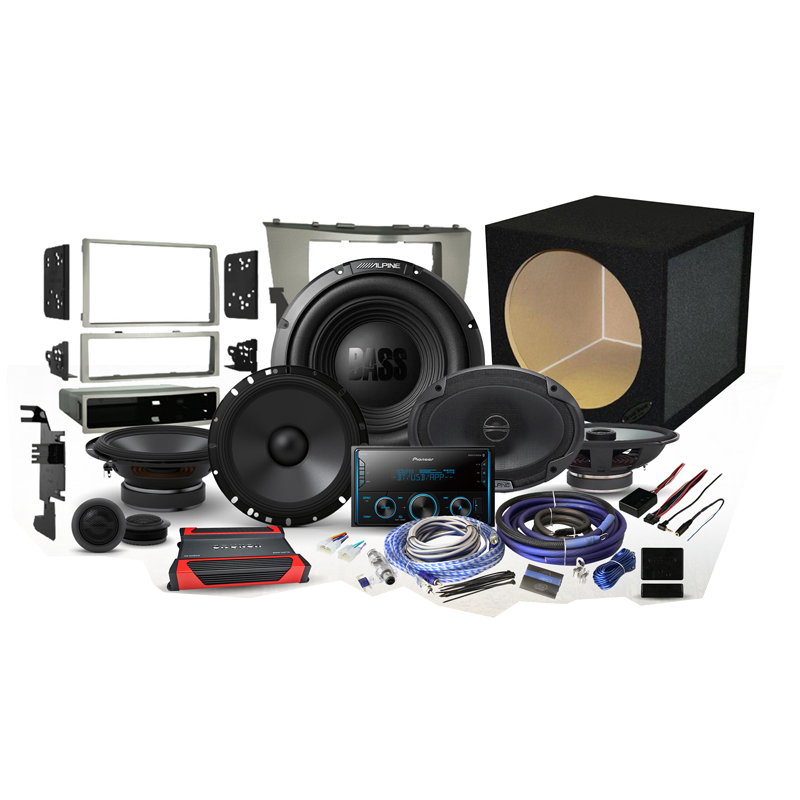

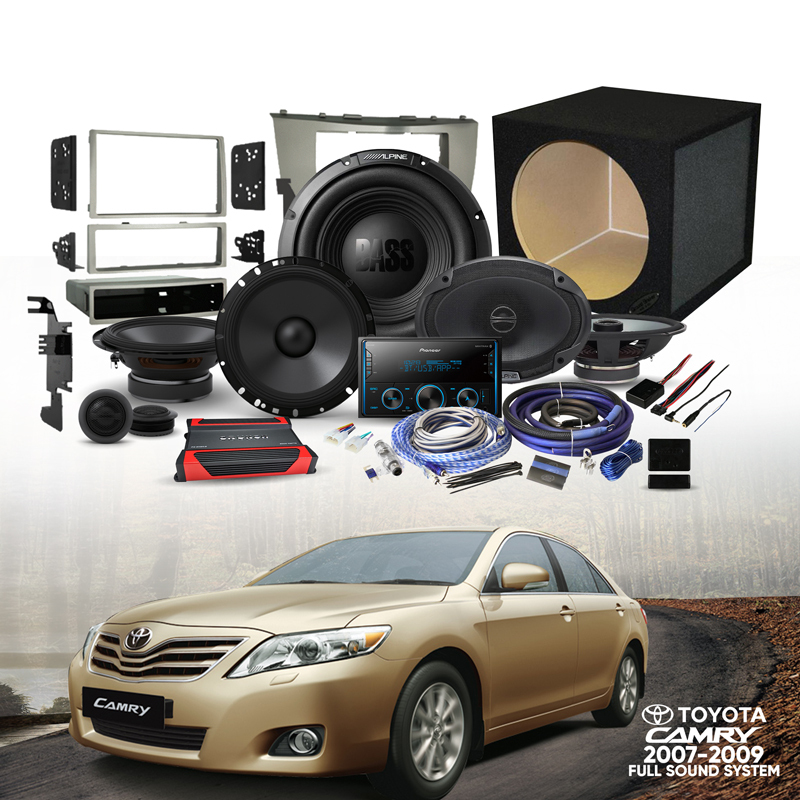

PCH Custom Audio Camry Sound System 2007-2009 Toyota Camry Full Sound System
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Pioneer MVH-S420BT
- •Crunch PZ-2020.2
- •Alpine S-S65C
- •Alpine SPE-6090
- •Alpine W12S4
- •Ground Shaker SQ112-B
- •Metra 99-8218
- •XS Power AKXP4-1
- •Metra 70-1761
- •Axxess AXSWC
- •Owner's Manual

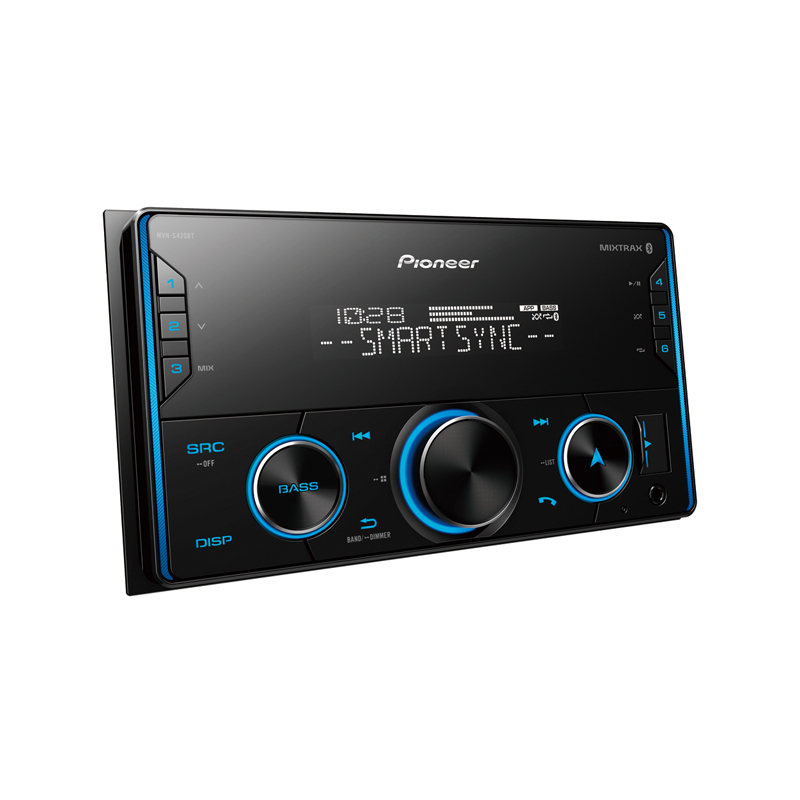

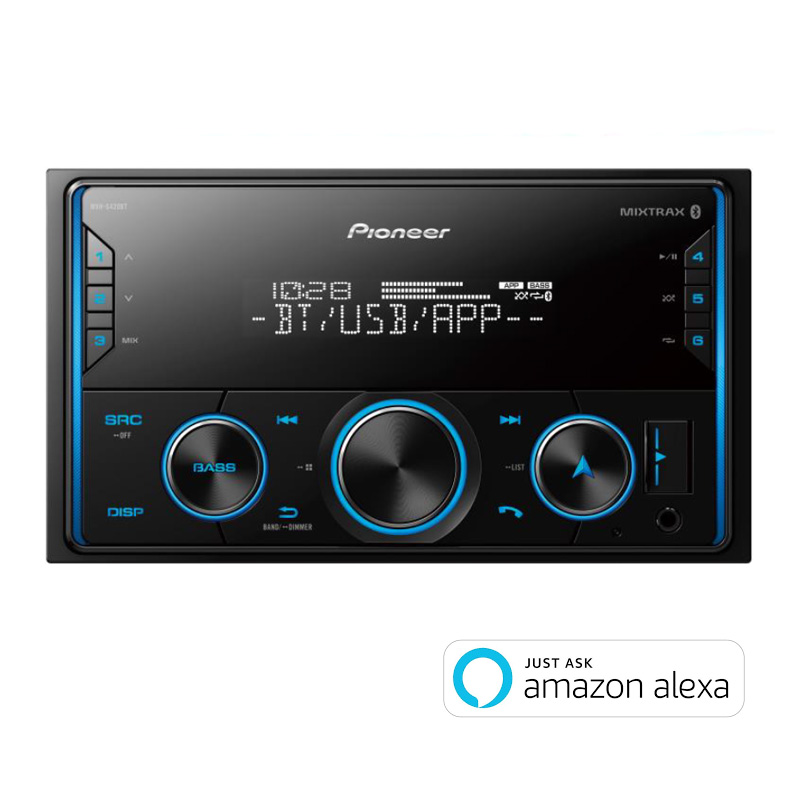

Pioneer MVH-S420BT 2-DIN In-dash Audio Digital Media Receiver with Amazon Alexa, Pioneer Smart Sync, Bluetooth®, Android™, iPhone®
Personalized Music Discovery with Pandora and Pioneer MVH-S420BT!
Pandora offers personalized internet radio for discovering new music mixed with what you already know. The MVH-S420BT receiver lets you control Pandora in your car, giving thumbs up or down to tracks, bookmarking songs, switching between stations, and viewing track info. It works with iOS and Bluetooth SPP-supported Android devices. Just download the Pandora Radio app, connect to MVH-S420BT, and elevate your music experience.

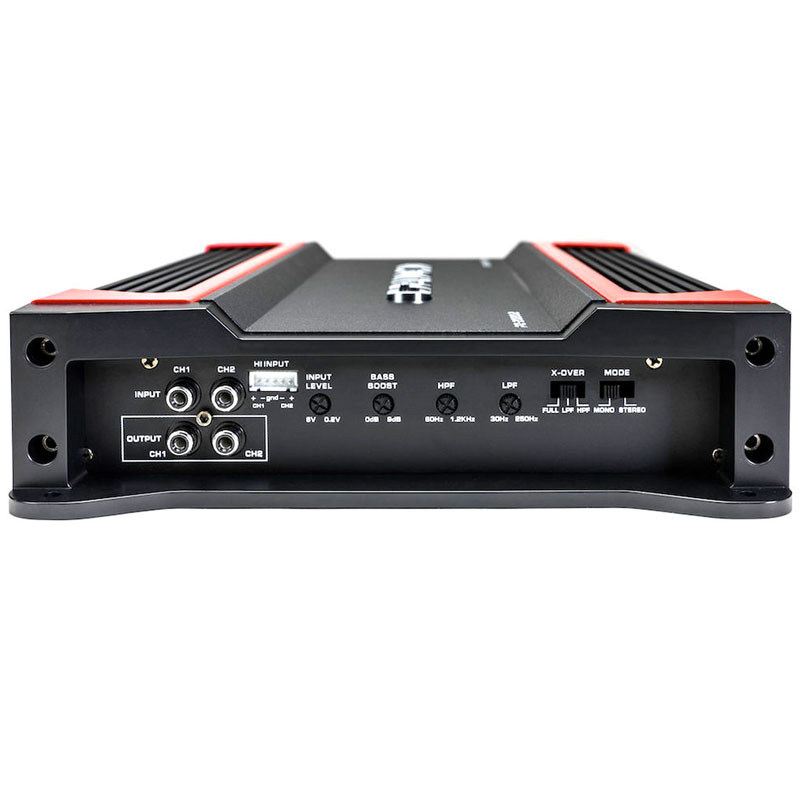

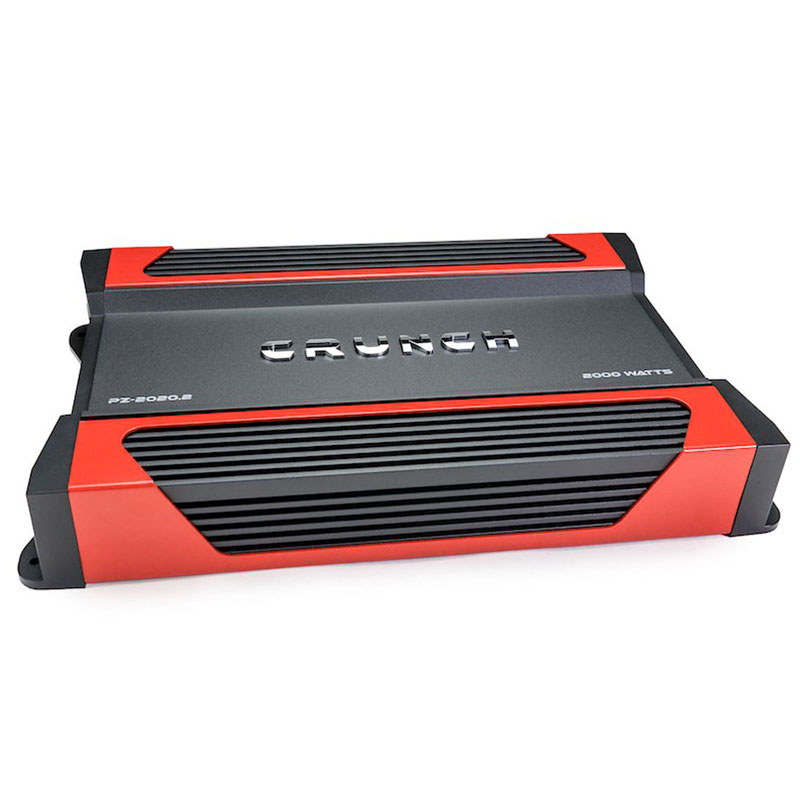

Crunch PZ-2020.2 2000 Watts Max Power Powerzone Series 2 ohm Stable 2 Channel Class-A/B Car Amplifier
Powerzone
POWERZONE two channel amplifier highlighted with bright Crunch red heatsink elements feature high level inputs utilizing SPEED-FET output devices and QTD Technology produces 2000 watts of power in a stereo or bridged mono application.

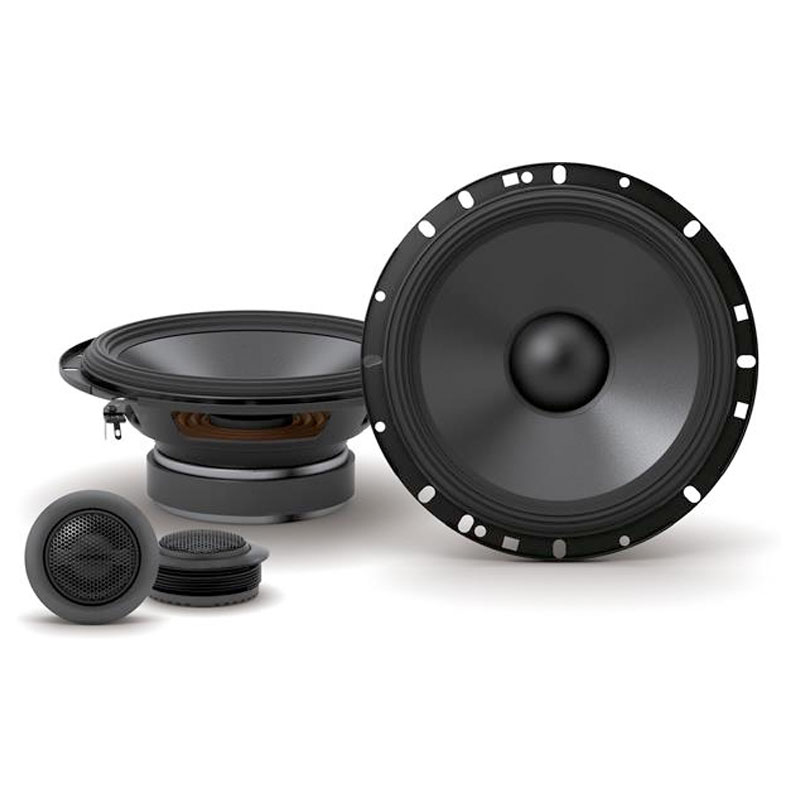

Alpine S-S65C S-Series 6.5" 80W RMS (240W Peak Power Handling) 2-Way Component System
Premium Sound Quality at an Affordable Price
Installing an Alpine S-S65C component speaker system on your vehicle only means one thing, and that is you are going to get a premium sound quality at an affordable price. Equipped with upgraded features to give you full-range frequency performance that you deserve, the Alpine S-S65C is an excellent upgrade option for old car speakers.

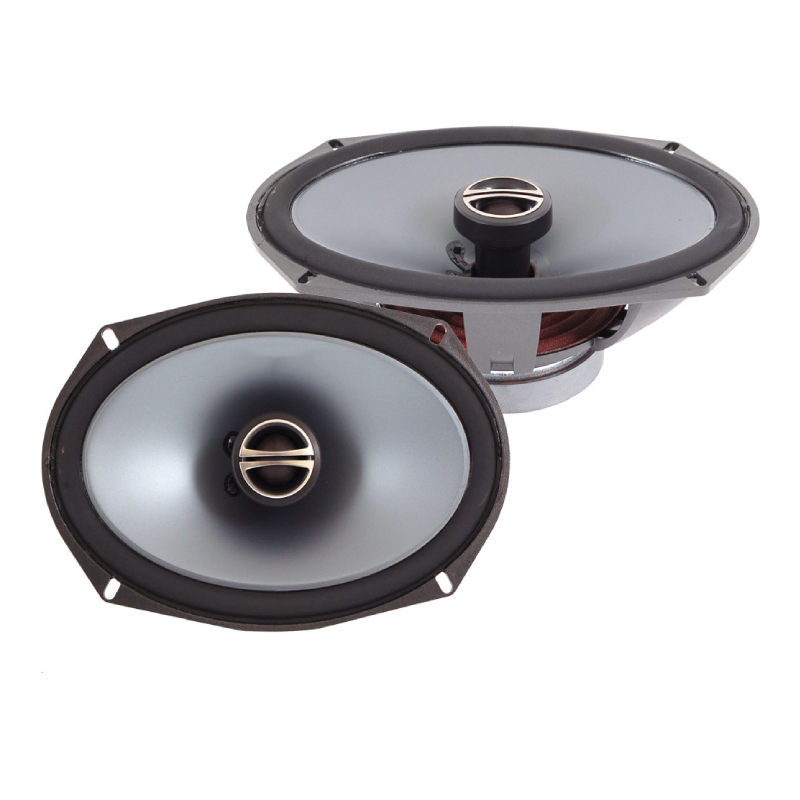

Alpine SPE-6090 E-Series 6x9" 75W RMS (300W Peak Power Handling) 2-Way Coaxial Car Audio Speakers
Alpine E Series Speakers
Belonging to the brand’s Type-E Series speakers, the Alpine SPE-6090 offers a premium sound with an affordable price point, so upgrading from your old set with this set of speakers would be a no-brainer. With these two-way car speakers, you won't get tired of listening to them compared to your vehicle's factory speakers.

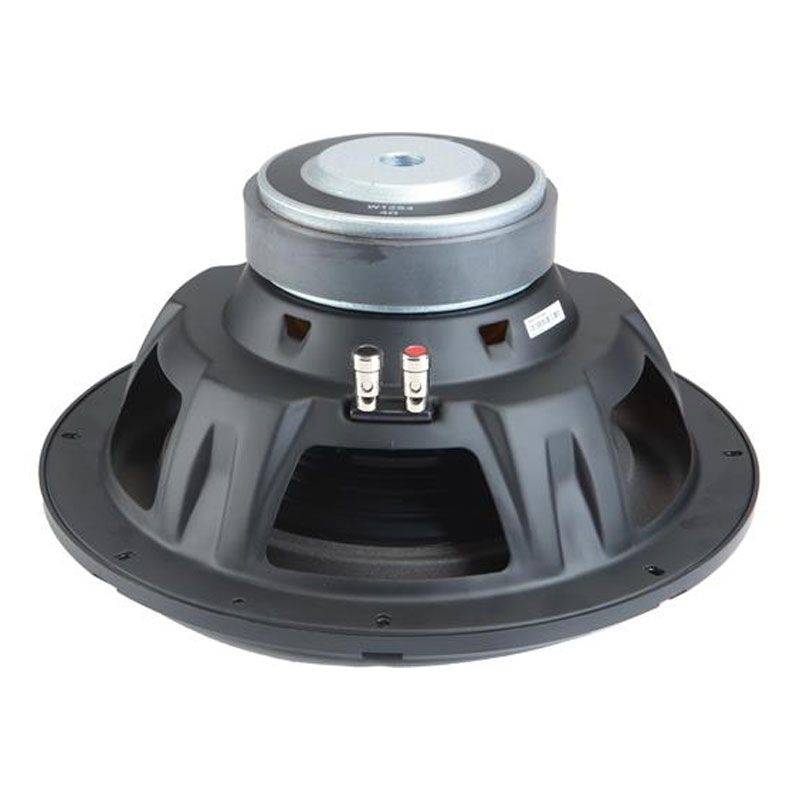

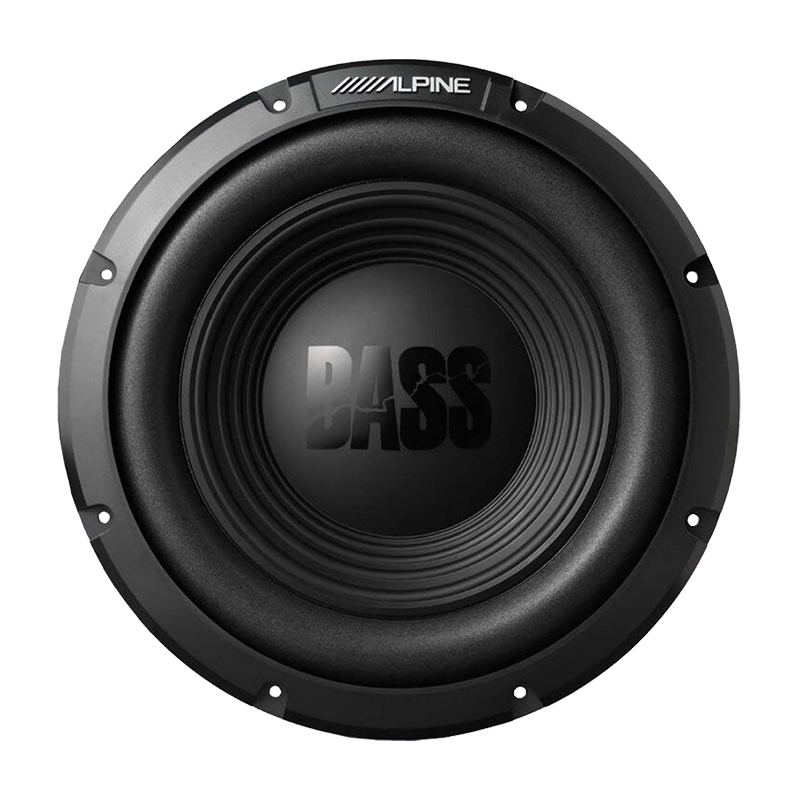

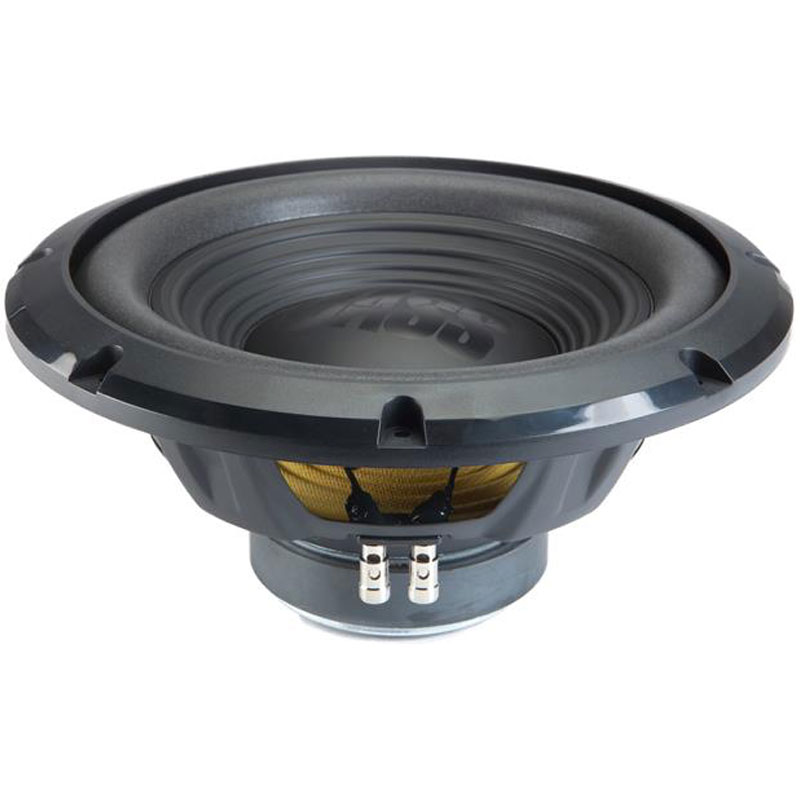

Alpine W12S4 BassLine Series 12" 250W RMS (750W Peak Power Handling) Single 4 Ohm Voice Coil Car Subwoofer
BASS FOR ALL
The 2017 BASS subwoofers are engineered to be fun and loud in a budget friendly category by combining retro styling with enough efficiency to run on 250W RMS.
Ground Shaker SQ112-B Black 12" Single Mid-Size Sealed Sub Box
Experience Rich Bass and Sleek Design
The Ground Shaker SQ112-B boasts an impressive set of features, including a sleek black design and a substantial 12-inch single mid-size sealed sub box. This configuration promises enhanced audio performance, delivering powerful bass and rich sound quality while maintaining a compact and stylish appearance. The carefully constructed enclosure ensures optimal sound reproduction, making it an ideal choice for audiophiles and enthusiasts seeking a combination of aesthetics and exceptional audio output.
Metra Electronics 99-8218 Toyota Camry 2007-Up Dash Kit
Simple Yet Necessary Cable
If you are replacing the radio in your vehicle, this antenna cable adapter ensures that you can continue to use your factory antenna. It is a simple yet necessary cable that adapts the vehicle’s original antenna cable to plug into an aftermarket radio with a male Motorola™ connector on one end and a snap-lock female antenna connector on the other.
XS Power AKXP4-1 Amp Kit, XP Flex 4 AWG, Power Cable, Speaker Cable, Signal and Remote
Effortless Installation Guide
This kit is designed to help you correctly and safely install your new XS Power or other aftermarket Powercell. The kit was designed with the installer in mind, and can be completed with very few tools and requires no wire crimping if the directions are followed correctly. Please see the steps below that will help to facilitate a fast, safe and easy installation of your new battery and cables.

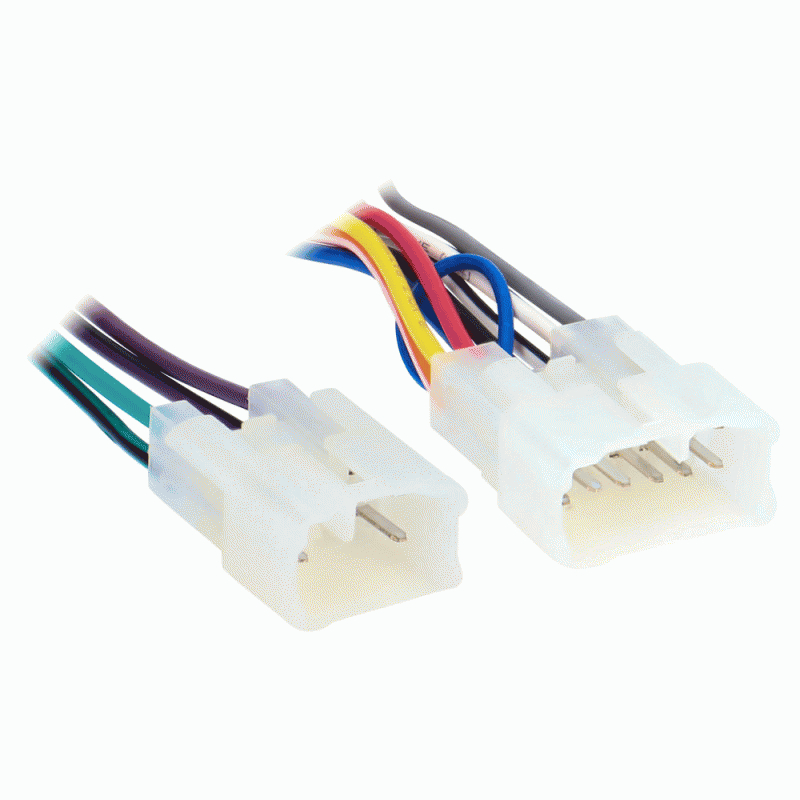

Metra Electronics 70-1761 Car Harness for Hino, Scion, Subaru, and Toyota 1987-Up
Made With High-quality Materials
The Metra Electronics 70-1761 is a wiring harness designed for use in Toyota, Scion, and Subaru vehicles. It connects an aftermarket car stereo to the factory wiring harness, allowing easy installation without cutting and splicing wires.

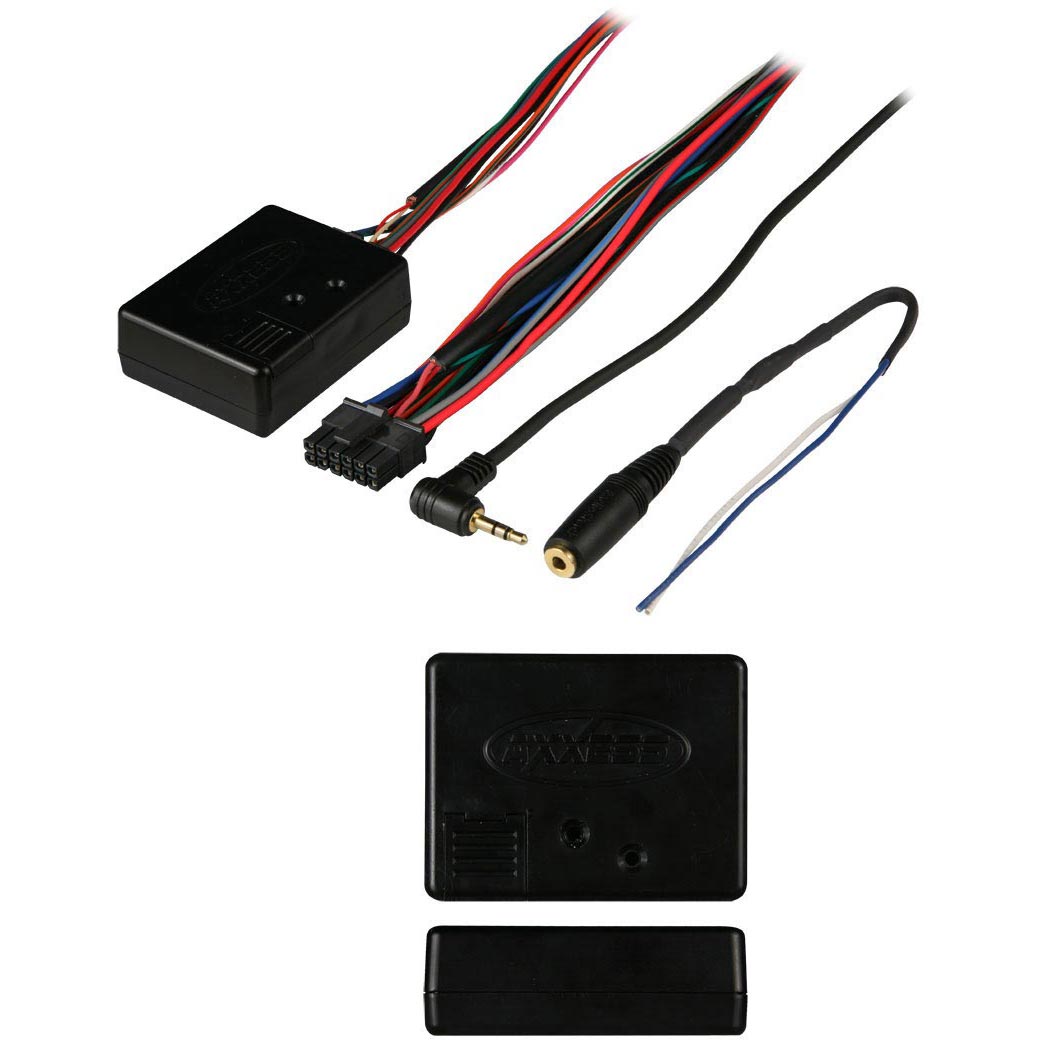

Axxess AXSWC Universal Steering Wheel Control Interface
Steering Wheel Control Harness
This wiring harness allows you to connect various electrical components of a car to the steering wheel. It is typically used to connect a hands-free device such as a Bluetooth headset, or a car stereo system, to the steering wheel. This harness is designed to provide a secure connection that ensures the electrical components are securely connected to the steering wheel.
- Vehicle Make : Toyota
- Vehicle Model : Camry
MVH-S420BT 2-DIN Bluetooth Receiver with Amazon Alexa, Spotify, Pandora, MIXTRAX, Pioneer Smart Sync, Siri Eyes Free
Features
- Short Chassis
- Pioneer Smart Sync
- VA LCD
- Mosfet 50x4
- 2 RCA Pre-outs
- Spotify
- MIXTRAX
- Bluetooth
- MP3 WMA WAV AAC
- Wired Remote Input
- USB 1.5A Quick Charge
- Pandora
- 13-Band Graphic EQ
- Dual Bluetooth Connection
- FLAC Supported
- Illumination Timer
- Android Smartphone Compatible
- Made for iPhone
- Advanced Sound Retriever
- Siri Eyes Free
- Aux Input

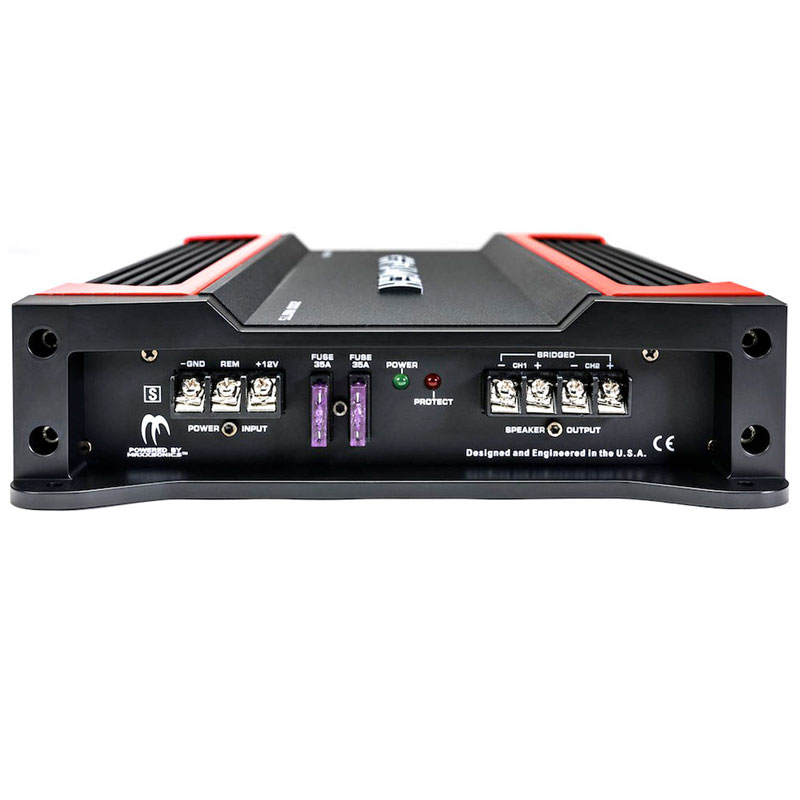

PZ-2020.2 Powerzone Series 2000 Watts Max Power 2 ohm Stable 2 Channel Class-A/B Car Amplifier
Specifications:
- Class: Class A/B
- Variable Voltage: 6V - 0.2V
- Signal to Noise: >90dB
- Frequency Response: 10Hz-45KHz
- Crossover : VeraCross, Switchable, FULL / LPF / HPF
- Variable High Pass Crossover 12dB per Octave: 60Hz - 1.2kHz
- Variable Low Pass Crossover 12dB per Octave: 30Hz - 250Hz
- Bass Boost: 0 - 9dB
- Power @ 1 Ohm: N/A
- Power @ 2 Ohms: 2 x 1000 Watts
- Power @ 4 Ohms: 2 x 500 Watts
- Mono Bridged @ 4 Ohms: 1 x 2000 Watts
- Total Channels: 2
- Audio Inputs: RCA
- Audio Outputs: Full Range, RCA
- Speaker Terminal Wire Gauge: Spade Connector, Recommended
- Fusing: 35Ax2
- Total Harmonic Distortion (THD): <0.05%

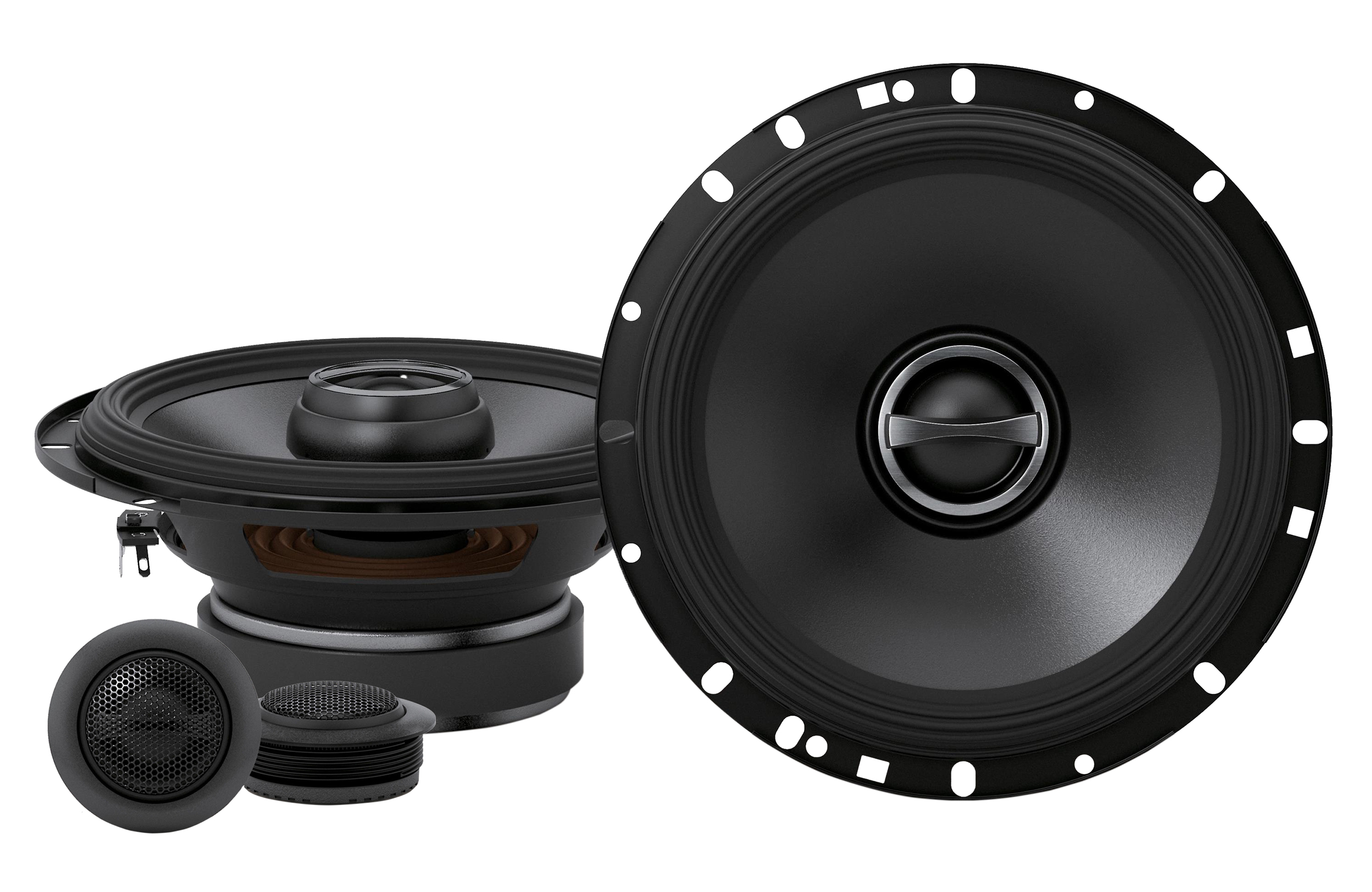

S-S65C 6-1/2" 240 Watts Peak Power Component 2-Way Car Speaker Set
Features:
- component speaker system includes 2 woofers and 2 tweeters
- 6-1/2" carbon fiber-reinforced plastic woofer cone with specialized rubber surround
- 1" silk dome tweeter with inline crossover
- handles up to 80 watts RMS (240 watts peak power)
- frequency response: 70-22,000 Hz
- sensitivity: 88 dB
- woofer mounting depth: 2-5/16
- GRILLES NOT INCLUDED

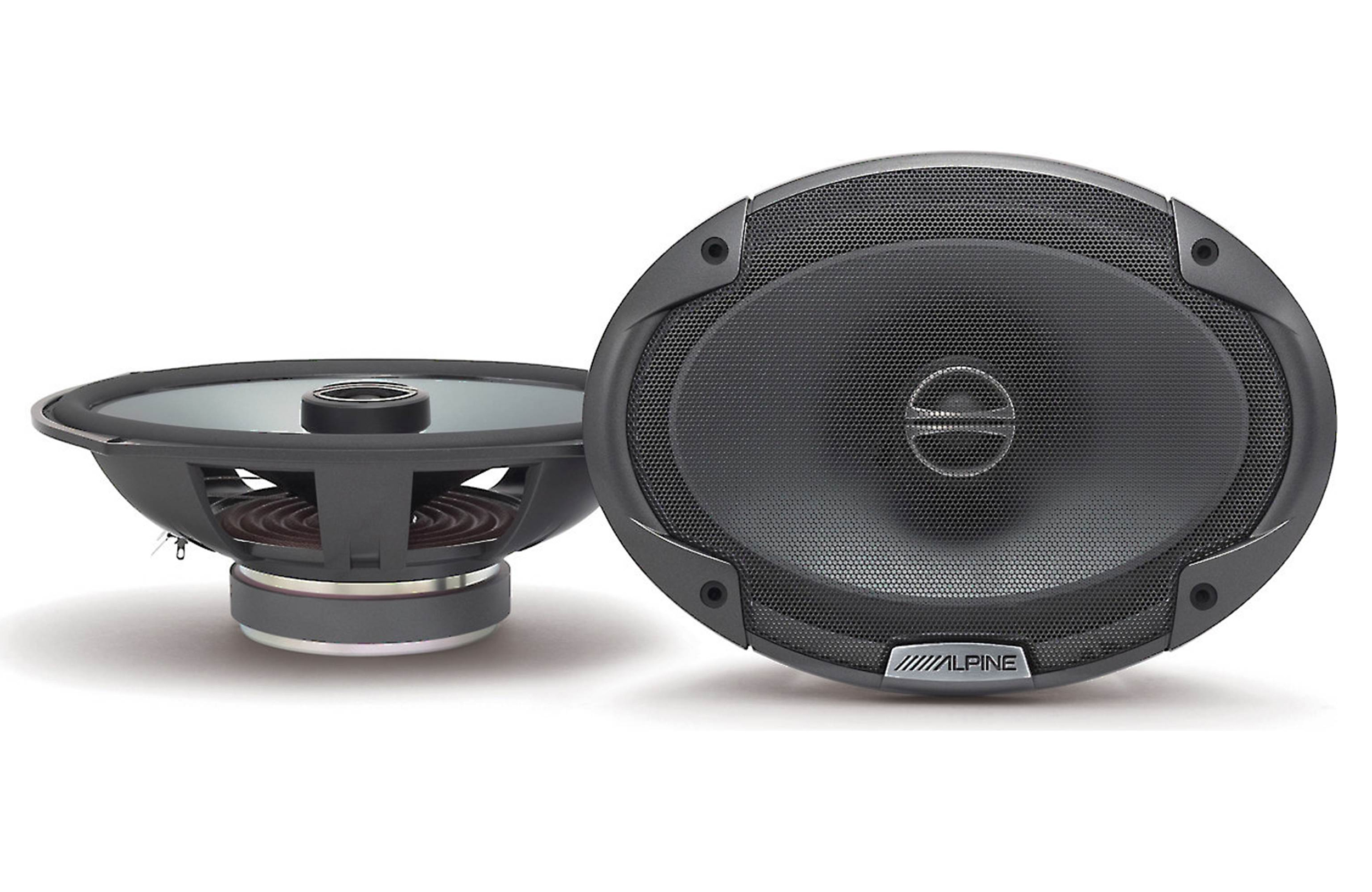

SPE-6090 SPE-Series 6" x 9" 2-Way Coaxial Car Audio Speakers
Power Handling:
- 600W Peak Power (300W Per Speaker)
- 150W RMS (75W Per Speaker)
General Features:
- Polypropylene cone pearl mica injection
- 3/4" Silk soft dome tweeter
- Tweeter Magnet: Neodymium
- Woofer Magnet: Ferrite
- 4 ohms impedance
- Square voice coil
- Injection molded frame
- Frequency Response: 65-18,000 Hz
- Sensitivity: 91 dB
- Top-Mount Depth: 3"
- Mounting Diameter: 5-15/16" x 8-3/4"
W12S4 BassLine Series 12" 750 Watts Max Power Single 4 ohm Car Subwoofer
Specifications:
- 12" 4-ohm subwoofer
- polypropylene and mica cone with poly-foam surround
- stamped steel frame
- power handling: 50-250 watts RMS
- peak power: 750 watts
- sensitivity: 87.9 dB
- frequency response: 22-200 Hz
- top-mount depth: 5-5/16"
- sealed box volume: 1.09 cu. ft.
- ported box volume: 1.91 cu. ft.
- Sold as Each

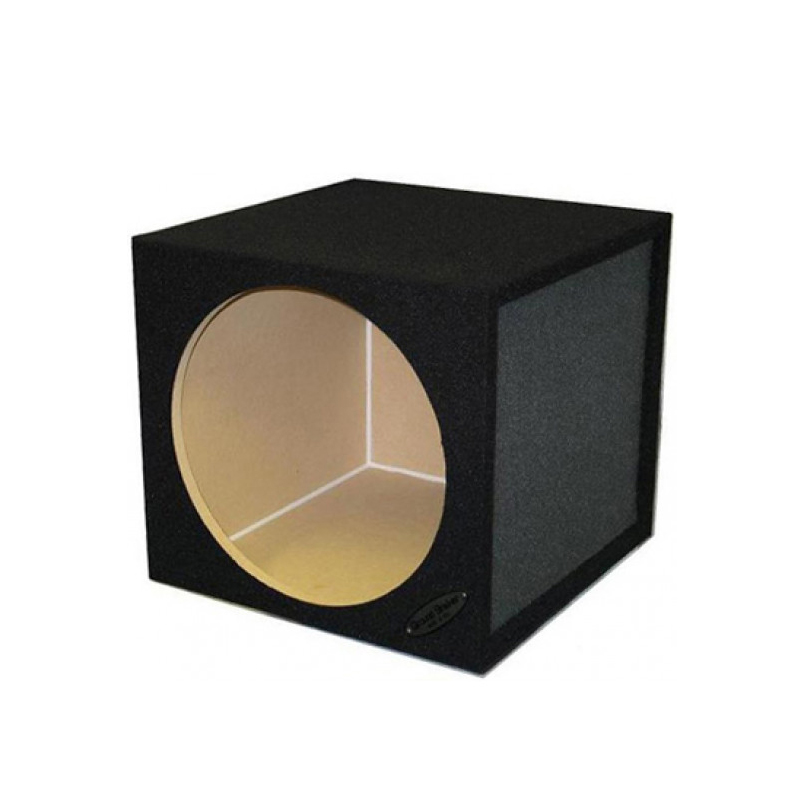

SQ112-B Black 12" Single Mid-Size Sealed Sub Box
Specifications:
- Cutout Diameter: 11 1/8"
- Total Air Volume: 1.20 Cubic Ft.
- Weight: 22 Lbs.
- Mounting Depth: 12 1/2"
Dimensions:
- Height: 13 1/2”
- Length: 17 1/4"
- Depth: 13 1/2”
Construction:
- 11/16" High Density Mdf Wood
- Carpeted With Durable Trunk Liner Finish
- Sealed With High Quality Silicone
- 1-spring Loaded Terminal
99-8218 Toyota Camry 2007-Up Dash Kit
Features:
- DIN radio provision with pocket
- ISO DIN radio provision with pocket
- ISO DDIN radio provision
WIRING & ANTENNA CONNECTIONS
- Wiring Harness:
- 70-1761 (Sold Separately)
- TYTO-01 (Sold Separately)
- Antenna Adapter: Not Required
AKXP4-1 Amp Kit, XP Flex 4 AWG, Power Cable, Speaker Cable, Signal and Remote
Specifications:
- Weight Lbs. – 3.25
- Weight Kgs. – 1.47
- Length – 9.75 in
- Height – 11 in
- Width – 2.5 in
Kit Contents:
- 1qty - 17ft 4AWG XPFLEX BL Cable
- 1qty - 3ft 4AWG XPFLEX BK Ground Cable
- 1qty - 17ft 18G BL Remote Cable
- 1qty - 17ft 16G Clear Speaker Wire
- 1qty - 17ft High Grade Twisted Pair RCA Cables
- 1qty - Mini ANL Fuse Holder
- 1qty - 60A ANL Fuse
- 2qty - Plaite Braid Tube in BK
- 2qty - 4AWG Ring Terminal/Seamless/BL
- 2qty - 4AWG Spade Terminal/BK
- 2qty - 16G Spade Terminals/BK
- 3qty - 16G Spade Terminals/BL
- 1qty - 1/2" Firewall Grommet
- 10qty - 6" Zip Ties

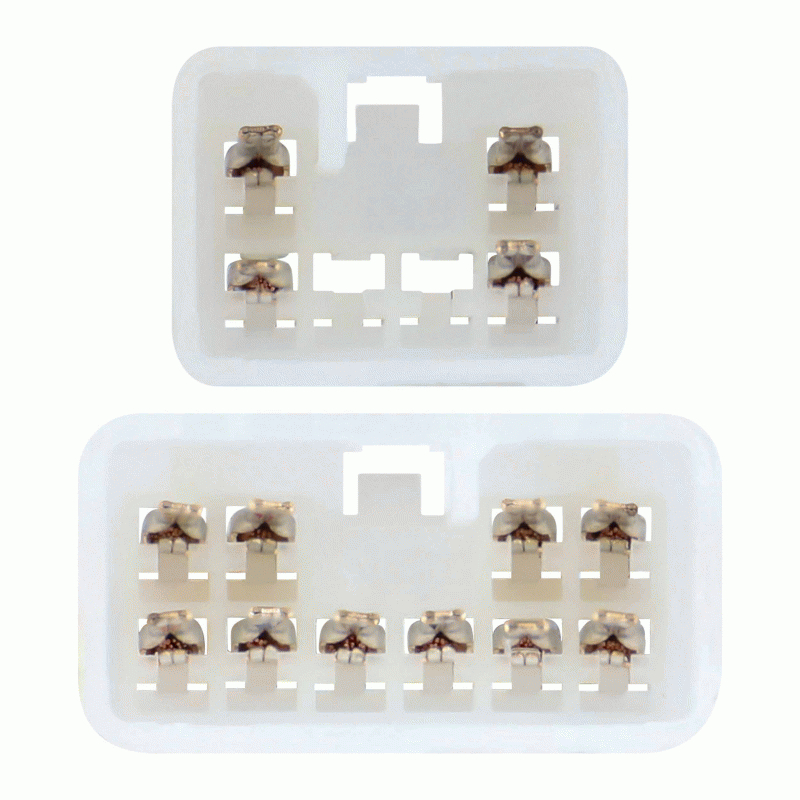

70-1761 Toyota 1987-Up - Into Car Harness
- Plugs into Car Harness at radio
- Power – 4 Speakers
AXSWC Universal Steering Wheel Control Interface, Works with Many Popular Aftermarket Receivers - NEW MODEL that replaced the ASWC-1
Features:
- One Interface does it all – No additional interfaces needed
- Designed to be compatible with all major radio brands
- Auto detects (1) vehicle type, radio connection, and presets controls
- Ability to dual assign steering wheel control buttons
- Can be manually programmed for most vehicles
- Retains settings even after battery disconnection or interface removal
- All connections done at the radio location
- Micro “B” USB updatable
- UPC: 798418841925
- Weight: 50
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
