Pioneer DMH-W2700NEX 2-DIN 6.8" Multimedia Receiver with built-in Bluetooth, Sirius-XM Ready, Android Auto™ , Apple CarPlay®
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

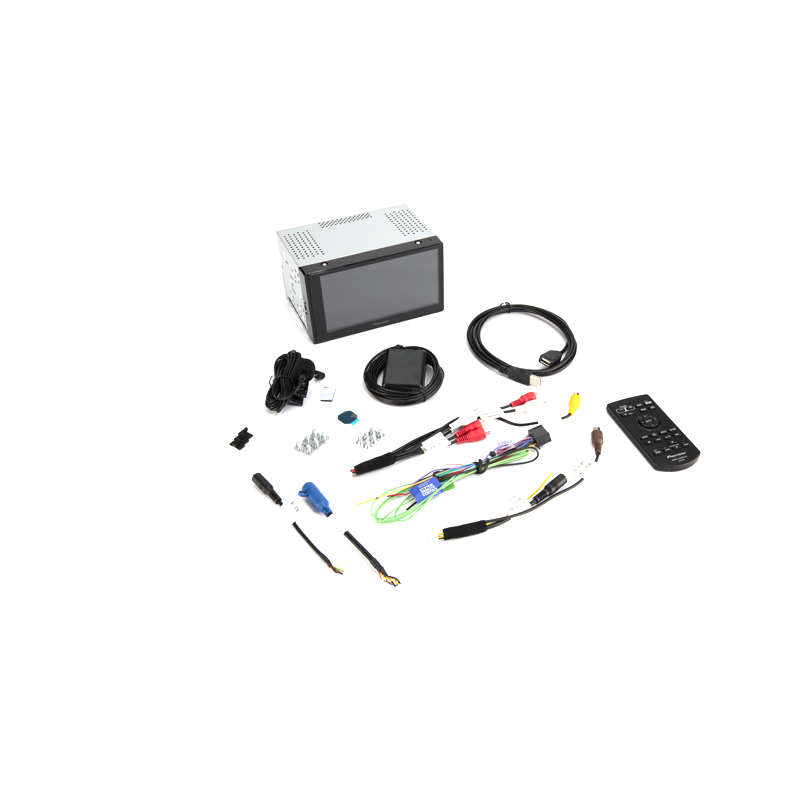

What's Inside?
- • Digital media receiver w/ fixed 6.8" touchscreen monitor
- • (10A fuse) Wiring harness
- • Audio/Video output wire harness
- • Camera and wired remote input wire harness
- • Remote control
- • CR2025 3V lithium battery
- • Auxiliary input wire harness
- • SiriusXM wire harness
- • (12) installation screws
- • 1.5m USB extension cable type A(M) to type A(F)
- • GPS antenna
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle 2.5mm connector)
- • 1 Year warranty
Pioneer DMH-W2700NEX
The DMH-W2700NEX has connectivity solutions designed especially for today’s smartphone-driven lifestyle. This 6.8” receiver has a capacitive touchscreen display, and its features include built-in Bluetooth® Amazon Alexa paired with Vozsis, Android™ Auto (wireless, wired), Apple CarPlay® (wireless, wired), Satellite Radio (SiriusXM-Ready™) and much more. The DMH-W2700NEX also has a 13-band graphic equalizer and is equipped with a back-up camera input.
Apple CarPlay and Android Auto Compatible
This multimedia receiver is compatible with Apple CarPlay and Android Auto, so it would be very convenient to ask for directions, send and read text messages, listen to voicemails, answer and make phone calls, and play music using voice commands. It also has a built-in Bluetooth device so that you can answer phone calls hands-free and stream music wirelessly.
It is also compatible with Amazon Alexa for more voice command control options like playing music, checking the weather, hearing the news, controlling smart home devices, and many more. You can mirror your phone's display to the receiver for a better viewing experience. Aside from its AM/FM tuner, it is also compatible with a SiriusXM tuner, so you can listen to your beloved stations and shows while on the road.
Built-In Amplifier
comes with a built-in amplifier that can handle a power output of 14 Watts RMS per channel and can go up to 50 Watts of peak power per channel. It has a six-channel preamp output, connecting your front and rear speakers and subwoofers simultaneously, resulting in a full-frequency audio performance.
To shape the amplifier's frequency response that would suit your car's acoustics, it has a 13-band EQ with five presets if you are unfamiliar with how to do it on your own. It also has high and low-pass filters to filter out unwanted frequencies, resulting in a more defined audio quality, while it also protects your speakers from blowing out.
Hands Free Bluetooth
This NEX Receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
- Satellite Radio Ready : Yes
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 2 volts
- Display Size : 6.8 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Rear USB Input : 1
- Preamp Outputs : 6
- Audio/Video Outputs : 1
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
- USB Mirroring : Yes
Features:
- 6.8” WVGA Capacitive Touch Screen Display
- Built-in WiFi®
- Amazon Alexa paired with Vozsis
- Android Auto™ (Wireless, Wired)
- Apple CarPlay® (Wireless, Wired)
- Built-in Bluetooth®
- Back-up Camera Ready
- Sirius-XM Ready™
STANDARDS
PERFORMANCE
- Continuous Power Output: 22 W x 4-Channel
- Load Impedence Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50W x 4-ch 4 ohm / 50 W X 2-ch 4 ohm
- RCA Preamp Outputs: 6-Channel
- RCA Preout Voltage: 2V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
DISPLAY
- Back Light: LED
- Brightness Control: Yes
- Color Customization: 5 key colors
- Device (Non-DIN/Modular Unit): 2-DIN
- Dimmer: Automatic with vehicle illumination, Manual
- Display Off Mode: Yes
- Home Screen Customization: Yes
- Monitor Mechanism: Fixed
- Resolution: WVGA (800 x 480)
- Screen Size/Aspect Ratio: 6.8" / 16:9
- Touch Screen: Capacitive
BLUETOOTH
- Advanced Audio Distribution Profile (A2DP): Yes
- AVRCP: 1.6
- Built-in Bluetooth®: Yes
- Hands Free Version: 1.6
- Hands-Free: Yes
- Microphone Included: Included
- Phone Registation: 1-phone
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
TUNER
- Best Station Memory: Yes
- Local Seek tuning: Yes
- Presets: 18 FM, 12 AM
- RDS: Yes
- SiriusXM-Ready™ (Tuner Sold Separately): Yes
INTEGRATION
- Amazon Alexa: Paired with Pioneer Vozsis
- Android Auto™: Wireless Connection or Wired USB Connection
- Apple® CarPlay: Wireless Connection or Wired USB Connection
- Mirroring: with Weblink
- Mobile Operating System
- Android - Wired/Wireless / Apple iOS - Wired/Wireless
- Pandora®: With Apple CarPlay or Android Auto
- Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
- Siri® Eyes Free (VR) (Internet Required): iPhone Only
- Spotify: With Apple CarPlay or Android Auto
- Voice Control: Yes
- Weblink: Version 2.0
DIGITAL MEDIA PLAYBACK
- Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / WAV Audio Playback (Hi-Res) / FLAC Audio Playback (Hi-Res)
- Audio Video Playback via USB: .3gp / .avi / .divx / .f4V / H.263 / H.264 / .m4v / .mkv / .mov / .mp4 / .mpg/mpeg / .wmv/.asf
- Image Display via USB: BMP / JPEG / PNG
AUDIO
- Bass Boost: Yes
- Balance: Yes
- Built-in Amplifier: MOSFET 50 W x 4
- Crossover Standard Mode: HPF/LPF
- Customizable Graphic Equalizer: 13 Band
- DA Converter: 24 Bit
- Digital Signal Processor: Built In
- Easy EQ (EEQ) Preset Equalizer: Yes
- Fade: Yes
- Loudness: High/Mid/Low/Off
- Speaker Output: 4-Channel
- Subwoofer Control: Yes
EXPANDABILITY
- Parking Assist Lines: Yes
- RCA Video Output: Yes
- USB: Single Rear Type-A (5V, 1.5 A)
- USB Direct Control for iPhone®: 5s and newer
- INPUTS
- Input 1: Backup Camera Dedicated
- Input 2: AUX (Minijack)
GENERAL
- Detachable Face Security: Fixed
- Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
- Music Browser: USB
- Remote Control: Included
- Steering Wheel Control Ready (Adapter Sold Separately): Yes
- UPC: 884938486705
- Weight: 6
