PCH Custom Audio  Plug-n-Play Upgrade for 2024-Up Toyota Tacoma with Factory JBL System

S2-S69C Component Speaker System + S2-S65 Coaxial Car Speakers (Pair) + SWT-10S2 Subwoofer Enclosure + EPICFIVE 5-Channel Class-D Car Amplifier with Remote Level Control Included + AP4-TY14 AmpPRO 4 Amplifier Integration Interface for Select 2021-2024 Toyota and Lexus Vehicles + X2K41 4GA Power Wiring Kit

Item #96675

Condition:   Brand New

Product Highlights

  • S2-S69C 6"x9" 260W 4O 2-Way Component Speakers
  • S2-S65 6.5" 240W 4O 2-Way Speakers (Pair)
  • SWT-10S2 10" 1000W 2O SVC Subwoofer Enclosure
  • EPICFIVE 5-Channel Amp 75Wx4 + 700Wx1 @ 1O
  • AP4-TY14 AmpPRO 4 Interface for 2021–2024 Toyota/Lexus
  • X2K41 X2 Series 4GA Power Wiring Kit

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$1,862.00

Reg. Price $2,100.00  Save $238.00

Out of Stock Check out other products listed below
PCH Custom Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Alpine S2-S69C Next-Generation S-Series 6"x9" 260W Peak Power Handling 4 Ohms 2-way Component Speaker System + Alpine S2-S65 S-Series 6.5" 240W Peak Power Handling 4 Ohms 2-way Coaxial Car Speakers (Pair) + Alpine SWT-10S2 10" 1000W Peak Power Handling 2 Ohms, Single Voice Coil Subwoofer Enclosure + AudioControl EPICFIVE Epic Series 5-Channel 75W RMS x 4 at 4 Ohms and 5th Channel 700W RMS x 1 at 1 Ohm, Class-D Car Amplifier with Remote Level Control Included + PAC AP4-TY14 AmpPRO 4 Amplifier Integration Interface for Select 2021-2024 Toyota and Lexus Vehicles + Stinger X2K41 X2 Series 4GA Power Ultimate Wiring Kit


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Tacoma Subwoofer Box
  • Si4612 6-Channel Directional Twisted Pair Interconnect
  • 82-SU1 Subaru/Toyota 2003-2020 Speaker Adapter Kit - Front
  • 82-TY1 Toyota 2013-2020 Speaker Adapter Kit - Front or Rear
  • 72-8110 Speaker Wiring Harness for Select 2003-2025 Subaru, Toyota, and Scion Vehicles
  • APH-TY02 18" Speaker Connection Harness for Select 2012-2018 Toyota and Lexus Vehicles with Amplified System
  • SGW9920 20ft. 9 Conductor Speedwire
  • AP4-ty14 AmpPRO 4 Amplifier Integration Interface
  • X2k41 X2 Series 4GA Power Ultimate Wiring Kit
  • S2-S69C Component Speaker System
  • • (2) S2-S65 Coaxial Car Speakers
  • SWT-10S2 Truck Subwoofer
  • EpicFive 5-Channel Class-D Car Amplifier



(Note: The customer will need to remove the factory subwoofer located in the back, as this is where the new subwoofer box will be installed.)





Music Lover’s Starter Pack

The Alpine S2-S69C is a powerful and versatile component speaker system designed to enhance your car audio setup. It comprises two 6x9-inch mid-bass woofers and two 3-inch midrange speakers with integrated 0.75-inch silk dome tweeters, delivering a well-balanced, immersive sound experience.

New Benchmark in Sound Quality Elevates

With a peak power handling of 260 watts and an RMS power rating of 85 watts, these speakers are capable of producing high-quality audio with impressive volume capabilities. The 6x9-inch woofers utilize a specialized cone, providing enhanced rigidity and precise bass response for a more enjoyable listening experience.

Unique Combination of Poly Propylene, Glass-fiber, and Mica Cone Materials

Alpine's patented High Amplitude Multi-Roll (HAMR) surround technology further enhances the woofers' performance, reducing distortion and ensuring accurate mid-range frequencies.

High Amplitude Multi-roll

The 0.75-inch silk dome tweeters are designed to reproduce crisp and clear high frequencies, adding depth and detail to your music. These tweeters can be swiveled, allowing you to customize the soundstage and achieve optimal imaging in your car.

Engineered for Versatility

The Alpine S2-S69C speakers come with sleek and low-profile grilles, offering a clean and attractive appearance while safeguarding the components. Whether you enjoy rocking beats or smooth melodies, these component speakers deliver impressive audio performance, making them an excellent choice for any car audio enthusiast.

Unmatched Sound Quality

Unleash Exceptional Sound with 6-1/2" 2-Way Speakers! These speakers feature a polypropylene/glass fiber/mica woofer cone with a specialized rubber surround for crisp, dynamic sound. The 1" dome tweeter adds clarity to your music. With a power handling of up to 80 watts RMS (240 watts peak power) and a broad frequency response from 70 to 40,000 Hz, these speakers deliver a premium audio experience. Please note that grilles are not included. Backed by a 1-year warranty for your peace of mind.

Deliver Deep and Impactful Bass

The Alpine SWT-10S2 is a compact and powerful 10-inch subwoofer specifically designed to deliver deep and impactful bass in a limited space. This subwoofer is perfect for those looking to enhance the low-end frequencies in their car audio system without sacrificing valuable trunk or cabin space.

High-power Amplification

With a peak power handling of 1000 watts and RMS power handling of 350 watts, the SWT-10S2 can handle high-power amplification, ensuring powerful and dynamic bass reproduction. It features a single 2-ohm voice coil, allowing flexible wiring options to match your amplifier's specifications.

High-excursion Cone and Large Roll Surround

The subwoofer is built with a high-excursion cone and large roll surround, producing an accurate and powerful bass response. The cone is made from a durable and lightweight reinforced pulp, ensuring long-lasting performance and minimizing distortion even at high volume levels.

Reliable Operation and Protect the Subwoofer

To ensure reliable operation and protect the subwoofer, it has a vented motor structure that efficiently dissipates heat, preventing overheating and power compression. This results in consistent and powerful bass output over extended listening sessions.

AudioControl_MatrixPlus
Unleash Power and Precision

Experience unbeatable power and efficiency with this Compact High-Power Class D Amplifier, designed for maximum performance and stability. Delivering 4 x 75W + 1 x 300W @ 4 Ohms for crystal-clear sound and 4 x 150W + 1 x 500W @ 2 Ohms for deep, rich bass, this amplifier ensures your audio system hits harder and sounds better than ever.

The Ultimate Amplifier for Your System

Unleash extreme power with 1 x 700W @ 1 Ohm for high-output systems, enjoy flexible bridging with 2 x 300W @ 4 Ohms Bridged for easy installation, and stay safe with Smart Auto-Reset Protection Circuit that keeps your equipment protected from damage.



AudioControl_MatrixPlus
AudioControl_MatrixPlus
Optimized for Ultimate Sound Experience

Take control of your sound with 12 dB/Octave Linkwitz-Riley Variable HP/LP Filters for precise tuning, optimize deep bass with a 12 dB/Octave Variable Subsonic Filter, enjoy premium build quality with Solid Power/Speaker Terminals and Hex Screws, and experience ultimate performance with a design specially engineered for THE EPICENTER® to maximize bass restoration.

Stinger X Ultimate Wiring Kits

The XLINK block is accompanied by Hyper-Twist Tru-Spec Wire, Expert Ground Terminals, Power Terminals, Wire Ferrules Remote Turn-on, and an accessories pack to complete the installation. Power delivery, and just as important but often overlooked, ground integrity, are the main goals of this kit. So, to make sure the ground potential is as equally robust as the power delivery, we have included a ground reinforcement cable to be used from the battery to the chassis, and on the amplifier side the Expert Ground Terminal for a large footprint, low resistance, non-rotating grounding terminal.

Stinger_X2K41
Upgrade Your Sound Without Compromise

Experience an easy upgrade with the AP4-TY14 AmpPRO 4 Amplifier Integration Interface, designed for select 2021–2024 Toyota and Lexus vehicles — enjoy better sound and a perfect match with your factory system while keeping your car’s factory fit, seamless look, and OEM features intact.

Unlock True Sound Potential with Damping Upgrades



Stinger X2DSP X-Mat Sound Damping Speaker Kit: Precision Tuning Meets Vibration Control

Upgrade your ride with the Stinger X-Mat Speaker Kit—designed to reduce panel distortion and enhance clarity. This easy add-on lets you apply premium sound damping directly behind your car speakers, eliminating unwanted vibration and unlocking the full potential of your speaker output. It's the small upgrade that makes a massive difference in sound quality.

Roadkill RKFR69 – Max Output and Minimal Vibration

Our 3-piece foam ring speaker enhancement system solves the problem of acoustically coupling aftermarket speakers to factory speaker openings. The RoadKill Fast Rings kit increases speaker output, improves the projection of the audio into the car cabin and reduces unwanted rear reflections that can degrade the sound.

Stinger RKFR6: Max Output for Mid-Sized Speakers

Our 3-piece foam ring kit is designed to acoustically seal aftermarket speakers to factory openings. RoadKill Fast Rings help boost speaker output, direct sound into the cabin, and minimize unwanted rear reflections that can muddy your audio quality.


SPECIFICATIONS


  • Vehicle Make : Toyota
  • Vehicle Model : Tacoma

FEATURES


S2-S69C Next-Generation S-Series 6"x9" 260W Peak Power Handling 4 Ohms 2-way Component Speaker System



Features:

Woofer

  • 6×9″ (160cm x 240cm) Lightweight Glass Fiber Composite Speaker
  • HAMR (High Amplitude Multi-Roll) Surround
  • Large 35mm Voice Coil
  • Magnet Material: Strontium Ferrite
  • Grill sold separately: KTE-S69G



Mid-Tweeter

  •  3″ (79mm) Pulp-Cone Coaxial Speaker with 1″ Extended-Range Soft Dome Tweeter
  • Magnet Material: Strontium Ferrite
  • Tweeter Grill: Perforated Net



Crossover Network

  • Woofer: Integrated Copper Air-Coiled Wound Inductor
  • Mid/Tweeter: High Grade Audio Poly Capacitor



Specifications:

  • Peak Power: 260 Watts
  • RMS Power: 85 Watts
  • Cutout Diameter: 15.2cm x 22.4cm oval
  • Mounting Depth: 7.4cm
  • Mounting Height: 7.3mm
  • Magnet: 100.0mm
  • Cutout Diameter (flush-mount): 6.2cm circle
  • Mounting Depth: 3,5cm
  • Mounting Height: 10.2mm
  • Frequency Range: 55 Hz - 40 kHz (Hi-Res Audio Certified)
  • Impedance: 4 Ohms
  • Sensitivity: 90 dB/W



S2-S65 S-Series 6.5" 240W Peak Power Handling 4 Ohms 2-way Car Speakers (Pair)



Features:

  • 6-1/2" 2-way speakers
  • polypropylene/glass fiber/mica woofer cone with specialized rubber surround
  • 1" dome tweeter
  • handles up to 80 watts RMS (240 watts peak power)
  • frequency response: 70-40,000 Hz
  • grilles not included



Specifications:

  • Speaker Size: 6 1/2
  • Design: 2-way
  • Tweeter Design: Dome
  • Impedance (Ohms): 4 Ohms
  • Tweeter Composition:  ---
  • Woofer Composition: Poly, glass fiber, mica
  • Woofer Surround: HAMR
  • Sensitivity (1W at 1 meter): N/A
  • Sensitivity at 2.83 volts: N/A
  • Frequency Response: 70 - 40k Hz
  • Minimum RMS Wattage: ---
  • Maximum RMS Wattage: 80
  • Peak Power Handling (Watts): 240
  • Top-mount Depth (Inches): N/A
  • Bottom-mount Depth (Inches): N/A



SWT-10S2 10" 1000W Peak Power Handling 2 Ohms, Single Voice Coil Truck Subwoofer



Features:

Diaphram

  • Material: Poly-Mica Dust Cap & Pulp-Kevlar
  • Design: 2-Piece Shallow Cone Structure



Surround

  • Material: Polyurethane Foam Surround
  • Design: H.A.M.R. Surround Technology



Spider

  • Material: Conex® Spider with Reinforced Layer Tinsel Leads
  • Design: Progressive



Voice Coil

  • Material: Spiral Cut Aluminum Former
  • Design: 65mm Voice Coil with High-Temp 4-Layer SVC Winding



Motor Structure

  • Pole Geometry: Compound Radius Curve
  • Configuration: Dual Flare Pole Vent with Airflow Back Plate



Frame

  • Material: High Strength Steel
  • Design: Perimeter Venting with Airflow Management System



Terminals

  • Layout: Push Terminals
  • Design: 8AWG



Gasket

  • Design: Concealed Mount Gasket



Specifications:

  • Size: 10 -inch
  • Impedance (Ohms): 2
  • Cone Material: Pulp-Kevlar
  • Surround Material: Polyurethane Foam
  • Free-Air: No
  • Dual Voice Coil: No
  • Sensitivity: 84.8 dB at 1 watt
  • Frequency Response: 30 - 200 Hz
  • Max RMS Power Handling: 350
  • Peak Power Handling (Watts): 1000
  • Top Mount Depth (inches): 4 3/16
  • Bottom Mount Depth (inches): N/A
  • Cutout Diameter or Length (inches): 8 7/8
  • Frame Width: 10.743
  • Frame Length: 10.743
  • Vas (liters): 44.4
  • Fs (Hz): 27
  • Qts: 0.41
  • Xmax (millimeters): 11
  • Parts Warranty: 1 Year
  • Labor Warranty: 1 Year



Box Requirements:

  • Ideal Sealed Box Volume (cubic feet): 0.47
  • Minimum Sealed Box Volume (cubic feet): 0.37
  • Maximum Sealed Box Volume (cubic feet): 0.82
  • Ideal Ported Box Volume (cubic feet): 1.04
  • Minimum Ported Box Volume (cubic feet): 0.77
  • Maximum Ported Box Volume (cubic feet): 1.27



EPICFIVE Epic Series 5-Channel 75W RMS x 4 at 4 Ohms and 5th Channel 700W RMS x 1 at 1 Ohm, Class-D Car Amplifier with Remote Level Control Included



Features:

  • Compact & Powerful: Experience high performance with a Compact High-Power Class D Amplifier.
  • High-Current Design: Built for maximum efficiency and power stability.
  • Versatile Power Output: Delivers 4 x 75W + 1 x 300W @ 4 Ohms for clear, detailed sound.
  • Enhanced Performance: Pumps out 4 x 150W + 1 x 500W @ 2 Ohms for deep, rich bass.
  • Extreme Power: Unleash 1 x 700W @ 1 Ohm for high-output systems.
  • Flexible Bridging: Get 2 x 300W @ 4 Ohms Bridged for more installation options.
  • Smart Protection: Features a Smart Auto-Reset Protection Circuit to prevent damage.
  • Advanced Sound Control: Includes 12 dB/Octave Linkwitz-Riley Variable HP/LP Filters for precise tuning.
  • Deep Bass Optimization: Equipped with a 12 dB/Octave Variable Subsonic Filter for enhanced low frequencies.
  • Premium Build Quality: Built with Solid Power/Speaker Terminals with Hex Screws for secure connections.
  • Designed for THE EPICENTER®: Specially engineered to maximize bass restoration and performance.



Specifications:

  • RMS Power Output (Watts x Channels): 75 x 4, 700 x 1
  • Peak Power Output (Watts x Channels): ---
  • Power at 2 Ohms (Watts x Channels): 150 x 4
  • Power at 1 Ohm (Watts x Channels): 700 x 1
  • Bridged Power (Watts x Channels): 400 x 2
  • Minimum Impedance Bridged: 4 Ohms
  • Minimum Impedance Unbridged: 2 Ohms
  • Best Frequency Response: 10Hz - 22kHz
  • THD at Rated RMS Power: 1%
  • Signal to Noise Ratio: 92 dB
  • Input Voltage: 14.4V
  • Amplifier Class: D
  • Built-in DSP: No
  • Remote Control: Yes
  • Low-Pass Crossover Frequency: 40-180 Hz
  • Low-Pass Slope (dB/octave): 12 dB/octave
  • High-Pass Crossover Frequency: 50-500 Hz
  • High-Pass Slope (dB/octave): 12 dB/octave
  • Bass Boost: 0-12 dB
  • Bass Boost Frequency: 45 Hz
  • Fan Cooled: No
  • Fuse Rating: 150A
  • Speaker Level Inputs: No
  • Preamp Outputs: No
  • Width: 13-11/16 inches
  • Height: 2-1/16 inches
  • Depth: 6-1/8 inches

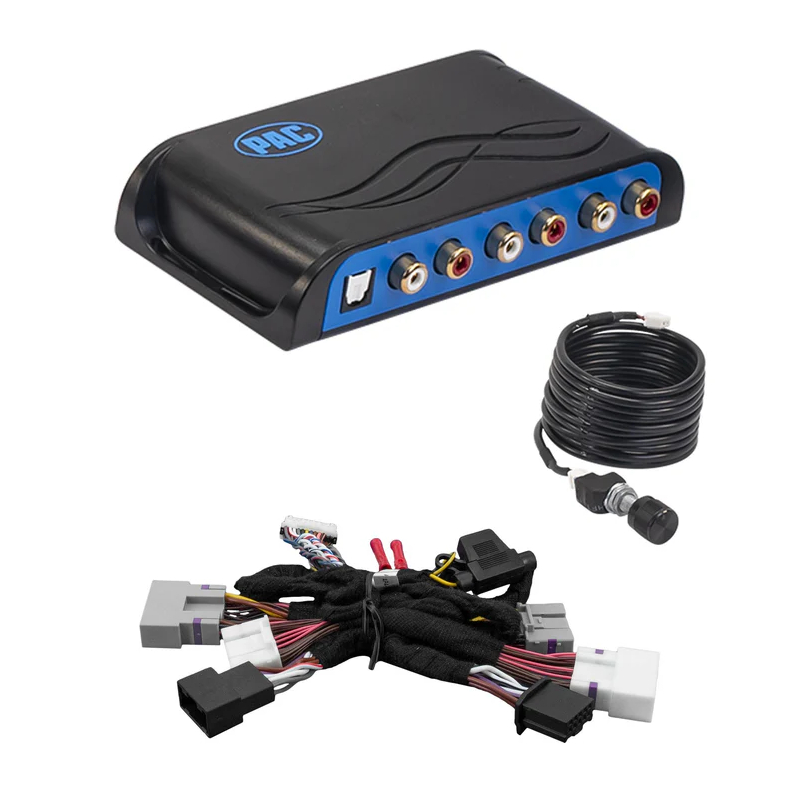

AP4-TY14 AmpPRO 4 Amplifier Integration Interface for Select 2021-2024 Toyota and Lexus Vehicles



Features:

  • Easy Upgrade: Simplifies installation of upgraded amplifiers
  • Perfect Match: Works with select amplified sound systems
  • Better Sound: Improves audio performance
  • Factory Fit: Keeps original radio’s fit
  • Seamless Look: Maintains factory finish
  • OEM Features Intact: Preserves original features



X2 Series 4GA Power Ultimate Wiring Kit



Features:

  • Professional Wire Ferrules: For amplifier connections, to maximize contact and connection integrity.
  • XLink X-Pansion Block: Unleash maximum performance and flexibility by transforming from an inline fuse holder to an expandable power, ground, or power/ground distribution block. Accepts 0, 4, or 8GA input/outputs and supports ANL or MIDI/AFS fuses.
  • XLink Multi-Fuse: Utilize ANL and/or Mini-ANL/AFS fuses for a wide amperage range — 20A to 475A per circuit.
  • Enhanced Power Delivery: Heavy gauge terminals, pure copper, and hydraulically compressed connections ensure ultra-low resistance and high current transfer.
  • Expert Ground Termination: Features a large footprint, low resistance, non-rotating interlocking screw connection for unmatched grounding. Includes a battery ground upgrade cable for power-matched performance.



Specifications:

  • Brand: Stinger
  • Model Number: X2K41
  • UPC:
  • Weight: 70
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
