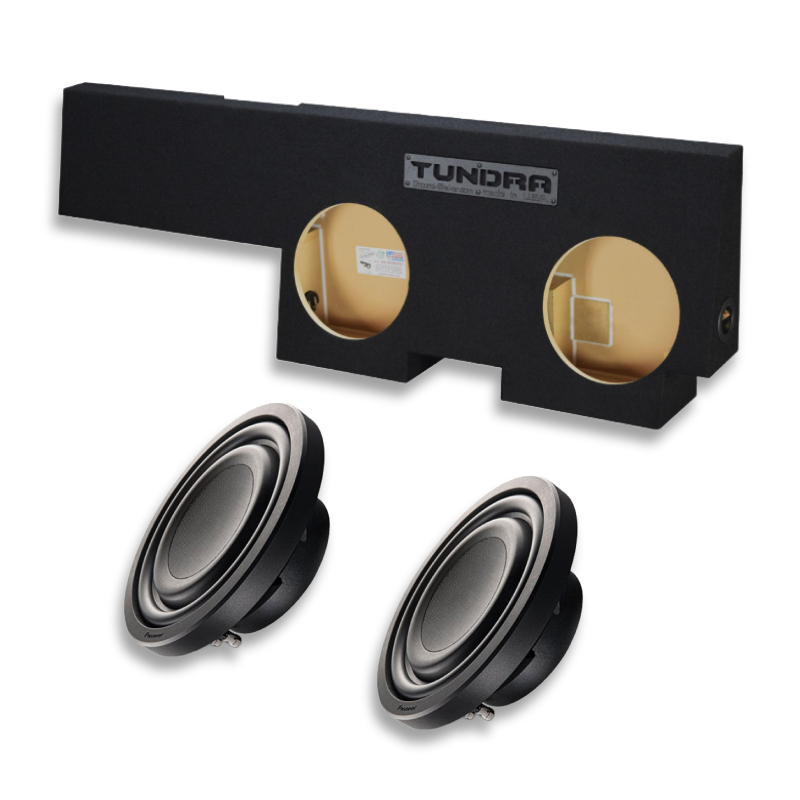

Pioneer  Dual 10" Ported Behind Rear Seat Z-Series Subwoofer Bass Package for 2022-2024 Toyota Tundra Crew-Max New

GS-TOYMX210B Black 10" Dual Sealed Enclosure for 2022-2024, Toyota Tundra Crew-Max + (2) TS-Z10LS2 Z Series 10" 1300W Peak Power Handling at 2 Ohms, Single Voice Coil Car Subwoofer

Item #99492

Condition:   Brand New

Product Highlights

  • GS-TOYMX210B
  • Dual 10"
  • Sealed Enclosure
  • 2022–2024 Toyota Tundra Crew-Max Fit
  • Black Finish
  • (2) TS-Z10LS2 Z Series Subwoofers
  • 1300W Peak Power Handling
  • 2 Ohms
  • Single Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$749.95

Reg. Price $1,045.00  Save $295.05
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

Out of Stock Check out other products listed below
Pioneer Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Ground Shaker GS-TOYMX210B Black 10" Dual Sealed Enclosure for 2022-2024, Toyota Tundra Crew-Max + (2) Pioneer TS-Z10LS2 Z Series 10" 1300W Peak Power Handling at 2 Ohms, Single Voice Coil Car Subwoofer


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • GS-TOYMX210B 10" Black Dual Sealed Enclosure
  • • GS-TOYMX210B Owner's Manual
  • • TS-Z10LS2 (2) 10" Shallow mount subwoofer
  • • TS-Z10LS2 (12) 1-1/8" Self-tapping screws
  • • TS-Z10LS2 Rubber gasket (installed)
  • • TS-Z10LS2 Warranty information
  • TS-Z10LS2 Owner's Manual
Ground Shaker
Behind-the-Seat Bass Power

Feel every beat hit hard with a forward-firing design that delivers punchy, direct bass straight into your cabin for a truly immersive ride. Built to maximize your truck’s interior, it fits perfectly behind the rear seat, turning unused space into a powerful audio zone without compromising comfort. Crafted from rugged 5/8" high-density MDF and reinforced with premium Titebond glue, this enclosure is made to handle the road while delivering consistent, high-impact performance mile after mile.

Precision Fit, Powerful Bass

Built for the demands of the road, this subwoofer features a rugged trunk liner finish sealed with premium Titebond silicone for long-lasting durability and a clean, professional look. Dual binding post terminals make wiring quick, secure, and hassle-free, so you can get your system up and running in no time. Its precision-tapered design ensures a perfect fit while enhancing acoustic performance, delivering deep, controlled bass that elevates every drive.



Ground Shaker
Ground Shaker
Built for Workdays and Weekends

From daily commutes to cross-country road trips, this subwoofer is built to deliver consistent, hard-hitting bass wherever the road takes you. Designed to accommodate optional speaker grills, it offers added protection for your setup while maintaining clean, powerful sound. Perfect for truck owners who want a serious audio upgrade without the hassle of a full custom build, it brings tight, accurate bass you can feel the moment you plug in and hit play.









Elevate Your Audio Experience with the Z Subwoofer's Unrivaled Bass Mastery

Derived from the advanced Z full range loudspeakers, the Z subwoofer embodies unmatched musical excellence – delivering swift, detailed, extended bass with remarkable impact and clarity. Its compact, shallow design achieves high fidelity and output, providing boundless installation options for optimal sound quality and bass reinforcement. Experience the ultimate blend of balance, speed, power, and bass extension – your gateway to low-frequency nirvana.

Unveiling Sub-Bass Brilliance

Hi-Res Audio recordings hold notably more data in the sub-bass area than standard CDs, demanding a subwoofer of exceptional dynamic range and low distortion. Z subwoofers excel in harnessing Hi-Res Audio's full potential, delivering precise, detailed bass that seamlessly integrates with mid- and high-frequency speakers.

Redefining Subwoofer Performance with the Z Series

Subwoofers demand a robust basket, ensuring alignment during low-frequency excursions. Conventional ones need large enclosures, posing installation challenges. The Z subwoofer offers a shallow basket, high performance in small enclosures, an oversized cone (15% larger than a standard 10" subwoofer), and a potent 67.7 oz. magnet. These elements create swift, detailed, extended bass with impactful clarity.

Elevate Your Sound with Twaron Strength and Precision in Z Series

Twaron, a synthetic aramid fiber, when woven into cloth, offers remarkable strength, heat resistance, and rigidity. Twaron-based subwoofer cones, with low mass and strong damping, ensure cone integrity during intense bass notes. This enhances responsiveness and signal accuracy, crucial for optimal performance. The lightweight aramid fiber boosts sensitivity and speed in the Z subwoofer, amplifying output and power handling.






















SPECIFICATIONS


  • Vehicle Make : Toyota
  • Vehicle Model : Tundra

FEATURES


GS-TOYMX210B Black 10" Dual Sealed Enclosure for 2022-2024, Toyota Tundra Crew-Max



Features:

  • Hard-Hitting Forward Bass: Designed with a forward-firing layout, this enclosure delivers punchy, direct bass that hits you right from behind the seat for an immersive ride.
  • True Truck Space Maximizer: Engineered to fit snugly behind the rear seat, it transforms unused space into a powerful audio zone without sacrificing comfort.
  • Heavy-Duty Build Quality: Constructed from 5/8" high-density MDF wood and bonded with premium Titebond glue for rock-solid durability on every drive.
  • Road-Tested Finish: Wrapped in rugged trunk liner carpet and sealed with high-quality Titebond silicone to withstand daily wear and tear.
  • Quick and Secure Wiring: Features dual binding post terminals that make installation clean, simple, and reliable for any setup.
  • Precision Tapered Design: Built with a smart tapered depth (2 5/8" top to 6 1/4" bottom) to ensure optimal fitment and enhanced acoustic performance.
  • Built for Real-World Driving: Designed to perform whether you're commuting, hauling, or heading out on a weekend road trip across America.
  • Speaker Protection Ready: Supports subwoofer grills for added protection, especially for subs with taller surrounds that need extra clearance.
  • Serious Sound Upgrade: Perfect for truck owners who want tight, accurate bass without going full custom—plug in and feel the difference instantly.



Specifications:

  • Cutout Diameter: 9 1/4"
  • Air Volume: 1.10 FT³
  • Mounting Depth: 3 3/8"
  • Height: 17”
  • Length: 52 1/4"
  • Top Depth: 2 5/8"
  • Bottom Depth: 6 1/4"
  • Construction: 5/8" high-density MDF wood, carpeted with durable trunk liner finish, sealed with high-quality Titebond silicone, glued with high-quality Titebond wood glue
  • Terminals: 2 binding post terminals
  • Installation: Fits behind rear seat, forward firing, removal of rear wall plastic is required, subwoofers with tall surrounds may require grills to prevent damage





(2) TS-Z10LS2 Z Series 10" 1300W Peak Power Handling at 2 Ohms, Single Voice Coil Car Subwoofer



Features:

  • Twaron® Aramid Fiber + Cellulose Fiber Dual Layer Cone Construction
  • Extended Voice Coil, Dual Spider Design for Increased Linearity and High Excursion
  • Shallow Basket, Small Enclosure Design for Sound Optimization and Installation Flexibility
  • Designed for Hi-Res Audio



Specifications:

KEY FEATURES

  • System Type: Component Subwoofer
  • Sensitivity (1W/1m): 74 dB
  • Frequency Range: 20 Hz to 3.8 kHz
  • Hi-Res Certified: Yes
  • CTA-2031 Compliant: Yes
  • Warranty: 1 Year
  • Continuous Power handling (RMS): 400 Watts
  • Maximum Peak Power Handling: 1300 Watts
  • Nominal Impedance: 2 Ohms



BUILD

  • Shape: Round
  • Size: 10" oversized
  • Cone Material: IMPP - Composite
  • Drive Cone Material: Twaron Aramid Fiber
  • Surround Material: Rubber
  • Surround Type: Rolled
  • Basket Material: Die Cast Aluminum
  • Magnet Material: Ferrite
  • Magnet Weight: 70.2 oz
  • Voice Coil Type: Single Voice
  • Voice Coil Bobbin: Glass imide
  • Voice Coil wire: Copper
  • Damper: Poly cotton
  • Gasket: Rubber
  • Wire Terminals: Push Type
  • Unit Size (Dimensions): 11-1/8"
  • Mounting Depth: 3-1/4"
  • Cut Out dimensions: 9-1/8"
  • Equivalent Compliance (VAS) [L]: 23.1
  • Free Air Resonance (Fs) [Hz]: 34
  • Total Speaker "Q" (Qts): 0.48
  • Linear Excursion (Xmax) [mm]: 9.4
  • Recommended Sealed Box Volume [L]: 17
  • Port Box volume [L]: 17
  • Port Length: 7-1/2"
  • Port Diameter: 3"



  • UPC:
  • Weight: 58
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
