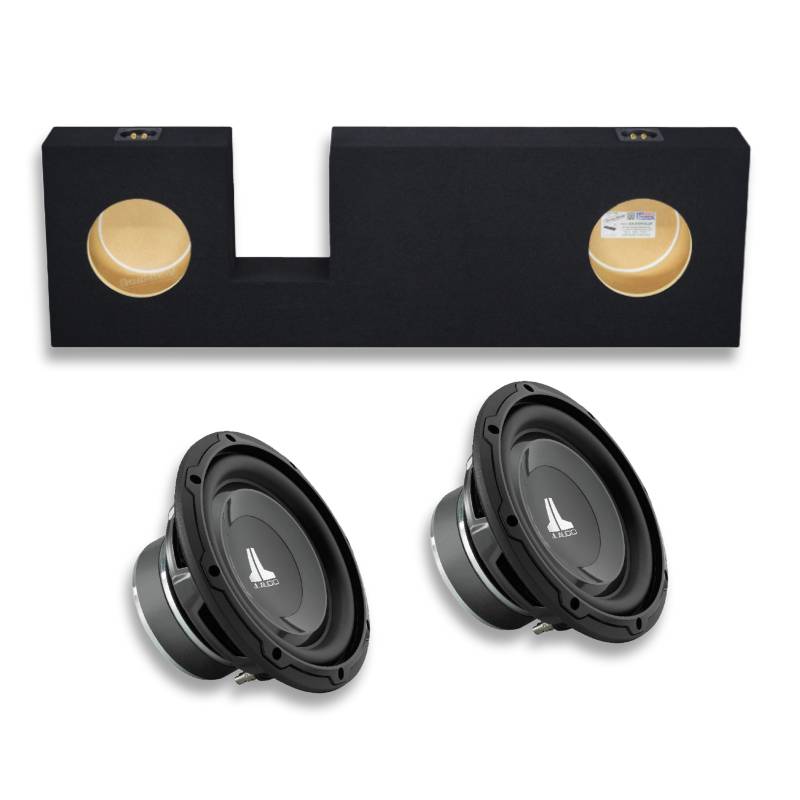

JL Audio  Dual 8" Sealed Under Rear Seat W1v3 Subwoofer Bass Package for 2007-2021 Toyota Tundra Double-Cab New

GS-DTOYXL28B Black 8" Dual Sealed Enclosure for 2007-2021 Toyota Tundra Double-Cab (under rear seat) + (2) 8W1v3-4 W1 v3 Series 8" 300W Peak Power Handling at 4 Ohms, Single Voice Coil Component Car Subwoofer

Item #99495

Condition:   Brand New

Product Highlights

  • GS-DTOYXL28B
  • Dual 8"
  • Sealed Enclosure
  • 2007–2021 Toyota Tundra Double-Cab Fit
  • Under Rear Seat Design
  • Black Finish
  • (2) 8W1v3-4 W1 v3 Series Subwoofers
  • 300W Peak Power Handling
  • 4 Ohms
  • Single Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$719.95

Reg. Price $959.98  Save $240.03
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

Out of Stock Check out other products listed below
JL Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Ground Shaker GS-DTOYXL28B Black 8" Dual Sealed Enclosure for 2007-2021 Toyota Tundra Double-Cab (under rear seat) + (2) JL Audio 8W1v3-4 W1 v3 Series 8" 300W Peak Power Handling at 4 Ohms, Single Voice Coil Component Car Subwoofer


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • GS-DTOYXL28B 8" Dual Sealed Enclosure
  • • GS-DTOYXL28B Owner's Manual
  • • 8W1v3-4 (2) 8" Single 4-ohm voice coil subwoofer
  • • 8W1v3-4 Black plastic trim ring (installed)
  • 8W1v3-4 Owner's Manual
Alpine_PWE-S8
Clean Truck Bass Upgrade That Hits Hard

The Ground Shaker GS-DTOYXL28B is built for truck owners who want real bass without giving up space in the cabin. Designed as an under-rear-seat dual enclosure, it keeps everything tucked away and clean while still delivering deep, controlled low-end output. The upward-firing design helps push bass into the cabin so you feel every note without rattles or muddy sound.

Built Strong for Daily Bass Performance

Made from durable 5/8" high-quality MDF wood, this enclosure is designed to handle heavy bass while staying tight and solid over time. It features 1.32 ft³ total air volume with two separate chambers (0.66 ft³ per sub), giving each woofer the right space for balanced performance. Airtight sealing with Titebond silicone and premium wood glue helps lock in clean, accurate bass response even at higher volume levels.

Alpine_PWE-S8
Clean Install, Factory Look, Serious Output

Wrapped in a rugged trunk liner carpet finish, the GS-DTOYXL28B blends nicely with your truck interior while staying protected from daily wear. Dual binding post terminals make wiring simple and secure, and the compact under-seat design keeps your cabin functional and clutter-free. Just note, this enclosure is not compatible with Crew-Max models—but for Double Cab setups, it’s a clean, hard-hitting bass solution that performs way bigger than it looks.





Big Bass in Tight Spaces

The 8W1v3-4 delivers powerful JL Audio bass where traditional subs won’t fit, bringing legendary W7 technologies—advanced cone bonding, precise motor assembly, and optimized suspension—to compact vehicles. Engineered for impressive output and accurate sound at moderate power levels, it’s perfect for small enclosures in trucks, sports cars, and compact vehicles.





Clean, Powerful Bass

DMA-optimized motor and suspension deliver tight, articulate bass with minimal distortion across all power levels. The mica-filled polypropylene cone with rubber surround and aluminum dust cap ensures strong, crisp lows and features a stylish embossed JL Audio logo.





Compact, Customizable, Powerful

With a shallow 3-7/8" mounting depth, the 8W1v3-4 fits compact spaces and small enclosures from 0.35cuft. The removable trim ring can be painted for a custom look, and optional grille inserts add style and protection. Compatible with sealed or ported enclosures and 50–100W RMS amplifiers, it delivers flexible, powerful bass for budget-friendly setups.

Compact, Affordable, Reliable

Optimized for small vehicles and tight spaces, the 8W1v3-4 delivers impressive low-end performance without the bulk of larger subs. JL Audio engineering ensures dependable, high-quality sound at an accessible price.





Learn how to wire subwoofers


SPECIFICATIONS


  • Vehicle Make : Toyota
  • Vehicle Model : Tundra

FEATURES


GS-DTOYXL28B Black 8" Dual Sealed Enclosure for 2007-2021 Toyota Tundra Double-Cab (under rear seat)



Features:

  • 5/8" HIGH QUALITY MDF WOOD: Durable construction for strong, clean bass performance.
  • CARPETED WITH DURABLE TRUNK LINER FINISH: Provides protection and a sleek, factory-style appearance.
  • SEALED WITH HIGH QUALITY TITEBOND SILICONE: Ensures airtight performance for precise low-frequency response.
  • GLUED WITH HIGH QUALITY TITEBOND WOOD GLUE: Offers long-lasting structural integrity.
  • 2 BINDING POST TERMINALS: Secure and reliable connections for your subwoofers.
  • FITS UNDER REAR SEAT: Space-saving design for a clean, hidden installation.
  • UPWARD FIRING: Optimized for in-cabin sound projection.
  • WILL NOT FIT CREW-MAX: Not compatible with Crew-Max models.



Specifications:

  • Cutout Diameter: 7 1/8"
  • Air Volume: 1.32 ft³
  • Chambers: 2 individual
  • Volume per Subwoofer: 0.66 ft³
  • Weight: 33 lbs
  • Mounting Depth: 5"
  • Height: 5 1/4"
  • Length: 49 1/4"
  • Depth: 15 1/4”





(2) 8W1v3-4 W1 v3 Series 8" 300W Peak Power Handling at 4 Ohms, Single Voice Coil Component Car Subwoofer



Features:

  • Legendary JL Audio Engineering: The 8W1v3-4 subwoofer brings JL Audio’s renowned performance to tight spaces where traditional subs cannot fit, giving you powerful bass in compact vehicles.
  • Trickle-Down Technology: Incorporates patented features from the legendary W7 series, including advanced cone bonding, motor assembly precision, and sophisticated suspension systems for linear, dependable output.
  • Engineered for Performance: Provides impressive output, accuracy, and sound quality at moderate power levels, ideal for small enclosures in trucks, sports cars, or compact vehicles.
  • Dynamic Motor Analysis (DMA) Optimized Speakers: Ensures linear motor force across a wide range of excursions and power levels, delivering tight, clean, and articulate bass with minimal distortion.
  • Polypropylene Cone Technology: Mica-filled polypropylene cone with a durable rubber surround and aluminum dust cap delivers crisp, strong bass while standing out visually with an embossed JL Audio logo.
  • Shallow Mounting Depths: At only 3-7/8 inches deep, the sub fits into compact environments and works optimally in small enclosures starting at just 0.35 cubic feet.
  • Custom Accents: The removable trim ring allows for paint customization to match your installation, and optional grille inserts (sold separately) add protection and style.
  • Powerfully Adaptable: Compatible with sealed or ported enclosures and amplifiers ranging from 50-100 watts RMS, making it perfect for budget-friendly setups.
  • Solid Bass for Compact Boxes: Optimized for small vehicles and hard-to-fit spaces, delivering impressive low-end performance without the bulk of larger subwoofers.
  • Affordable and Reliable: Offers JL Audio quality and engineering at an accessible price point, ensuring dependable performance without breaking the bank.



Specifications:

  • Size: 8"
  • Impedance: 4 Ohms
  • Cone Material: Mica-filled polypropylene
  • Surround Material: Rubber
  • Basket Material: N/A
  • Grille: None included
  • Free-Air Capability: No
  • Dual Voice Coil: No
  • Sensitivity: 84.8 dB at 1 watt
  • Frequency Response: 25 – 250 Hz
  • Max RMS Power Handling: 150 watts
  • Peak Power Handling: 300 watts
  • Top Mount Depth: 3 7/8 inches
  • Cutout Diameter: 6 15/16 inches
  • Frame Width/Length: 8.533 inches
  • Vas (liters): 19.26
  • Fs (Hz): 35.4
  • Qts: 0.418
  • Xmax (mm): 8
  • Ideal Sealed Box Volume: 0.35 cubic feet
  • Ideal Ported Box Volume: 0.5 cubic feet
  • Minimum Ported Box Volume: 0.4 cubic feet
  • Maximum Ported Box Volume: 0.65 cubic feet
  • Port Diameter: 2 inches
  • Port Length: 10 inches



  • UPC:
  • Weight: 53
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
