JL Audio  Single 10" Ported TW3 Subwoofer Bass Package for 2022-2024 Toyota Tundra Crew-Max (Hybrid/ Non Hybrid)-1 New

GS-TOYMXP110B Black 10" Single Ported Enclosure for 2022-2024, Toyota Tundra Crew-Max + 10TW3-D8 TW3 Series 10" 800W Peak Power Handling 8 Ohms, Dual Voice Coil Shallow-Mount Component Car Subwoofer

Item #99623

Condition:   Brand New

Product Highlights

  • GS-TOYMXP110B
  • Single 10"
  • Ported Enclosure
  • 2022-2024 Toyota Tundra Crew-Max Fit
  • Black Finish
  • 10TW3-D8 TW3 Series Subwoofer
  • Shallow-Mount Component Car Subwoofer
  • 800W Peak Power Handling
  • 8 Ohms
  • Dual Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$834.95

Reg. Price $874.99  Save $40.04
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

Out of Stock Check out other products listed below
JL Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

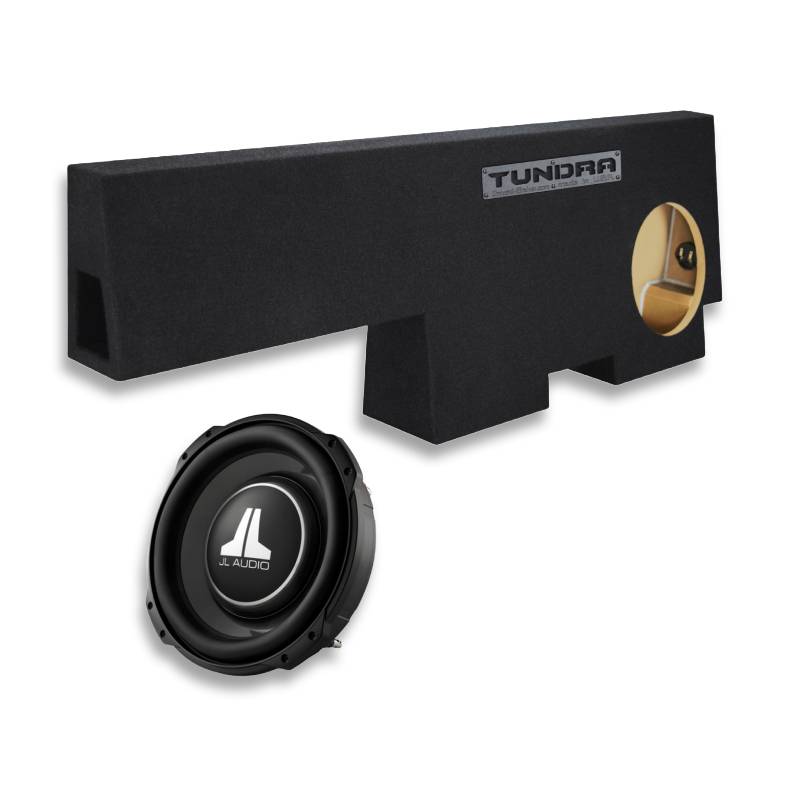

Ground Shaker GS-TOYMXP110B Black 10" Single Ported Enclosure for 2022-2024, Toyota Tundra Crew-Max + JL Audio 10TW3-D8 TW3 Series 10" 800W Peak Power Handling 8 Ohms, Dual Voice Coil Shallow-Mount Component Car Subwoofer


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • GS-TOYMXP110B 10" Black Single Ported Enclosure
  • • GS-TOYMXP110B Owner's Manual
  • • 10TW3-D8 10" Thin-Line subwoofer
  • • 10TW3-D8 Voice coil connection warning
  • • 10TW3-D8 On-line product registration note
  • 10TW3-D8 Owner's Manual
Ground Shaker
Forward-Firing Bass Master, Compact Power for Trucks

Bring your truck’s audio to life with deep, forward-firing bass that hits hard and resonates throughout the cabin for an immersive listening experience. Its precision-tuned slot port, set at 36 Hz, delivers crisp, controlled low-end sound without distortion, giving every beat clarity and punch. Designed to fit neatly behind the rear seat, it maximizes interior space while keeping your truck organized, combining powerhouse performance with a clean, space-smart setup.

Built Tough, Styled Right

Engineered for longevity, this subwoofer is crafted from 5/8" high-density MDF and reinforced with premium Titebond wood glue, ensuring rock-solid performance mile after mile. Wrapped in durable trunk liner and sealed with Titebond silicone, it combines rugged protection with a sleek, professional look. With a single binding post terminal, installation is fast, clean, and hassle-free, delivering powerful, precise bass to elevate every drive.



Ground Shaker
Ground Shaker
Precision Fit, Epic Sound

Built for truck owners who demand both protection and performance, this subwoofer supports optional grills to safeguard taller surrounds while keeping your sound sharp. Its precision-tapered design, with a 2 5/8” top and 6 1/4” bottom depth, ensures a snug fit and optimal acoustic resonance for deep, controlled bass. Perfectly suited for daily drives, tailgates, or weekend adventures, it delivers concert-quality audio that turns every ride into a full-fledged audio experience.





Big Bass, Small Footprint

The TW3’s 10" shallow-mount design (3.25" depth) delivers deep, powerful, and articulate bass in tight spaces. Its mica-filled polypropylene cone ensures durability and minimal distortion, while a satin black aluminum-alloy dust cap with JL Audio logo adds heat dissipation and a premium look.

Clean, Powerful Bass in a Compact Design

DMA-optimized motor, suspension, and cone deliver tight, linear bass at all power levels. The cast-alloy frame with tab-ear mounting maximizes cone area while maintaining strength. Dual 8-ohm voice coils provide flexible wiring, and the sub works seamlessly in sealed or ported enclosures with 200–400W RMS amplifiers.

Slim Design, Big Bass

The heavy-duty rubber surround supports large cone excursions for maximum airflow and deep, powerful bass. JL Audio’s engineering ensures a slim, shallow-mount design that delivers impressive sound and reliability, ideal for tight spaces without sacrificing cargo or passenger room.

Learn how to wire subwoofers


SPECIFICATIONS


  • Vehicle Make : Toyota
  • Vehicle Model : Tundra

FEATURES


GS-TOYMXP110B Black 10" Single Ported Enclosure for 2022-2024, Toyota Tundra Crew-Max



Features:

  • Deep Forward-Firing Bass: This enclosure projects tight, punchy bass forward, giving your truck cabin immersive low-end power that you can feel.
  • Precision Slot-Ported Design: Tuned to 36 Hz with a single slot port (3.75” H × 2.5” W × 16.5” L), it delivers controlled, crisp bass without distortion.
  • Optimized Fit Behind Rear Seat: Made to sit perfectly behind the rear seat, it maximizes space while keeping your truck interior uncluttered.
  • Heavy-Duty Build: Constructed from 5/8" high-density MDF wood and reinforced with Titebond wood glue for durability that lasts through years of driving.
  • Rugged, Stylish Finish: Carpeted with durable trunk liner and sealed with high-quality Titebond silicone, combining protection with a professional look.
  • Simple and Reliable Wiring: Features a single binding post terminal for quick, clean installation with any compatible subwoofer.
  • Truck-Ready Audio: Supports grills to protect subwoofers with taller surrounds, ensuring safe, long-lasting performance on the road.
  • Precision-Crafted Tapered Design: The top depth of 2 5/8” and bottom depth of 6 1/4” provides both a snug fit and optimal acoustic resonance.
  • American Road-Trip Ready: Perfect for daily drives, tailgates, or weekend adventures, delivering concert-quality bass wherever you go.



Specifications:

  • Cutout Diameter: 9 1/4"
  • Air Volume: 1.02 FT³
  • Tuning Frequency: 36 Hz
  • Slot Ports: 1 slot port (H-3.75” W-2.5” L-16.5”)
  • Mounting Depth: 3 3/8"
  • Height: 17”
  • Length: 52 1/4"
  • Top Depth: 2 5/8"
  • Bottom Depth: 6 1/4"
  • Construction: 5/8" high-density MDF wood, carpeted with durable trunk liner finish, sealed with high-quality Titebond silicone, glued with high-quality Titebond wood glue
  • Terminals: 1 binding post terminal
  • Installation: Fits behind rear seat, forward firing, removal of rear wall plastic is required, subwoofers with tall surrounds may require grills to prevent damage

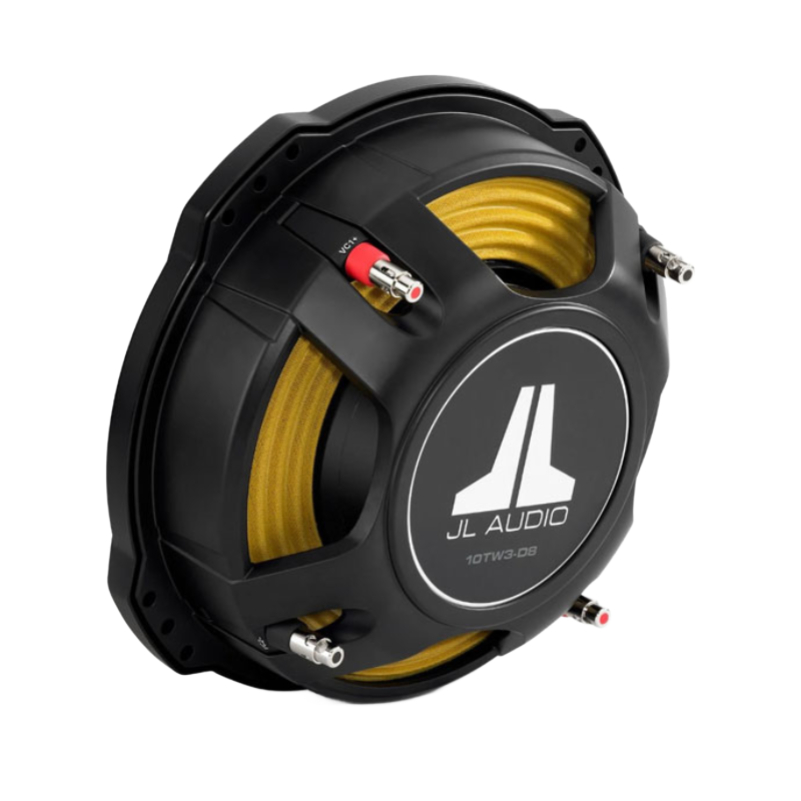

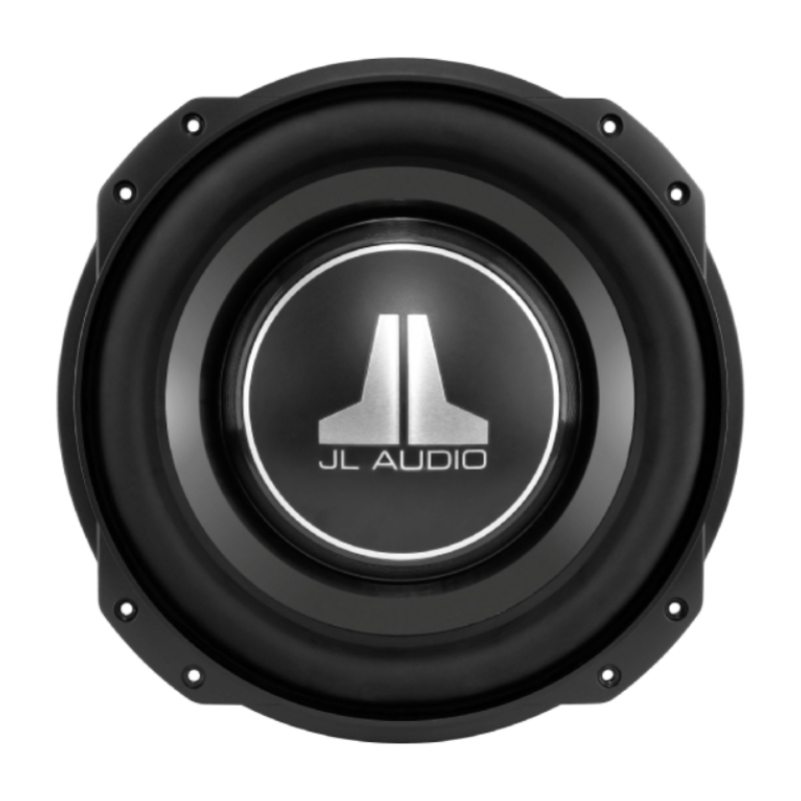

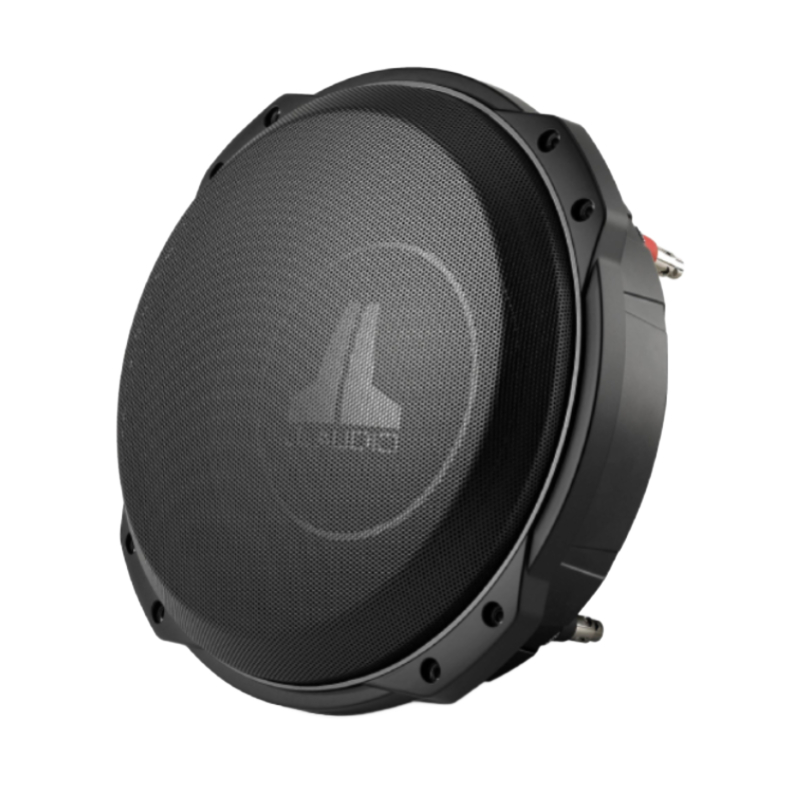

10TW3-D8 TW3 Series 10" 800W Peak Power Handling 8 Ohms, Dual Voice Coil Shallow-Mount Component Car Subwoofer



Features:

  • Engineered for Big Sound from Tight Spaces: The TW3 thin-line design allows deep, powerful, and articulate JL Audio bass in vehicles with limited space, perfect for trucks, sports cars, or compact installations.
  • Shallow Mount Design: The 10-inch model requires only 3.25 inches of mounting depth, letting you fit high-performance bass where traditional subs won’t.
  • Design Accents: A satin black aluminum-alloy dust cap with a JL Audio logo provides heat dissipation while giving the subwoofer a sleek, premium look.
  • Polypropylene Cone Technology: The injection-molded, mica-filled polypropylene cone delivers durability, minimal distortion, and deep, powerful bass for all music genres.
  • Dynamic Motor Analysis (DMA) Optimized Design: Proprietary motor, suspension, and cone modeling ensure long, linear excursion and clean, tight bass at all power levels.
  • Space-Saving Frame Design: The cast-alloy frame with tab-ear mounting maximizes cone area while maintaining structural strength and stability.
  • Powerfully Adaptable: Works with a wide range of vehicles and enclosures, both sealed and ported, and pairs seamlessly with amplifiers in the 200-400 watt RMS range.
  • Dual 8-Ohm Voice Coils: Offers flexible wiring options for single or multiple sub setups, giving you more control over your audio system.
  • Heavy-Duty Rubber Surround: Supports large cone movements for maximum airflow and powerful low-frequency response.
  • JL Audio Engineering: Combines decades of expertise into a slim, shallow-mount design without sacrificing sound quality or reliability.
  • Profound Bass for Challenging Spaces: Perfect for drivers who want impressive bass in tight enclosures without compromising cargo or passenger space.



Specifications:

  • Size: 10-inch
  • Impedance: 4, 16 Ohms
  • Cone Material: Mica-filled IMPP (Injection-Molded Polypropylene)
  • Surround Material: Rubber
  • Basket Material: Cast Alloy
  • Grille: None included
  • Free-Air Capability: No
  • Dual Voice Coil: Yes
  • Sensitivity: 82.27 dB at 1 watt
  • Frequency Response: 24 – 200 Hz
  • Max RMS Power Handling: 400 watts
  • Peak Power Handling: 800 watts
  • Top Mount Depth: 3 1/4 inches
  • Cutout Diameter: 9 9/16 inches
  • Frame Width: 10.47 inches
  • Frame Length: 11.17 inches
  • Vas (liters): 14.44
  • Fs (Hz): 39.262
  • Qts: 0.761
  • Xmax (mm): 15.2
  • Ideal Sealed Box Volume: 0.575 cubic feet
  • Ideal Ported Box Volume: 0.75 cubic feet



  • UPC:
  • Weight: 51
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
