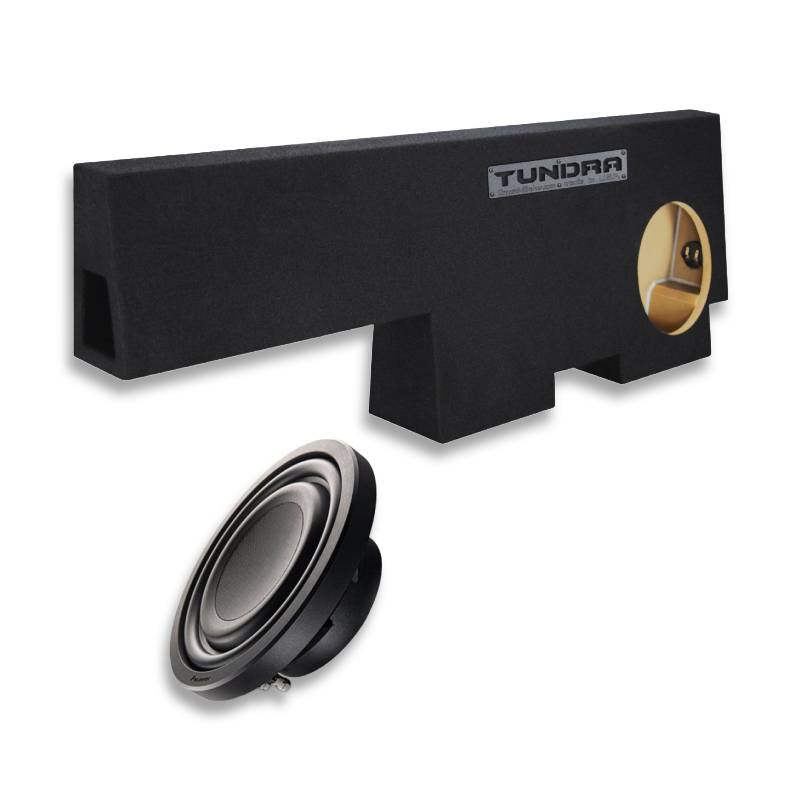

Pioneer  Single 10" Ported Z-Series Subwoofer Bass Package for 2022-2024 Toyota Tundra Crew-Max (Hybrid/ Non Hybrid) New

GS-TOYMXP110B Black 10" Single Ported Enclosure for 2022-2024, Toyota Tundra Crew-Max + TS-Z10LS2 Z Series 10" 1300W Peak Power Handling at 2 Ohms, Single Voice Coil Car Subwoofer

Item #99626

Condition:   Brand New

Product Highlights

  • GS-TOYMXP110B
  • Single 10"
  • Ported Enclosure
  • 2022-2024 Toyota Tundra Crew-Max Fit
  • Black Finish
  • TS-Z10LS2 Z Series Subwoofer
  • Car Subwoofer
  • 1300W Peak Power Handling
  • 2 Ohms
  • Single Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$542.45

Reg. Price $695.00  Save $152.55
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

Out of Stock Check out other products listed below
Pioneer Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Ground Shaker GS-TOYMXP110B Black 10" Single Ported Enclosure for 2022-2024, Toyota Tundra Crew-Max + Pioneer TS-Z10LS2 Z Series 10" 1300W Peak Power Handling at 2 Ohms, Single Voice Coil Car Subwoofer


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • GS-TOYMXP110B 10" Black Single Ported Enclosure
  • • GS-TOYMXP110B Owner's Manual
  • • TS-Z10LS2 10" Shallow mount subwoofer
  • • TS-Z10LS2 (6) 1-1/8" Self-tapping screws
  • • TS-Z10LS2 Rubber gasket (installed)
  • • TS-Z10LS2 Warranty information
  • TS-Z10LS2 Owner's Manual
Ground Shaker
Forward-Firing Bass Master, Compact Power for Trucks

Bring your truck’s audio to life with deep, forward-firing bass that hits hard and resonates throughout the cabin for an immersive listening experience. Its precision-tuned slot port, set at 36 Hz, delivers crisp, controlled low-end sound without distortion, giving every beat clarity and punch. Designed to fit neatly behind the rear seat, it maximizes interior space while keeping your truck organized, combining powerhouse performance with a clean, space-smart setup.

Built Tough, Styled Right

Engineered for longevity, this subwoofer is crafted from 5/8" high-density MDF and reinforced with premium Titebond wood glue, ensuring rock-solid performance mile after mile. Wrapped in durable trunk liner and sealed with Titebond silicone, it combines rugged protection with a sleek, professional look. With a single binding post terminal, installation is fast, clean, and hassle-free, delivering powerful, precise bass to elevate every drive.



Ground Shaker
Ground Shaker
Precision Fit, Epic Sound

Built for truck owners who demand both protection and performance, this subwoofer supports optional grills to safeguard taller surrounds while keeping your sound sharp. Its precision-tapered design, with a 2 5/8” top and 6 1/4” bottom depth, ensures a snug fit and optimal acoustic resonance for deep, controlled bass. Perfectly suited for daily drives, tailgates, or weekend adventures, it delivers concert-quality audio that turns every ride into a full-fledged audio experience.







Elevate Your Audio Experience with the Z Subwoofer's Unrivaled Bass Mastery

Derived from the advanced Z full range loudspeakers, the Z subwoofer embodies unmatched musical excellence – delivering swift, detailed, extended bass with remarkable impact and clarity. Its compact, shallow design achieves high fidelity and output, providing boundless installation options for optimal sound quality and bass reinforcement. Experience the ultimate blend of balance, speed, power, and bass extension – your gateway to low-frequency nirvana.

Unveiling Sub-Bass Brilliance

Hi-Res Audio recordings hold notably more data in the sub-bass area than standard CDs, demanding a subwoofer of exceptional dynamic range and low distortion. Z subwoofers excel in harnessing Hi-Res Audio's full potential, delivering precise, detailed bass that seamlessly integrates with mid- and high-frequency speakers.

Redefining Subwoofer Performance with the Z Series

Subwoofers demand a robust basket, ensuring alignment during low-frequency excursions. Conventional ones need large enclosures, posing installation challenges. The Z subwoofer offers a shallow basket, high performance in small enclosures, an oversized cone (15% larger than a standard 10" subwoofer), and a potent 67.7 oz. magnet. These elements create swift, detailed, extended bass with impactful clarity.

Elevate Your Sound with Twaron Strength and Precision in Z Series

Twaron, a synthetic aramid fiber, when woven into cloth, offers remarkable strength, heat resistance, and rigidity. Twaron-based subwoofer cones, with low mass and strong damping, ensure cone integrity during intense bass notes. This enhances responsiveness and signal accuracy, crucial for optimal performance. The lightweight aramid fiber boosts sensitivity and speed in the Z subwoofer, amplifying output and power handling.






















SPECIFICATIONS


  • Vehicle Make : Toyota
  • Vehicle Model : Tundra

FEATURES


GS-TOYMXP110B Black 10" Single Ported Enclosure for 2022-2024, Toyota Tundra Crew-Max



Features:

  • Deep Forward-Firing Bass: This enclosure projects tight, punchy bass forward, giving your truck cabin immersive low-end power that you can feel.
  • Precision Slot-Ported Design: Tuned to 36 Hz with a single slot port (3.75” H × 2.5” W × 16.5” L), it delivers controlled, crisp bass without distortion.
  • Optimized Fit Behind Rear Seat: Made to sit perfectly behind the rear seat, it maximizes space while keeping your truck interior uncluttered.
  • Heavy-Duty Build: Constructed from 5/8" high-density MDF wood and reinforced with Titebond wood glue for durability that lasts through years of driving.
  • Rugged, Stylish Finish: Carpeted with durable trunk liner and sealed with high-quality Titebond silicone, combining protection with a professional look.
  • Simple and Reliable Wiring: Features a single binding post terminal for quick, clean installation with any compatible subwoofer.
  • Truck-Ready Audio: Supports grills to protect subwoofers with taller surrounds, ensuring safe, long-lasting performance on the road.
  • Precision-Crafted Tapered Design: The top depth of 2 5/8” and bottom depth of 6 1/4” provides both a snug fit and optimal acoustic resonance.
  • American Road-Trip Ready: Perfect for daily drives, tailgates, or weekend adventures, delivering concert-quality bass wherever you go.



Specifications:

  • Cutout Diameter: 9 1/4"
  • Air Volume: 1.02 FT³
  • Tuning Frequency: 36 Hz
  • Slot Ports: 1 slot port (H-3.75” W-2.5” L-16.5”)
  • Mounting Depth: 3 3/8"
  • Height: 17”
  • Length: 52 1/4"
  • Top Depth: 2 5/8"
  • Bottom Depth: 6 1/4"
  • Construction: 5/8" high-density MDF wood, carpeted with durable trunk liner finish, sealed with high-quality Titebond silicone, glued with high-quality Titebond wood glue
  • Terminals: 1 binding post terminal
  • Installation: Fits behind rear seat, forward firing, removal of rear wall plastic is required, subwoofers with tall surrounds may require grills to prevent damage







TS-Z10LS2 Z Series 10" 1300W Peak Power Handling at 2 Ohms, Single Voice Coil Car Subwoofer



Features:

  • Twaron® Aramid Fiber + Cellulose Fiber Dual Layer Cone Construction
  • Extended Voice Coil, Dual Spider Design for Increased Linearity and High Excursion
  • Shallow Basket, Small Enclosure Design for Sound Optimization and Installation Flexibility
  • Designed for Hi-Res Audio



Specifications:

KEY FEATURES

  • System Type: Component Subwoofer
  • Sensitivity (1W/1m): 74 dB
  • Frequency Range: 20 Hz to 3.8 kHz
  • Hi-Res Certified: Yes
  • CTA-2031 Compliant: Yes
  • Warranty: 1 Year
  • Continuous Power handling (RMS): 400 Watts
  • Maximum Peak Power Handling: 1300 Watts
  • Nominal Impedance: 2 Ohms



BUILD

  • Shape: Round
  • Size: 10" oversized
  • Cone Material: IMPP - Composite
  • Drive Cone Material: Twaron Aramid Fiber
  • Surround Material: Rubber
  • Surround Type: Rolled
  • Basket Material: Die Cast Aluminum
  • Magnet Material: Ferrite
  • Magnet Weight: 70.2 oz
  • Voice Coil Type: Single Voice
  • Voice Coil Bobbin: Glass imide
  • Voice Coil wire: Copper
  • Damper: Poly cotton
  • Gasket: Rubber
  • Wire Terminals: Push Type
  • Unit Size (Dimensions): 11-1/8"
  • Mounting Depth: 3-1/4"
  • Cut Out dimensions: 9-1/8"
  • Equivalent Compliance (VAS) [L]: 23.1
  • Free Air Resonance (Fs) [Hz]: 34
  • Total Speaker "Q" (Qts): 0.48
  • Linear Excursion (Xmax) [mm]: 9.4
  • Recommended Sealed Box Volume [L]: 17
  • Port Box volume [L]: 17
  • Port Length: 7-1/2"
  • Port Diameter: 3"



  • UPC:
  • Weight: 45
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
