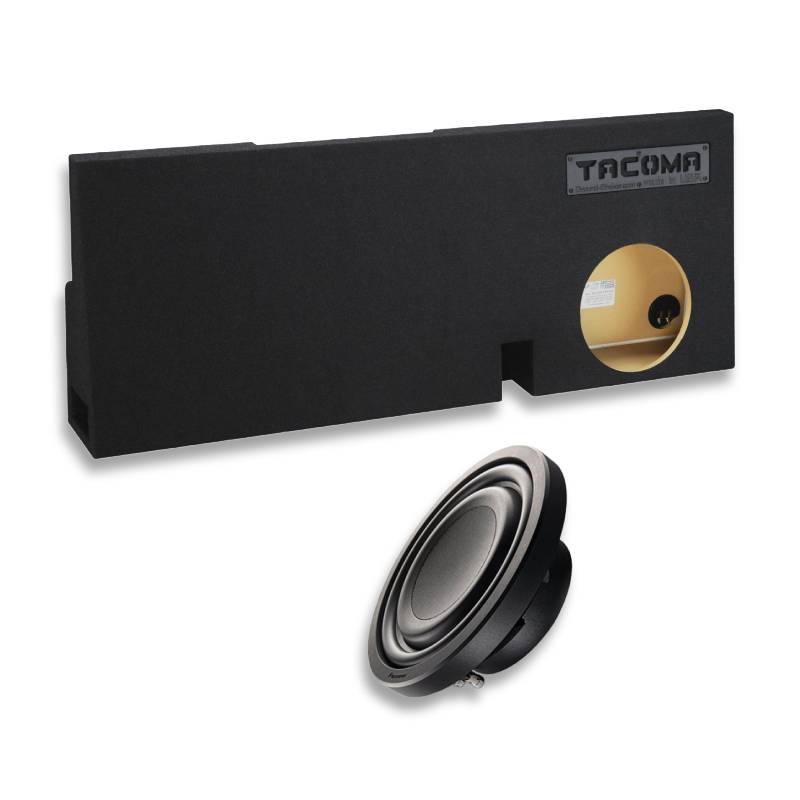

Pioneer  Single 10" Ported Z-Series Subwoofer Bass Package for 2005-2023 Toyota Tacoma Double-Cab New

GS-TOYTXP110B Black 10" Single Ported Enclosure for 2005-2023, Toyota Tacoma Double-Cab + TS-Z10LS2 Z Series 10" 1300W Peak Power Handling at 2 Ohms, Single Voice Coil Car Subwoofer

Item #99683

Condition:   Brand New

Product Highlights

  • GS-TOYTXP110B
  • Single 10"
  • Ported Enclosure
  • 2005-2023 Toyota Tacoma Double-Cab Fit
  • Black Finish
  • TS-Z10LS2 Z Series Subwoofer
  • Car Subwoofer
  • 1300W Peak Power Handling
  • 2 Ohms
  • Single Voice Coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$522.49

Reg. Price $690.00  Save $167.51
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

Out of Stock Check out other products listed below
Pioneer Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Ground Shaker GS-TOYTXP110B Black 10" Single Ported Enclosure for 2005-2023, Toyota Tacoma Double-Cab + Pioneer TS-Z10LS2 Z Series 10" 1300W Peak Power Handling at 2 Ohms, Single Voice Coil Car Subwoofer


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • GS-TOYTXP110B 10" Black Single Ported Enclosure
  • • GS-TOYTXP110B Owner's Manual
  • • TS-Z10LS2 10" Shallow mount subwoofer
  • • TS-Z10LS2 (6) 1-1/8" Self-tapping screws
  • • TS-Z10LS2 Rubber gasket (installed)
  • • TS-Z10LS2 Warranty information
  • TS-Z10LS2 Owner's Manual
Ground Shaker
Concert-Quality Bass, Perfectly Fitted

Tuned to 36 Hz with a 1.29 FT³ chamber, this enclosure delivers deep, punchy bass that turns every drive into a high-energy audio experience. Its single slot-port design optimizes airflow for tight, responsive lows that hit hard without distortion. Slim and designed for a behind-seat fit, it saves valuable cabin space while filling your truck with rich, full-range sound.

Sleek Design, Thunderous Bass

With a compact 4 1/2" mounting depth and a powerful 5 1/2" magnet, this enclosure delivers big, hard-hitting sound while keeping your setup low-profile. Constructed from 5/8" high-density MDF, it offers rugged durability and consistent acoustic performance on every American road. Wrapped in a tough trunk-liner carpet, it resists wear, spills, and fading while maintaining a clean, factory-inspired look that complements your truck interior.



Ground Shaker
Ground Shaker
Tight Bass, Effortless Setup

Sealed with premium Titebond silicone and reinforced with wood glue, this enclosure locks in every vibration for distortion-free, powerful bass. A single binding post terminal makes installation quick, secure, and professional-grade. Its forward-firing design projects deep lows straight into your cabin, delivering an immersive audio experience on commutes, tailgates, or road trips. Built tough for real-world driving, it stays reliable through bumps, turns, and long miles while keeping your bass punchy and consistent.

















Elevate Your Audio Experience with the Z Subwoofer's Unrivaled Bass Mastery

Derived from the advanced Z full range loudspeakers, the Z subwoofer embodies unmatched musical excellence – delivering swift, detailed, extended bass with remarkable impact and clarity. Its compact, shallow design achieves high fidelity and output, providing boundless installation options for optimal sound quality and bass reinforcement. Experience the ultimate blend of balance, speed, power, and bass extension – your gateway to low-frequency nirvana.

Unveiling Sub-Bass Brilliance

Hi-Res Audio recordings hold notably more data in the sub-bass area than standard CDs, demanding a subwoofer of exceptional dynamic range and low distortion. Z subwoofers excel in harnessing Hi-Res Audio's full potential, delivering precise, detailed bass that seamlessly integrates with mid- and high-frequency speakers.

Redefining Subwoofer Performance with the Z Series

Subwoofers demand a robust basket, ensuring alignment during low-frequency excursions. Conventional ones need large enclosures, posing installation challenges. The Z subwoofer offers a shallow basket, high performance in small enclosures, an oversized cone (15% larger than a standard 10" subwoofer), and a potent 67.7 oz. magnet. These elements create swift, detailed, extended bass with impactful clarity.

Elevate Your Sound with Twaron Strength and Precision in Z Series

Twaron, a synthetic aramid fiber, when woven into cloth, offers remarkable strength, heat resistance, and rigidity. Twaron-based subwoofer cones, with low mass and strong damping, ensure cone integrity during intense bass notes. This enhances responsiveness and signal accuracy, crucial for optimal performance. The lightweight aramid fiber boosts sensitivity and speed in the Z subwoofer, amplifying output and power handling.








SPECIFICATIONS


  • Vehicle Make : Toyota
  • Vehicle Model : Tacoma

FEATURES


GS-TOYTXP110B Black 10" Single Ported Enclosure for 2005-2023, Toyota Tacoma Double-Cab



Features:

  • Precision-Tuned Bass: Tuning frequency of 36 Hz and 1.29 FT³ air volume deliver deep, punchy low-end that makes every ride feel like a concert.
  • Slot-Ported Power: Single slot port (H-2 1/4” W-5 1/2” L-18”) enhances airflow for tight, responsive bass that hits hard without distortion.
  • Perfect Behind-Seat Fit: Designed to mount neatly behind the rear seat, saving cabin space while giving you full, rich sound.
  • Compact Depth, Big Sound: 4 1/2" mounting depth with a 5 1/2" max magnet width keeps your setup sleek yet powerful.
  • High-Density MDF Construction: Built from 5/8" MDF for rugged durability and consistent acoustic performance on American roads.
  • Factory-Style Trunk Finish: Carpeted in a tough trunk liner that resists wear, fading, and spills, maintaining a clean, professional look.
  • Airtight Bass Seal: High-quality Titebond silicone and wood glue prevent air leaks for consistent, distortion-free bass.
  • Simple Single Terminal: 1 binding post terminal allows quick, secure, and professional-grade wiring.
  • Forward-Firing Bass Projection: Directs sound into the cabin for immersive audio during commutes, tailgates, and road trips.
  • Road-Tested Reliability: Engineered to handle bumps, twists, and long drives while keeping your bass tight and powerful.



Specifications:

  • Cutout Diameter: 9 1/4"
  • Air Volume: 1.29 FT³
  • Tuning Frequency: 36 Hz
  • Slot Port: 1 Slot (H-2 1/4” W-5 1/2” L-18”)
  • Chambers: Single Chamber
  • Mounting Depth: 4 1/2" (Maximum Magnet Width 5 1/2")
  • Height: 17"
  • Length: 48 1/4"
  • Top Depth: 1 1/4"
  • Bottom Depth: 6 5/8"
  • Material: 5/8" High-Density MDF Wood
  • Finish: Durable Trunk Liner Carpet
  • Sealant: High-Quality Titebond Silicone
  • Assembly: Premium Titebond Wood Glue
  • Terminal: 1 Binding Post Terminal
  • Placement: Fits Behind Rear Seat
  • Orientation: Forward Firing
  • Notes: Removal of rear plastic storage & rear wall cover required; parking assist module (newer trucks) and factory amplifier (if equipped) must be relocated; subwoofers with wide magnets may not fit







TS-Z10LS2 Z Series 10" 1300W Peak Power Handling at 2 Ohms, Single Voice Coil Car Subwoofer



Features:

  • Twaron® Aramid Fiber + Cellulose Fiber Dual Layer Cone Construction
  • Extended Voice Coil, Dual Spider Design for Increased Linearity and High Excursion
  • Shallow Basket, Small Enclosure Design for Sound Optimization and Installation Flexibility
  • Designed for Hi-Res Audio



Specifications:

KEY FEATURES

  • System Type: Component Subwoofer
  • Sensitivity (1W/1m): 74 dB
  • Frequency Range: 20 Hz to 3.8 kHz
  • Hi-Res Certified: Yes
  • CTA-2031 Compliant: Yes
  • Warranty: 1 Year
  • Continuous Power handling (RMS): 400 Watts
  • Maximum Peak Power Handling: 1300 Watts
  • Nominal Impedance: 2 Ohms



BUILD

  • Shape: Round
  • Size: 10" oversized
  • Cone Material: IMPP - Composite
  • Drive Cone Material: Twaron Aramid Fiber
  • Surround Material: Rubber
  • Surround Type: Rolled
  • Basket Material: Die Cast Aluminum
  • Magnet Material: Ferrite
  • Magnet Weight: 70.2 oz
  • Voice Coil Type: Single Voice
  • Voice Coil Bobbin: Glass imide
  • Voice Coil wire: Copper
  • Damper: Poly cotton
  • Gasket: Rubber
  • Wire Terminals: Push Type
  • Unit Size (Dimensions): 11-1/8"
  • Mounting Depth: 3-1/4"
  • Cut Out dimensions: 9-1/8"
  • Equivalent Compliance (VAS) [L]: 23.1
  • Free Air Resonance (Fs) [Hz]: 34
  • Total Speaker "Q" (Qts): 0.48
  • Linear Excursion (Xmax) [mm]: 9.4
  • Recommended Sealed Box Volume [L]: 17
  • Port Box volume [L]: 17
  • Port Length: 7-1/2"
  • Port Diameter: 3"



  • UPC:
  • Weight: 52
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
