Item# 23369
JL Audio M10W5-CG-TB - $309.99
Please roll over the image to zoom in. Click on the image to see larger image.

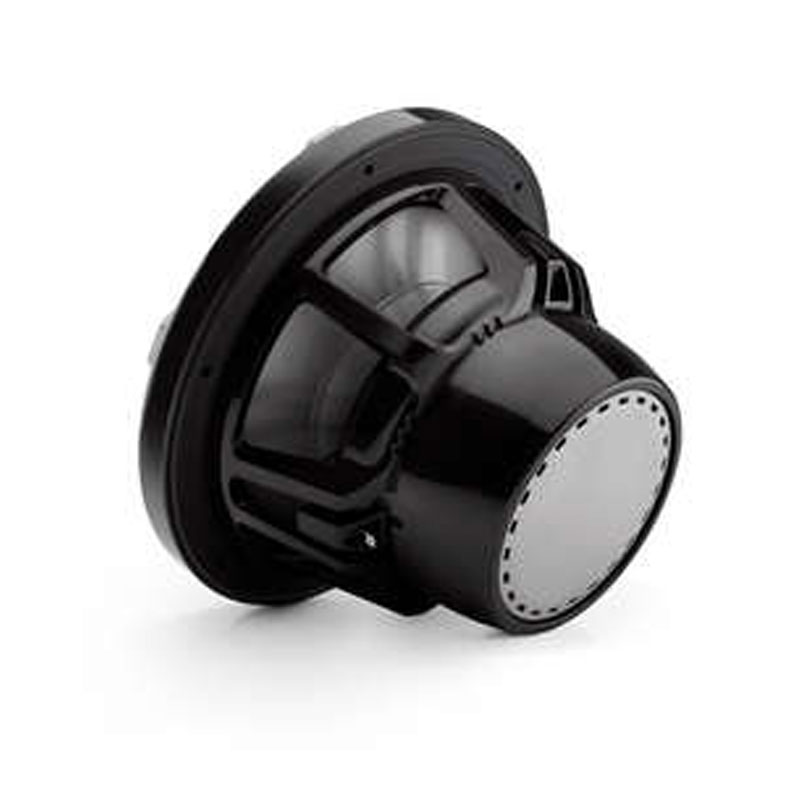

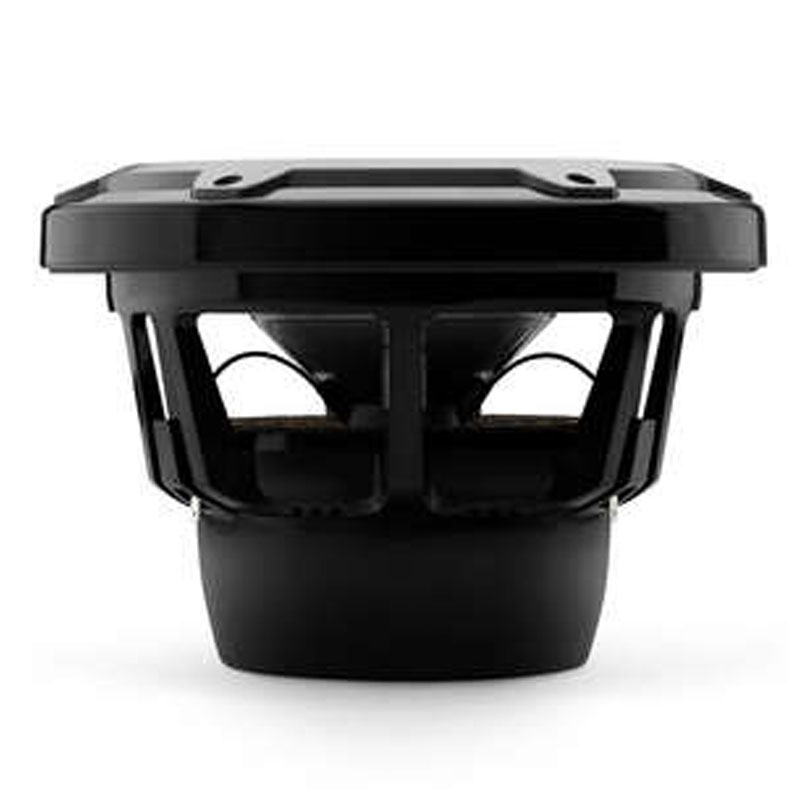

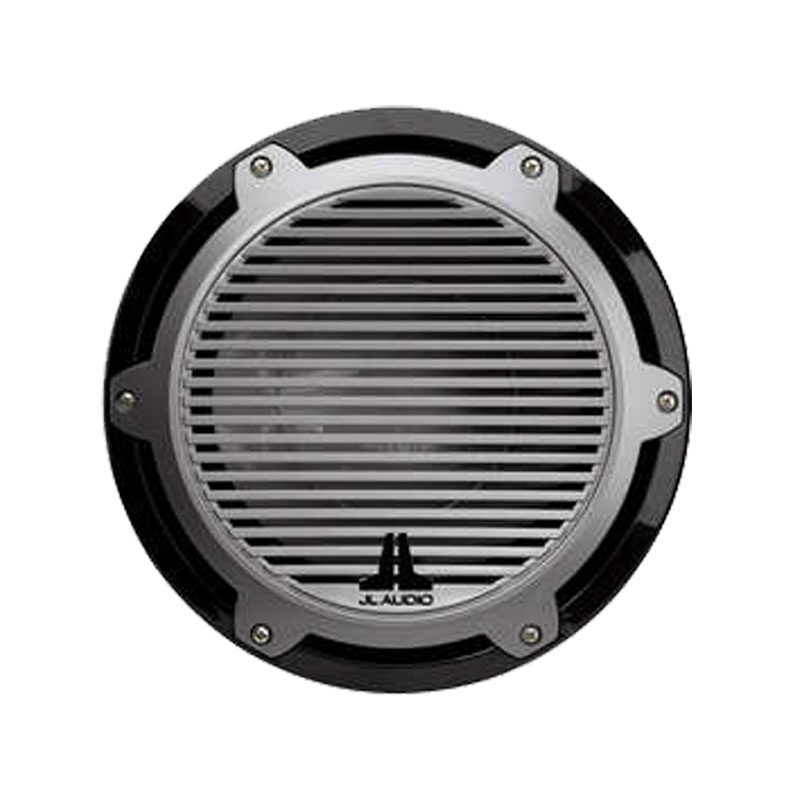

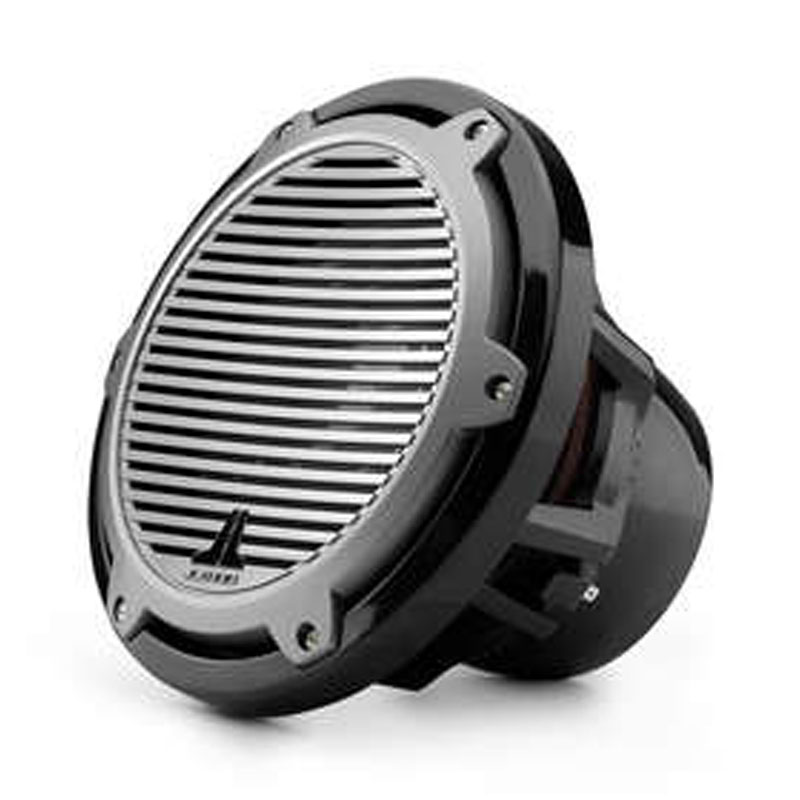

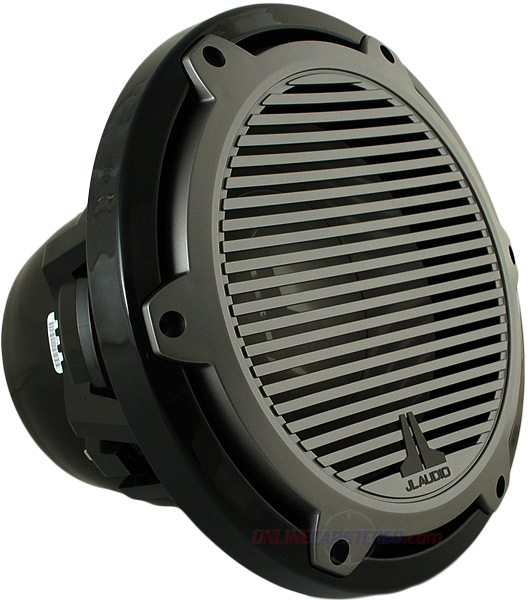

JL Audio M10W5-CG-TB

Item# 23369

Condition:  Brand New

  • comments
  • email
  • Facebook
  • Twitter
  • Print

Review this product

10" Marine Subwoofer Driver, Titanium Classic Grille, 4 ohm 250W

Regular Price:$330.00
Savings Of:6% Discount
Your Price $309.99

FREE Shipping in US 48!

What's Included:

  • 6 Stainless-steel Philips-head screws
  • Titanium (gray) polymer grille
  • 10" Marine subwoofer
  • 6 Stainless-steel flat-washers
  • Owner's manual

Product Highlights:

  • injection-molded mica-filled polypropylene woofer with synthetic rubber surround
  • top-mount depth: 5-7/8"
  • power range: 50-250 watts RMS (500 watts peak power)
  • gold-plated, marine-grade brass binding posts
  • 10" 4-ohm marine subwoofer
  • Centrex polymer basket and grille, with stainless steel back plate
  • marine-grade synthetic fiber spider
  • sensitivity: 86.7 dB
  • sealed box volume: 0.875 cu.ft
  • ported box volume: 1.25 cu.ft.

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M10W5 subwoofers are designed to operate in a compact sealed enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.

The M10W5 is best used with amplifier power in the 75W - 250W range and is optimized to operate in a compact 0.875 cu. ft. (24.8 l) sealed enclosure, or a 1.25 cu. ft. (35.4 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab. If you need a subwoofer driver that operates without a dedicated enclosure, select our M10IB4, instead.


Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

  • 10" M-Series Marine Subwoofer for an Enclosure
  • Power Handling:
  • RMS: 250 watts
  • Efficiency: 86.7 dB
  • Xmax: 13.2 mm
  • Mounting Depth: 5.93"
  • Cutout Diameter: 8.875"
  • Recommended Sealed Enclosure: 0.875ft³
  • Recommended Ported Enclosure: 1.25ft³
  • Infinite Baffle Use: No
  • Color: Titanium Grille w/ Black Frame
  • Matching Amplifiers:
  • JL Audio M200/2 - Class D Marine 2-Channel Amplifier
  • JL Audio M600/6 - Class D Marine 6-Channel Amplifier
  • Impedance: 4 ohm
  • Recommended power range: 75 - 250 watts RMS
  • Injection-Molded mica-filled polypropylene cone bodies
  • Synthetic rubber surround specifically formulated with UV inhibitors
  • Marine grade progressive roll synthetic fiber spider
  • Plated marine-grade brass connection terminals
  • Proprietary Dynamic Motor Analysis (DMA) technology
  • Long linear excursion for enhanced output and reduced distortion
  • Specifically engineered Centrex polymer baskets are corrosion & UV-resistant
  • Stainless steel mounting hardware included
  • Subwoofers are usually sold as a single unit unless otherwise noted.
  • UPC: 0699440917353
  • Weight: 15
*Warranty: 1 Year warranty.
1 Year warranty from implies that repairs must be returned to, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
