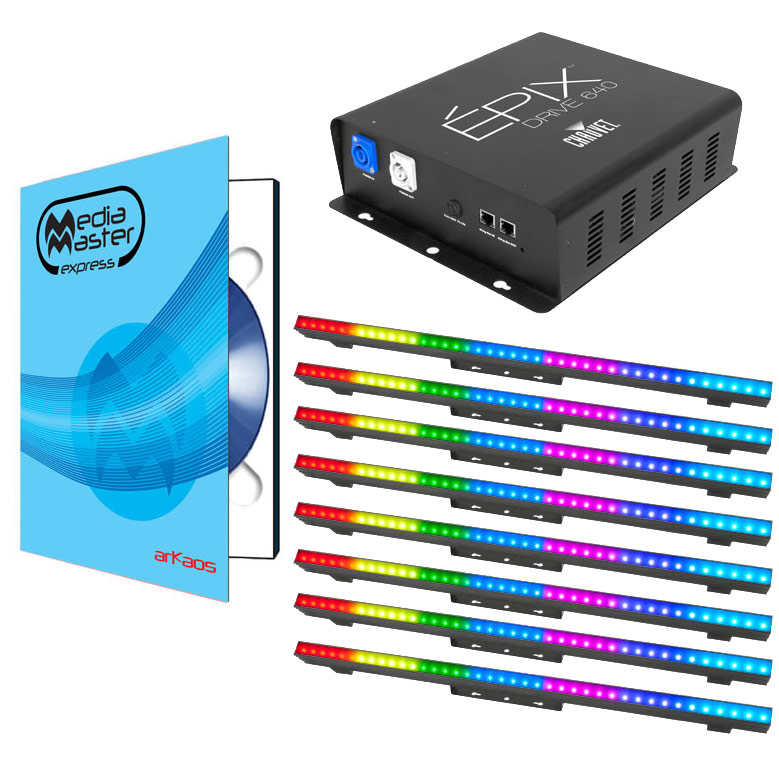

ArKaos Media Master Express + KN
- Video playback control software with a practical interface
- Multi-threaded engine delivers incredible performance by taking advantage of multi-core machines
- Easily control video layers with the standard keyboard/mouse, MIDI, or DMX
- Organize your shows with up to 4,096 user-configurable layers
- Play back up to 8 simultaneous layers
- Control up to 3 parameters per layer
- Optional fade time on trigger provides smooth playback for live events
- Kling-Net support allows for fast & easy plug-and-play configuration of EPIX™ Products
- Support for Syphon on Mac, allowing to natively output to any other application that supports Syphon as input
- Included LED pixel mapper module to easily drive video content to any pixel array via Art-net
- Multi-monitor support on Windows™ Vista and 7 provides support for independent playback and integration of multiple projectors
- 8 independent video layers allows picture-in-picture, picture-over-picture or a wide range of layering of multiple videos to create your own custom show
- Full support for SD and HD in all popular video formats, including AVI, MPEG, MPG, MOV, WMV, MP4, JPEG, GIF, BMP, PNG, SWF, and many more
- Intuitive user interface allows fast learning curve that anyone can learn in a few minutes!
- 60+ effects
- Audio Visualization Generators that react to any audio input, including laptop microphones, microphone/line input, or onboard audio playback
- Content DVD included with every purchase which includes an additional 25 text layers, 26 Audio Visualizations, and 169 source visuals (4.1 GB in SD and HD)
- Native support for video inputs (PCI card, FireWire DV / HDV, USB, etc.)
- Frame blending for smooth playback even at very slow speed (adjustable)
- Software Genlocking to the output monitors for perfect playback up to 60fps without dropping frame
- Direct mouse and DMX control over master brightness & contrast
- Keystone correction from within the Media Master software
- Internal MPEG2-MPEG4 codec for enhanced reliability
- Native support of H.264 through FFMPEG 0.5
- Support of all common media formats (AVI, MPEG, QuickTime MOV, Flash, WMV, picture files, etc)
- Audio playback supported along with the video layers, along with a master volume control
SYSTEM REQUIREMENTS
- PC
- OS: Windows™ XP, Vista or 7
- Processor: Pentium™ IV 2Ghz (and up)
- RAM: 512MB, 1GB recommended
- Media Component: QuickTime™ 6.5.x (and up), Adobe FlashPlayer™ 9.0 (and up), DirectXTM 9.0c (and up)
- MAC
- OS: Mac OS X 10.5 (and up)
- Processor: Any Intel Mac, G4/1Ghz (and up)
- RAM: 512MB, 1GB recommended
- Media Component: QuickTime™ 6.5.x (and up), Adobe FlashPlayer™ 9.0 (and up)
EPIX Drive 640
- Controlled via Arkaos Kling-Net which provides fast and easy assignment and control
- A video/pixel mapping system that doesn't require years of experience or technical know-how to design, set-up or operate
- Does NOT require piles of processing, driver and signal distribution equipment to create large scale displays
- Intended to be used with EPIX Strips and future products
- Utilizes powerCON in and out connections for power and RJ45 for Kling-Net protocol communication
Specifications:
- Video Source: RJ45 connection (2, RJ45 Kling-Net in and out)
- Video Output: 4, RJ45
- Display Refresh Rate: 400 Hz
- Video Refresh Rate 60 fps
- Provides power and data for up to 16 EPIX strips
- Computer software interface: Kling-Net protocol via Arkaos MediaMaster Express + KN
- Input voltage: auto-ranging 100-240 VAC 50/60 Hz
- Power and current: 315 W, 2.6 A @ 120 V 60 Hz
- Power and current: 315 W, 1.5 A @ 208 V 60 Hz
- Power and current: 315 W, 1.4 A @ 230 V 50 Hz
- Power linking: 3 units @ 120 V / 5 units @ 208 V / 6 units @ 230 V
- Size: 10 x 9.1 x 2.9 in (253 x 230 x 74 mm)
- Weight: 6.3 lbs (3 kg)
- Mounting Design: Clamp/bolt mounting holes
- Housing Material: Steel
- Power Connection: Neutrik powerCON
- Control Connection: RJ45
- IP20, dry location
EPIX Strip
- Controlled via Arkaos Kling-Net which provides fast and easy assignment and control
- A video/pixel mapping system that doesn't require years of experience or technical know-how to design, set-up or operate
- Does NOT require piles of processing, driver and signal distribution equipment to
- create large scale displays
- Independent system of strip style fixtures that can be used for video and pixel
- mapping applications with countless layout options
- Receives power and data via an RJ45 connection from the EPIX Drive 640
- Tri-color SMD LEDs covered by a smooth diffuser plate gives excellent color rendering and wide viewing angles
Specifications:
- Source: Tri-color 5050 SMD LEDs
- Pixels/Strip: 40 Pixels
- Pixel Pitch 25 mm
- Display Refresh Rate: 400 Hz
- Video Refresh Rate: 60 fps
- Viewing Angle: 120°
- Luminance: 850 NIT
- Input Voltage: 24 VDC (by EPIX Drive 640)
- Power Linking: 4 EPIX Strips per Drive 640 output (4 available)
- Size: 1.4 x 39.3 x 4.1 in (36 x 997 x 104 mm)
- Weight: 5.5 lbs (2.5 kg)
- Mounting Design: Mounting Bracket
- Housing Material: Steel
- Power Connection: RJ45 (power+control)
- IP20, dry location
- UPC:
- Weight: 0
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
