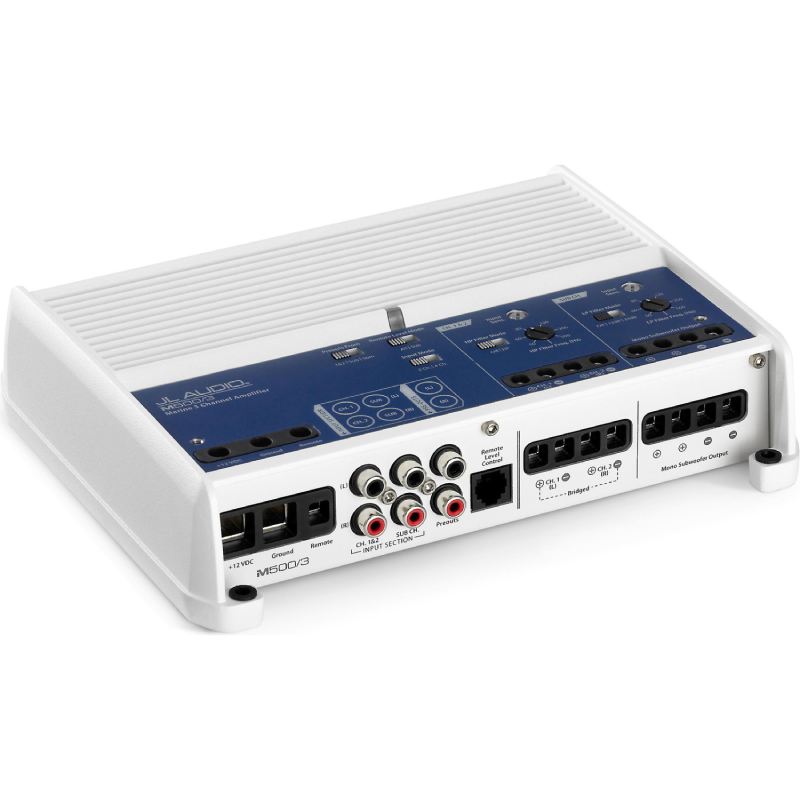

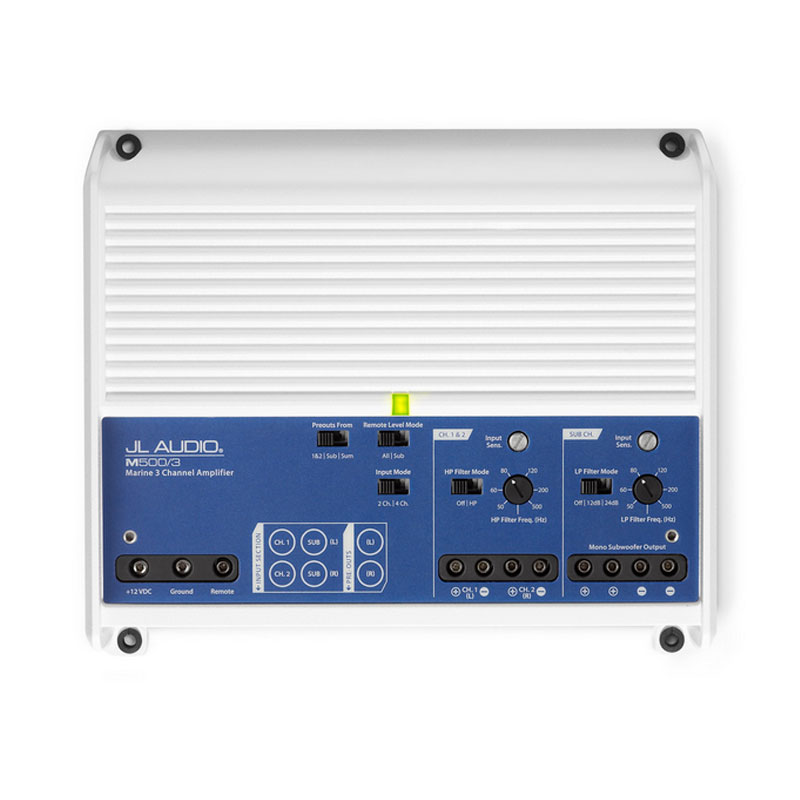

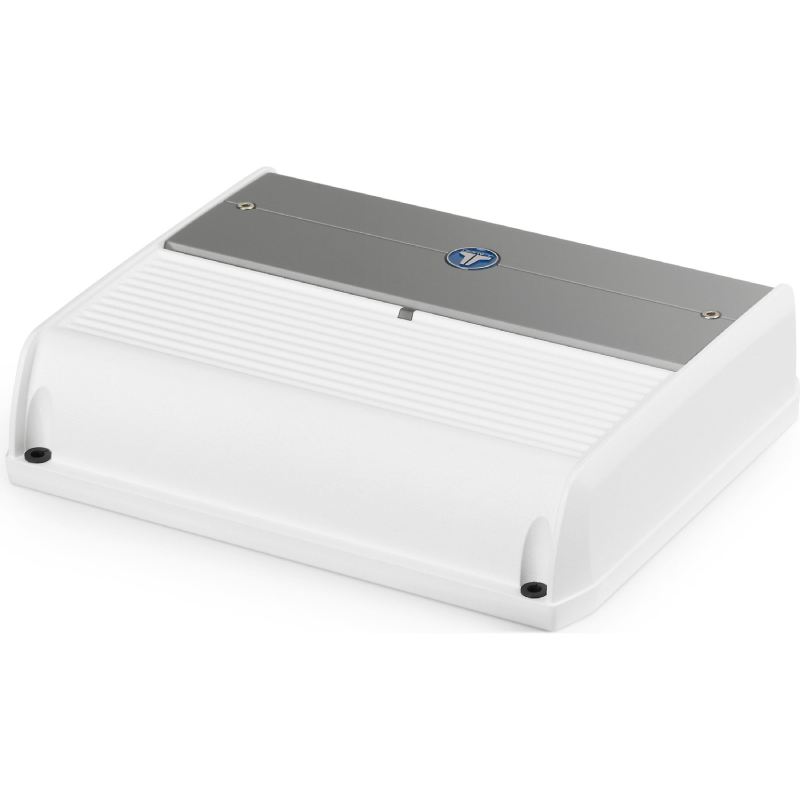

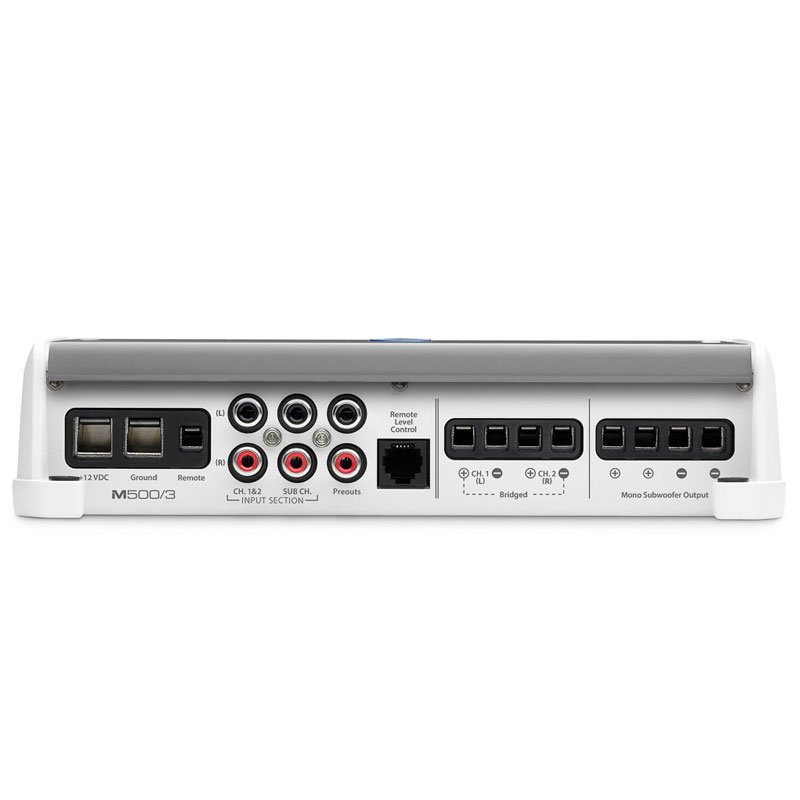

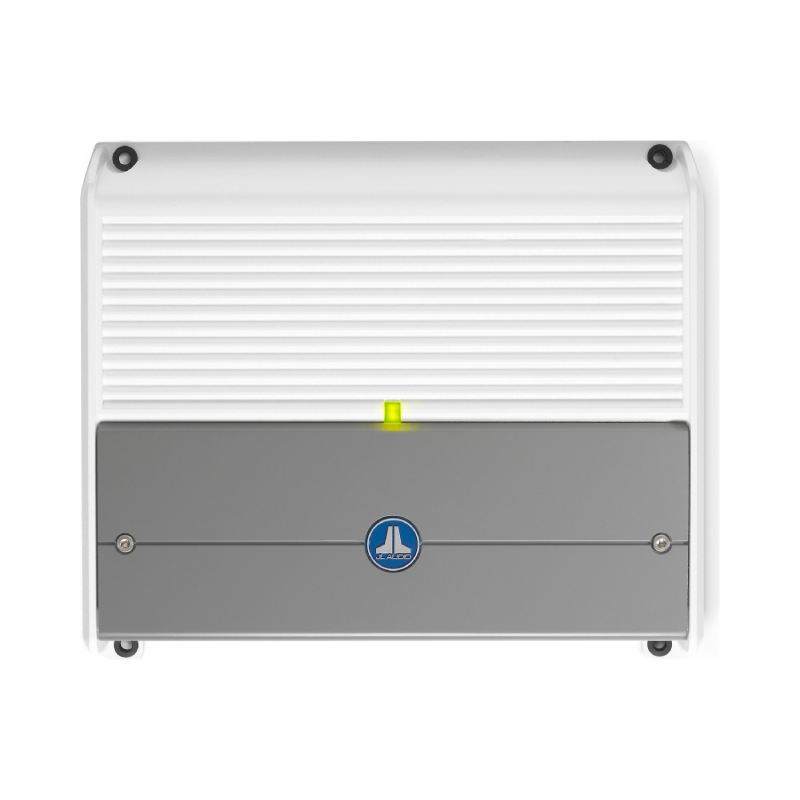

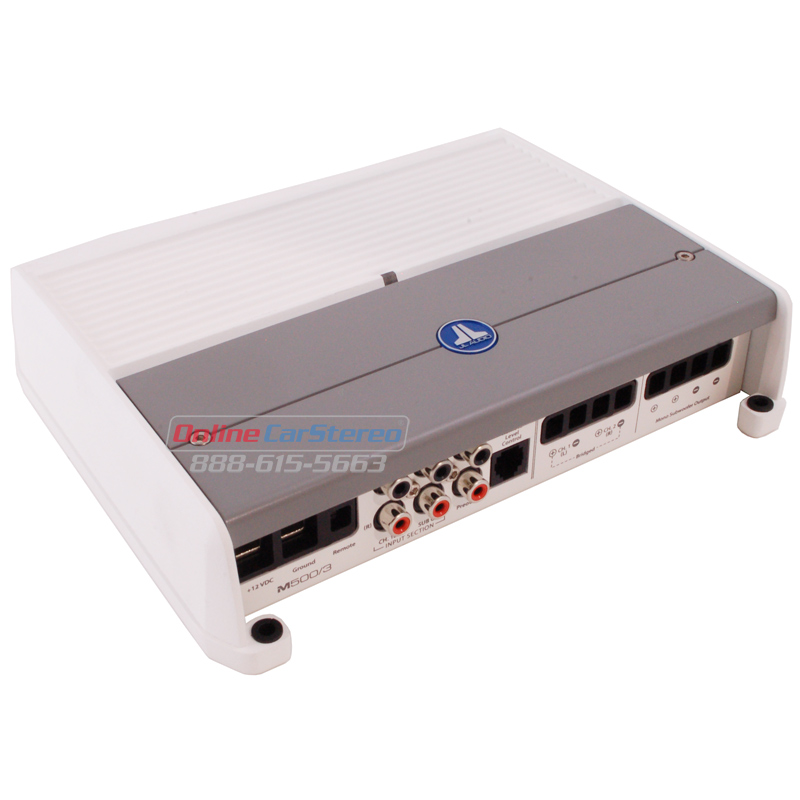

JL Audio M500/3 Item# 32918
500W 3-Channel Class D M-Series Marine Amplifier
JL Audio :: M500/3 :: $348.00
MSRP: $479.95
Regular Price: $389.00
You Save: $131.95 (27%)
Our Price: $348.00
 Protect Your Investment (- hide options)

CPS Extended Service Plan (more info)




Condition: Brand New Avg Rating: Not Rated Yet
Free Shipping On This Item
magnifying glass

Please roll over the image to see detail.
Hint: click on the image to see larger image.

Features

Power Output

RMS Power Rating @ 14.4V:

  • 3-Channel Class D M-Series Marine Amplifier
  • RMS Power Rating @ 14.4V:
    • 4 ohms: 75 watts x 2 chan. + 180 watts x 1 chan.
    • 2 ohms: 100 watts x 2 chan. + 300 watts x 1 chan.
    • Bridged, 8 ohms: 150 watts x 1 chan.
    • Bridged, 4 ohms: 200 watts x 1 chan.
  • RMS Power Rating @ 12.5V:
    • 4 ohms: 60 watts x 2 chan. + 180 watts x 1 chan.
    • 2 ohms: 90 watts x 2 chan. + 300 watts x 1 chan.
    • Bridged, 8 ohms: 120 watts x 1 chan.
    • Bridged, 4 ohms: 180 watts x 1 chan.
  • Unregulated MOSFET switching type power supply
  • NexD Class D Technology reduces distortion and delivers superior efficiency
  • Fully variable 12dB/octave filters with filter frequency selection controls
  • Two stereo pairs (RCA-Type Jacks)
  • 2-channel/Mono operation
  • Speaker-level (high-level) inputs
  • Pass-Through preamp RCA outputs to daisy chain multiple amps
  • Advanced Rollback Protection circuitry for advanced thermal and low-impedance protection
  • Differential inputs reduce unwanted noise
  • Speaker output connections accept up to 8 AWG wire
  • +12V and Ground connections accept up to 4 AWG wire
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable High-Pass Filter (50-500 Hz, 12 dB/octave)
  • Variable Low-Pass Filter (50-500 Hz, 12 dB/octave)
  • Signal-to-Noise Ratio (Main Channels): >104 dB
  • Signal-to-Noise Ratio (Subwoofer Channel): >87 dB
  • Frequency Response (Main Channels): 12-22,000 Hz
  • Frequency Response (Subwoofer Channel): 7-500 Hz
  • Input Range: 100mV - 4V RMS
  • Damping Factor: >120 @ 4 ohm, >60 @ 2 ohm
  • THD (Total Harmonic Distortion): <1%
  • Dimensions: 10-1/4"L x 7-1/16"W x 2-1/16"H
  • 4 ohms: 75 watts x 2 chan. + 180 watts x 1 chan.
  • 2 ohms: 100 watts x 2 chan. + 300 watts x 1 chan.
  • Bridged, 8 ohms: 150 watts x 1 chan.
  • Bridged, 4 ohms: 200 watts x 1 chan.

RMS Power Rating @ 12.5V:

  • 4 ohms: 60 watts x 2 chan. + 180 watts x 1 chan.
  • 2 ohms: 90 watts x 2 chan. + 300 watts x 1 chan.
  • Bridged, 8 ohms: 120 watts x 1 chan.
  • Bridged, 4 ohms: 180 watts x 1 chan.

General Features

  • Unregulated MOSFET switching type power supply
  • NexD Class D Technology reduces distortion and delivers superior efficiency
  • Fully variable 12dB/octave filters with filter frequency selection controls
  • Two stereo pairs (RCA-Type Jacks)
  • 2-channel/Mono operation
  • Speaker-level (high-level) inputs
  • Pass-Through preamp RCA outputs to daisy chain multiple amps
  • Advanced Rollback Protection circuitry for advanced thermal and low-impedance protection
  • Differential inputs reduce unwanted noise
  • Speaker output connections accept up to 8 AWG wire
  • +12V and Ground connections accept up to 4 AWG wire
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Variable High-Pass Filter (50-500 Hz, 12 dB/octave)
  • Variable Low-Pass Filter (50-500 Hz, 12 dB/octave)
  • Signal-to-Noise Ratio (Main Channels): >104 dB
  • Signal-to-Noise Ratio (Subwoofer Channel): >87 dB
  • Frequency Response (Main Channels): 12-22,000 Hz
  • Frequency Response (Subwoofer Channel): 7-500 Hz
  • Input Range: 100mV - 4V RMS
  • Damping Factor: >120 @ 4 ohm, >60 @ 2 ohm
  • THD (Total Harmonic Distortion): <1%
  • Dimensions: 10-1/4"L x 7-1/16"W x 2-1/16"H
    *Warranty: 1 Year Onlinecarstereo.com warranty.
    1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
