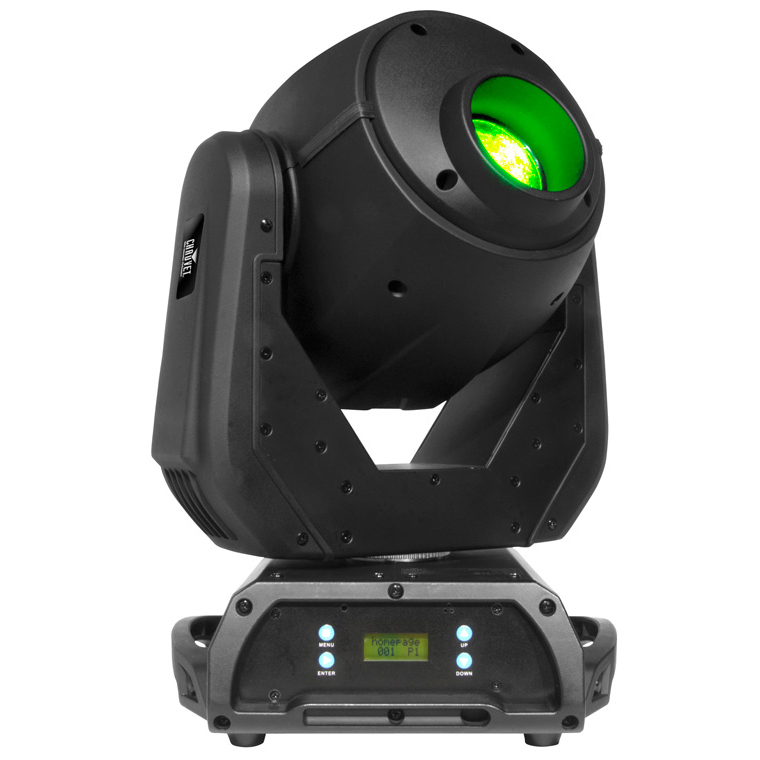

Chauvet  QSPOT360LED

Very High-Powered Moving Yoke Spot with 3 x 10W LEDs

Item #34534

  Free 1-Year Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:


Other products you might be interested in:


Huge Saving on Other items:



SPECIFICATIONS



FEATURES


General Features:

  • Patented optical and lens path for superior output
  • Crisp focus provides stunning gobo images
  • Lightweight and easy to hang
  • Quiet operation for the most discerning of installations
  • DMX channels: DMX channels: 11 or 14
  • Pan: 540°
  • Tilt: 270°
  • Color Wheel: 7 colors + white, continuous scroll at variable speeds
  • Gobo wheel (static): 8 gobos, continuous scroll at variable speeds
  • Gobo wheel (rotating): 7 gobos, interchangeable, slot-n-lock, continuous scroll at variable speed
  • 3-facet rotating prism
  • Variable electronic dimmer (0 ~ 100%)
  • Remote fixture reset
  • Move-in-black for pan/tilt
  • Built-in automated programs
  • Built-in sound activated programs
  • 255 user-programmable steps without DMX controller
  • High-powered, 3 (10W) LEDs
  • User-selectable pan/tilt ranges
  • Automatic pan/tilt correction
  • Reset to factory settings option
  • User-selectable basic or advanced operating modes
  • Easy access door for gobo change

Specifications:

  • DMX connectors: 3-pin & 5-pin
  • Pan & tilt: 540° / 270°
  • Source: 3 (10W) LED, 50,000 hours
  • Configuration: 3 White (3 A x 3.33 VDC = 10 W)
  • Strobe Speed: 0 - 20hz
  • Beam angle: 16°
  • Lux: 1,100 @ 5 m
  • AC Voltage Range: 100~240 V, 50/60 Hz (auto-ranging)
  • Power Consumption 120 V, 60 Hz: 74 W, 1.023 A (operating)
  • Power Consumption 208 V, 50 Hz: 71 W, 0.572 A (operating)
  • Power Consumption 230 V, 50 Hz: 72 W, 0.541 A (operating)
  • Dimensions: 13 x 10.6 x 18.6 in (330 x 270 x 473 mm)
  • Weight: 22 lbs (10 kg)
  • Gobo Size: 25.8 mm outside, 20.45 mm image, 1.35 mm max thickness
  • Environment: IP20, dry location
  • Power Connection: Locking IEC
  • Control Connection: 3-pin and 5-pin DMX input and output connectors
  • Certification: CE



  • UPC:
  • Weight: 0
