Pioneer :: DEH-X7500S :: $99.95

Pioneer DEH-X7500S

Item# 34577

Single-DIN In-Dash CD/MP3 Receiver with Full-Dot LCD Display and iPod/iPhone Controls

Sorry, this product is no longer available.

Highly Recommended Alternatives

Related Video:

What's Included:

  • 4 Pan head ISO-mount screws (M5 x 8mm)
  • Wiring harness

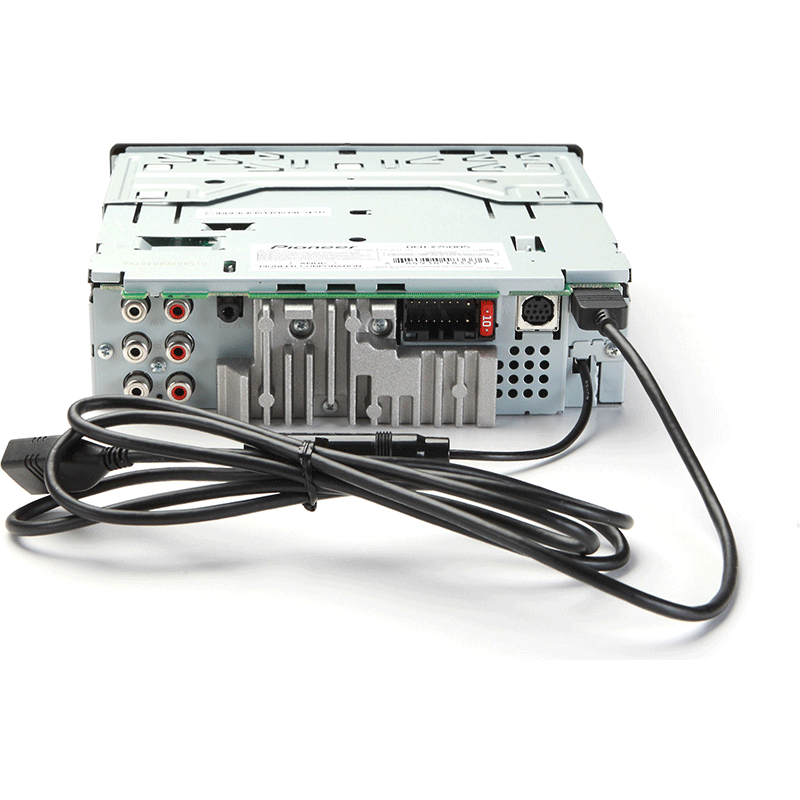

  • 59" USB extension cable (w/ a male USB type-A connector on one end and a female USB type-A connector on other end)
  • Owner's Manual (En/Fr/Sp)
  • Face (attached)
  • Trim ring (installed)
  • 2 Extraction keys
  • Wireless remote control (QXE1047)
  • CD receiver (with 10-amp ATM mini fuse inserted into chassis)
  • Sleeve (installed)
  • CR2025 Lithium battery (installed)
  • 4 Flat-head ISO-mount screws (M5 x 9mm)

Product Highlights:

  • subwoofer level control
  • low-pass and high-pass filters
  • Pandora control through iPhone
  • access to music files on Android devices through USB input
  • compatible with SiriusXM satellite radio tuner
  • 3-level loudness
  • 5-band equalizer with seven preset tone settings
  • Advanced Sound Retriever (ASR) for improved sound quality from compressed music files
  • remote control
  • CD receiver with AM/FM tuner
  • built-in MOSFET amplifier (14 watts RMS CEA-2006/50 peak x 4 channels)
  • MIXTRAX for a DJ-inspired audio/visual experience with compatible devices (see Details)
  • plays CDs, CD-Rs, and CD-RWs, including discs loaded with MP3, WMA, and AAC files
  • variable color illumination with separate control of display and buttons
  • built in iPod control — no adapter necessary, but adding Pioneer's optional connecting cable lets you leave your iPod cable at home

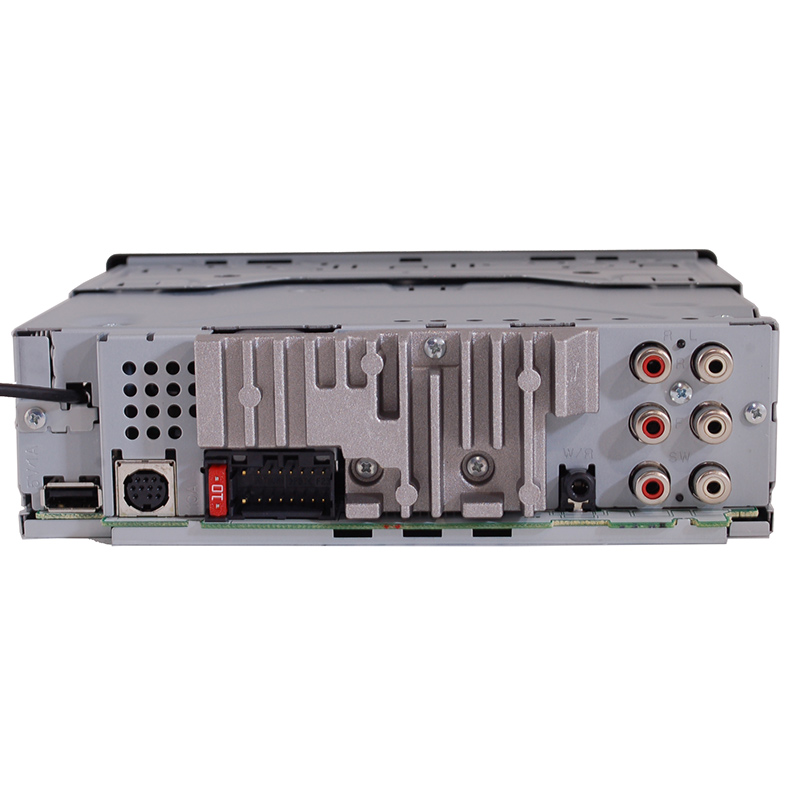

  • inputs: front panel auxiliary and rear USB inputs
  • outputs: 6-channel preamp outputs (4-volt front, rear/subwoofer)

The DEH-X7500S CD receiver features Pioneer's MIXTRAX™ technology, is SiriusXM Ready, is Pandora® radio ready for iPhone®, and offers direct control of an iPod®/iPhone. The full-dot LCD display is customizable with several backgrounds and animations to choose from. Further customize the receiver with your choice of key and display colors. A rear USB port allows for that clean, installed look. Fine tune your sound with the 5-band graphic equalizer, high-pass and low-pass filter settings, and subwoofer control. Take your system to the limit and expand using the 3 hi-volt RCA preouts.


Android Control Yes
Switchable Rear Preamp Outputs No
RMS Power Bandwidth 20-20kHz
EQ Bands 5
Steering Wheel Control Compatible Adapter required
Satellite Radio Ready SiriusXM
Nano 7/6/5/4/3/2/1
Memory Card Slot USB memory
Touch 5/4/3/2/1
Video Screen No
Preamp Outputs 6-channel
Navigation ---
Audio/video Input ---
USB Input Rear
HD Radio No
Sub Preamp Outputs Yes
Wireless Remote Yes
CarPlay No
European Tuning No
iPhone 5/4S/4/3GS/3G/2G
Full size Classic/5Gen
FM Sensitivity 9 dBf
Seek/Scan Seek
Radio Data System Yes
CEA-2006 Compliant Yes
RMS Power Output 14 watts
Peak Output 50 watts
Preamp Voltage 4 volts
Display Color Variable
Key Button Color Variable
AUX Input Front
Android Auto No
Siri Control No
Bluetooth Compatible No
  • UPC: 884938257718
  • Weight: 4
*Warranty: 1 Year warranty.
1 Year warranty from implies that repairs must be returned to, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.

Do you own this product?  Write a review

   sean From tacoma

Good sound quality, good purchase price, good amp preouts and worked great with kicker component speakers.
