Power Handling:

• 75W RMS x 4 @ 4 Ohms
• 150W RMS x 4 @ 2 Ohms
• 300W RMS x 2 [Bridged] @ 4 Ohms

General Features:

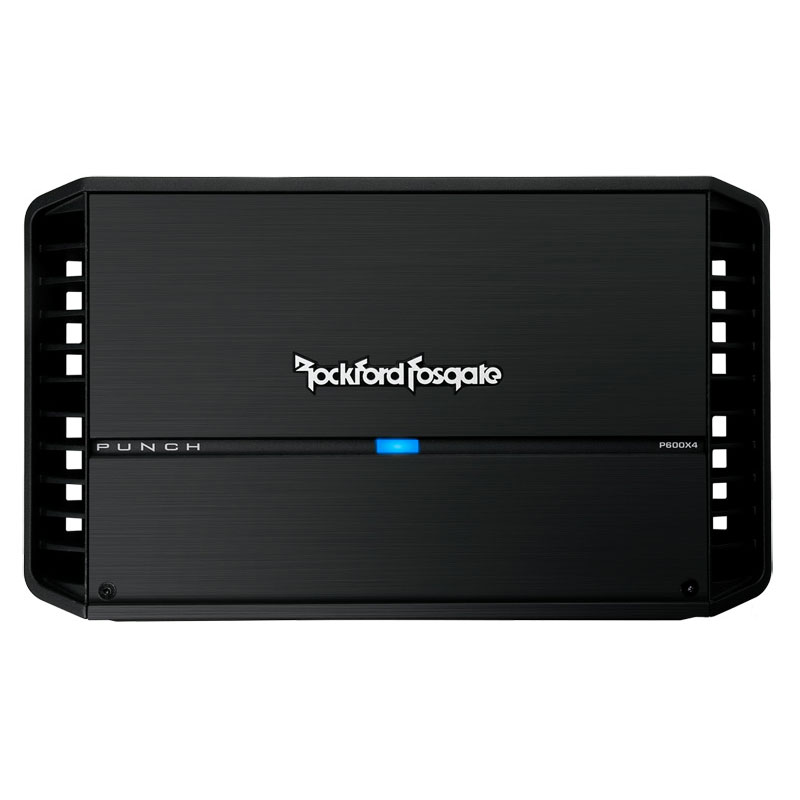

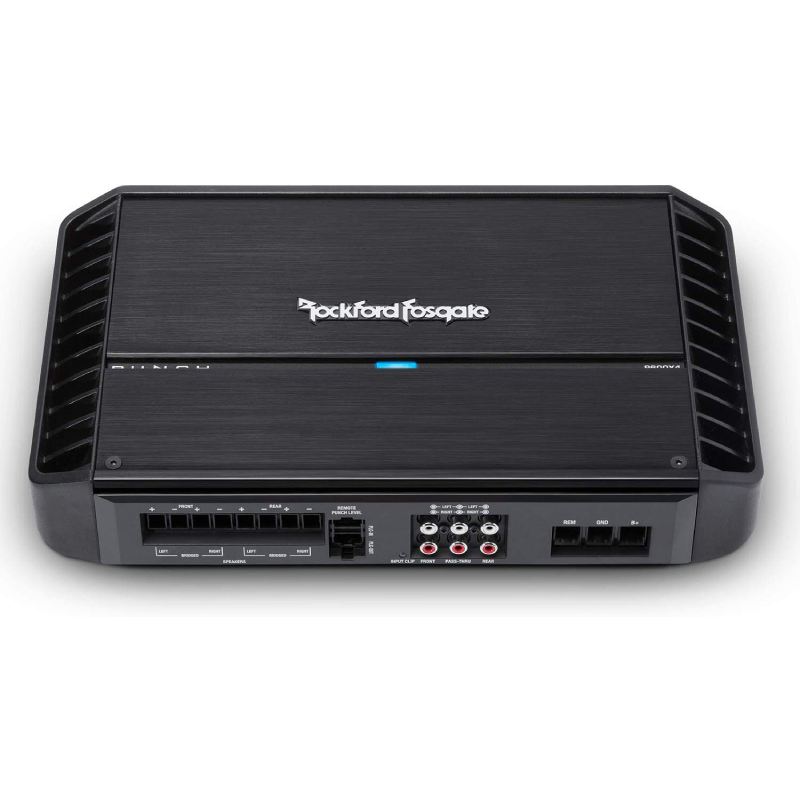

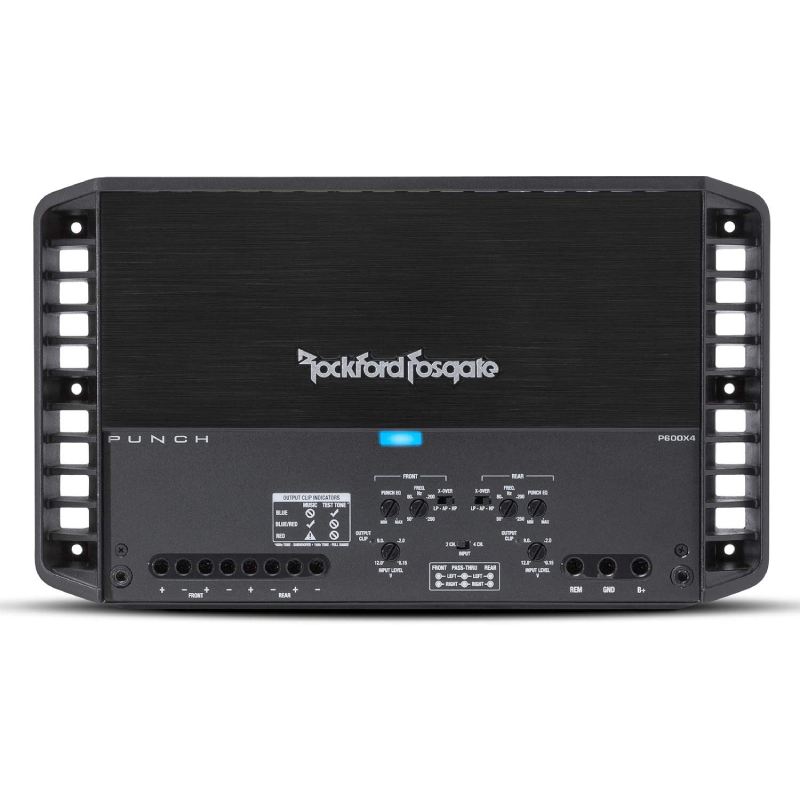

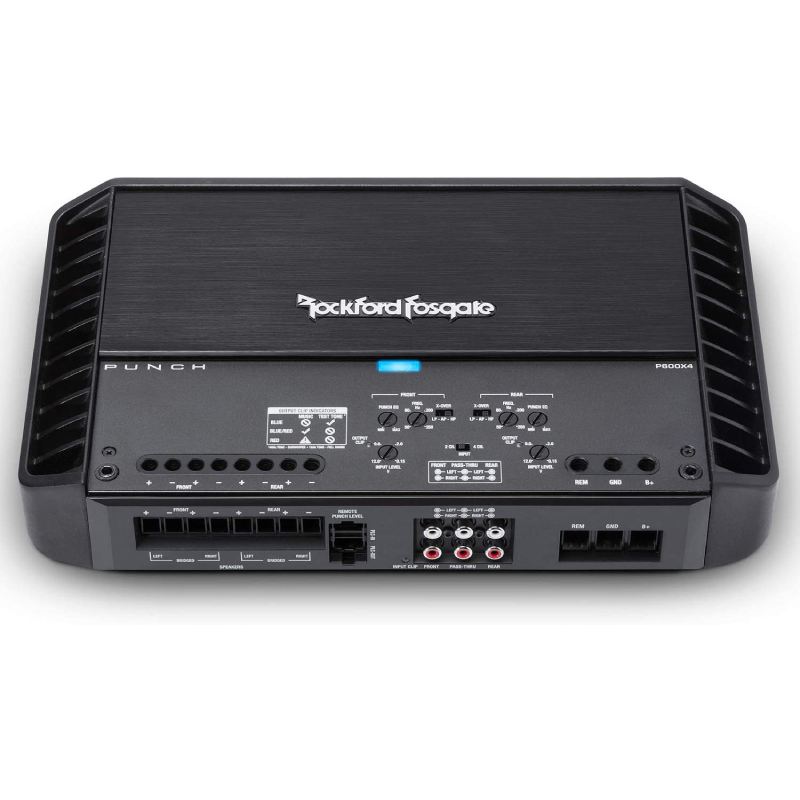

• Punch Series 4-Channel Class AB Car Amplifier
• MOSFET power supply
• Remote bass level input (remote level control sold separately)
• LED power, thermal, and protect indicators
• Tuned Bass EQ (0-18 dB bass boost at 45 Hz or 0-14 dB bass boost at 12 kHz depending on crossover selection)
• On-board differential inputs eliminates noise picked up by the signal cable
• 4/3/2 or Mono channel operation
• Integrated Trans•ana technology simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality

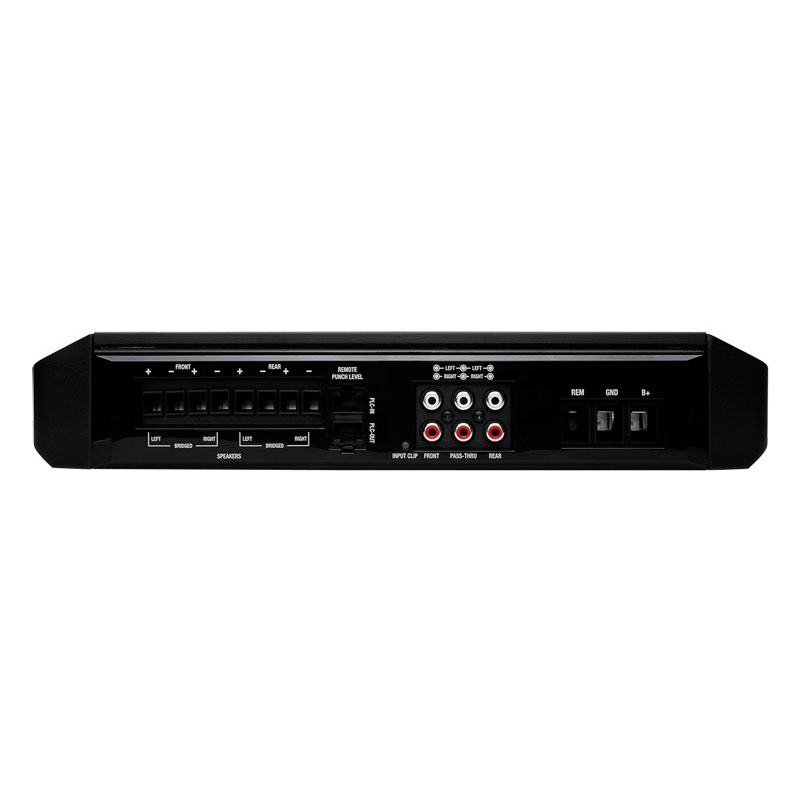

• RCA Pass-thru outputs
• MESHA3 reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output device life span
• DSM (Discrete Surface Mounted Components) utilize 1% tight-tolerances improving efficiency of the circuit and lowers operating temperature and potential for noise - similar to circuit boards designed by aerospace manufacturers
• Built in NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
• Cast aluminum convection heatsink with DTM (Dynamic Thermal Management) evenly distributes excess heat across entire amplifier heatsink to efficiently keep the amplifier temperatures low
• Nickel-plated RCA level inputs
• Nickel-plated captive C-clamp terminals
• Variable high-pass filter (50-250 Hz, Butterworth, 12 dB/octave)
• Variable low-pass filter (50-250 Hz, Butterworth, 12 dB/octave)
• CEA-2006 compliant amplifier
• Frequency response: 20-20000 Hz
• Dimensions: 13-5/16"L x 7-3/4"W x 2-3/8"H

Specifications:

• Amplifier Class AB
• Number of Channels 4
• Total RMS Power Output 600 watts
• Maximum Input Gauge Size 4 AWG
• Minimum Impedance Unbridged 2 ohms
• Minimum Impedance Bridged 4 ohms
• THD at Rated RMS Power 1.0%
• Speaker Level Inputs Yes
• Preamp Outputs 1 pair
• Built-in Crossover Low-pass (LP)
• High-pass (HP)
• High-Pass Crossover Frequency 50 - 250 Hz
• Low-Pass Crossover Frequency 50 - 250 Hz
• Signal-to-Noise Ratio 105 dB
• Bass Boost 0 - 18 dB
• Bass/Gain Remote Optional (Accessory required and sold separately)
• Fan Cooled No
• CEA-2006 Compliant Yes
• Strappable No
