- 150W RMS x 1 @ 4 Ohms
- 250W RMS x 1 @ 2 Ohms (MAX Power)
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz.
- RCA pass-thru outputs
- High level inputs

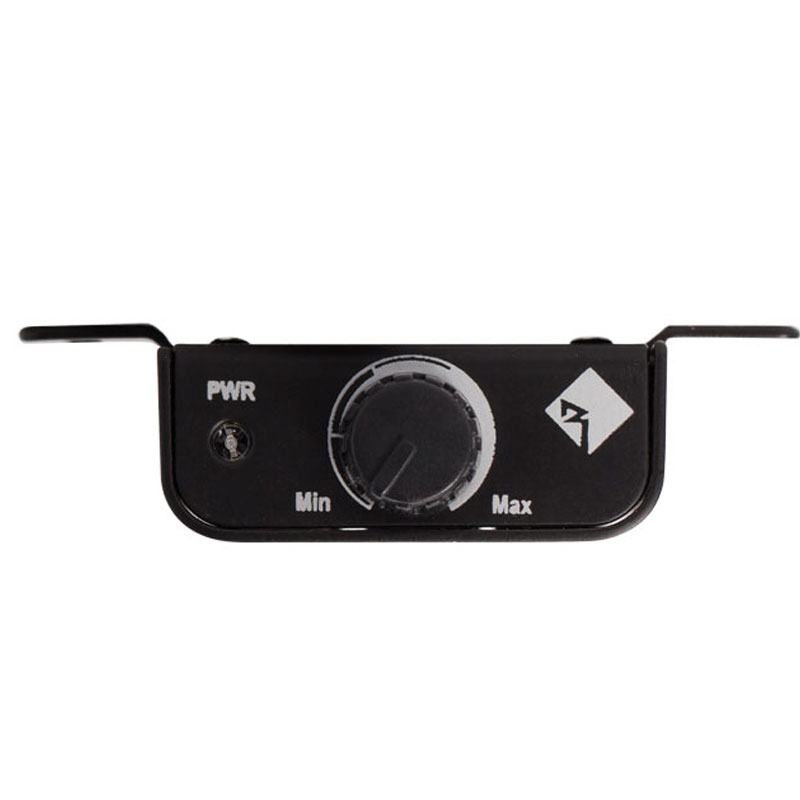

- Remote PLC (Punch Level Control)
- 0°/180° Phase Switch
- Real time output and power supply thermal sensing
- Cast aluminum heatsink
- 4 Gauge power/ground connectors
- MOSFET power supply
- Over current protection
- Short circuit protection
- Muted turn on
- Efficiency (average): TBA% @ 4-Ohm
- TBA% @ 2-Ohm
- Crossover Controls: Low Pass (LP): 50Hz-250Hz @ 12dB/octave Butterworth
- Tone Controls: Punch Bass: 0dB to +12dB @ 45Hz

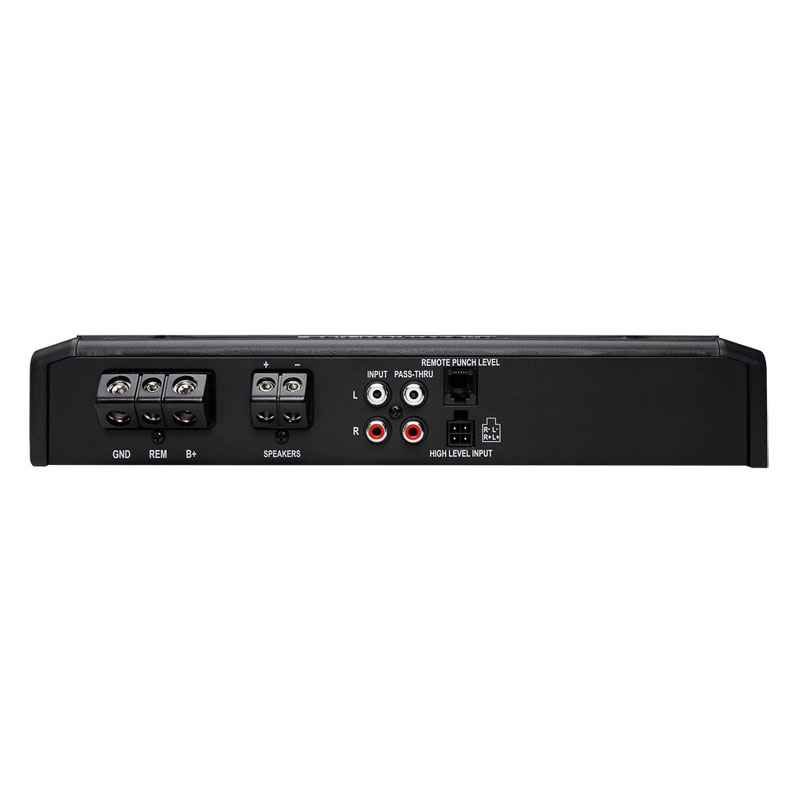

- Signal Input: Low Level: 1 RCA pair
- Signal Output: Low Level: 1 RCA pair
- Power Input Connector: Screw terminal
- Power Wire Gauge: 4 AWG
- Speaker Output Connector: Screw terminal
- Speaker Wire Gauge: 8 AWG
- Heat Sink Type: Extruded Aluminum
- Cooling: Convection
- Remote Controls: Punch Level Control
- (when connected, is linked to "gain control" to provide remote output level)
- Visual Indicators: Power/Protect LED
- Circuit Topology Class: Class-A/B
- Frequency Response: 20Hz to 250Hz +/-1dB
- Shipping Weight: TBA Lbs.
- (TBA Kg.)
- Dimensions (HxWxL): 1.98 x 6.77 x 11.22 (in)
- 5 x 17.2 x 28.5 (cm)
