Item# 39634

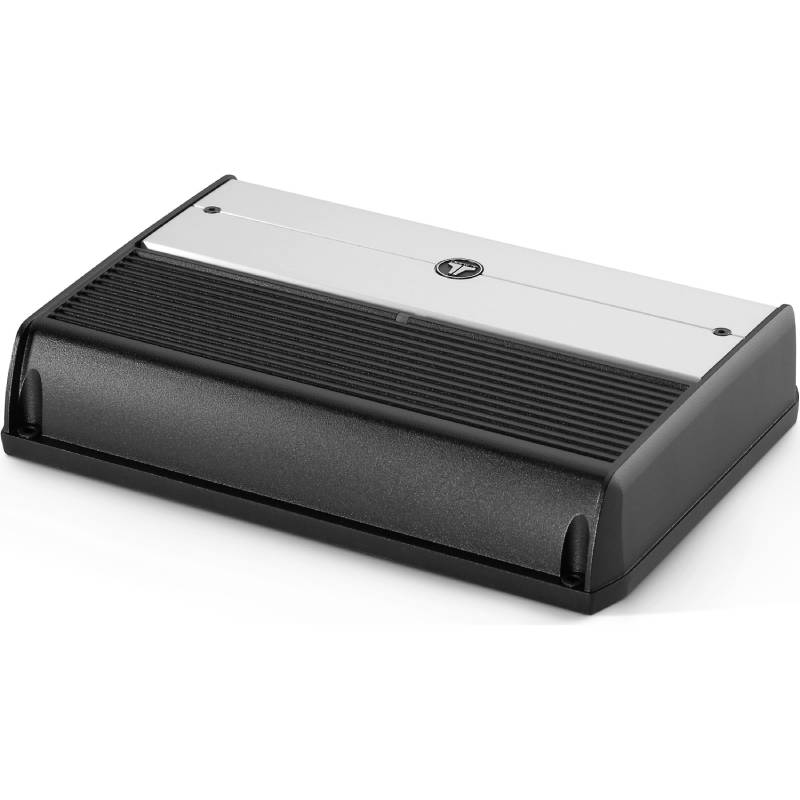

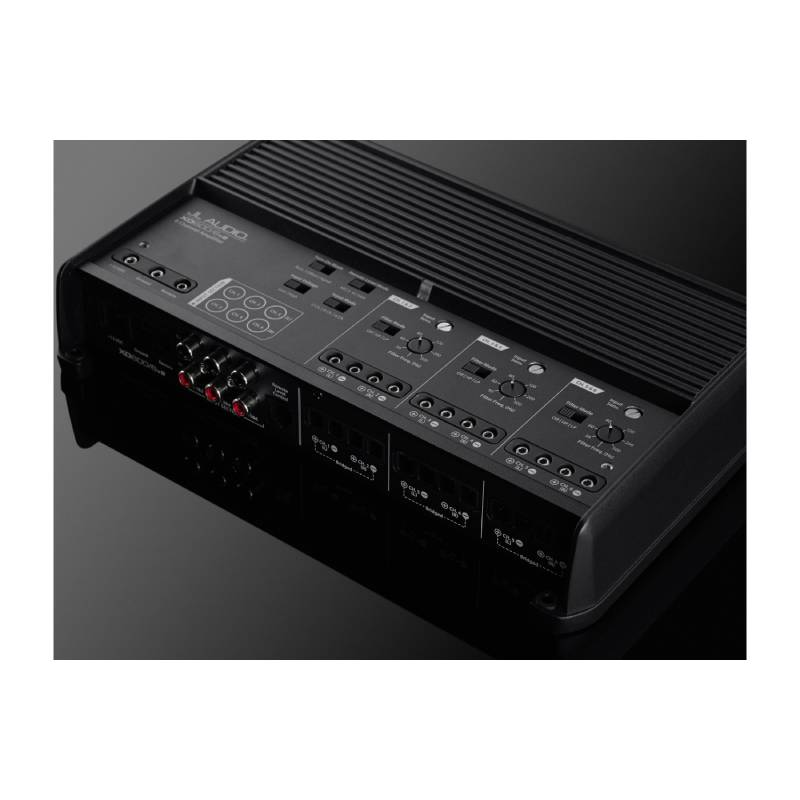

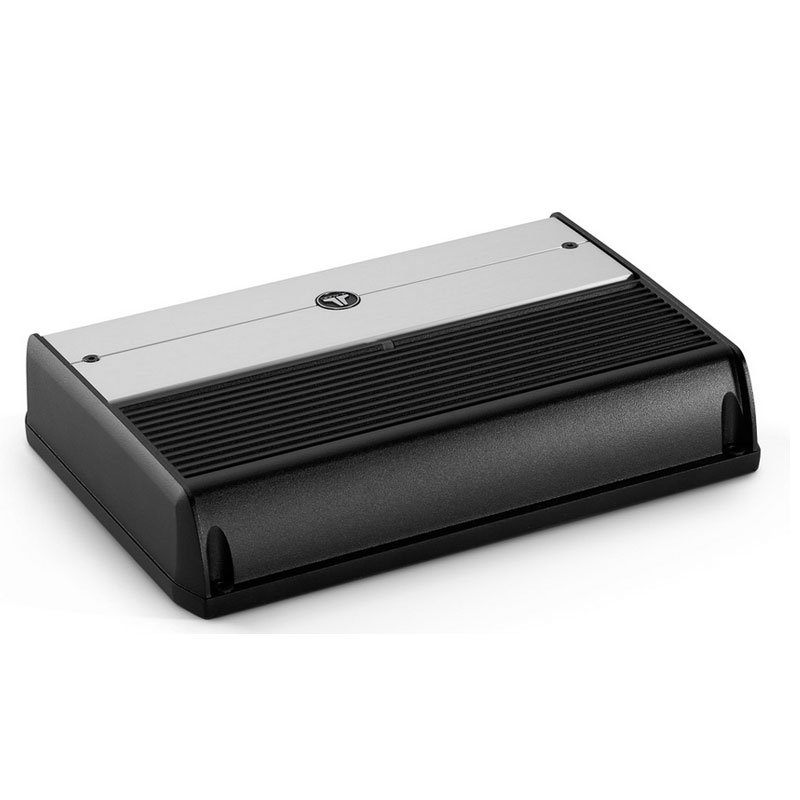

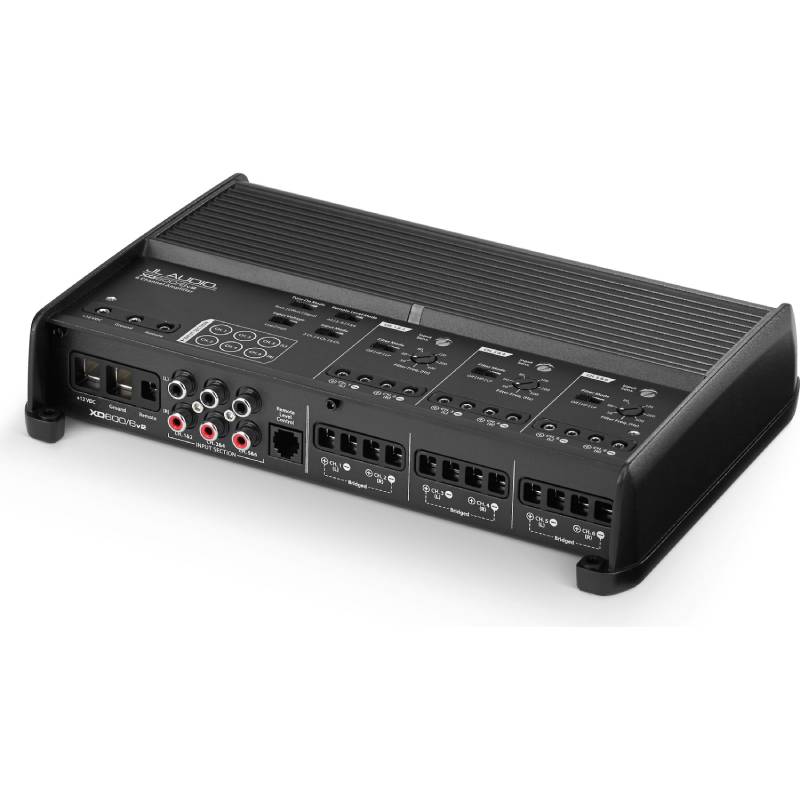

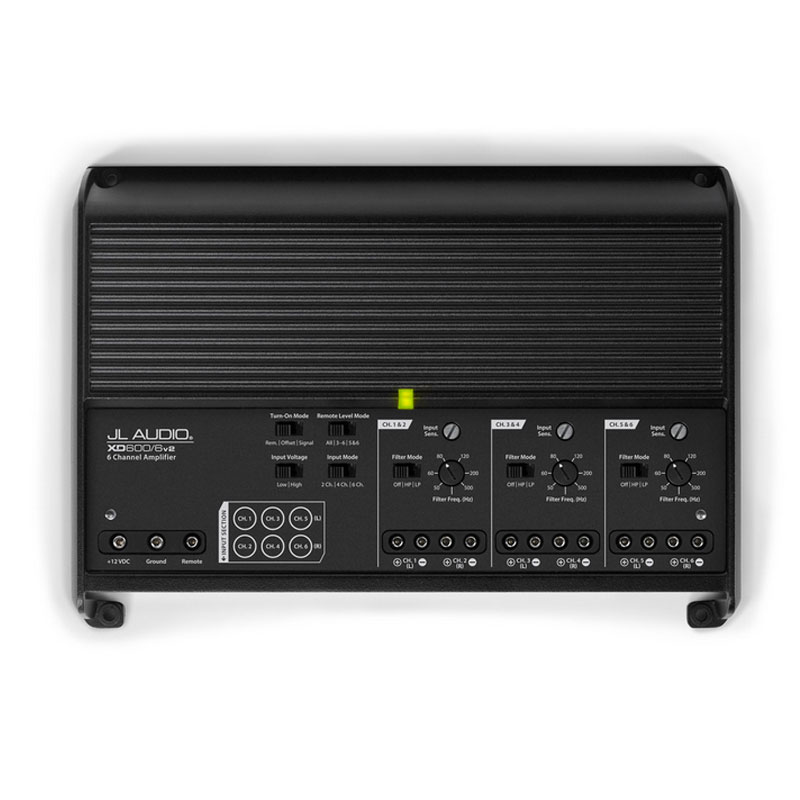

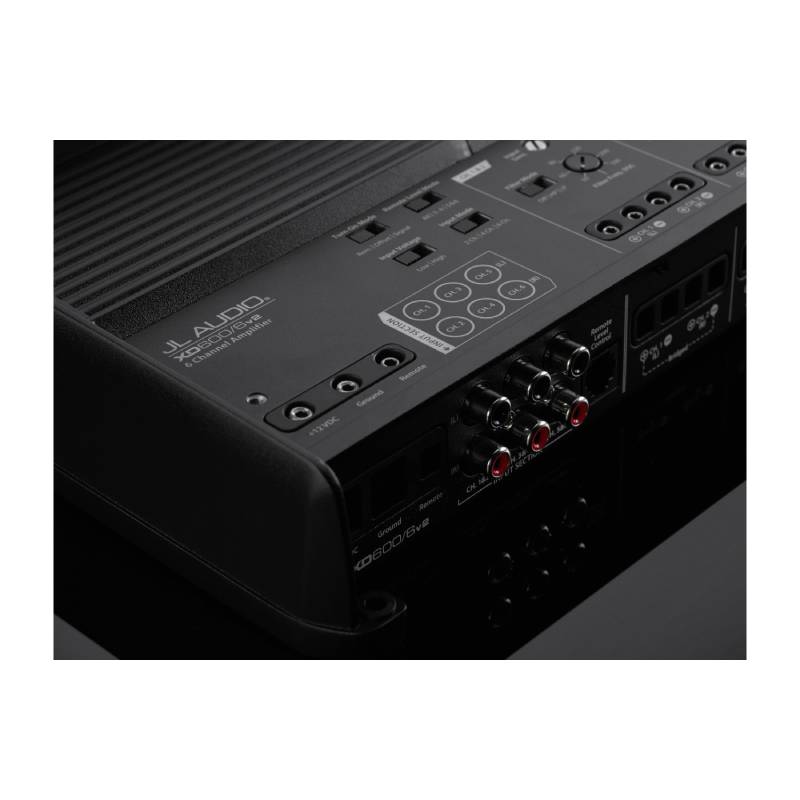

JL Audio XD600/6v2 - $539.99
Please roll over the image to zoom in. Click on the image to see larger image.

JL Audio XD600/6v2 (98605)

Item# 39634

Condition:  Brand New

  • comments
  • email
  • Facebook
  • Twitter
  • Print

Review this product

600W RMS 6-Channel Class D XD Series Car Amplifier

Savings Of:
Your Price $539.99

FREE Shipping in US 48!

This incredibly flexible amplifier packs a serious full-range punch and delivers a staggering 100 watts to each of its six channels into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency. With the XD600/6v2, you have lots of great options.

Use it as a six-channel satellite amplifier with 75 W x 6 @ 4 Ω, or bridge four of its channels to create a staggered power four-channel amplifier with 200 W x 2 @ 4 Ω for your front satellites and 75 W x 2 @ 4 Ω for your rear satellites. You can also drive two subwoofers with 200 W each, plus a pair of satellites with 75W x 2. The XD600/6v2 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz.

The XD600/6v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

General Features:

  • XDv2 Series Class D 6-Channel Amplifier
  • RMS Power Rating @14.4V:
  • 4 ohms: 75 watts x 6 chan.
  • 2 ohms: 100 watts x 6 chan.
  • Bridged 4 ohms: 200 watts x 3 chan.
  • RMS Power Rating @12.5V:
  • 4 ohms: 60 watts x 6 chan.
  • 2 ohms: 90 watts x 6 chan.
  • Bridged 4 ohms: 180 watts x 3 chan.
  • Input sensitivity:
  • Low level: 800mV - 8V
  • High level: 200mV - 2V
  • Frequency Response: 12 - 22,000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >104 dB
  • Damping Factor @4 ohms: >150 / 50 Hz
  • Selectable Filter Mode: Off / HP / LP
  • Variable cutoff filter: 50 - 500 Hz, 12 dB/octave
  • Fuse Rating: 50A x 1 inline (not supplied)
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Weight: 6.00 lb
  • Dimensions: 7.09"W x 10.23"L x 2.05"H
  • NexD™ High Speed Switching Class D Technology
  • Wired HD-RLC remote level control available, sold separately
  • LED power (green), over-current (yellow) and protect (red) indicators
  • Advanced Rollback Protection
  • Differential Balanced RCA Input
  • Pass-through preamp RCA outputs
  • Selectable turn-on modes: REM / Offset / Signal
  • +12 V Remote Turn-On: Traditional remote lead wire, from headunit
  • DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
  • Signal-Sensing: On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)
  • Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Detented, Calibrated Filter Freq. Potentiometer
  • State-variable, 12dB/octave Butterworth Crossover
  • Selectable input mode: 2 Ch. / 4 Ch. / 6 Ch.
  • Product Highlights:
  • 6-channel car amplifier
  • 75 watts RMS x 6 at 4 ohms (100 watts RMS x 6 at 2 ohms)
  • 200 watts RMS x 3 bridged at 4 ohms (4-ohm stable bridged)
  • variable low- and high-pass filters (50-500 Hz, 12 dB/octave)
  • optional wired remote controls sub or system level
  • Class D amplifier design with NextD™ switching amp technology
  • differential-balanced inputs eliminate noise coming from your vehicle's electrical system
  • Advanced Rollback Protection System prevents thermal shut-down

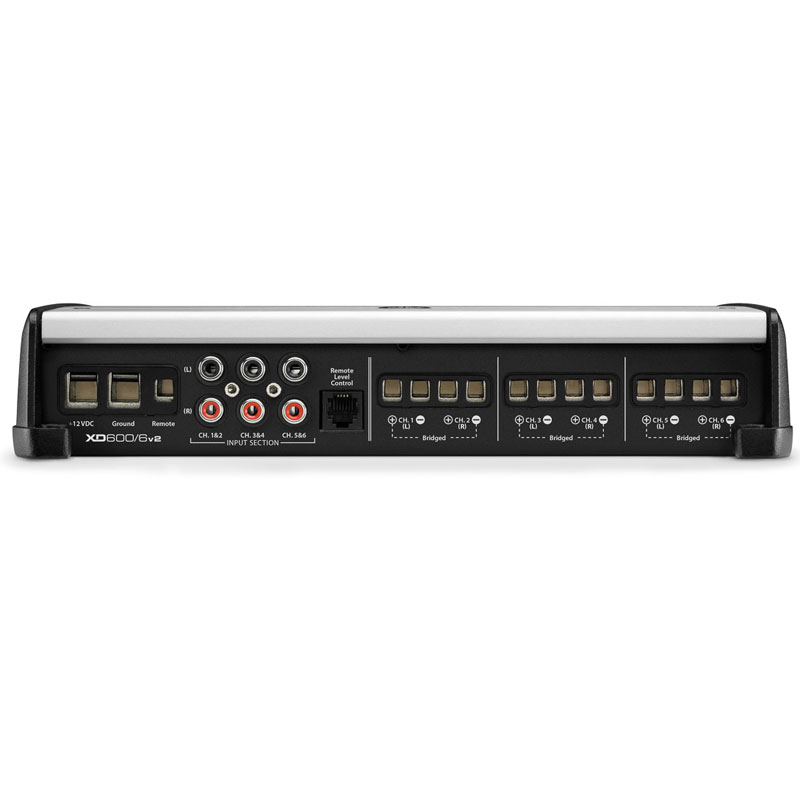

  • Connection Features:
  • preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
  • high-level inputs — up to 8 volts RMS (about 16 watts)
  • DC offset or signal sensing auto turn-on eliminates need for remote lead
  • 4-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
  • no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
  • 10-1/4"W x 2"H x 7-1/8"D
  • UPC: 699440986052
  • Weight: 6
  • Sku: 98605
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
