Item# 40181
JL Audio XD700/5v2 - $599.99
Please roll over the image to zoom in. Click on the image to see larger image.

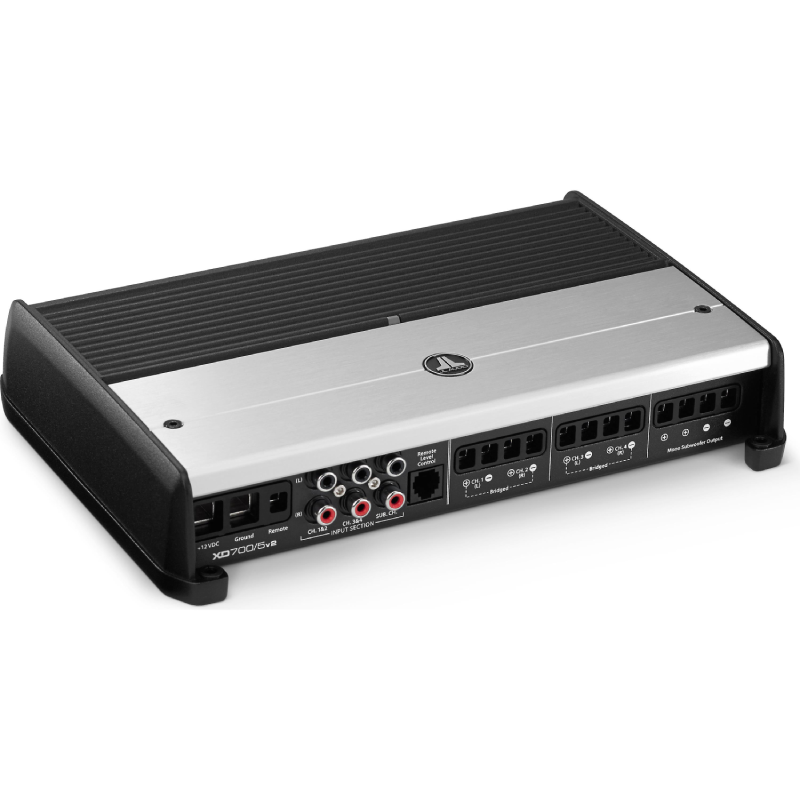

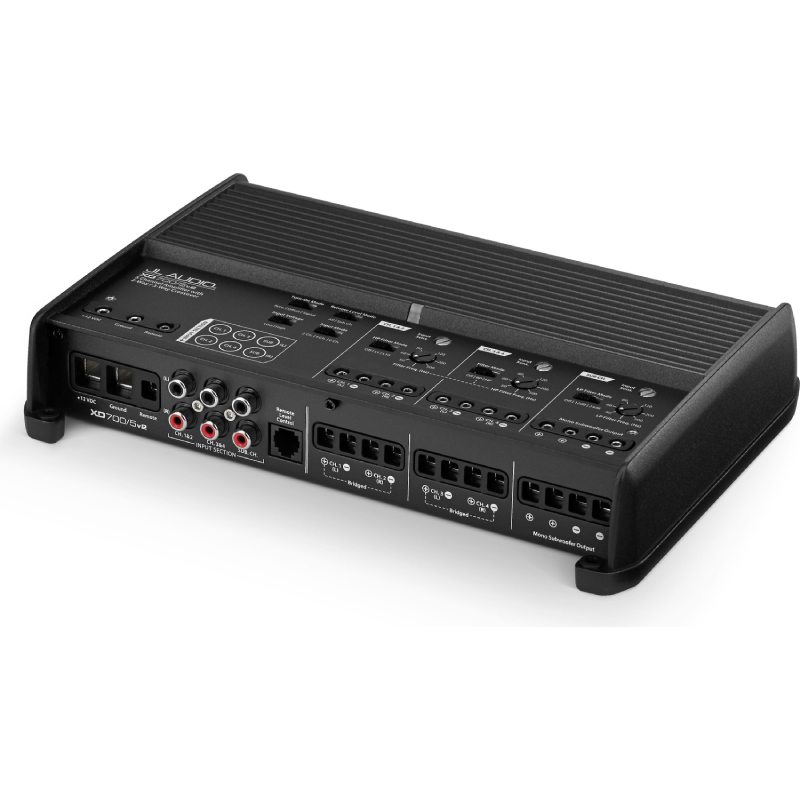

JL Audio XD700/5v2 (98606)

Item# 40181

Condition:  Brand New

  • comments
  • email
  • Facebook
  • Twitter
  • Print

Review this product

5-Channel Class D XD Series Amplifier 700W Peak Power

Savings Of:
Your Price $599.99

FREE Shipping in US 48!

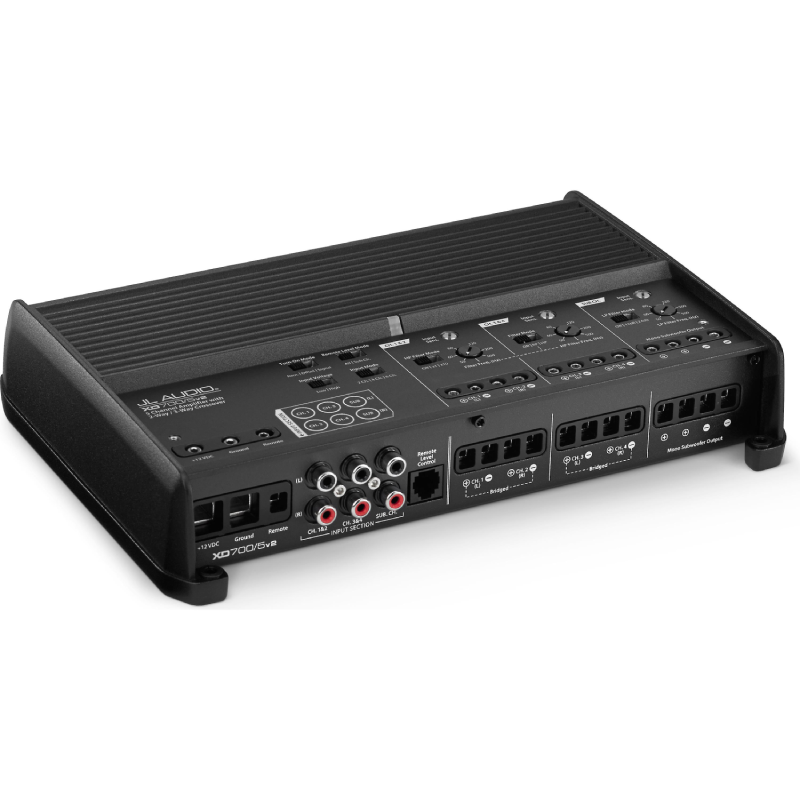

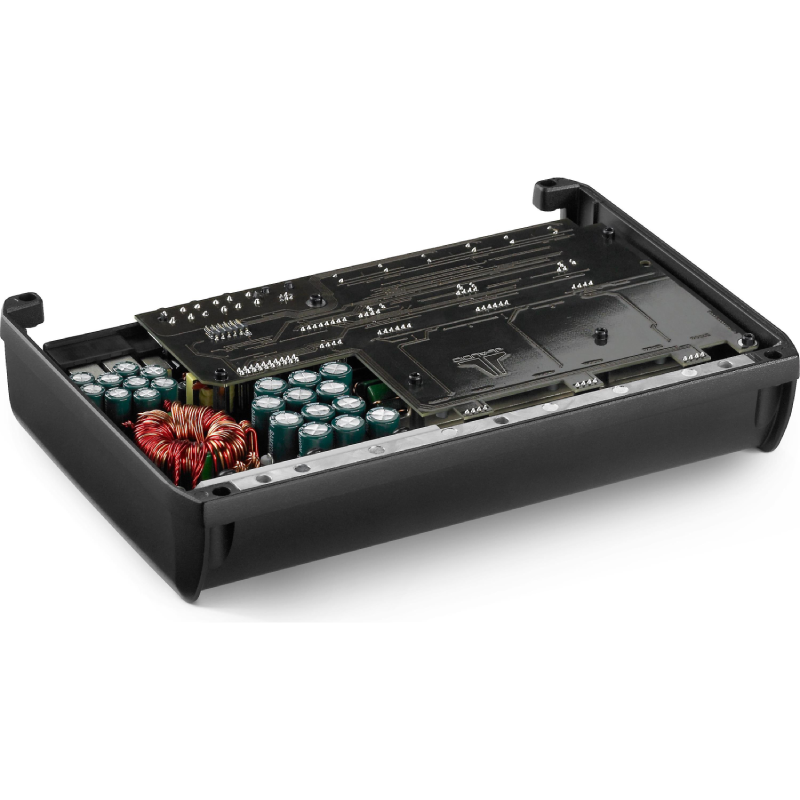

The XD700/5v2 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and it fits comfortably in just about any vehicle. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also delivering a stout 300 W of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

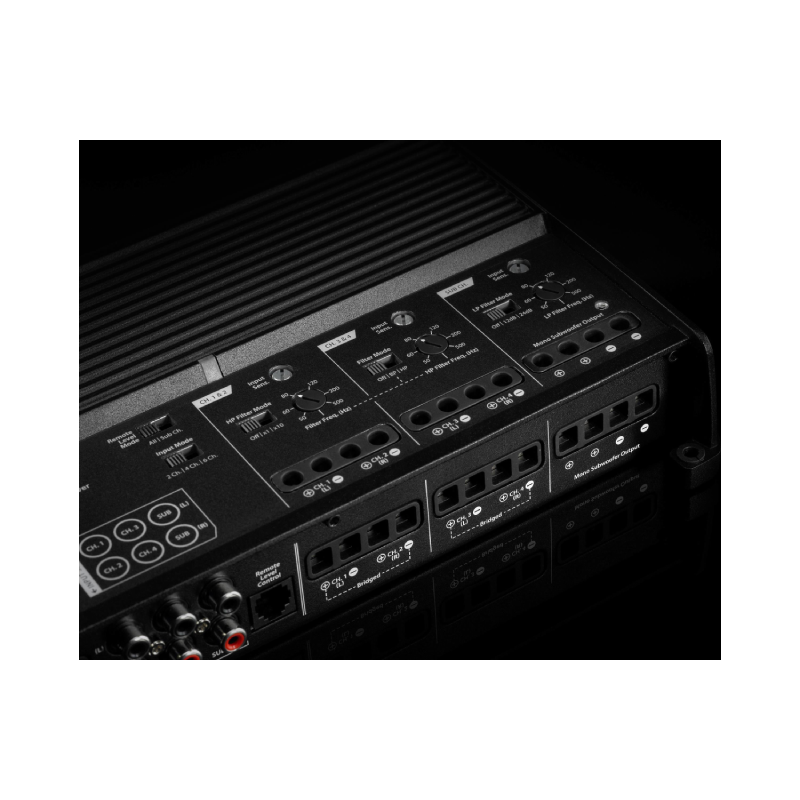

The XD700/5v2 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz.

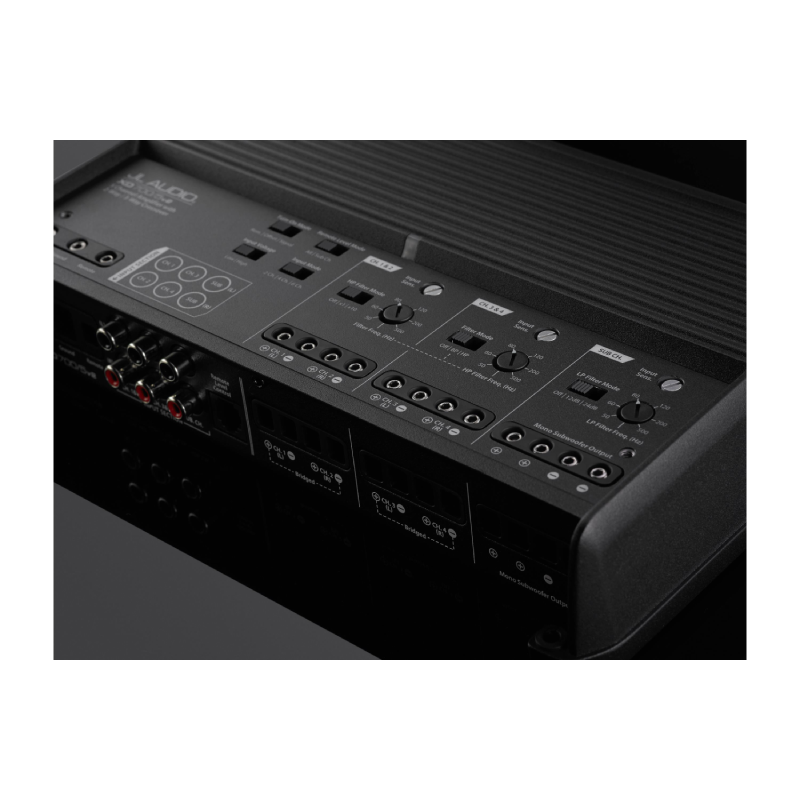

This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz.

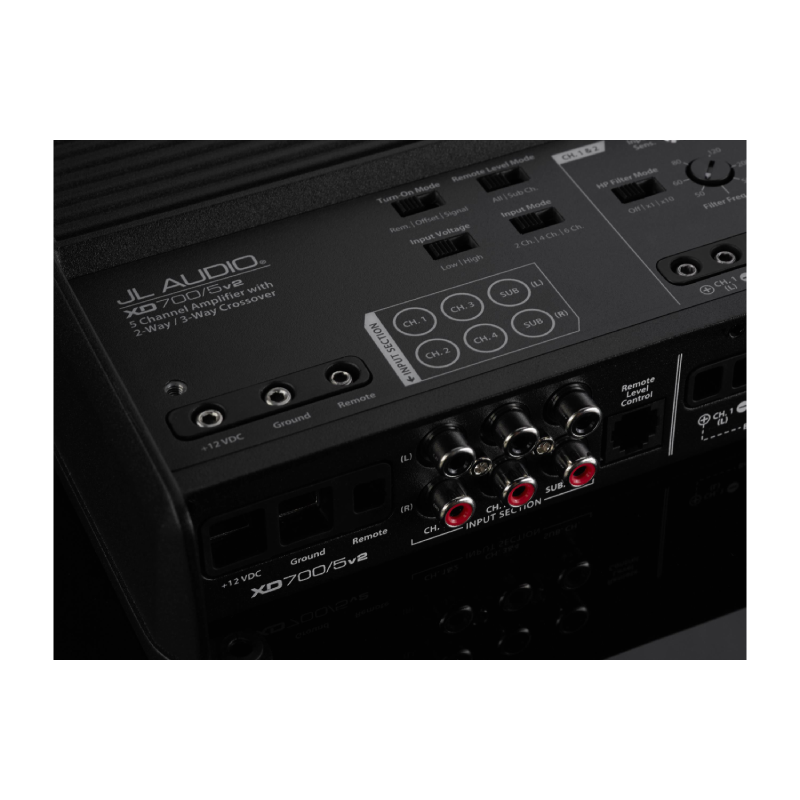

The XD700/5v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

General Features:

  • XDv2 Series Class D 5-Channel Amplifier
  • RMS Power Rating @14.4V: Channel 1 - 4
  • 4 ohms: 75 watts x 4 chan.
  • 2 ohms: 100 watts x 4 chan.
  • Bridged 4 ohms: 200 watts x 2 chan.
  • RMS Power Rating @14.4V: Sub Channel
  • 4 ohms: 180 watts x 1 chan.
  • 3 ohms: 240 watts x 1 chan.
  • 2 ohms: 300 watts x 1 chan.
  • RMS Power Rating @12.5V: Channel 1 - 4
  • 4 ohms: 60 watts x 4 chan.
  • 2 ohms: 90 watts x 4 chan.
  • Bridged 4 ohms: 180 watts x 2 chan.
  • RMS Power Rating @12.5V: Sub Channel
  • 4 ohms: 180 watts x 1 chan.
  • 3 ohms: 240 watts x 1 chan.
  • 2 ohms: 300 watts x 1 chan.
  • Input sensitivity:
  • Low level: 800mV - 8V
  • High level: 200mV - 2V
  • Frequency Response (Ch 1-4): 12 - 22,000 Hz
  • Frequency Response (Sub Ch): 10 - 1,000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: >104 dB
  • Damping Factor @4ohms: >150 / 50 Hz
  • Fuse Rating: 60A x 1 inline (not supplied)
  • 4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.
  • Weight: 10.00 lb
  • NexD™ High Speed Switching Class D Technology
  • Wired HD-RLC remote level control available, sold separately

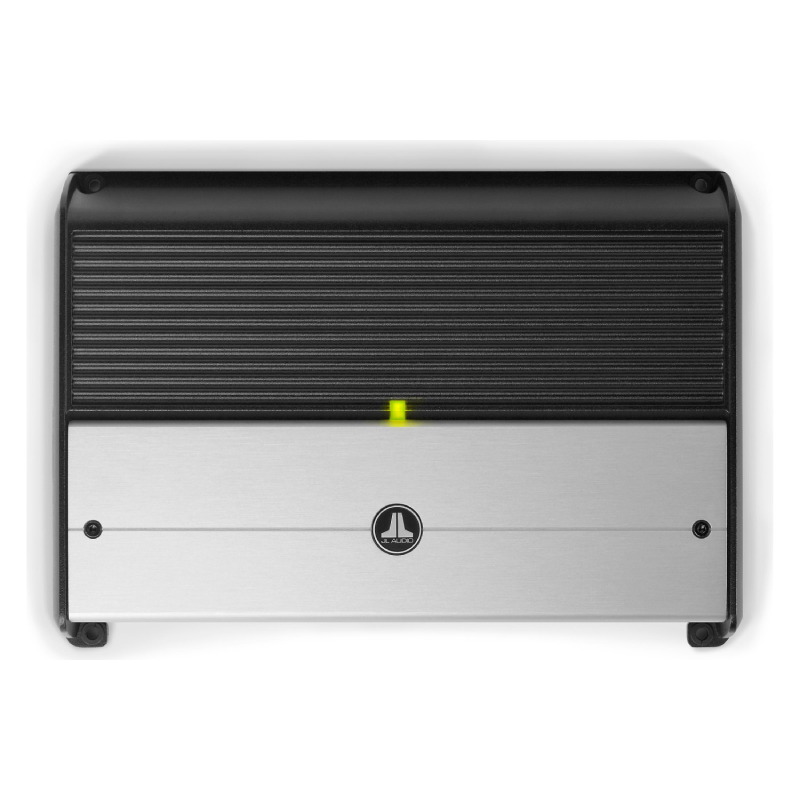

  • LED power (green), over-current (yellow) and protect (red) indicators
  • Advanced Rollback Protection
  • Differential Balanced Input Section
  • Selectable turn-on modes: REM / Offset / Signal
  • +12 V Remote Turn-On: Traditional remote lead wire, from headunit
  • DC Offset-Sensing: On/Off by detecting a very small DC signal (high-level signal only)
  • Signal-Sensing: On/Off by detecting a full-range audio signal at left-channel input (high-level signal only)
  • Speaker level inputs via RCA, JL Audio XD-CLRAIC2-SW required

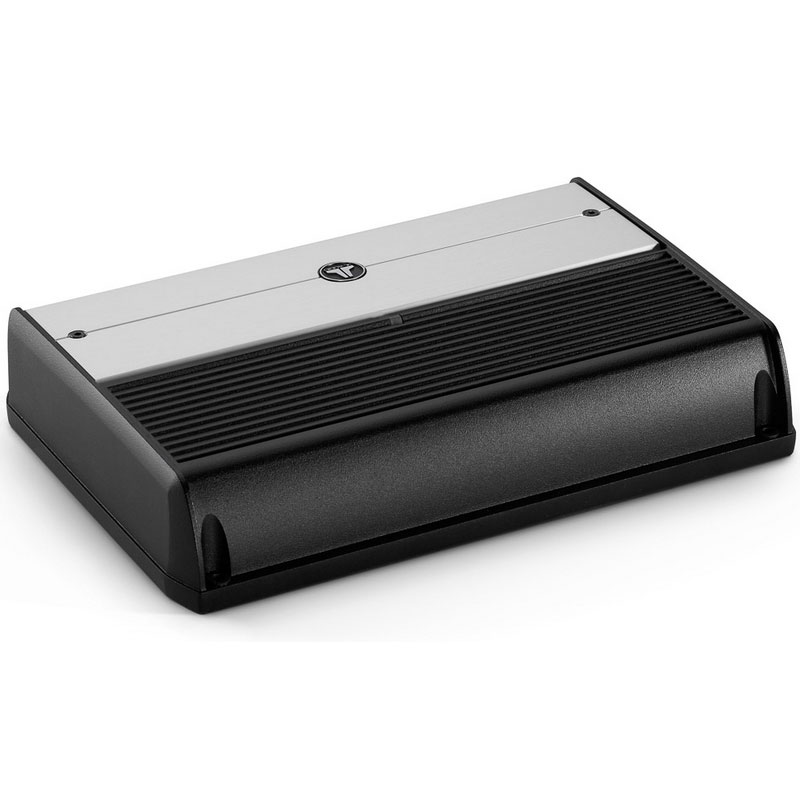

  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Detented, Calibrated Filter Freq. Potentiometer

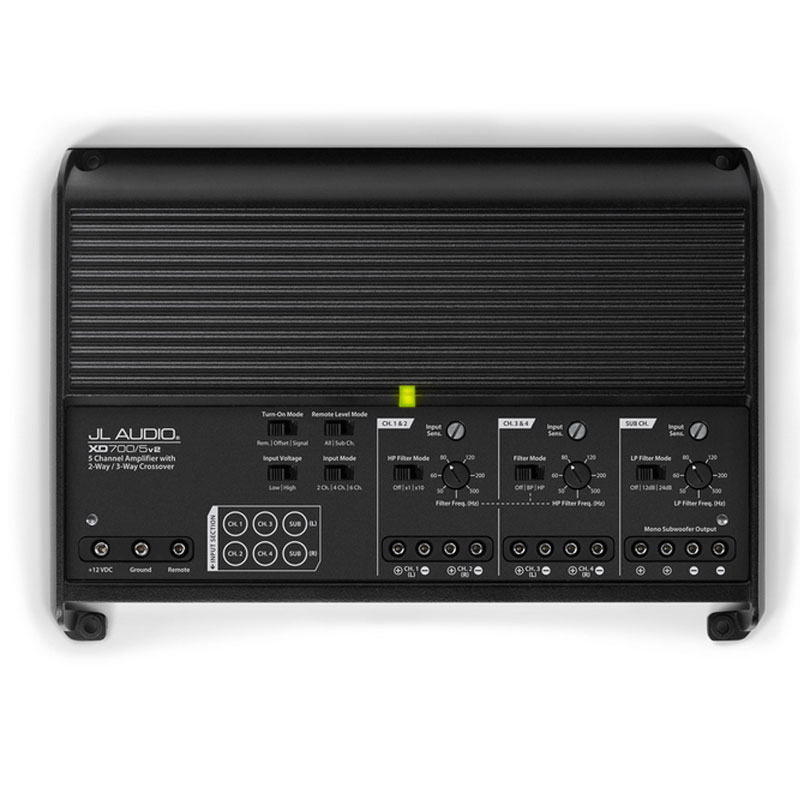

  • Input mode selectable: 2 Ch. / 4 Ch. / 6 Ch.
  • State-variable / Sallen-Key Crossover
  • Selectable Low-Pass Filter Slope (Sub Ch): 12 dB or 24 dB
  • Variable low-pass filter: 50 - 500 Hz, 12 or 24 dB/octave
  • Selectable HP filter mode (Ch 1/2): Off / x1 / x10
  • Selectable filter mode (Ch 3/4): Off / BP/ HP
  • Product Highlights:
  • 5-channel car amplifer
  • 75 watts RMS x 4 + 180 watts RMS x 1 (at 4 ohms)
  • 100 watts RMS x 4 + 300 watts RMS x 1 (at 2 ohms)
  • 200 watts RMS x 2 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
  • channel 1 & 2: variable high-pass filter (50-5000 Hz, 12 dB/octave)
  • channel 3 & 4: variable high- or band-pass filter (50-500 Hz, 12 dB/octave) — band-pass uses ch. 1/2 setting as its low-pass setting
  • sub channel: low-pass (50-500 Hz, 12 or 24 dB/octave)
  • optional wired remote controls sub or system level
  • Class D amplifier design with NextD™ switching amp technology
  • differential-balanced inputs eliminate noise coming from your vehicle's electrical system
  • Advanced Rollback Protection System prevents thermal shut-down
  • Connection Features:

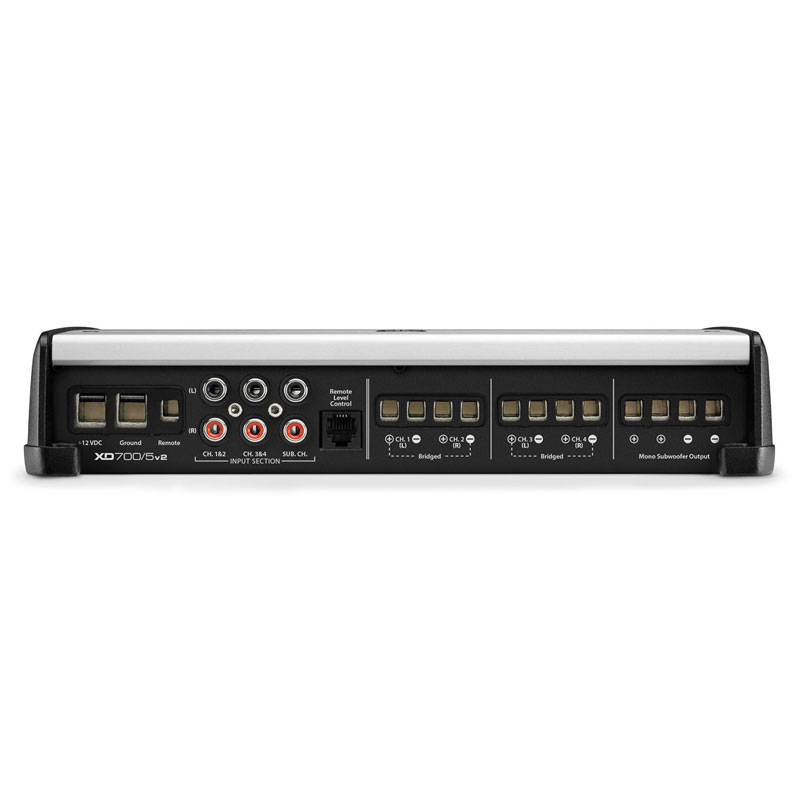

  • preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
  • high-level inputs — up to 8 volts RMS (about 16 watts)
  • DC offset or signal sensing auto turn-on eliminates need for remote lead
  • 4-gauge power and ground leads and a 60-amp fuse recommended — wiring and hardware not included with amplifier
  • no onboard fuses — when installing multiple amps in a system, an additional 60-amp in-line fuse between the distribution block and the amplifier is recommended
  • 10-1/4"W x 2"H x 7-1/8"D
  • UPC: 699440986069
  • Weight: 10
  • Sku: 98606
*Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warranted against being blown, burned or abused.
