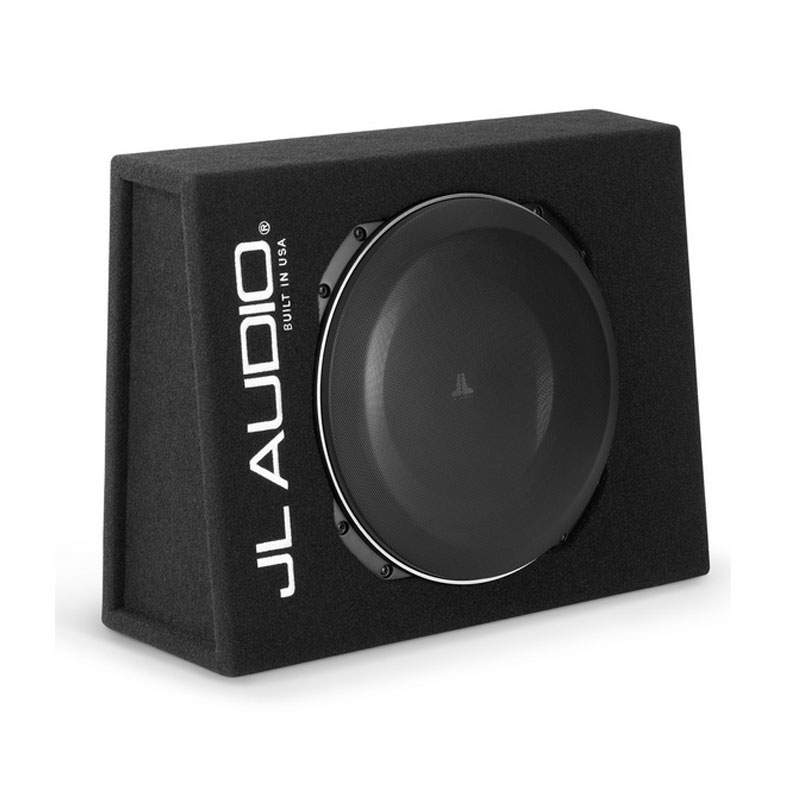

Enclosed Subwoofer System with Single 13TW5v2-2 Subwoofer Driver, Black Carpet (600 W, 2 Ω) - Sealed Enclosure The 13TW5v2 low-profile subwoofer driver has received awards from around the world for its breakthrough performance capabilities in impossibly tight spaces.
In this sealed Truck PowerWedge™ subwoofer system, we harness the performance of this patented subwoofer driver to deliver amazing sub-bass performance from an enclosure that is only 7.25 in. (184 mm) deep at its base and 4.5 in. (114 mm) at the top. This enclosure design has been carefully engineered to the optimum sealed enclosure alignment for the 13TW5v2 and has been fine-tuned through extensive real-world listening.
This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal. Finish: Black, high-grade automotive carpet with "JL AUDIO" embroidered in silver on the front baffle. A steel mesh grille is included to protect the subwoofer driver.
Construction: CNC-Cut High-Grade MDF Recommended amplifier power: 250 - 600W Nominal Impedance: 2 Ω
- Power Handling:
- Peak: 1200 watts
- RMS: 600 watts
- General Enclosure Features:
- PowerWedge Sealed Truck Enclosure
- V-Groove MDF Construction advanced cabinet-building technique uses CNC machining to create precise panel joints
- Delivers world-class sub-bass fidelity
- Provides a detailed and smooth response
- High grade black carpet finish

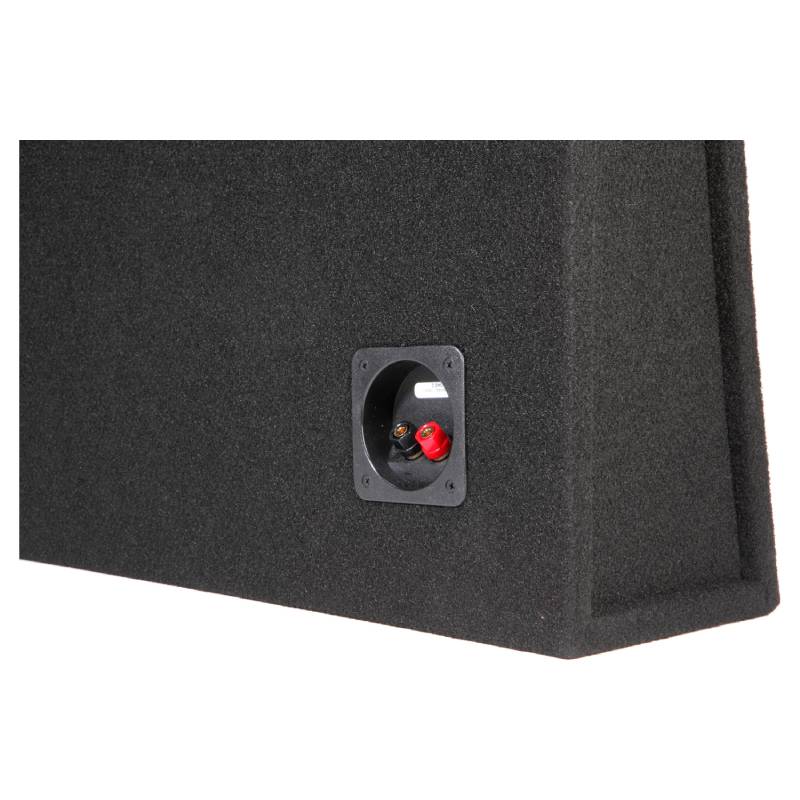

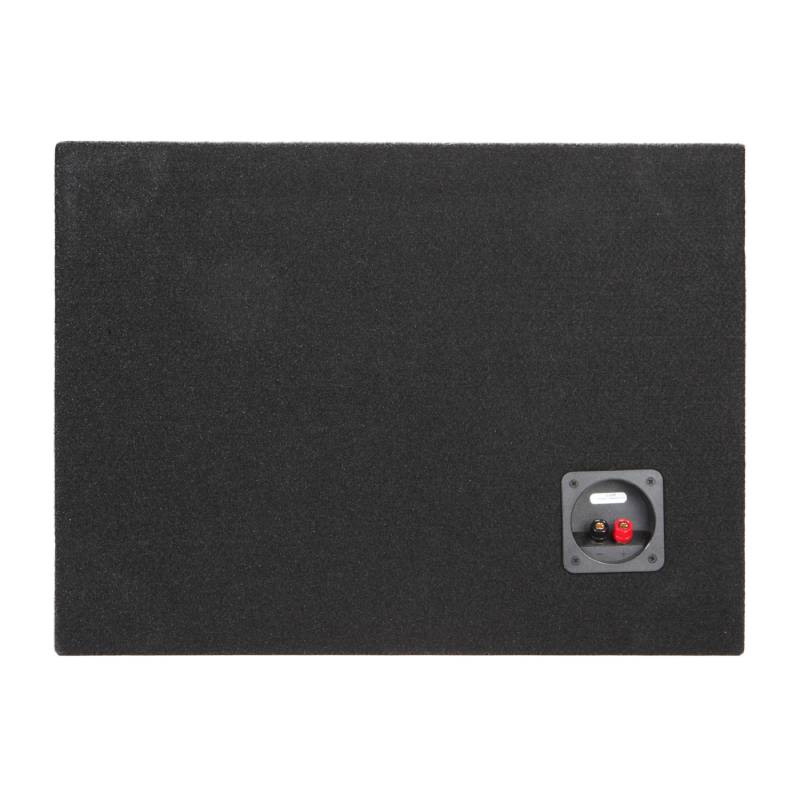

- Five-Way binding post connectors
- Embroidered JL Audio logo
- JL Audio ECS internal wiring
- Steel mesh grille provides excellent woofer protection
- Designed to fit perfectly behind the seats of trucks
- Final Impedance: 2 ohm
- Weight: 34 lbs
- Dimensions: 4-1/2"TD x 7-1/4"BD x 21-1/4"W x 15-3/4"H
- Recommended Power Range: 250-600 watts
- Impedance: 2 Ohm
- Mica-filled polypropylene cone
- Santoprene surround
- Unique design allows for small airspace requirements
- Requires only 0.8 cubic feet of airspace
- Cast alloy basket
- Mounting Depth: 2-5/8 inches
- Frequency response: 20-500 Hz
- Sensitivity: 85.51 dB
- Product Highlights:
- sealed enclosure with one 13.5" TW5v2 subwoofer
- 5/8" medium density fiberboard construction covered with black carpet
- steel-mesh grille
- 5-way binding post speaker terminals
- 2-ohm total impedance
- power handling: 250-600 watts RMS
- frequency response: 20-200 Hz
- sensitivity: 85.51 dB
- 21-1/4"W x 15-3/4"H x 7-1/4"D1 x 4-1/2"D2 (without grille)
- Subwoofers are usually sold as a single unit unless otherwise noted.
- UPC: 699440932561
- Weight: 41
- Sku: 93256
