Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

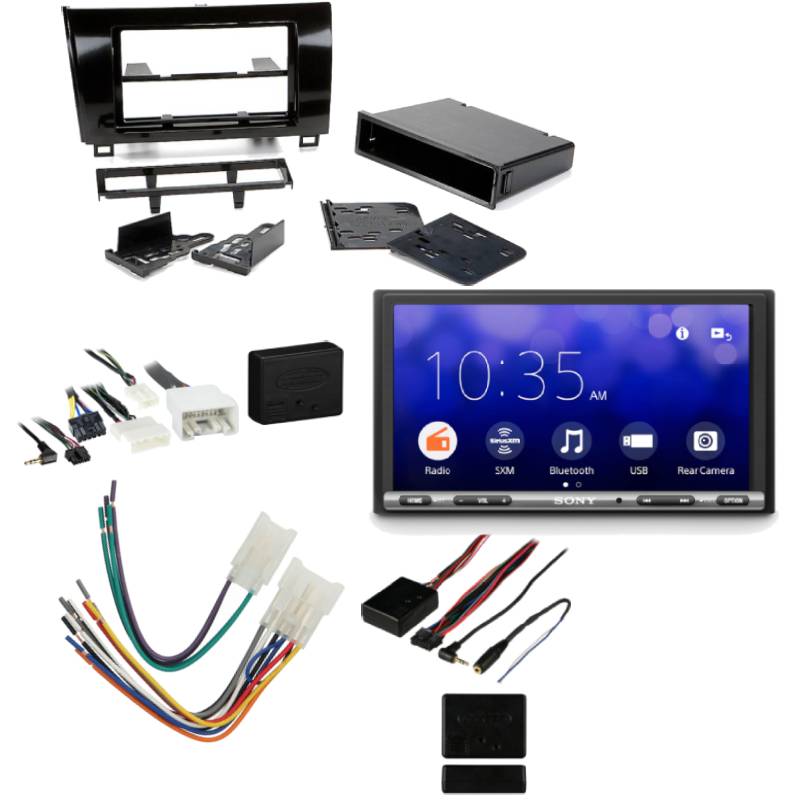

PCH Custom Audio Tundra Sound System-38 includes Sony XAV-AX3200 6.95" Digital Media Receiver w/ Apple CarPlay, Android Auto + Metra 99-8220CHG Dash Kit + Metra 70-1761 Wiring Harness + Axxess AXSWC SWC Interface + Axxess AXDI-TY1 Amp Interface
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Sony XAV-AX3200
- • Metra 99-8220CHG
- • Metra 70-1761
- • Axxess AXSWC
- • Axxess AXDI-TY1

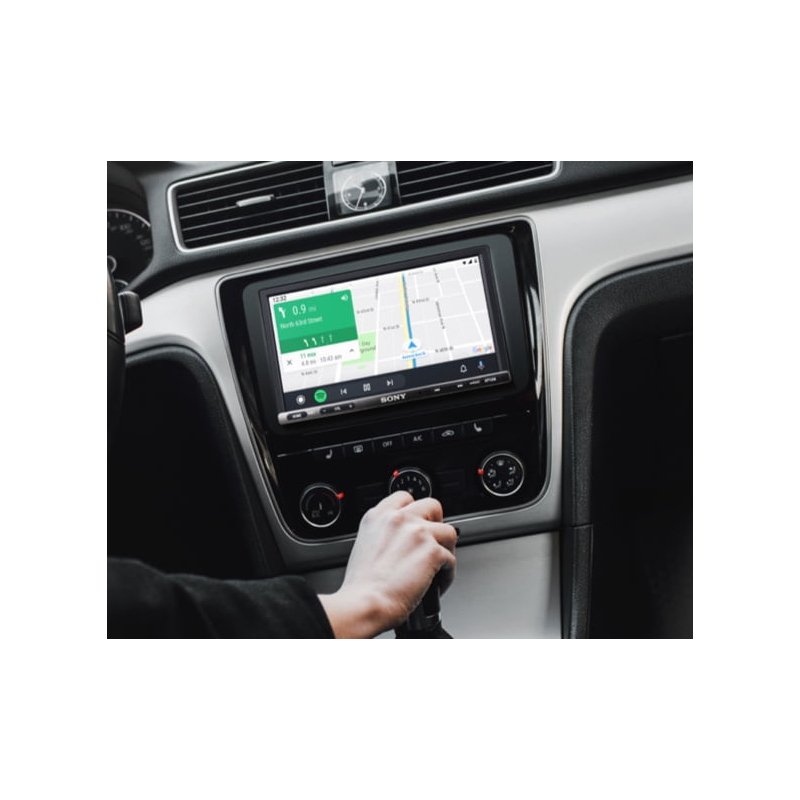

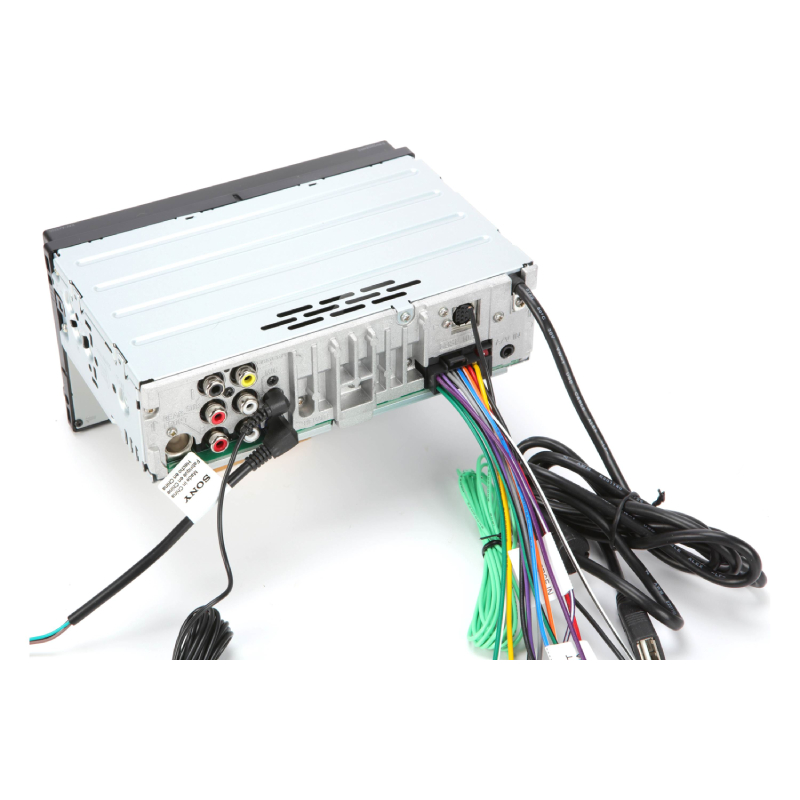

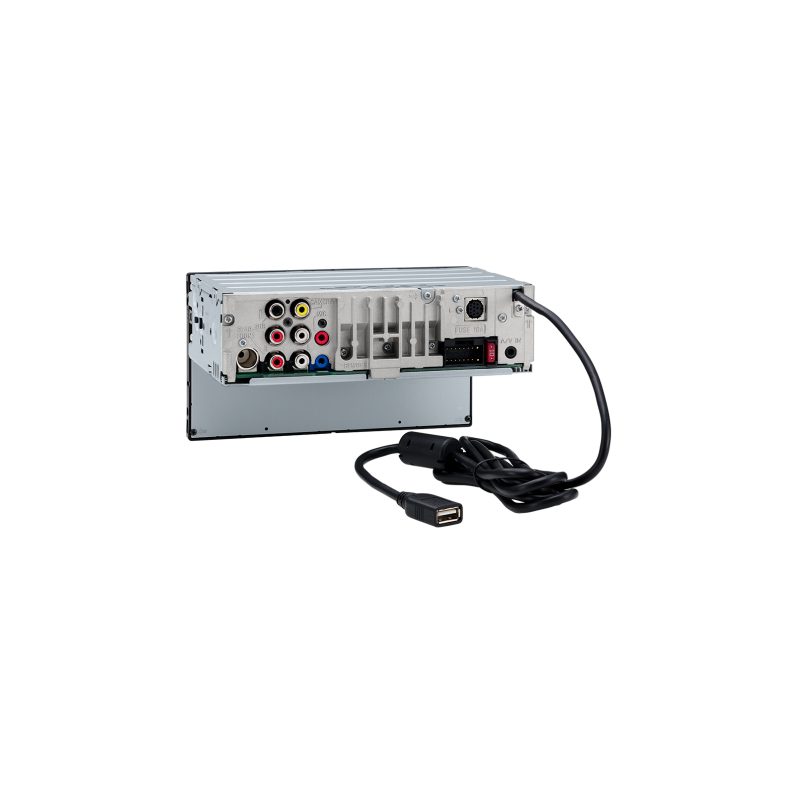

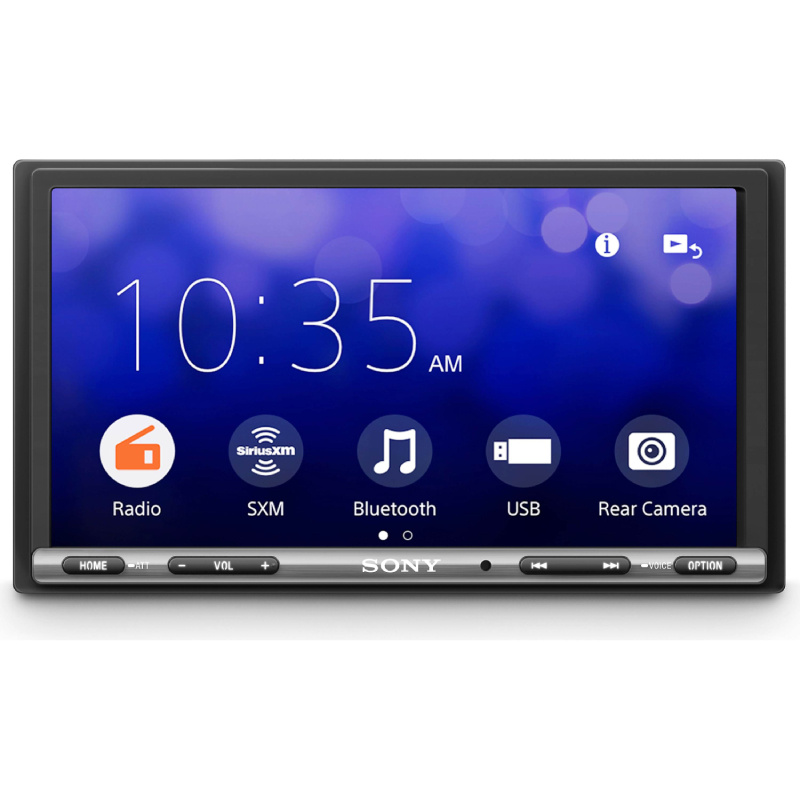

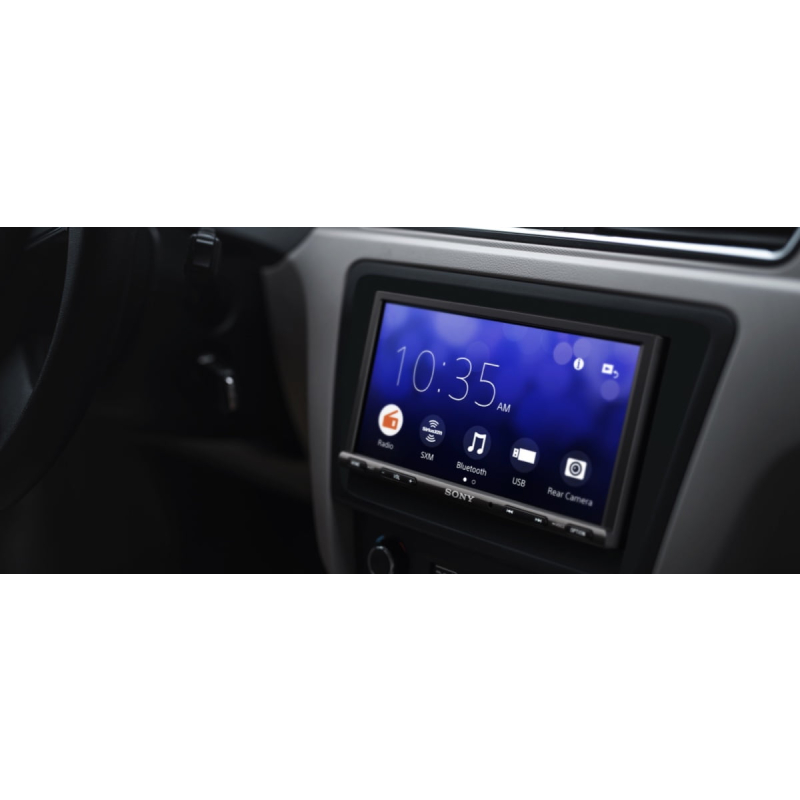

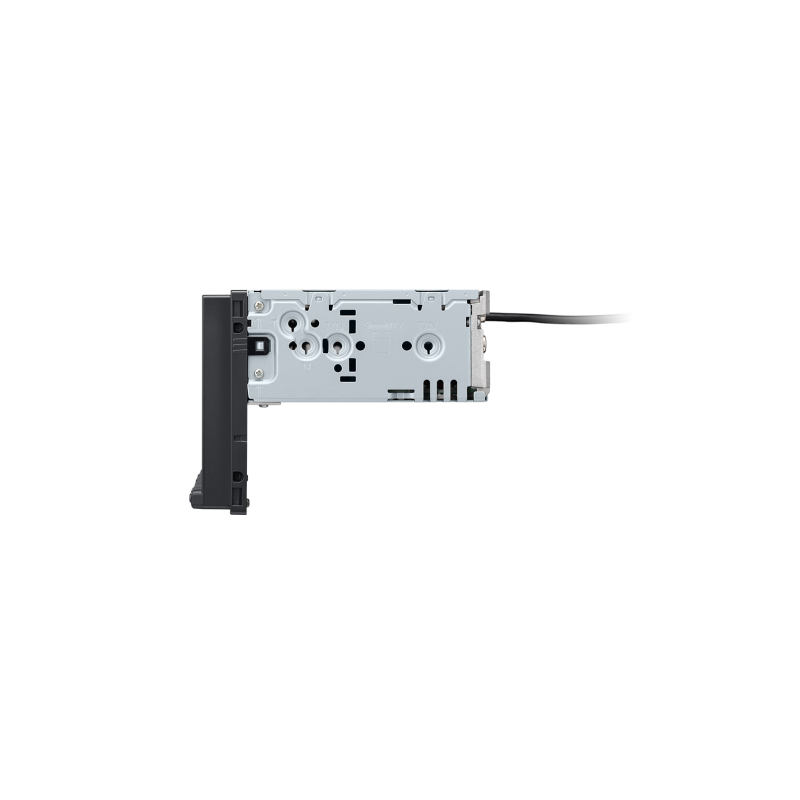

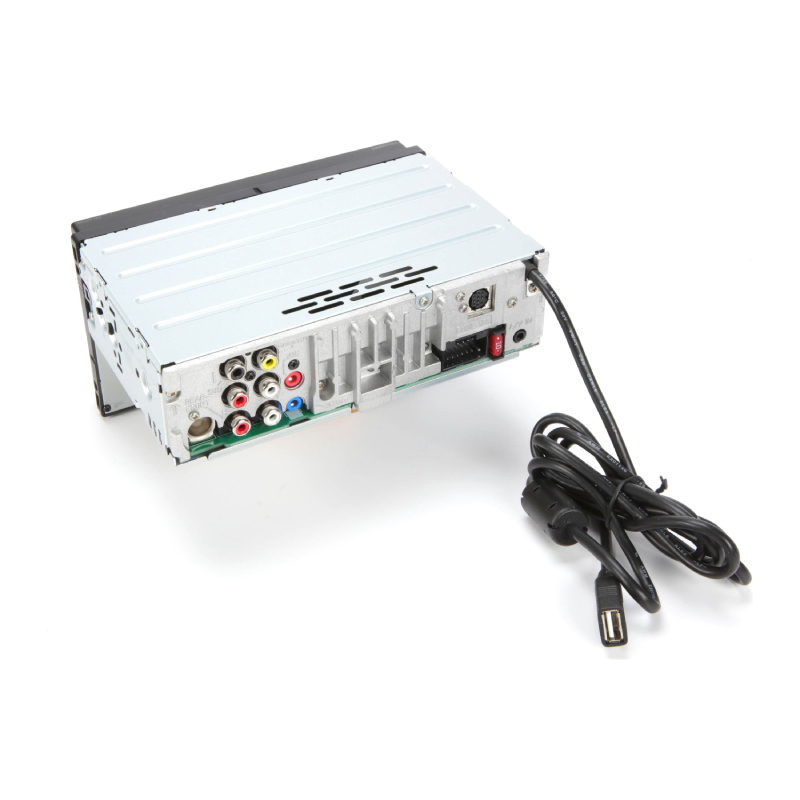

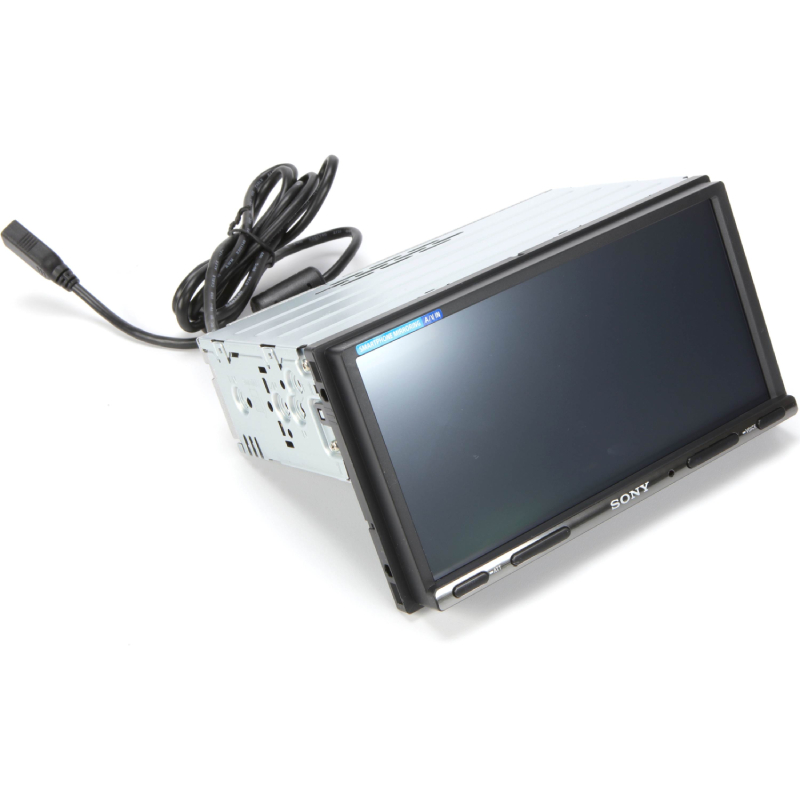

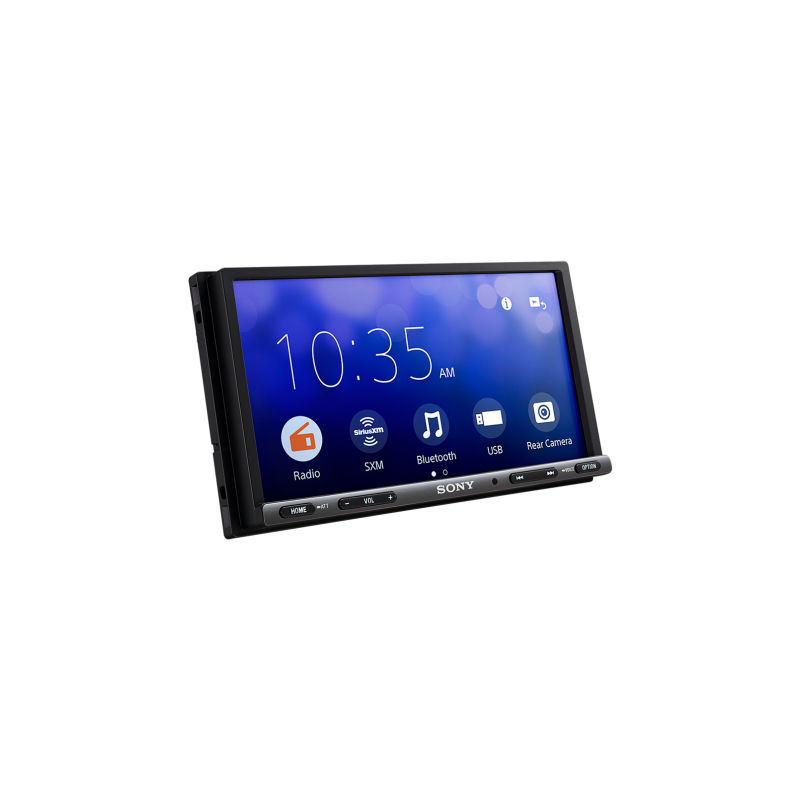

Sony XAV-AX3200 1-DIN 6.95" Digital Media Receiver
Full smartphone integration and enhanced connectivity

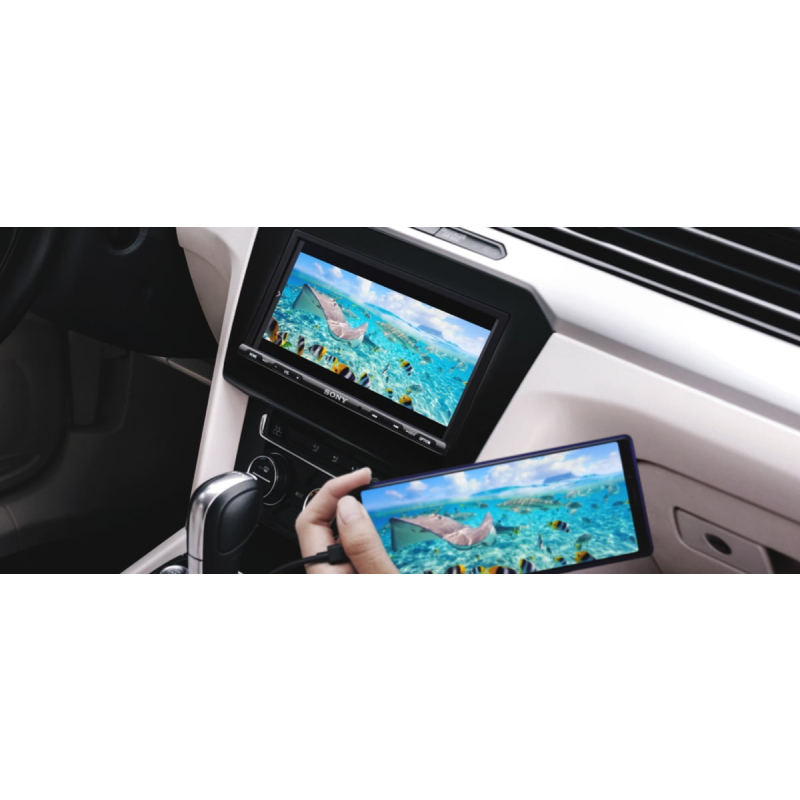

Enjoy smartphone connectivity including screen mirroring with WebLink™1. An anti-glare 6.95" (17.6cm) diagonal touchscreen wakes up right after turning on the ignition2 and gives you intuitive control over music, communications, and more. Newly added A/V connectivity allows you to hook up an external audio or visual source device.
Siri with Apple CarPlay
Easily access the iPhone features you know and love, just by talking to Siri. Music, maps, phone calls and messages are all under your control.

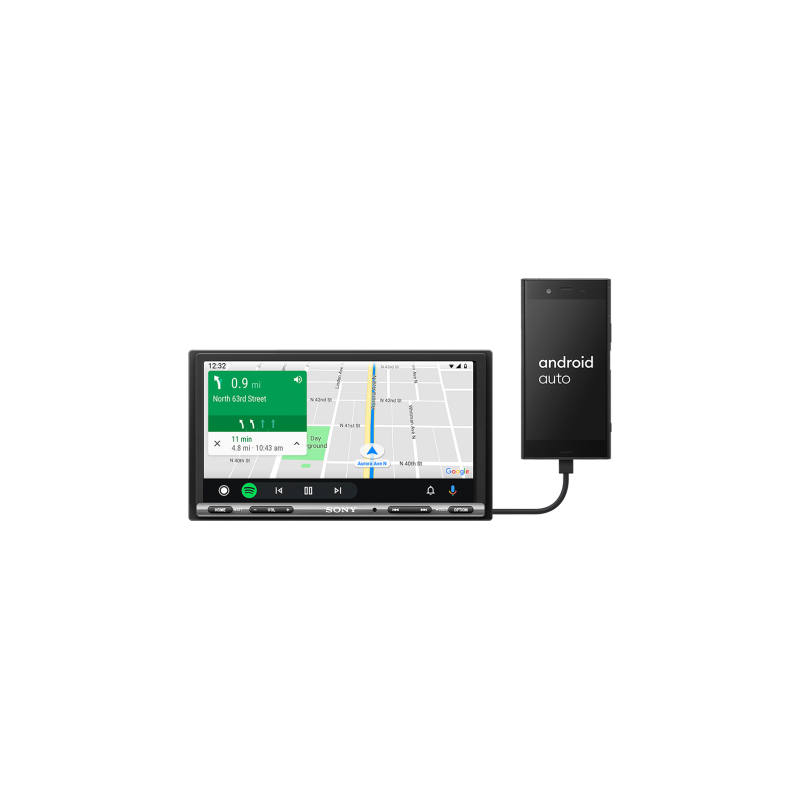

Voice Control with Android Auto
Use voice commands to dictate messages, take phone calls, or get help from Google Maps. You can even control music playback, just by talking.

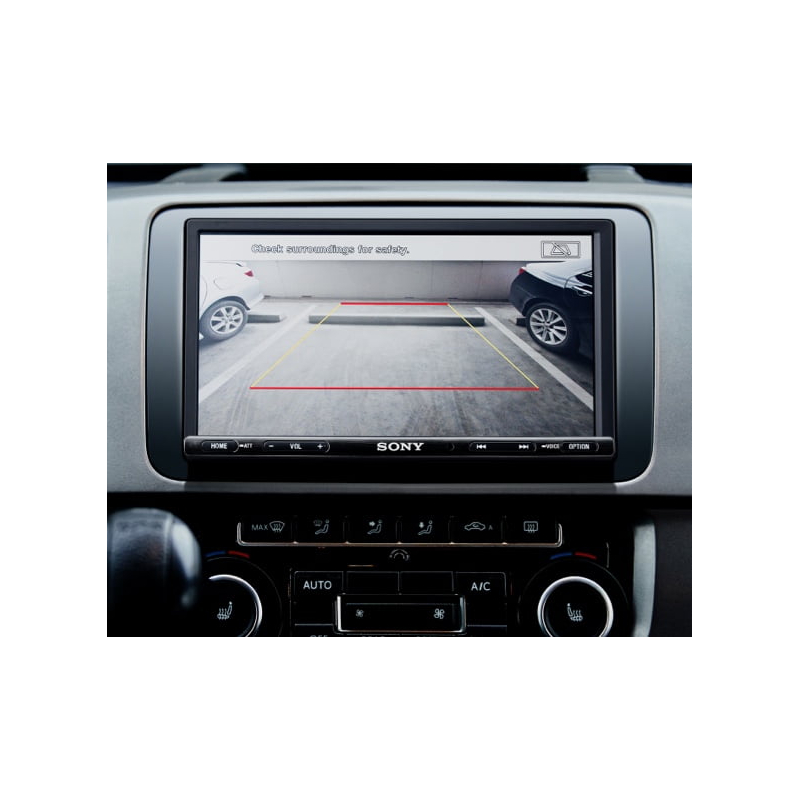

Rear camera ready for easy reversing
If you've got a rear camera installed, you can use it to help you park. Whenever you tap the rear camera icon or put your vehicle in reverse, the video feed instantly comes up on screen. Customisable guidelines help you to back in smoothly and safely.

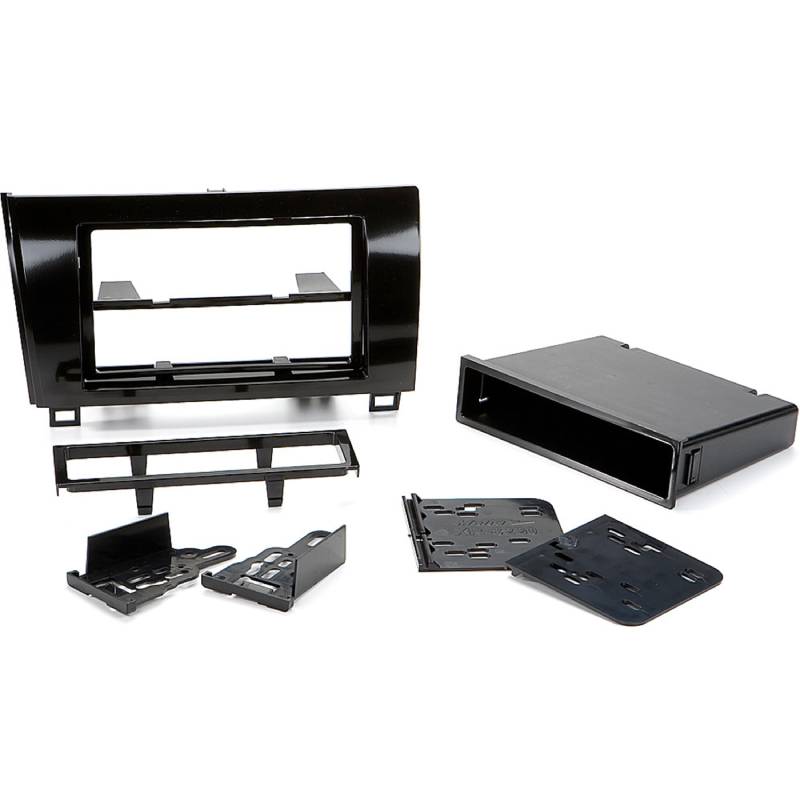

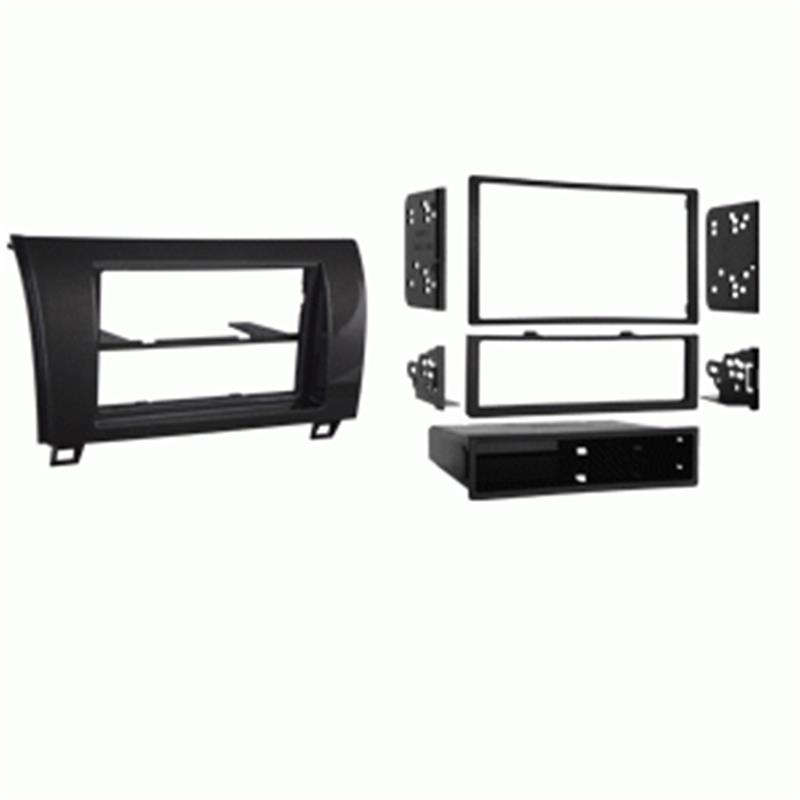

Metra 99-8220CHG Single/Double DIN Installation Dash Kit
Single/Double DIN Dash Installation Kit for 2010-Up Toyota Tundra Vehicles
This Dash Kit Accommodates ISO single/double DIN mount, Stacked iso single din mount provision, Designed and manufactured with precision tolerances, resulting in a gapless fit between the dash and the kit, Painted high gloss charcoal to match factory dash color, High-grade ABS plastic construction, Factory style texture, All necessary hardware to install an aftermarket radio

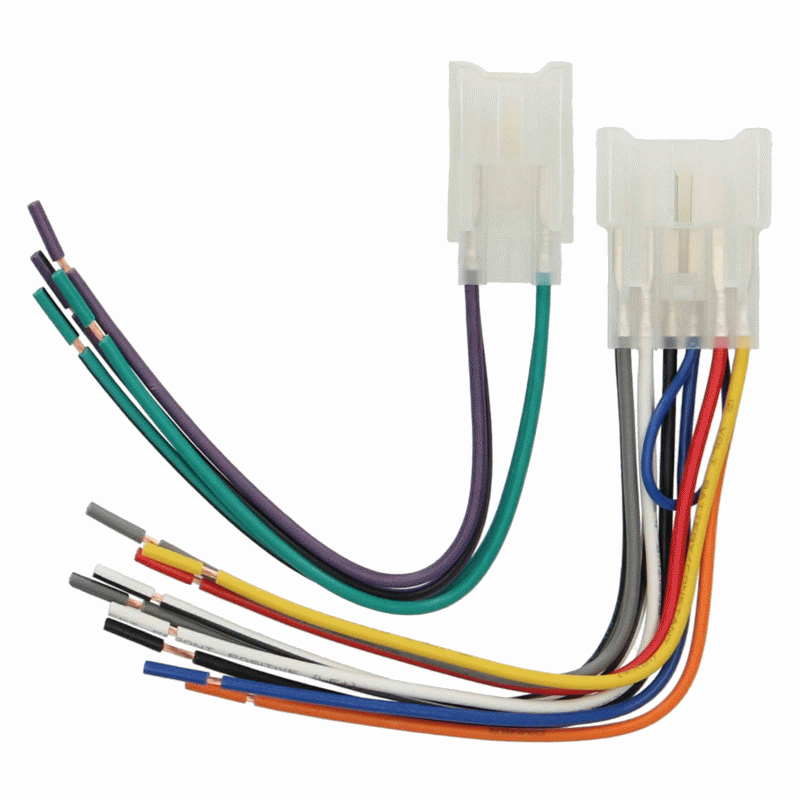

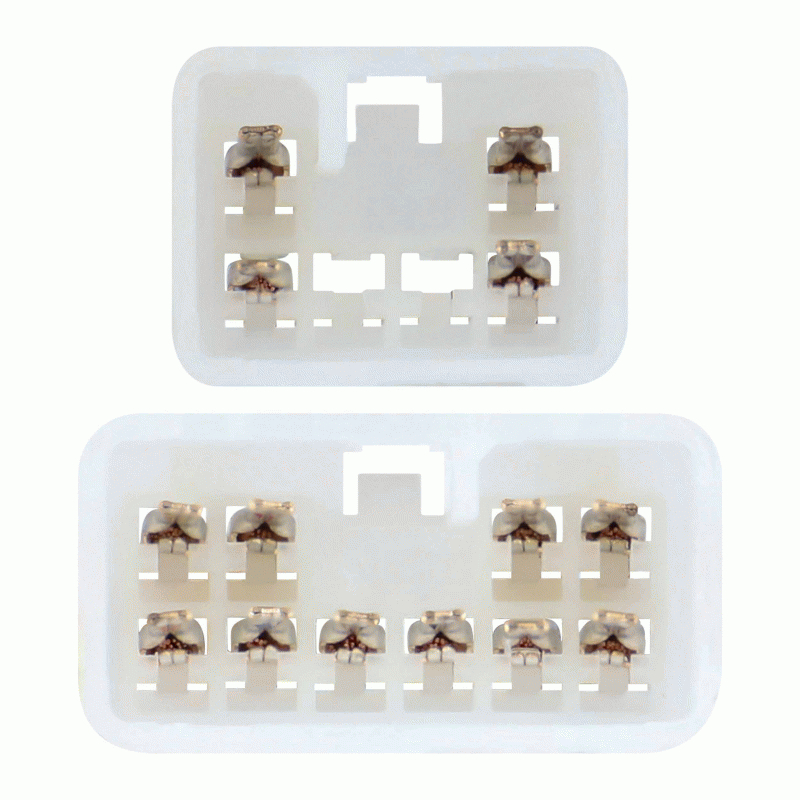

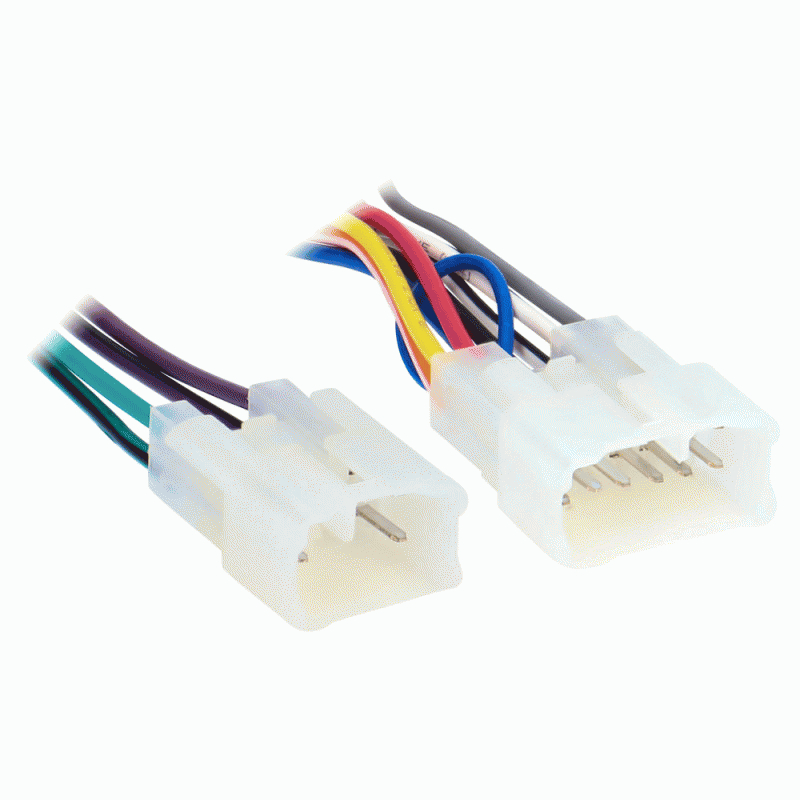

Metra 70-1761 Toyota 1987-Up - Into Car Harness
Vehicle-specific wiring harness
This vehicle-specific wiring harness adapter makes connections between your new car stereo and your car's electrical system. It works with select 1987-up Toyota, Lexus, Scion, Subaru, and Geo vehicles. It Allows installation of an aftermarket radio using the existing factory wiring and connectors. No cutting of factory wiring is needed.

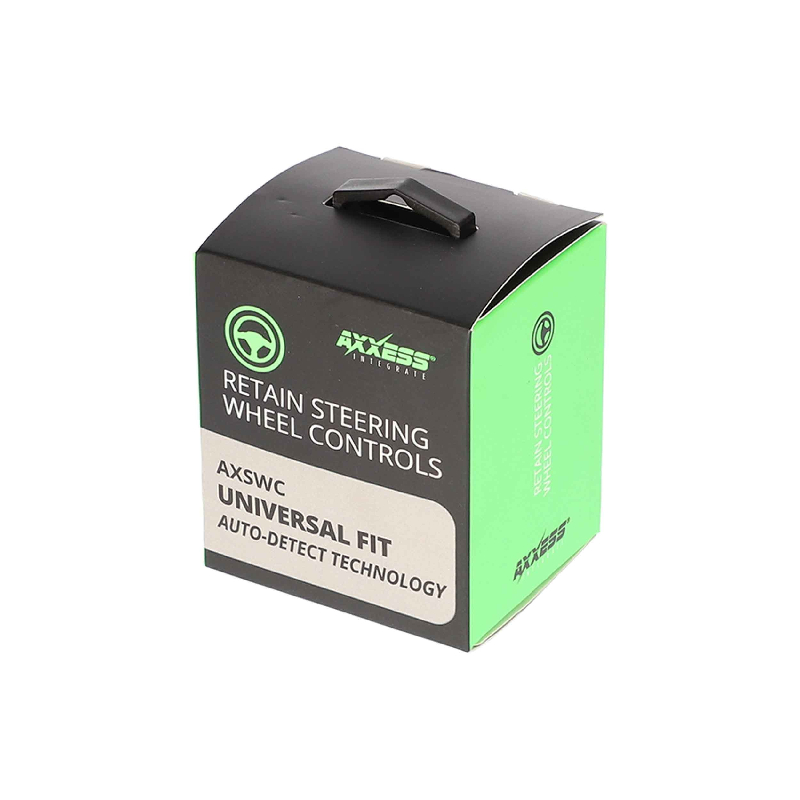

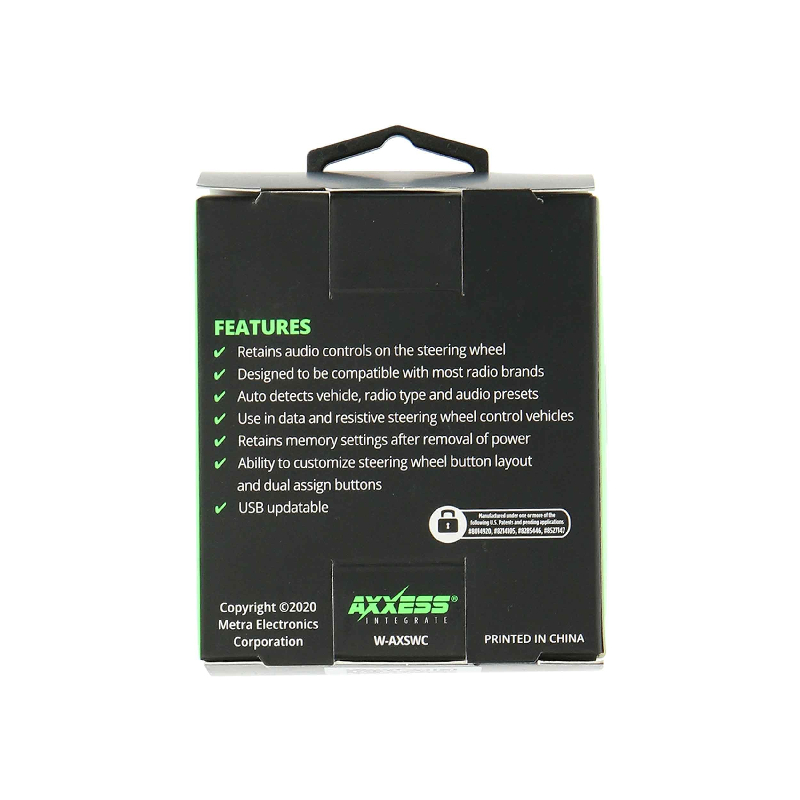

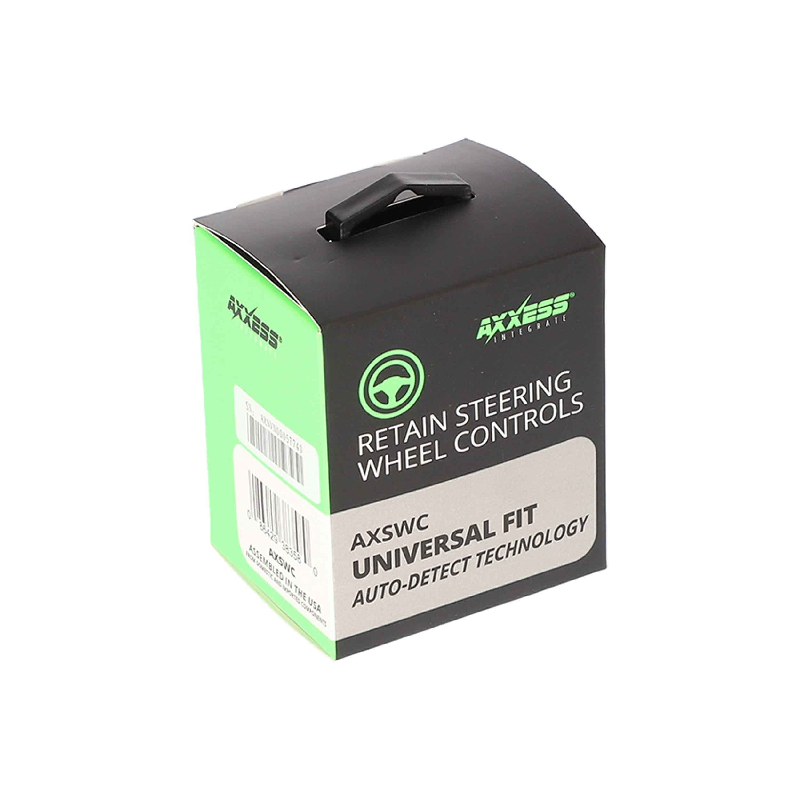

Axxess AXSWC Universal Steering Wheel Control Interface
Steering Wheel Control Interface
One Interface does it all – No additional interfaces needed, Designed to be compatible with all major radio brands, Auto detects (1) vehicle type, radio connection, and presets controls, Ability to dual assign steering wheel control buttons, Can be manually programmed for most vehicles, Retains settings even after battery disconnection or interface removal, All connections done at the radio location, Micro “B” USB updatable

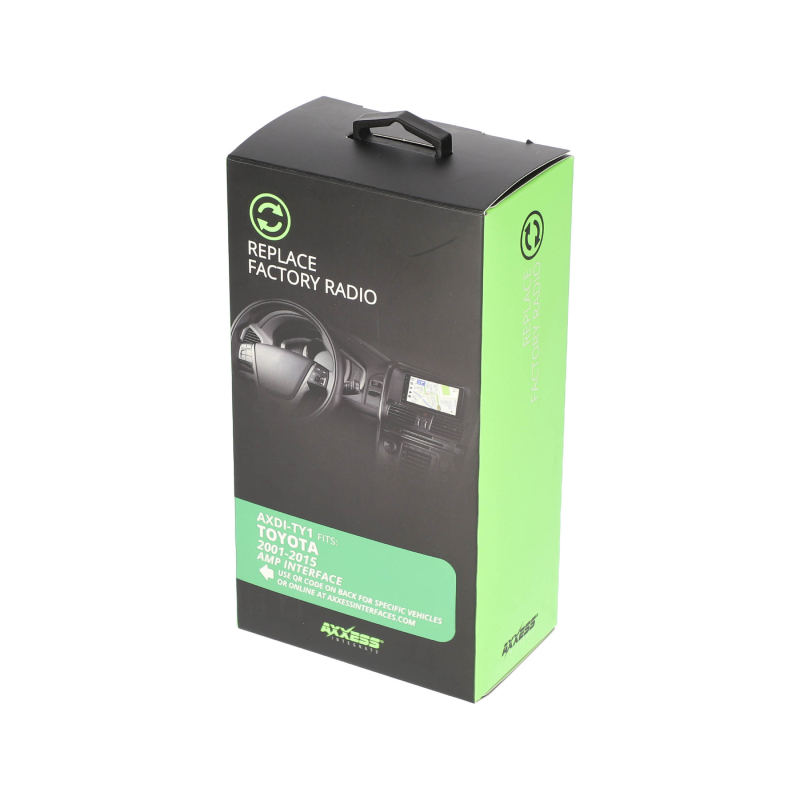

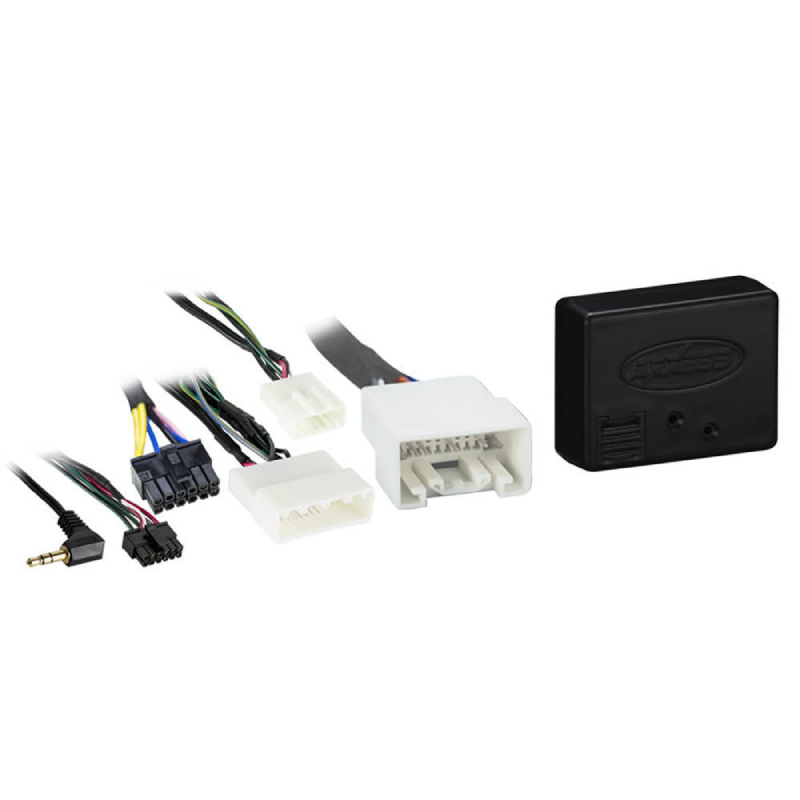

Axxess AXDI-TY1 Lexus/Toyota Amp Interface 2001-2015
Designed for amplified models
Pre-wired AXSWC harness (AXSWC sold separately), Retains the factory AUX-IN jack (less Avalon 2005-2010), Designed for amplified models, Retains balance, Micro B USB updatable
- Vehicle Make : Toyota
- Vehicle Model : Tundra
Sony XAV-AX3200 1-DIN 6.95" Digital Media Receiver with WebLink™ Cast, Apple CarPlay and Android Auto
Specifications:
- DIMENSIONS (W X H X D): 178x100x139mm
- WEIGHT: 1.0kg
- General Features
- OUTPUT POWER: 55W x 4
- PRE OUT: 3 Pre (Front / Rear / Sub x 1)
- REAR VIEW CAMERA IN: Yes
- USB: Yes (Rear x1)
- FIRMWARE UPGRADABILITY: Yes

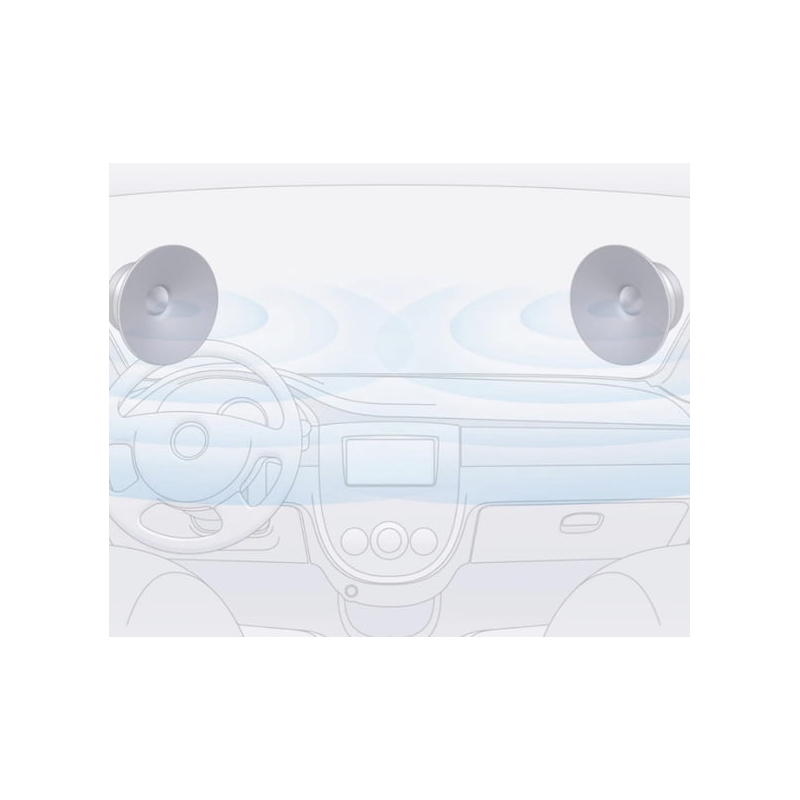

- DSO (DYNAMIC STAGE ORGANIZER): Yes
- EQUALIZER: 10-band Graphic Equalizer
- EXTRA BASS: Yes (Off / 1 / 2)
- BLUETOOTH®: Yes
Tuner Features
- PRESET: FM18 / AM12
- AUTO MEMORY: BTM
- RDS / EON: Yes (RDS)
Bluetooth Profile
- HFP: Yes (1.6)
- A2DP: Yes (1.3)
- AVRCP: Yes (1.3)
- PBAP: Yes (1.1)
Bluetooth Features
- SPEED DIAL: Yes (6 memories)
- RECENT CALLS (# OF): Yes
- LAST DIALED CALL: Yes (select from the dialed call history)
- PHONEBOOK ACCESS VIA PBAP: Yes
- ALPHABETICAL PHONEBOOK SORTING: Yes
- RING VOLUME LEVEL CONTROL: Yes
- CALL VOLUME LEVEL CONTROL: Yes
- EXTERNAL MICROPHONE: Supplied
- BATTERY REMINDER: Yes
- SIGNAL STRENGTH INDICATION: Yes
Bluetooth Audio Features
- AUDIO CODEC (BLUETOOTH AUDIO): SBC / AAC
- PAUSE (BLUETOOTH AUDIO): Yes
- CUE / REV: Yes
- TRACK +/-: Yes
- GROUP (FOLDER) +/-: Yes
- AUDIO LEVEL ADJUSTMENT: Yes (-6dB to +6dB)
- REPEAT CONTROL (AUDIO DEVICE SIDE): Yes
- SHUFFLE CONTROL (AUDIO DEVICE SIDE): Yes
- META DATA INDICATION: Yes
Panel Design
- PANEL SURFACE FINISH COLOR: Black
- KEY ILLUMINATION: Yes (White)
Monitor(AVC)
- LCD TYPE: TFT Active Matrix
- SCREEN ASPECT: 17: 9
- SCREEN DIAGONAL (INCH / MM): 6.95 inch
- SCREEN SIZE (W X H MM): 156.6 x 81.6 (mm)
- RESOLUTION (DOT): 800 x 480
- DIMMER: Yes
- CONTRAST RATIO: 400
- BRIGHTNESS: 500cd / m2
Display Panel
- KEY ILLUMINATION INITIAL: Yes (White)
- DIMMER ADJUST: Yes
User Interface
- TOUCH PANEL: Yes / Resistive / AG
- GESTURE COMMAND: Yes
- REMOTE COMMANDER: RM-X170
- PARKING CONTROL: Yes
- PARKING LINE ADJUST: Yes
- ASPECT RATIO SELECT: Yes
- REAR VIEW CAMERA-IN MARKER SETTING: Yes
- USB Mass Storage Device Control Feature
- USB DEVICE CONTROL (REPEAT): TRACK / FOLDER / DRIVE
- USB DEVICE CONTROL (SHUFFLE): OFF / FOLDER / DEVICE
- USB DEVICE CONTROL (PAUSE): Yes
- USB DEVICE CONTROL (RESUME PLAY): Yes
- USB DEVICE CONTROL (AUDIO CODEC): PCM / MP3 / WMA / AAC / FLAC
- USB DEVICE CONTROL (AUDIO PLAYABLE FILE EXTENSION): .wav / .mp3 / .wma / .m4a / .flac
- USB DEVICE CONTROL (VIDEO CODEC): MPEG4-SP / AVC (H.264 Baseline) / WMV / MKV / XviD
- USB DEVICE CONTROL (VIDEO PLAYABLE FILE EXTENSION): .mp4 / .wmv / .mkv
Multi-Language
- MENU: English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
- CAUTION: English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
- ID3 TAG: English / Spanish / French / German / Italian / Russian / Portuguese / Thai / Simplified Chinese / Traditional Chinese / Korean / Arabic / Indonesian
What's In The Box
- External Microphone
- Remote
- Instruction Manual
99-8220CHG Single/Double DIN Dash Installation Kit for 2010-Up Toyota Tundra Vehicles
Features:
- Single/Double DIN Installation Dash Kit
- For 2010-Up Toyota Tundra vehicles
- Accommodates ISO single/double DIN mount
- Stacked iso single din mount provision
- Designed and manufactured with precision tolerances, resulting in a gapless fit between the dash and the kit
- Painted high gloss charcoal to match factory dash color
- High-grade ABS plastic construction
- Factory style texture
- All necessary hardware to install an aftermarket radio
70-1761 Toyota 1987-Up - Into Car Harness
- Allows installation of an aftermarket radio using the existing factory wiring and connectors. No cutting of factory wiring is needed.
AXSWC Universal Steering Wheel Control Interface, Works with Many Popular Aftermarket Receivers - NEW MODEL that replaced the ASWC-1
Features:
- One Interface does it all – No additional interfaces needed
- Designed to be compatible with all major radio brands
- Auto detects (1) vehicle type, radio connection, and presets controls
- Ability to dual assign steering wheel control buttons
- Can be manually programmed for most vehicles
- Retains settings even after battery disconnection or interface removal
- All connections done at the radio location
- Micro “B” USB updatable
AXDI-TY1 Lexus/Toyota Amp Interface 2001-2015
Features:
- Pre-wired AXSWC harness (AXSWC sold separately)
- Retains the factory AUX-IN jack (less Avalon 2005-2010)
- Designed for amplified models
- Retains balance
- Micro B USB updatable
Vehicle Applications:
Lexus
ES Series 2007-2012
- ES Series
- ES300 (multi CD radio only) 2002-2003
- ES330 (multi CD radio only) 2004-2006
- GS Series 2001-2005 (1)
- IS Series 2002-2005
- LS Series 2001-2006 (2)
- RX Series 2004-2009
- SC Series 2002-2010 (1)
- UPC: 713783635795
- Weight: 12
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
