Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
Jeep Radio Replacement-Bundle18 includes JVC KW-Z1000W 10.1" Digital Media Receiver w/ Apple CarPlay, Android Auto + Metra 95-6511-17 Radio Dash Installation Kit + Axxess AXDIS-CH5 Data Interface w/ SWC
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • JVC KW-Z1000W
- • Metra Electronics 95-6511-17
- • Axxess AXDIS-CH5

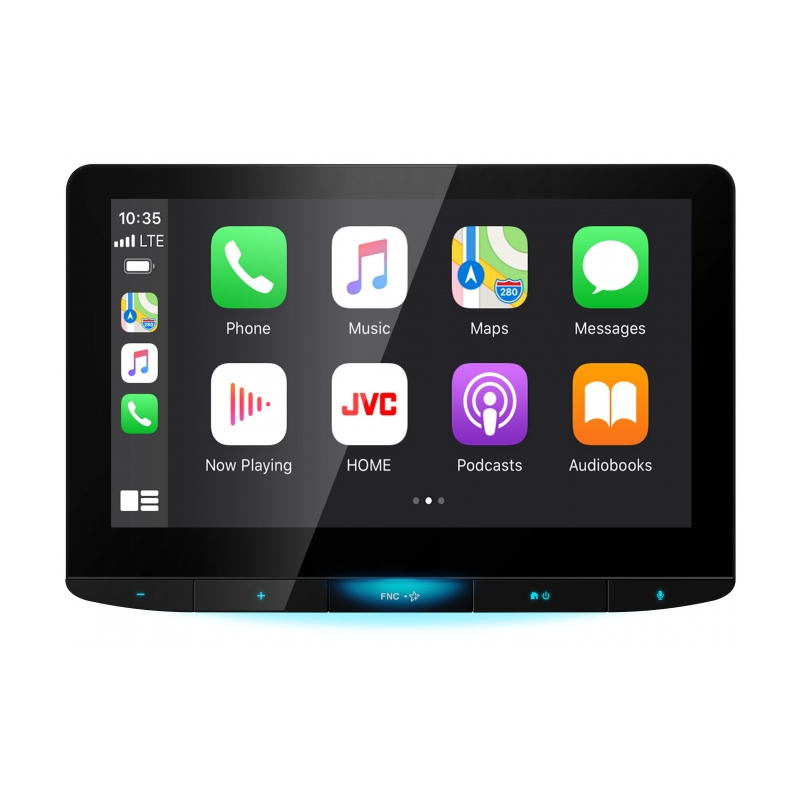

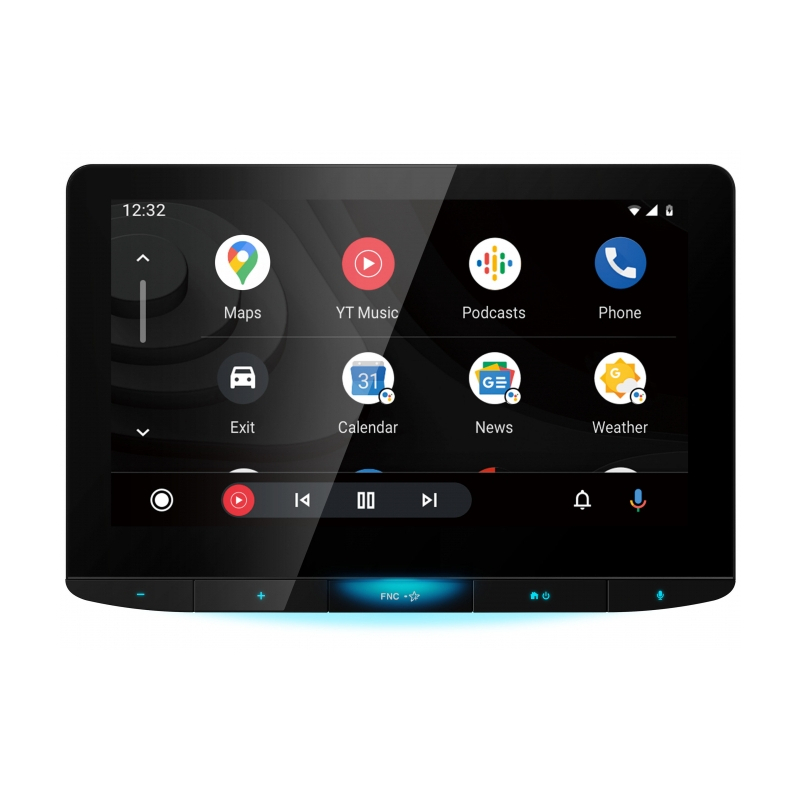

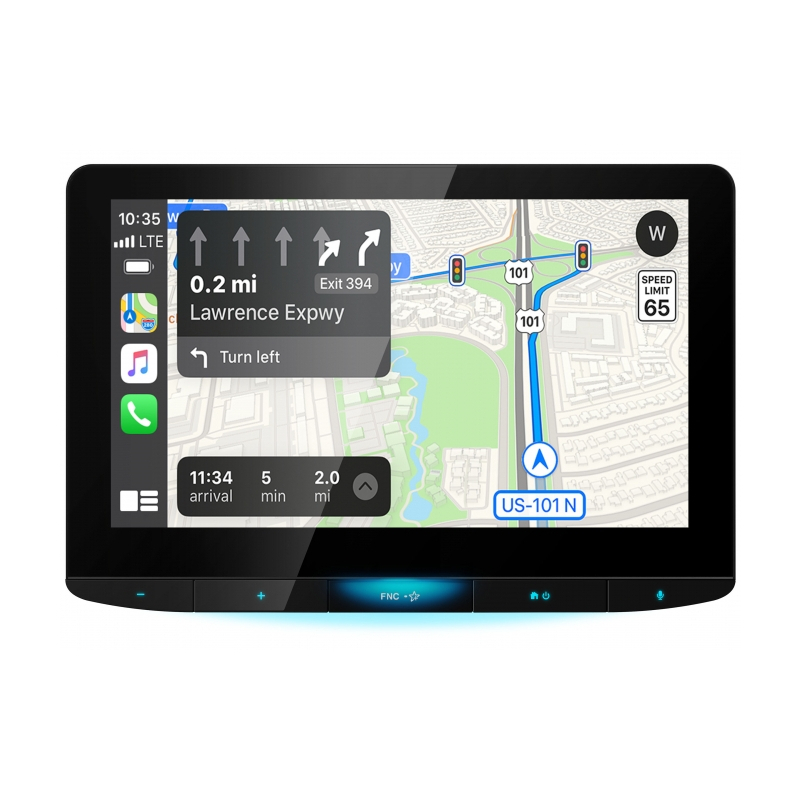

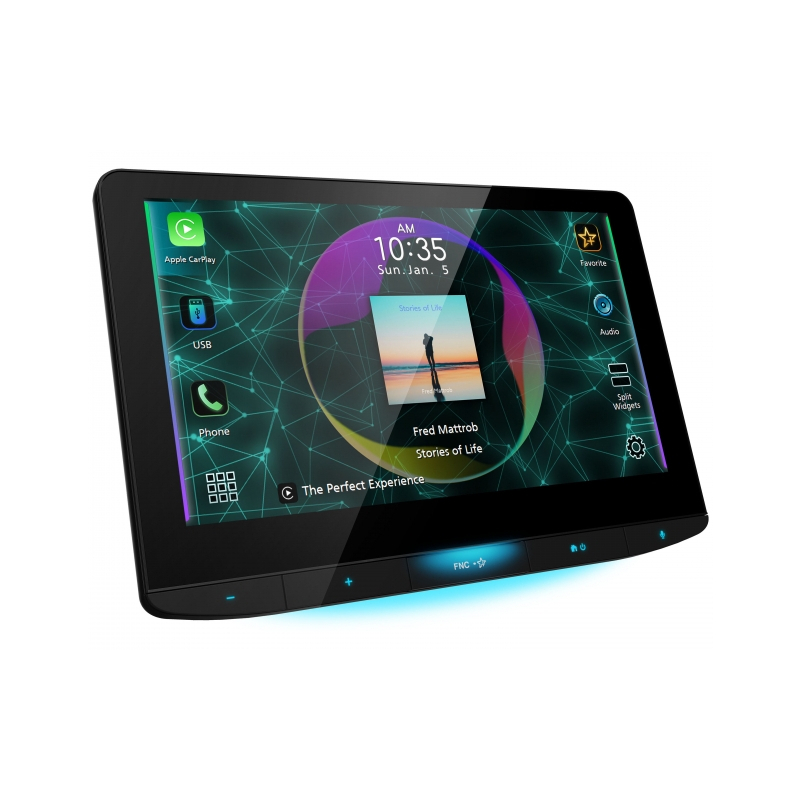

JVC KW-Z1000W
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. Android Auto is a simpler, safer way to use your phone in the car. Just plug in your phone – or in select models, connect wirelessly – and you’ll get all your favorite maps, media, and messaging apps on your car display. The large-screen 10.1” HD display is about 2.4 times higher resolution than the conventional WVGA panel. iDatalink Maestro RR (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles.
Metra Electronics 95-6511-17
This stereo installation kit is engineered to help you install an aftermarket 4” tall (Double-DIN) radio into the original vehicle dashboard. This dash kit helps make radio replacement simple and is textured to match the original look and feel of the vehicle’s dashboard. Two sizes of trim panels are included to accommodate long or short nose Double-DIN radios. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn’t offer but requires this dash kit to make it fit.
Axxess AXDIS-CH5
The AX-Series with built-in steering wheel control technology allows for an easy install solution of one interface to provide the functions that are needed when replacing a factory radio. Your easy-to-install radio replacement solution just got even easier. The AX-Series with built-in SWC retention now features our patented Axxess auto-detect technology, a new reset button and clean cloth taped harnessing.
- Vehicle Make : Jeep
- Vehicle Model : Compass
- Vehicle Model : Cherokee
KW-Z1000W 10.1" HD Screen, Wireless Apple CarPlay, Wireless Android Auto, HDMI Input, 4-Cam Input, High-Resolution Audio, iDatalink Maestro Ready, Bluetooth® , 13-Band EQ, Digital Media Receiver
Features:
- Monitor
- High Definition Monitor: Yes
- Screen Size: 10.1"W HD Screen
- Touch Panel; Capacitive / Bonding
- Monitor Touch Control: Yes
- Customizable GUI: Yes
- Key Illumination Color: Variable
- Dimmer: Yes
- Multilingual Display: Yes[4]
- Wallpaper Capture: Yes
- Live Wallpaper: Yes
Media Playback
- MP3 Compatible with Tag: USB
- WMA Compatible with Tag: USB
- WAV Compatible with Tag: USB
- AAC Compatible with Tag: USB
- FLAC Compatible with Tag: USB( Up to192kHz/24bit )
- DSD Compatible with Tag: USB
- H.264 Compatible: USB
- WMV Compatible: USB
- MPEG 1/2 Compatible: USB
- MPEG 4 Compatible: USB
- AVI/MKV Compatible: USB
- JPEG File Playback: USB
- PNG File Playback: USB
- BMP File Playback: USB
Bluetooth Control
- Built-in Bluetooth[1]: Yes (Version 5.0, Wired-Mic included)
- Hands Free Call: Yes (HFP1.7 Wideband Speech)
- 2 Phones Full-Time Connection: Yes
- Audio Streaming & Control (A2DP, AVRCP): Yes
- Supported Audio Formats: LDAC / AAC / SBC
- 5 BT-Audio Connection: Yes
- Voice Dialing (voice recognition compatible mobile phone required): Yes
- Phone Book Access Profile (PBAP): Yes
- Alphabetical Search for Phone Book: Yes
- Auto Pairing for iPhone/Android: Yes
Wi-Fi Control
Android Control
- Android Auto[2]: Yes (via Wi-Fi or USB)
- Mirroring for Android: Yes (via Wi-Fi or HDMI)
- Android Music Playback: Yes (via Bluetooth(R))
- Pandora Control: Yes (Android Auto / Mirroring)
- iHeartRadio Control: Yes (Android Auto / Mirroring)
- Spotify Control: Yes (Android Auto / Mirroring)
iPod/iPhone Control
- CarPlay[3]: Yes (via Wi-Fi or USB)
- Mirroring for iPhone: Yes (via HDMI)
- iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))
- Pandora Control: Yes (CarPlay / Mirroring)
- iHeartRadio Control: Yes (CarPlay / Mirroring)
- Spotify Control: Yes (CarPlay / Mirroring)
USB
- USB Port: x 2 (High Speed)
- Position: Rear
- USB Power Supply: Yes (1.5A High Current Charging)
- Drive Change Mode for Mass Storage Class (selectable from internal/external memory): Yes
Radio Tuner
- SiriusXM Ready: Yes *SiriusXM 360L Ready
- Radio Broadcast Data System (RBDS): Yes
- Preset Stations: 20(FM:15ch, AM:5ch)
- Automatic Presetting (Strong Station Sequential Memory): Yes
- FM
- Frequency Range: 87.9 - 107.9MHz
- AM
- Frequency Range: 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear): 50Wx4
- Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)
- EQ: Yes (13-Band Graphic EQ)
- Preset EQ: Yes (8Preset + 4user)
- Bass Boost: Yes
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- 3-Way X'over: Yes
- High-Resolution Audio: Yes
- K2 Technology: Yes
- Space Enhancement: Yes
- Sound Response: Yes
- Sound Lift: Yes
- Volume Link EQ: Yes
- Time Alignment: Yes
- Dual-Zone Function: Yes
Inputs and Outputs
- AV Input: mini jack + RCA Video(AV-IN or CAM4 switchable)
- Video Out: RCA
- Rear view camera Input: Yes
- Front view camera Input: Yes
- 3rd Camera Input: Yes
- Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
- Pre-output Level/Impedance: 5.0V / 10k ohms
- Subwoofer Output with Level/Frequency Control: Yes
General
- iDatalink Maestro Ready: Yes
- Remote Control Application: Yes
- Back Up Memory: Yes
- Face Type
- Viewing Angle Adjustment: Yes (0 - 20 degree, default : 0 degree) 4 steps
- Wireless Remote Control: Ready (RM-RK258 required)
- Steering Remote Control Ready: Yes
- Learning Direct OEM Remote: Yes
- Dimensions (W x H x D)
- Installation Size: 7" x 3-15/16" x 6-2/16" (178 x 100 x 155 mm)
- Weight: 7.28 lbs. (3.25kg)
95-6511-17 Chrysler Multi-Kit 2007-Up
Features:
- Stereo installation kit designed to fit any standard 4" tall aftermarket radio with an ISO-mount provision
- Textured to match factory dash
- Made from the highest quality ABS plastic for an original factory-like fit and finish
- Includes mounting brackets and detailed installation instructions
- A tech support number is available for installation help 7 days a week
- For updated design that accommodates "short nose" radio faces, use 95-6511
Wiring and Antenna Connections:
Harness
- XSVI-6522-NAV (sold separately)
- CHTO-03 (sold separately)
Antenna Adapter
- 40-EU10 (sold separately)
Application:
Chrysler
- 300/300C 2008-2009
- Aspen 2008-2009
- Sebring 2007-2009
- Town and Country 2008-2009
Dodge
- Avenger 2007-2009
- Caliber 2009
- Challenger 2009
- Charger 2008-2009
- Dakota 2008-2009
- Durango 2008-2009
- Grand Caravan 2008-2009
- Journey 2009 (Modifications to radio cavity required)
- Magnum 2008
- Nitro 2007-2009
- Ram 1500 2009
Jeep
- Compass 2009
- Commander 2008-2009
- Grand Cherokee 2008-2009
- Patriot 2009
- Liberty 2008-2009
- Wrangler 2007-2009 (Modifications to radio cavity required)
- Wrangler Unlimited 2007-2009 (Modifications to radio cavity required)
Mitsubishi
Axxess AXDIS-CH5 Data Interface with SWC for Chrysler/Dodge/Jeep/RAM 2013-Up
Features:
- Provides accessory power (12-volt 10-amp)
- Retains R.A.P. (Retained Accessory Power)
- Provides NAV outputs (parking brake, reverse and speed sense)
- Retains audio controls on the steering wheel
- Retains the factory backup camera (if through the factory radio)
- Retains the factory 3.5mm AUX-IN jack
- High level speaker input
- Can be used in non-amplified or amplified systems
- Micro-B USB updatable
Vehicle Applications:
- Chrysler
- Dodge
- Dart (small screen option) 2013-2016
- Jeep
- Cherokee (Sport trim) 2014-2016
- Compass (Sport trim) 2017.5-Up
- RAM
- 1500/2500/3500 (small screen option) 2013-2017
- Chassis Cab 3500/4500/5500 (small screen option) 2013-2017
- UPC: 798418840072
- Weight: 17
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
