8-Channel Full Range Class-D Amplifier with 10-Channel Digital Sound Processor 75Wx8 @ 2 Ohms-13.8V - 150Wx4 @ 4 Ohms Bridged-13.8V
We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 1 - D8 8-Channel Full Range Class D Amplifier with 10-Channel DSP
- • 1 - Owner’s Manual
- • 1 - High Level Input Harness
- • 1 - Low Level (RCA) Input Harness
- • 1 - High Level Output Harness
- • 1 - USB Tuning Cable
- • 1 - Extra 40-amp ATC Fuse
- • 1 - Mounting Hardware
Extremely compact audio power plant

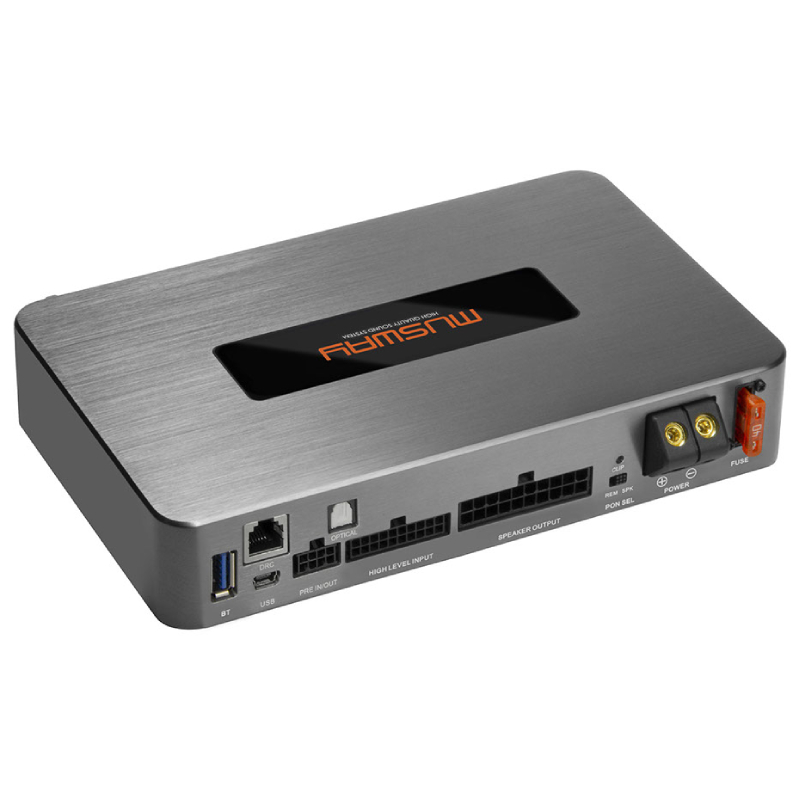

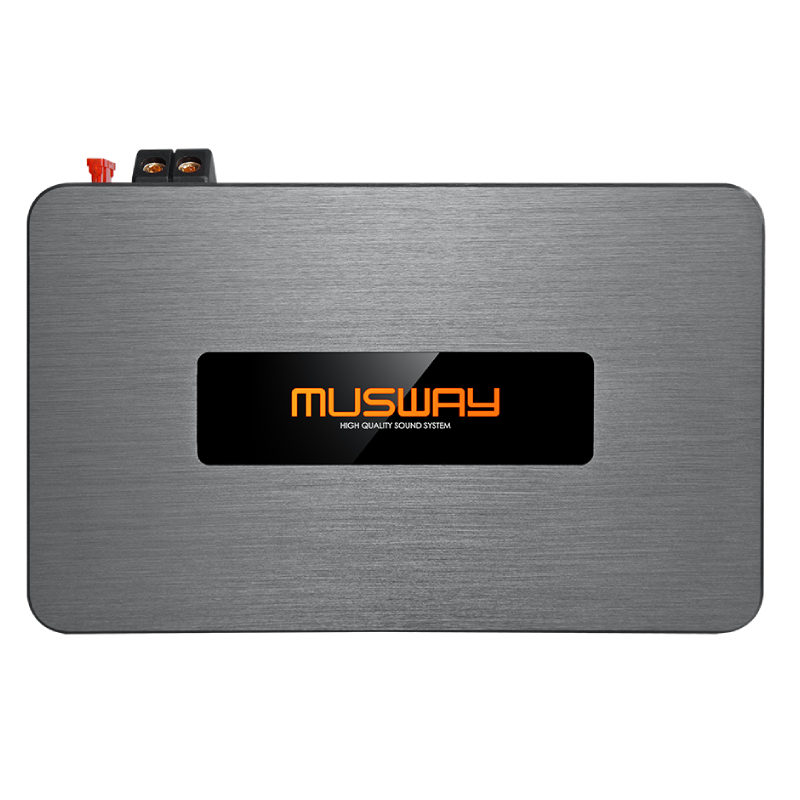

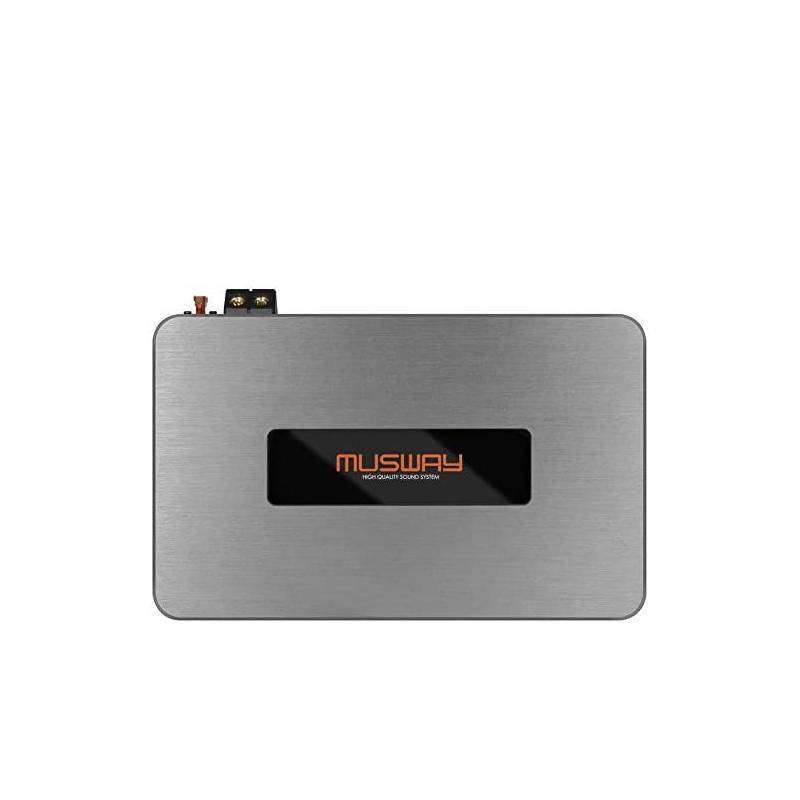

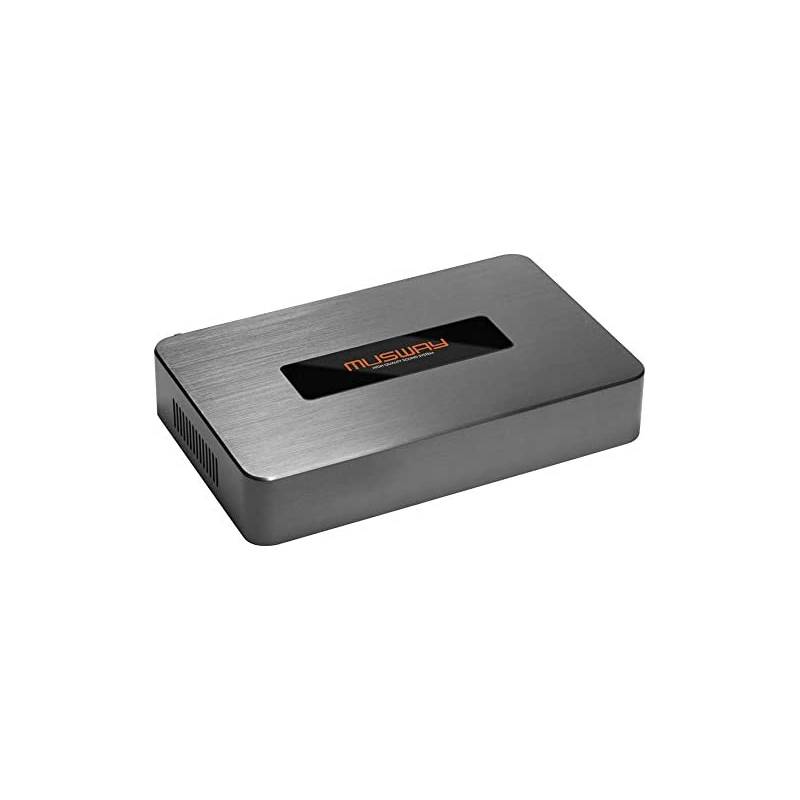

The MUSWAY D8 is an extremely compact audio power plant in a shapely housing with eight amplifier channels and 10-Channels of Digital Sound Processing. The D8 features 8 x 50/75 watts at 4/2 ohms and is bridgeable at 150 watts x 4 at 4 ohms. The centerpiece is the high end dual 32 bit, 330 MIPS DSP processors from Texas Instruments which are controllable via PC software or the new MUSWAY app for your smartphone or tablet.
Product Highlights:
• Start-Stop Ready
• EPS (Intelligent High-Level Input-Error Protection System)
• Brushed Aluminum Heat Sink and End Panels
• Auto Turn On via DC Offset or Signal Sensing
• Utilizes 4-fold Laminated Circuit Boards that allows for Small Size and Effectively Suppresses EMI (RF) Interference Which is a Must with Full Range Class D Amplifiers.
• Clipping LED’s

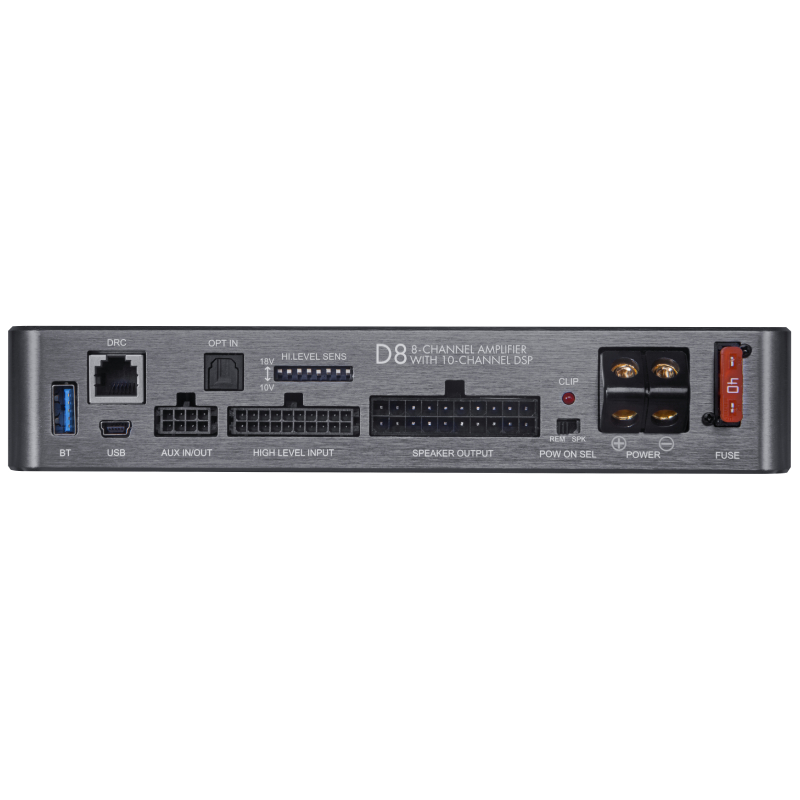

• Inputs: 8 x High-Level, 2 x AUX/RCA, 1 x Optical
• Outputs: 8 x High-Level, Low-Level 2 x Pre-Amplifier Outputs RCA (configurable via DSP with up to 6.5v)
• With the Easy-to-use MUSWAY PC Software, the D8 can be Configured Perfectly and in Real Time via PC or the New App (via the optional BTA2) for Your Smartphone or Tablet.
• With the 3 Optional USB Bluetooth Dongles you can Stream Audio (BTS), Stream aptX HD Hi Res Audio (BTS HD) and can stream Audio and have App Control for DSP Tuning from your Smartphone or Tablet (BTA2)
• Also Available is the Optional DRC1 Digital Remote Control with OLED Display that puts the Control of your Audio System at your Fingertips.
Optional Accessories
BTA2
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming and APP Tuning
For Use on the M4+, M6, D8, M12, DSP68 and TUNE12
Dimensions (H x L x W) 0.4” x 2.4” x 1.4”
BTS-HD
aptX HD USB Bluetooth Dongle for Hi-Res Audio Streaming
For use with TUNE12, DSP68, M6v3, M4+v3, M12.
BTS
Bluetooth USB - Dongle
External Bluetooth USB Dongle for Audio Streaming
For Use on the M4, M4+, M6, D8, and DSP68
Dimensions (H x L x W) 0.4” x 2.4” x 1.4”
DRC1
Digital Remote Control
Adjustable Master Volume and Subwoofer Level
Signal Source Selector: High Level, Bluetooth, Auxiliary or Optical
Selectable Mute . Set Channel Pair for Subwoofer Level
For Use on the M4+, M6, D8 and DSP68
Dimensions (H x L x W) 0.5” x 2.3” x 1.3”
P2
2-Channel Micro Class D Amplifier
Mini Amplifier to Drive Subwoofer
2x100W RMS @ 2 Ohms
2x80W RMS @ 4 Ohms
Dimensions (H x L x W) 1.4” x 4.9” x 3.0”
Product Highlights:
- Start-Stop Ready
- EPS (Intelligent High-Level Input-Error Protection System)
- Brushed Aluminum Heat Sink and End Panels
- Auto Turn On via DC Offset or Signal Sensing
- Utilizes 4-fold Laminated Circuit Boards that allows for Small Size and Effectively Suppresses EMI (RF) Interference Which is a Must with Full Range Class D Amplifiers.
- Clipping LED’s
- Inputs: 8 x High-Level, 2 x AUX/RCA, 1 x Optical
- Outputs: 8 x High-Level, Low-Level 2 x Pre-Amplifier Outputs RCA (configurable via DSP with up to 6.5v
- With the Easy-to-use MUSWAY PC Software, the D8 can be Configured Perfectly and in Real Time via PC or the New App (via the optional BTA2) for Your Smartphone or Tablet.
- With the 3 Optional USB Bluetooth Dongles you can Stream Audio (BTS), Stream aptX HD Hi Res Audio (BTS HD) and can stream Audio and have App Control for DSP Tuning from your Smartphone or Tablet (BTA2)
- Also Available is the Optional DRC1 Digital Remote Control with OLED Display that puts the Control of your Audio System at your Fingertips.
Specifications:
- Distortion - THD (1 kHz @ 4 Ohms, 90% Power) 0.05 %
- Bandwidth (-3 dB, 2 V RMS, 4Ohms)15 Hz - 22 kHz
- S/N ratio @ A weighted, 1 V Max. Power 95 dB A
- Damping factor @ 1 kHz, 2 V RMS, 4 70
- Input sensitivity
- 3.5 V-11 V RMS (High-level)
- 1.5 V - 4.5 V RMS (Low-level)
- Input impedance: 13 Ohms (High-level); 47 kOhms (Low-level)
- LOAD IMPEDANCE (MIN):
- 8CH: 2 Ohms
- 4CH - Bridge (1-2) (3-4) (5-6) (7-8): 4 Ohms
- OUTPUT POWER (RMS) @ 13.8 VDC, 1% THD:
- 8CH @ 4Ohms: 50 W x 8
- 8CH @ 2Ohms: 75 W x 8
- 4CH - (Bridge 1/2; 3/4; 5/6; 7/8) @4Ohms: 150 W X4
- Operating Voltage: DC 11 -15V
- Dimension: (H x L x W) 1.5” x 8.0” x 5.0”
- UPC: 6972502090015
- Weight: 8
