Silverado/Sierra Installation Kit for Heigh10® Multimedia Head Unit
We are a Stinger authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

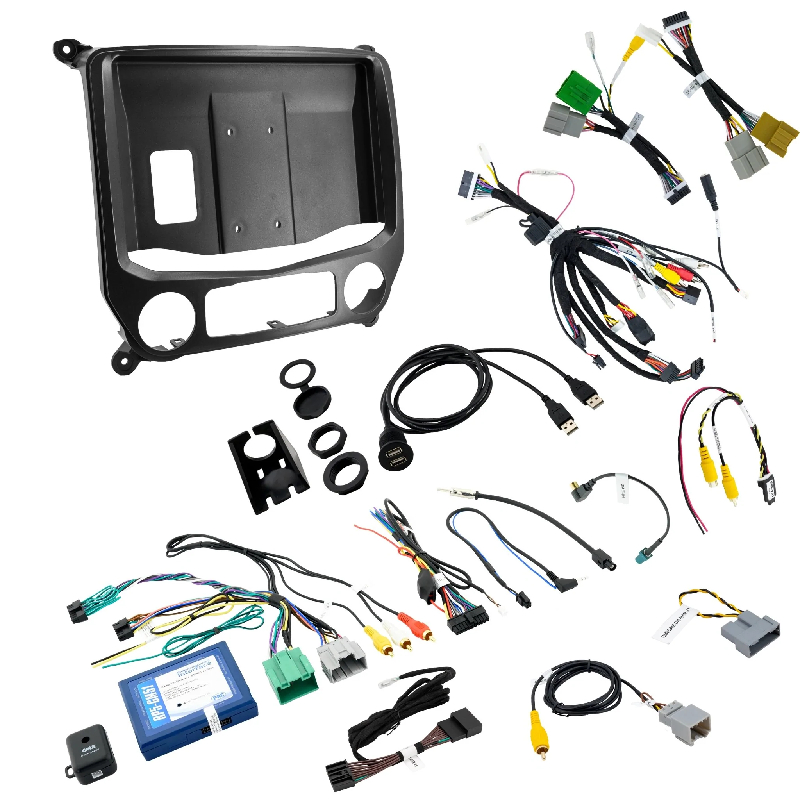

What's Inside?
- • HEIGH10 Display Mounting Panel
- • Dual USB Extension (SSUSB2)
- • AM / FM Antenna Adapter (BAA22)
- • Satellite Antenna Adapter (SAT-01)
- • Main Harness (SR-GM14H-HAR-A)
- • Vehicle Side Harness B (SR-GM14H-HAR-B)
- • Vehicle Side Harness C (SR-GM14H-HAR-C)
- • Radio Replacement Interface (RP5-GM51)
- • Steering Wheel Control Harness (GM5LIN-SW-HAR)
- • Factory Rear Camera Adapter (CAM-GM51)
- • IOB Display Harness (GM5CAM-DIS-HAR)
- • Chime Module (CMX)
- • Differential Video Adapter (RPA-VA1)

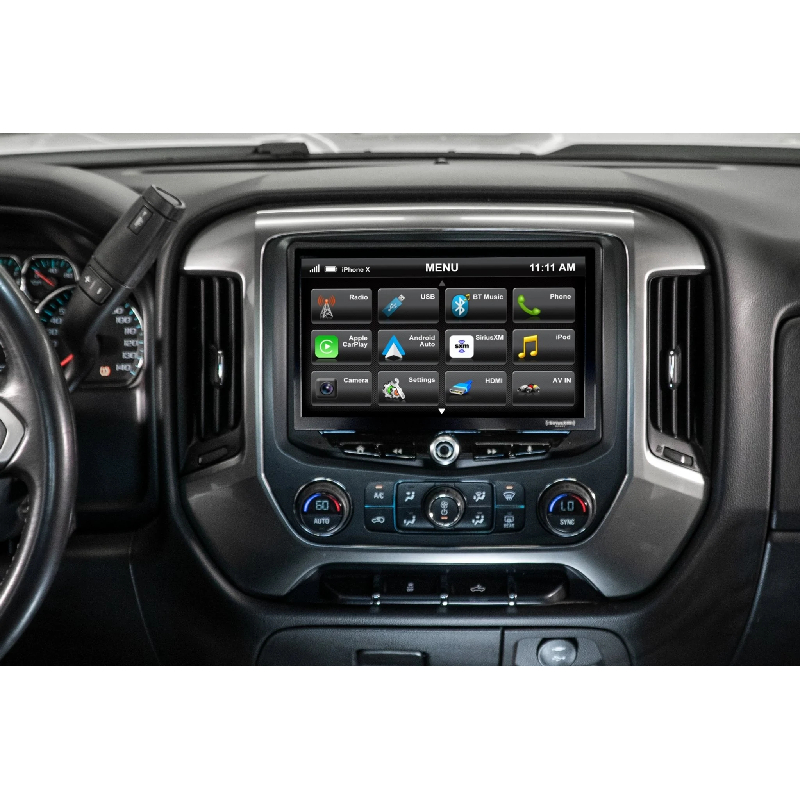

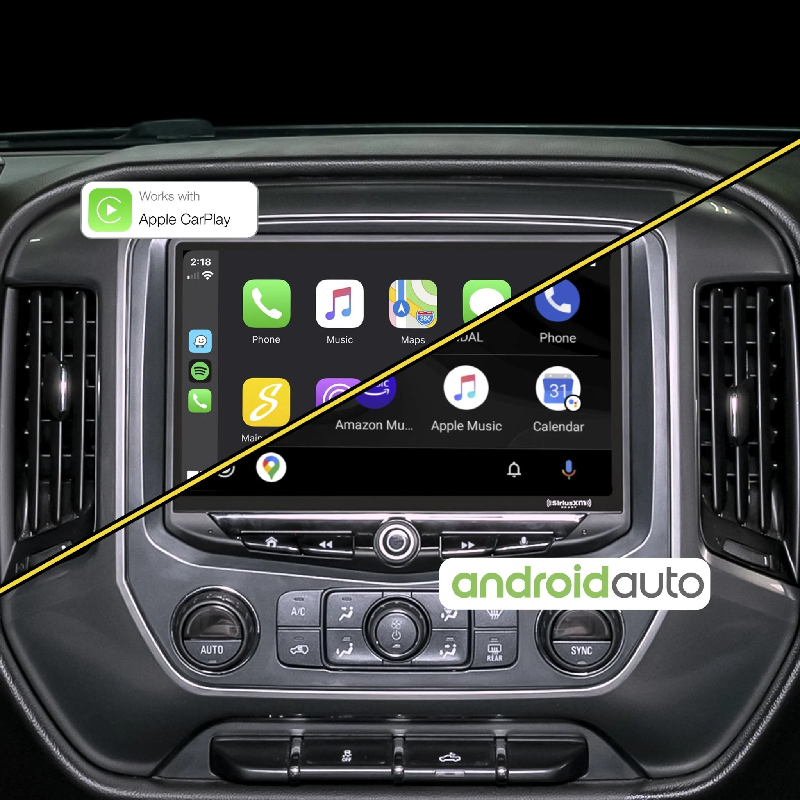

Show-stopping HEIGH10 Infotainment System
PAC's RadioPRO GM full-size truck kit is for Stinger's HEIGH10 multimedia head unit. The SR-GM14H kit enables you to replace a GM factory radio with a show-stopping HEIGH10 infotainment system while retaining most OEM features and maintaining a flush, factory look, and feel. It adds upgraded features, including Apple CarPlay, Android Auto, and more to your GM truck's stereo system!
10-Inch Touchscreen
Features a giant high-resolution, 10-inch capacitive touchscreen with 16.7 million colors for a full visual experience.

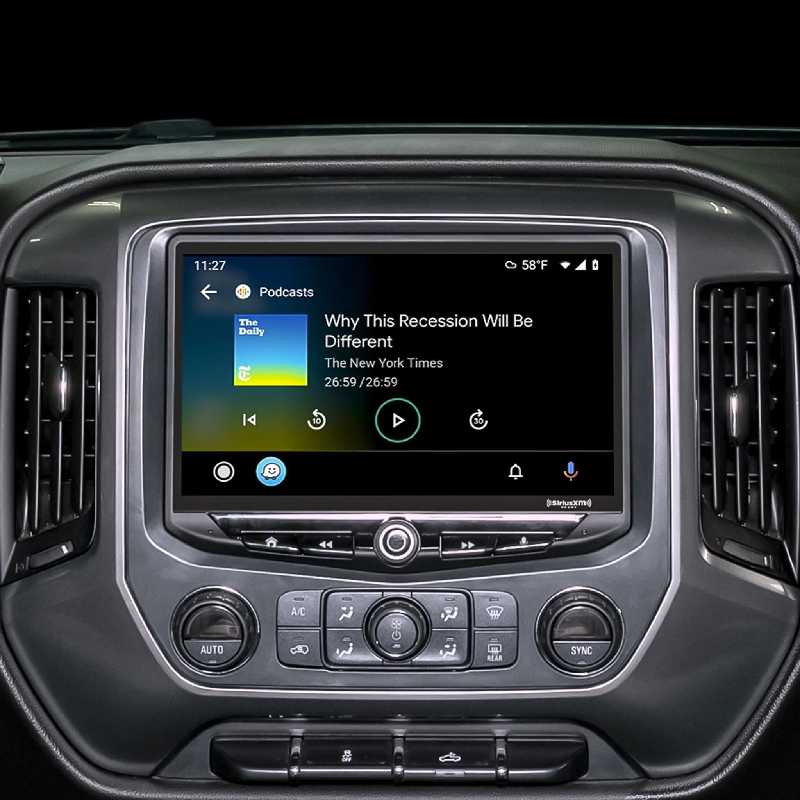

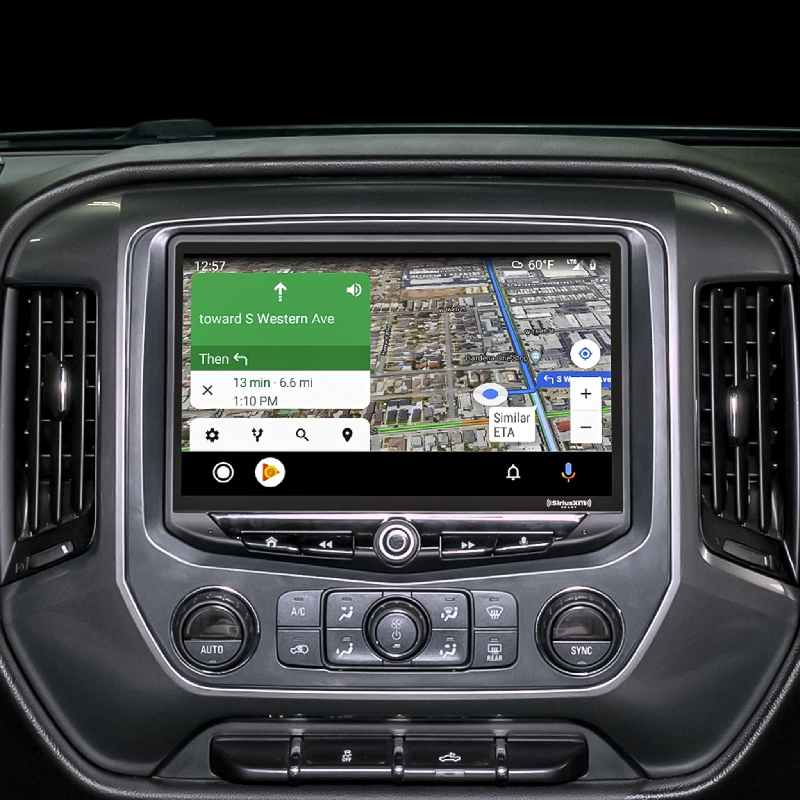

Adds Apple CarPlay & Android Auto
Access your smartphone's music, maps, and hands-free calling easily on your dash.
Plug & Play Installation
Complete plug-n-play system: no vehicle modifications needed!
Flush-fitted To Minimize Vibration & Shaking
The secure mounting system was engineered to hold your HEIGH10 system securely to withstand any bumps, dips while towing or carrying anything in your truck bed.
Features:
- 10-Inch 1024 x 600 HD Digital Touchscreen with 16.7M colors

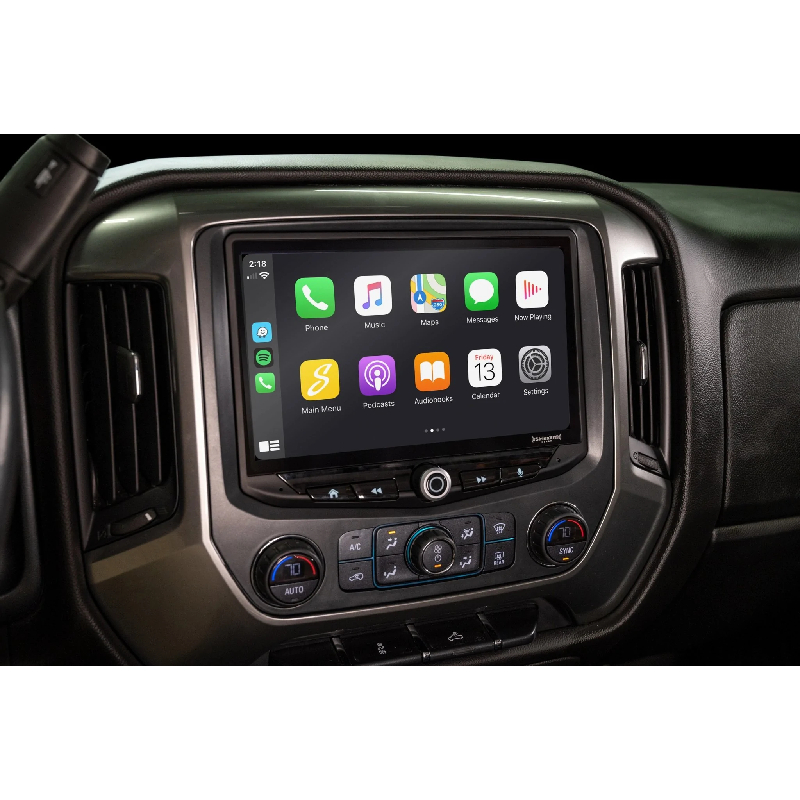

- Apple CarPlay
- Google Android Auto

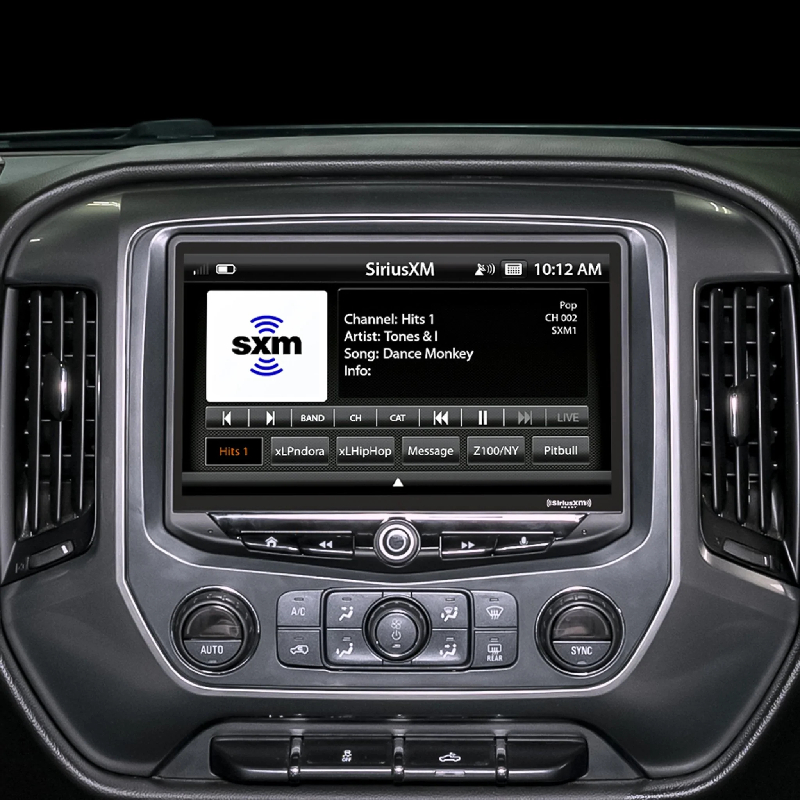

- SiriusXM-Ready with Replay (SiriusXM Connect Vehicle Tuner and Subscription required)
- AM/FM Radio - PTY / RT information
- High power 4 x 50W (peak) built-in amplifier
- 4V 6ch RCA audio outputs with subwoofer control
- Toslink (Optical) Variable Audio Output
- 15 Band Adjustable EQ with 6 user presets
- 1 HDMI rear input
- 2 USB rear inputs 1.5amp output

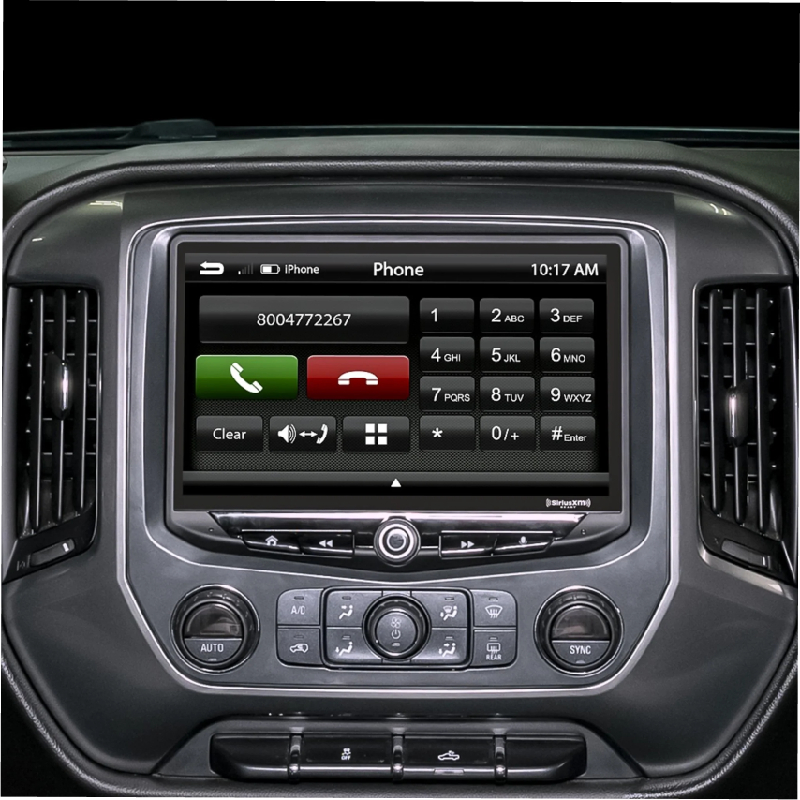

- Handsfree Bluetooth 4.2 A2DP with aptX
- Built-in MicroSD card slot for optional iGO Navigation

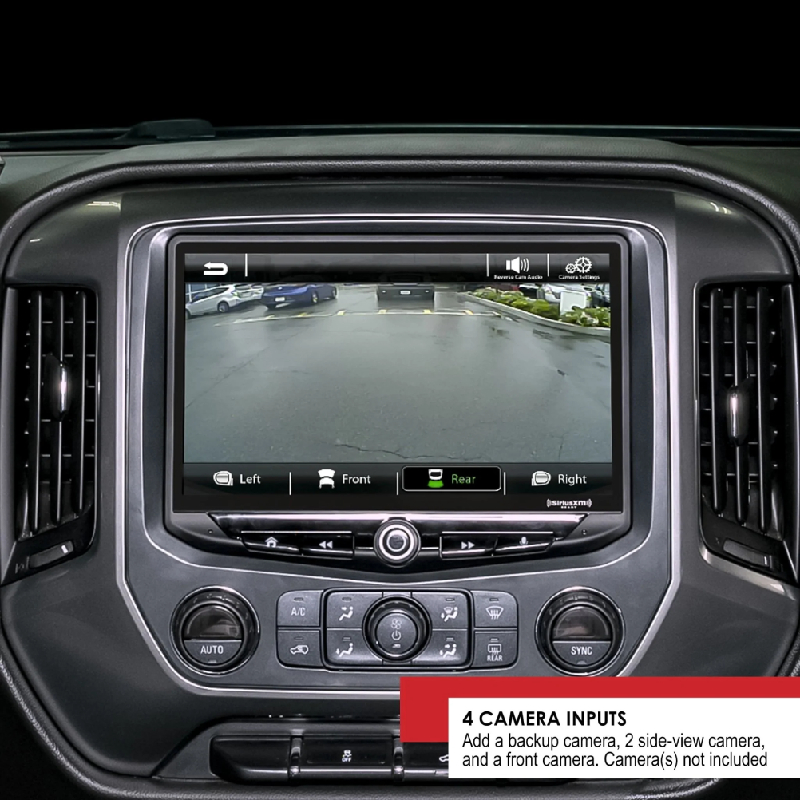

- 4 Camera Video inputs with wired triggers
- Rear camera input with Mic Audio input
- Hardwired remote control ready
- Customizable display backgrounds
- Shallow 1-DIN chassis mounting design
Specifications:
General:
- Operating Voltage: 9.0VDC to 18VDC
- Grounding system; Negative Ground
- Max current consumption: 10A fused
Dimensions:
- Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
- Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)
Display:
- 10-inch Diagonal
- 16:9 aspect ratio
- 1024 x 600
- Pixels: 1,843,200
- Active area 222.72 (W) x 125.28 (H) mm
- Operating Temperature (C) -20° to 70°
Audio:
- Peak power output: 50W x 4ch/4Ω
- Load impedance: 4Ω nominal / 2Ω allowable
- Continuous power output: 25W x 4ch/4Ω 20Hz to 20KHz, 1%THD at 14.4V
- Audio output level (max): 4.0V preout
- EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
- Gain: ±12dB (2dB/step)
- HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
- Slope: 6dB, 12dB, 18dB
Audio (Cont.)
- Subwoofer Preout LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
- Slope: 6dB, 12dB, 18dB
- Gain: -14dB to 7dB (1dB/step)
- Phase: 0 or 180 Speaker level: ±9dB (1dB/step)

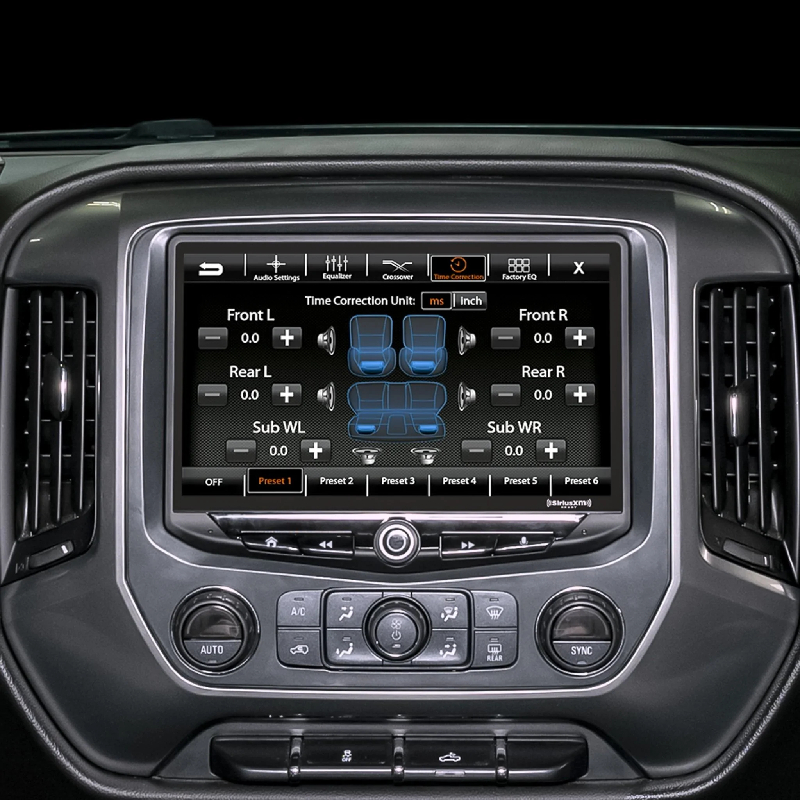

- Time Alignment: 0 to 133 step (inch/ms)
USB:
- USB 2.0
- Max current supply 1.5A
- USB Class: MSC (Mass Storage Class), MTP (Media Transfer Protocol)
- File system: FAT32, NTFS
Bluetooth:
- V4.2 dual
- 4dBm Class2
- 2.4GHz to 2.48GHz
FM Tuner:
- 87.9MHz to 107.9MHz
- Usable sensitive 0dB (mono S/N: 30dB)
- SNR: 65dB
AM Tuner:
- 530KHz to 1710KHz
- Usable sensitive 0dB (mono S/N:20dB)
- SNR: 58dB
Camera(s) Video Inputs
- NTSC OR PAL video formats
HDMI Input
- Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p
Toslink (Optical)
Background Image (User)
- File Format: JPG / PNG
- Resolution: 1024 x 600
- File size is not limited
- UPC: 60909883414
- Weight: 6
