Phoenix Gold RX2400.4 RX 400 Watt 4 Channel Class A/B Amplifier
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Class A/B Topology
- • Small Footprint Chassis Design
- • Robust Unregulated Power Supplies
- • Rotatable Badging for installation flexibility
- • High level Inputs for Easy OEM Integration
- • Audio Precision® Quality Control Verification

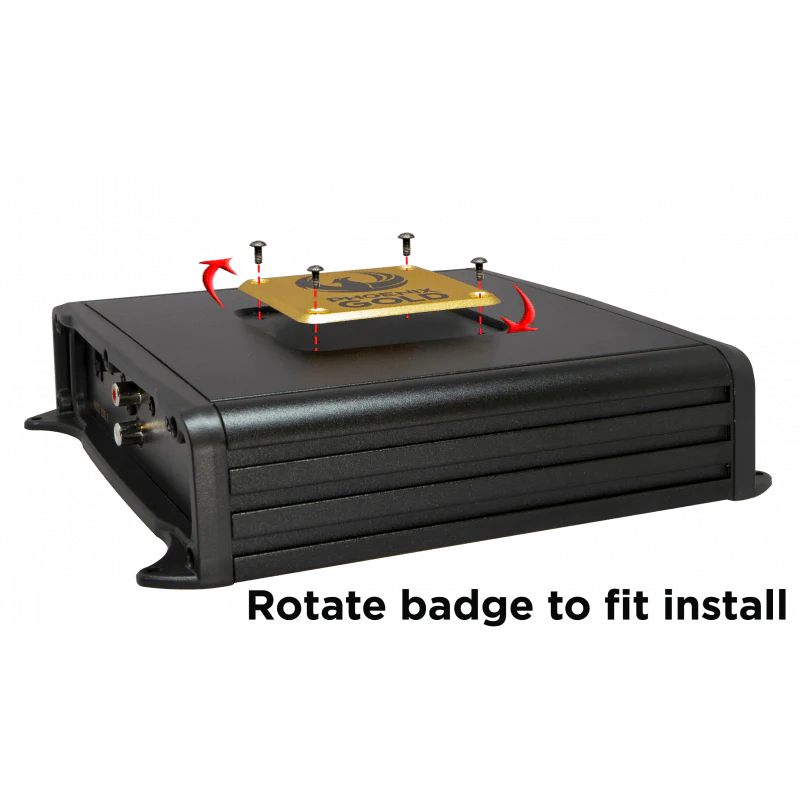

Rotatable Badging for installation flexibility
RX2-series amplifiers are ready to impress with their effortless ability to provide power and clarity while keeping the chassis at a convenient size for any installation. It just made sense that we allow the PG name plate to be removed and turned to match the orientation you might need for your install because we know you're going to want show off your system and make all your friends jealous.
- Maximum Power : 400 Watts
- Low Frequency Response : 10 Hz
- High Frequency Response : 40 Hz
- Number of Channels : 4
- Frequency Response : 10-40 Hz
- Amplifier Class : A/B
- Fuse Rating : 50 A
Features:
- Class A/B Topology
- Small Footprint Chassis Design
- Robust Unregulated Power Supplies
- Rotatable Badging for installation flexibility
- High level Inputs for Easy OEM Integration
- Audio Precision® Quality Control Verification
Specifications
- Number of Channels: 4
- 4Ω: CH 1 - 4 75W x 4
- 2Ω: CH 1 - 4 100W x 4
- 2CH Mode: 1+2 4Ω Bridged & 3+4 4Ω Bridged 200W x 2
- 3CH Mode: 1/2 4Ω Stereo & 3+4 4Ω Bridged 75W x 2 + 200W x 1
- 3CH Mode: 1/2 2Ω Stereo & 3+4 4Ω Bridged 100W x 2 + 200W x1
- Total RMS Power (Sum of rated power): 400W
- Bridgeable: Yes
- Crossover Mode: FULL/HP/LP
- CH 1 - 4 50Hz - 200Hz @ 12dB / Oct Linkwitz Riley
- Input Channels: 4CH F/R, 3 CH FRONT, 2 CH FRONT
- Input Mode: Unbalanced / Balanced
- Processing: Bass Boost 0dB / +6dB / +12dB @45hz
- Input Sensitivity:
- .2v - 6v Unbalanced RCA Low-Level
- .5v - 15v Balanced Hi-Level Harness
- Signal to Noise (@ CEA Standard): >80dB
- Frequency Response: Full Range CH 1 - 4 10Hz - 40kHz
- Topology Class: A/B
- Heatsink Type: Extruded Aluminum
- Cooling Type: Radiation
- Operating Voltage: 8V to 16V
- Switchable Auto-Turn On: No
- Power Supply Type: Unregulated
- Power TerminalS: 4 Gauge
- Speaker Terminal: 10 Gauge
- On Board Fusing: 2 x 30A ATC
- Recommended Inline Fuse: 50A
- Dimensions (L x W x H): 15.74” x 8.11” x 1.98” - 400mm x 206mm x 50.5mm
- UPC: 609098827607
- Weight: 4
